Vollrath 36250 4-Series Signature Server® Serving Counters
Description

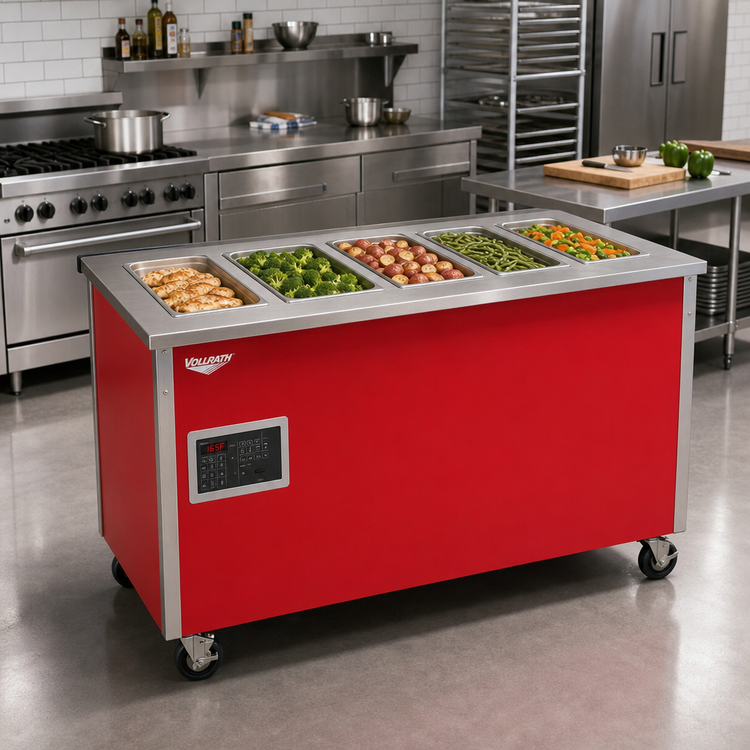

4-Series Signature Server® Hot Food Serving Counter – 5 Well, 74"
Vollrath Item # 36250 · 27" working heightBuilt for high-volume cafeterias, grab-and-go lines, and mobile catering, the Vollrath 4-Series Signature Server® keeps up to five full-size steam-table pans at a precise, food-safe temperature while giving you the rugged durability and flexible style today’s operators demand.
Why You’ll Love It
- 18-gauge 300 series stainless-steel top is a single seamless piece for maximum strength and easy clean-up.

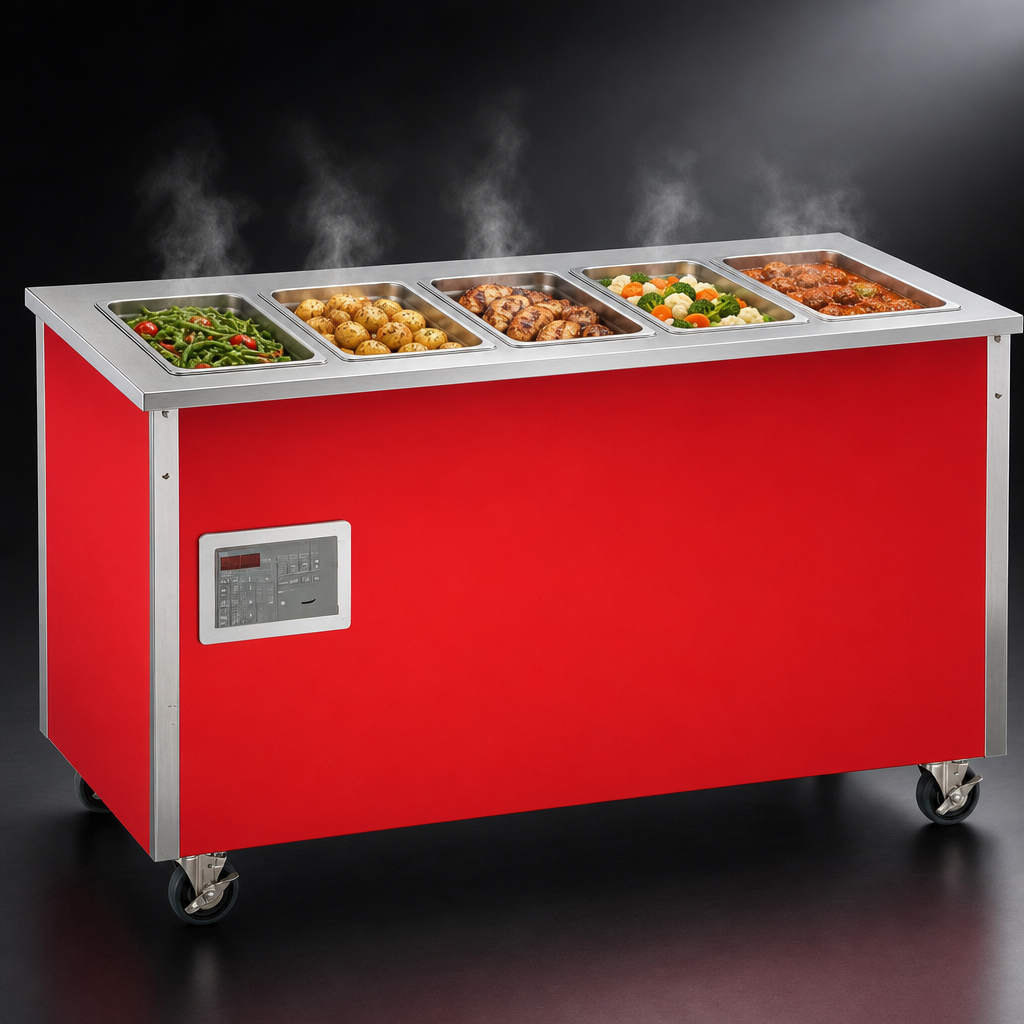

- (5) 12" × 20" × 6-3/8" deep hot wells in 18-gauge 300 series stainless steel, each surrounded by ≥1 ½" high-density fiberglass insulation for superior heat retention.

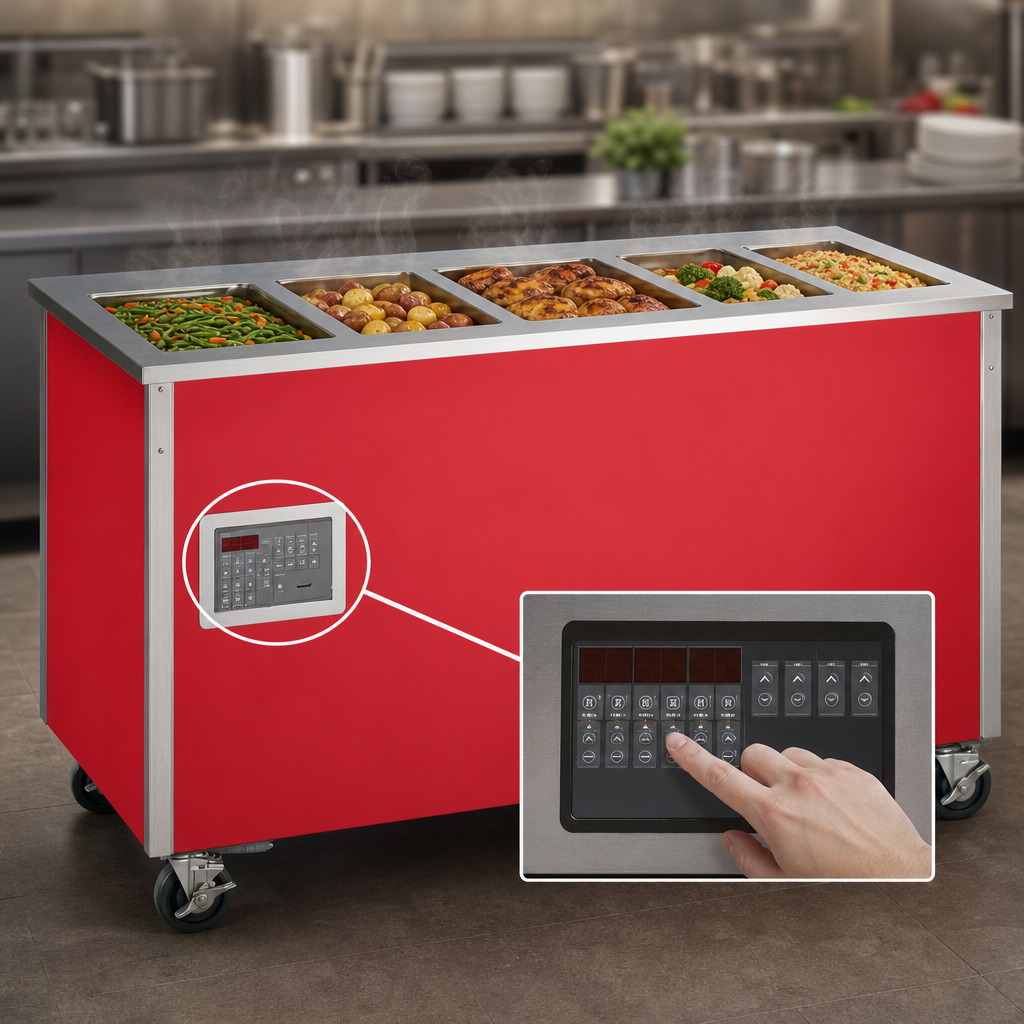

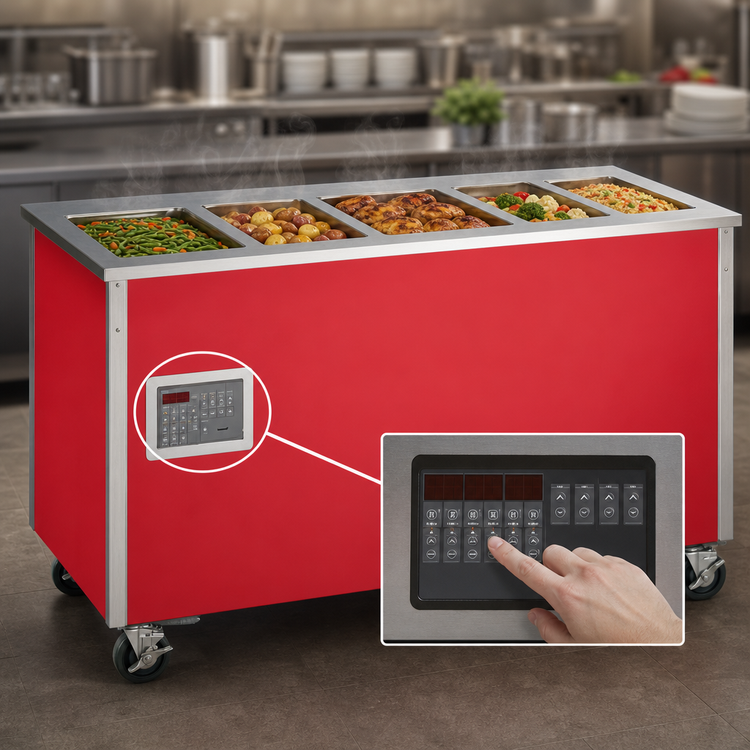

- Individual Touch-Temp® programmable controls—adjust each well independently, switch from warm-hold to rethermalize at the touch of a button.
- Energy-efficient 625 W elements per well (3,125 W total) provide fast recovery without scorching delicate foods.
- Integral manifold drain with pull-out ball-valve and operator-side hose connection makes end-of-service clean-down quick and sanitary.
- Reinforced unibody base fabricated from 18-gauge 400 series stainless steel; black laminate exterior is standard with dozens of color, vinyl-wrap and metal accent options available.
- Four heavy-duty 4" swivel casters (two locking) let one person reposition the counter with ease.
- Ships ready to plug in—8 ft (2.4 m) cord and factory-installed plug included.
- NSF/ANSI 4 listed, cULus certified, and proudly Made in the USA.
At-a-Glance Specifications
| Overall dimensions | 74" W × 28" D × 27" H (188 × 71 × 69 cm) |
|---|---|
| Number / size of wells | 5 full-size 12" × 20" pans, 6-3/8" (162 mm) deep |
| Element wattage | 625 W per well | 3,125 W total |
| Control type | Individual Touch-Temp® microprocessor controls |
| Top material | 18-ga 300 series stainless steel (one-piece) |
| Base construction | 18-ga 400 series stainless steel unibody with laminate panels |
| Drain system | Manifold drains with pull-out ball valve and hose |
| Casters | (4) 4" swivel, 2 locking |
| Electrical | 208–240 V, 1-ph, 15.1 A @ 208 V / 13.1 A @ 240 V, NEMA 6-20P, 8 ft cord* |
| Certifications | NSF/ANSI 4, cULus |
| Country of origin | USA |
*Amp draw and plug configuration shown for base unit with no lighting package. Verify local electrical requirements before installation.
Custom-Build It to Match Your Line
- Progressive, Traditional or Contemporary breath-guards (heated, lighted, or both).
- Laminate, powder-coat or vinyl-wrap body panels in dozens of colors & graphics.
- Tray slides, plate rests, end shelves, and cutting boards (stainless, maple, or poly).
- Toe-kick bases, outlet strips, line-locks and more—contact your Vollrath representative for a tailored quotation.
Warranty & Support
Backed by Vollrath’s standard limited warranty against defects in materials and workmanship. See vollrathfoodservice.com for complete details.
