Vollrath 36245 4-Series Signature Server® Serving Counters
Vollrath 36245 4-Series Signature Server® Serving Counters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36245 4-Series Signature Server® Serving Counters
Description

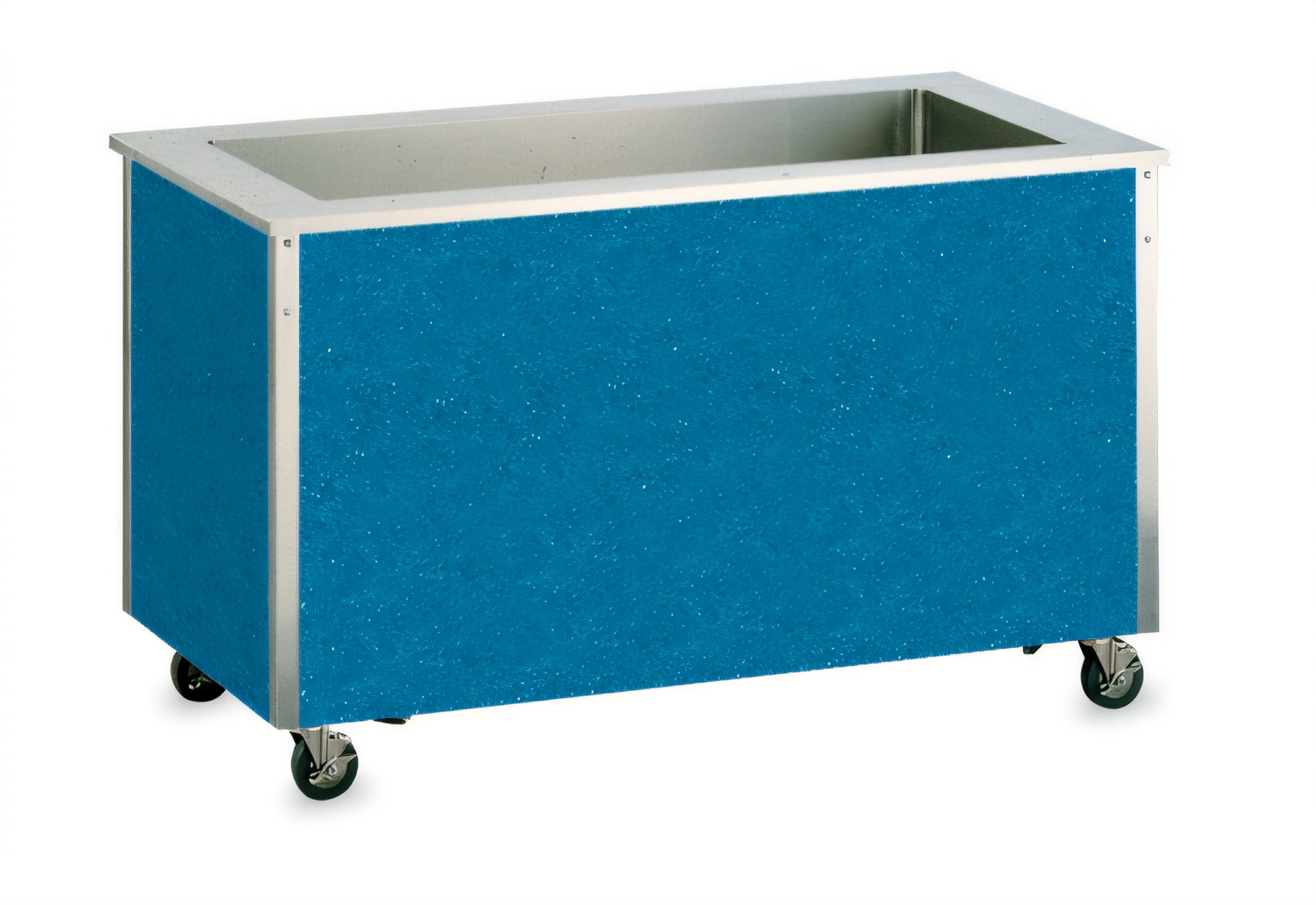

4-Series Signature Server® Cold Food Station

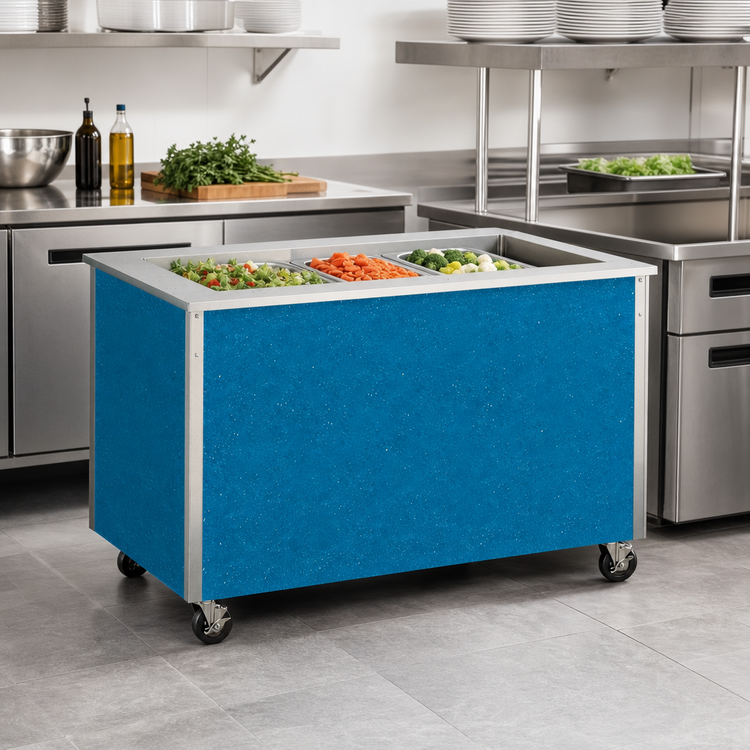

46" W x 28" D x 27" H · Model 36245 · Vollrath®Built for high-volume cafeterias, grab-and-go markets and catered events, the Vollrath 4-Series Signature Server® delivers reliable, energy-efficient cold holding in a compact, mobile footprint. A self-contained ¼ HP refrigeration system with eco-friendly R290 refrigerant keeps up to three full-size pans safely chilled, while the all-stainless construction stands up to the daily rigors of food-service life.
Why You’ll Love It

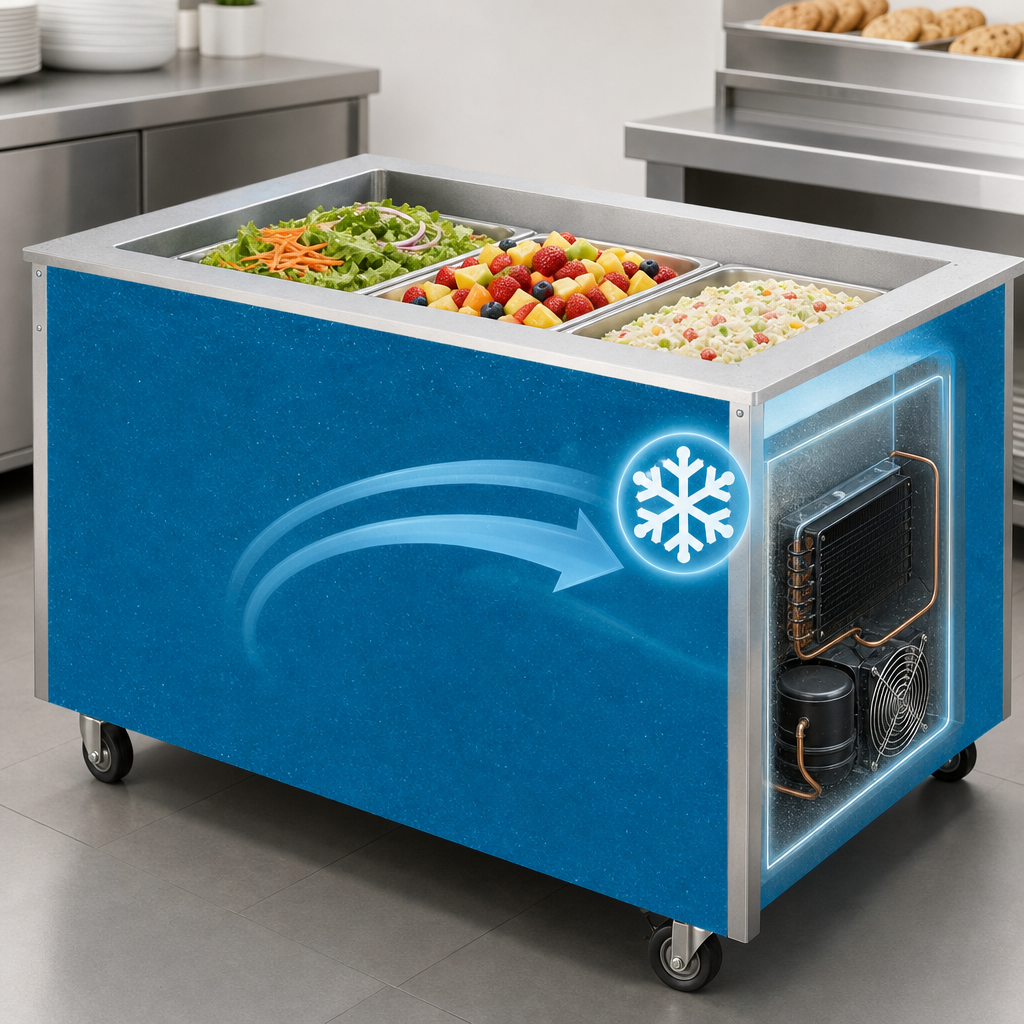

- True plug-and-play refrigeration – factory-charged ¼ HP compressor runs on a standard 120 V, 5-15P outlet (3.2 A).
- Holds three full-size pans in a 19 ⅞" W x 37 ½" L x 8" D stainless steel well with foamed-in-place insulation.
- R290 refrigerant offers lower Global Warming Potential (GWP) and greater efficiency than legacy gases.
- Durable, lightweight frame – 18-gauge 400-series stainless base and one-piece 300-series top.
- Operator-side drain hose & valve keep the customer view clean and simplify cleanup.
- Easy mobility with four 4" swivel casters; two front casters lock for service stability.
- Certified safe – NSF 2 listed for sanitation and cULus electrical certified. Made in the USA.
Technical Specifications
| Exterior dimensions (W × D × H) | 46" × 28" × 27" (117 × 71 × 69 cm) |
|---|---|
| Pan capacity | 3 full-size (12" × 20") pans – pans sold separately |
| Well dimensions | 19 ⅞" × 37 ½" × 8" deep (50.5 × 95.3 × 20.3 cm) |
| Refrigeration | Self-contained, ¼ HP hermetic compressor, R290 |
| Electrical | 120 V / 60 Hz / 1-ph · 3.2 A · NEMA 5-15P cord & plug (8 ft) |
| Construction | 18-ga 400-series stainless base, 300-series stainless well & top |
| Mobility | 4" locking swivel casters |
| Listings | NSF 2, cULus, Made in USA |
| Warranty | 5 yr compressor / 1 yr parts & labor (see Vollrath policy) |
Installation & Operating Tips
- Maintain at least 3" of clearance in front of the ventilation grille for unobstructed airflow.
- Avoid placing the unit beneath HVAC vents or in direct drafts to ensure consistent holding temps.
- Do not modify the factory cord or plug; alteration voids warranty.
- Empty and wipe the well daily; use the convenient drain hose located on the operator side.
Questions about options such as breath guards, tray slides or custom laminate wraps? Contact your Vollrath representative for details.
