Vollrath  |  4-Series Signature Server®  |  SKU: 36243

Vollrath 36243 4-Series Signature Server® Serving Counters

$3,399.54
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Owner's manual Warranty sheet
Related Searches
Food Bars & Buffets Food Wells & Serving Lines Hot and Cold Buffet Station Restaurant Equipment Serving & Display Equipment Serving Counters

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

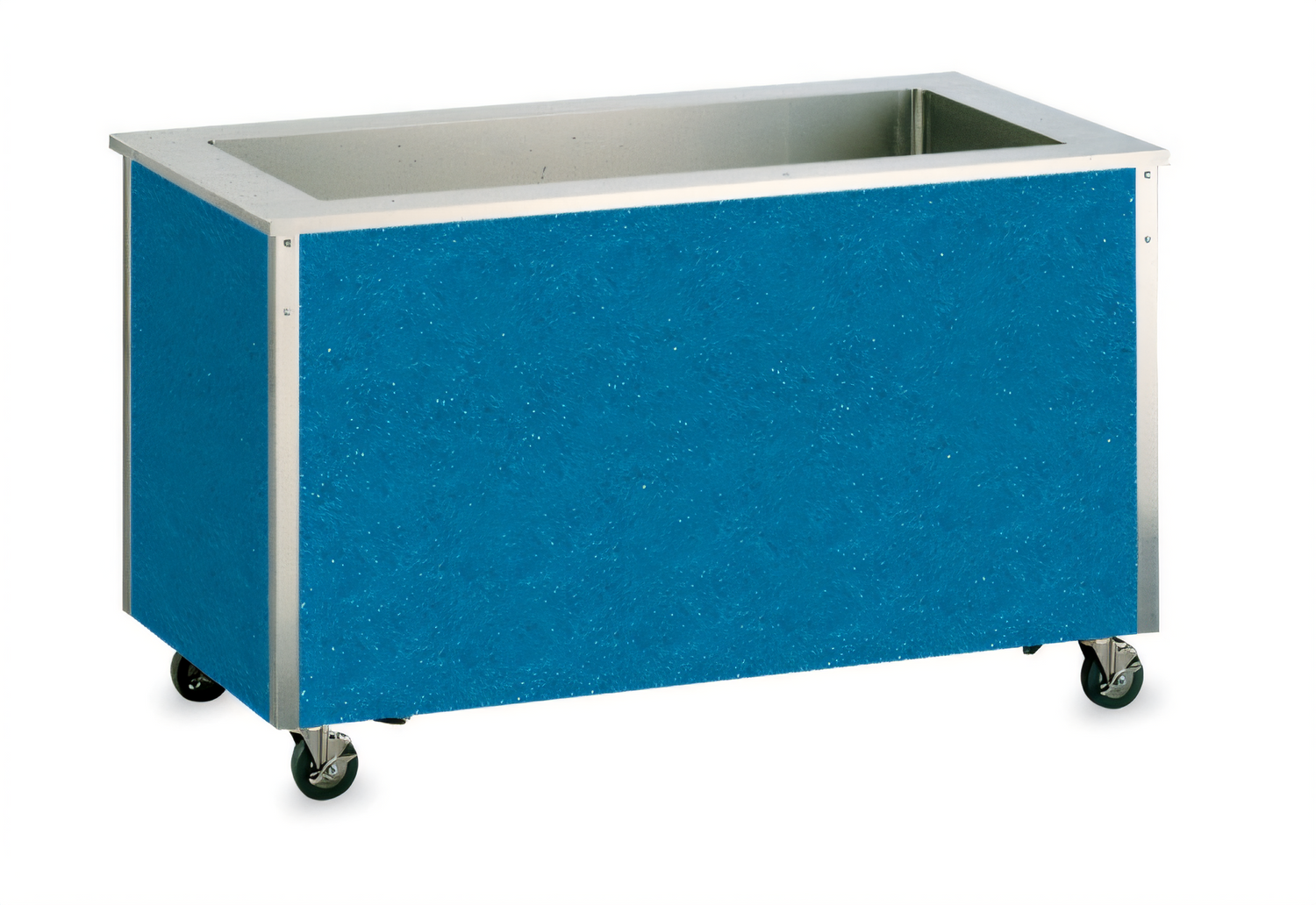

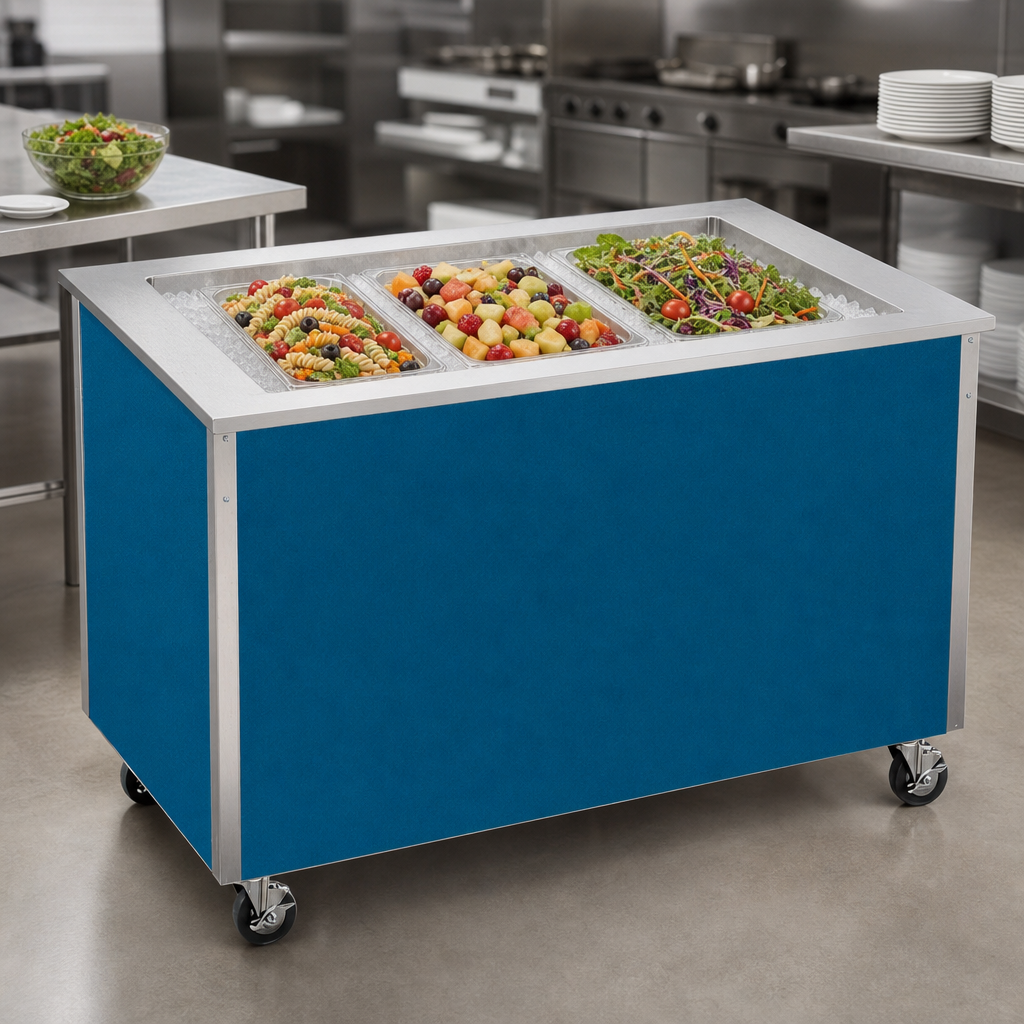

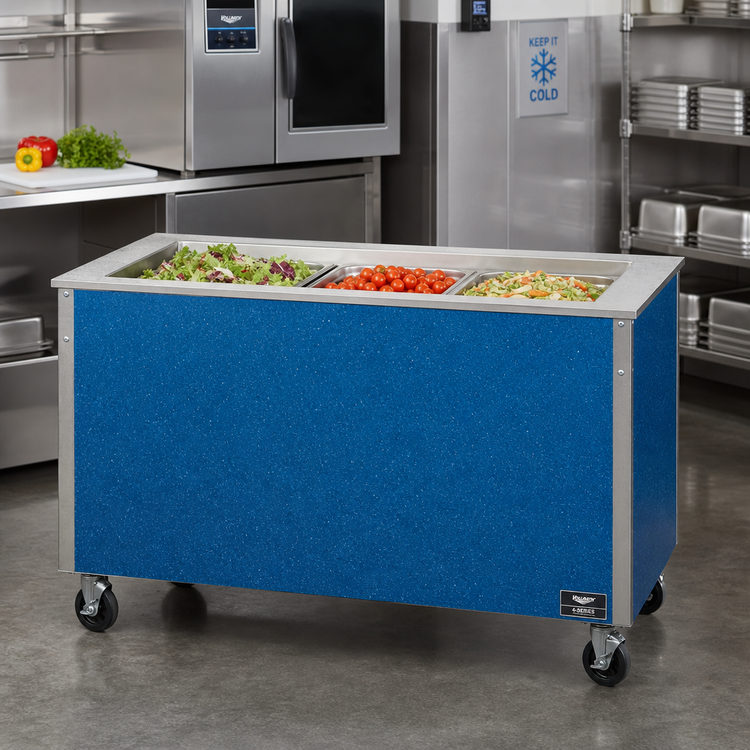

4-Series Signature Server® Cold Food Station – 46″ Ice-Cooled, Stainless Steel

Model 36245 | Vollrath | Made in USA

Give your self-service line a professional edge with the Vollrath 4-Series Signature Server®. This low-profile (27″ H) unit combines rugged stainless-steel construction with an ice-cooled, foam-insulated well to keep salads, desserts, cold entrées and grab-and-go items perfectly chilled and ready for service.

Why you’ll love it

  • 8″-deep 300-series stainless well holds three full-size 12″ × 20″ pans (or fractional equivalents).
  • Pitched bottom plus operator-side drain hose & valve make ice melt removal quick and tidy.
  • 1/4 hp self-contained system uses eco-friendly R290 refrigerant for efficient cooling with a lower GWP.
  • Foamed-in-place polyurethane insulation maintains food-safe temperatures longer.
  • One-piece 18-ga stainless countertop and 18-ga 400-series base stand up to busy commercial use.
  • (4) 4″ swivel casters—two with brakes—provide smooth mobility and rock-solid stability.
  • 8 ft power cord with NEMA 5-15P plug; simply roll into place and plug in.
  • NSF 2 & cULus listed for sanitation and electrical safety.

Technical specifications

Overall dimensions 46″ W × 28″ D × 27″ H (117 × 71 × 69 cm)
Well interior 19 7⁄8″ W × 37 1⁄2″ L × 8″ D
Pan capacity (3) full-size 12″ × 20″ pans | 6″ max depth
Compressor 1/4 hp, self-contained
Refrigerant / charge R290 | 60 g
Electrical 120 V / 60 Hz / 3.2 A | NEMA 5-15P
Mobility (4) 4″ swivel casters (2 locking)
Base style Enclosed, modular
Certifications NSF 2, cULus
Origin United States

Perfect for

  • Salad bars & deli lines
  • K-12 & higher-ed cafeterias
  • Corporate & healthcare dining
  • Catering and banquet service
Important: Signature Server® units are built to order and cannot be returned. Maintain a minimum 3″ clearance in front of ventilation panels for proper airflow. Refer to Vollrath’s full warranty details at vollrathfoodservice.com.

Need breath guards, tray slides, custom colors or extended warranty? Contact your Vollrath representative for available options.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

NSF, cULus, Made in USA

Height

27.0in

Width

46.0in

Depth

28.0in

Shipping Weight

300.0lbs

Mobile or Stationary

mobile

Cooling Type

ice cooled

Base Construction

vinyl covered steel

Working Height

27"

Base Design

fully enclosed

Overall Width (side - side)

43" - 48"

Top Construction

stainless steel top

Base Finish

specify

Pan Capacity

(3) pan

Specifications

4-Series Signature Server® Stainless Steel Countertop with Cold Food Station, ice-cooled, 46"W x 28"D x 27"H, modular, enclosed base, with stainless steel 19-7/8" x 37-1/2" x 8" deep top well, 3-pan size, pitched well for draining, 1/4 hp, 120v, NEMA 5-15P, Made in USA, NSF, cULus (Refer to vollrathfoodservice.com for full warranty policy)
