Vollrath 36176 4-Series Signature Server® Serving Counters
Description

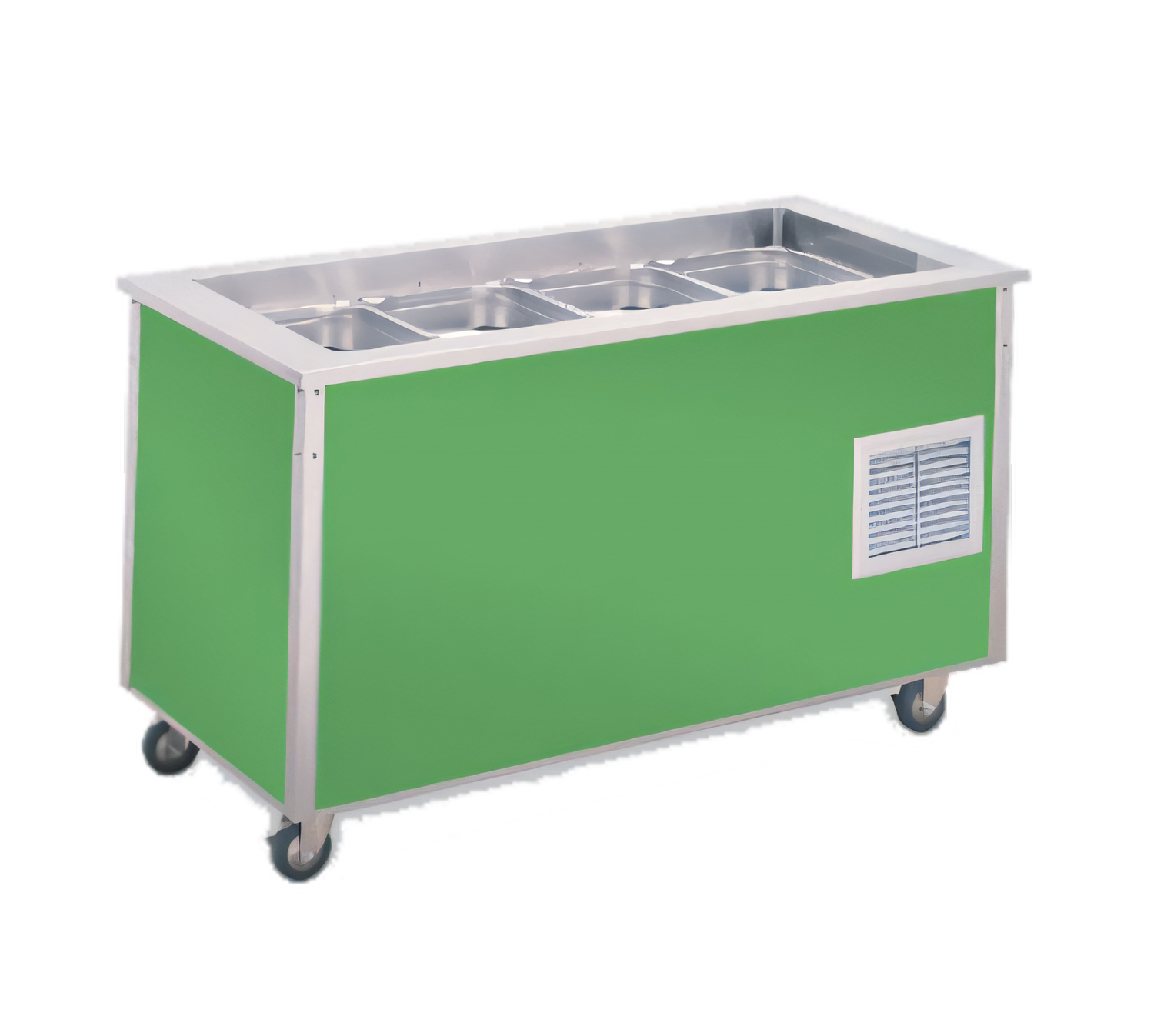

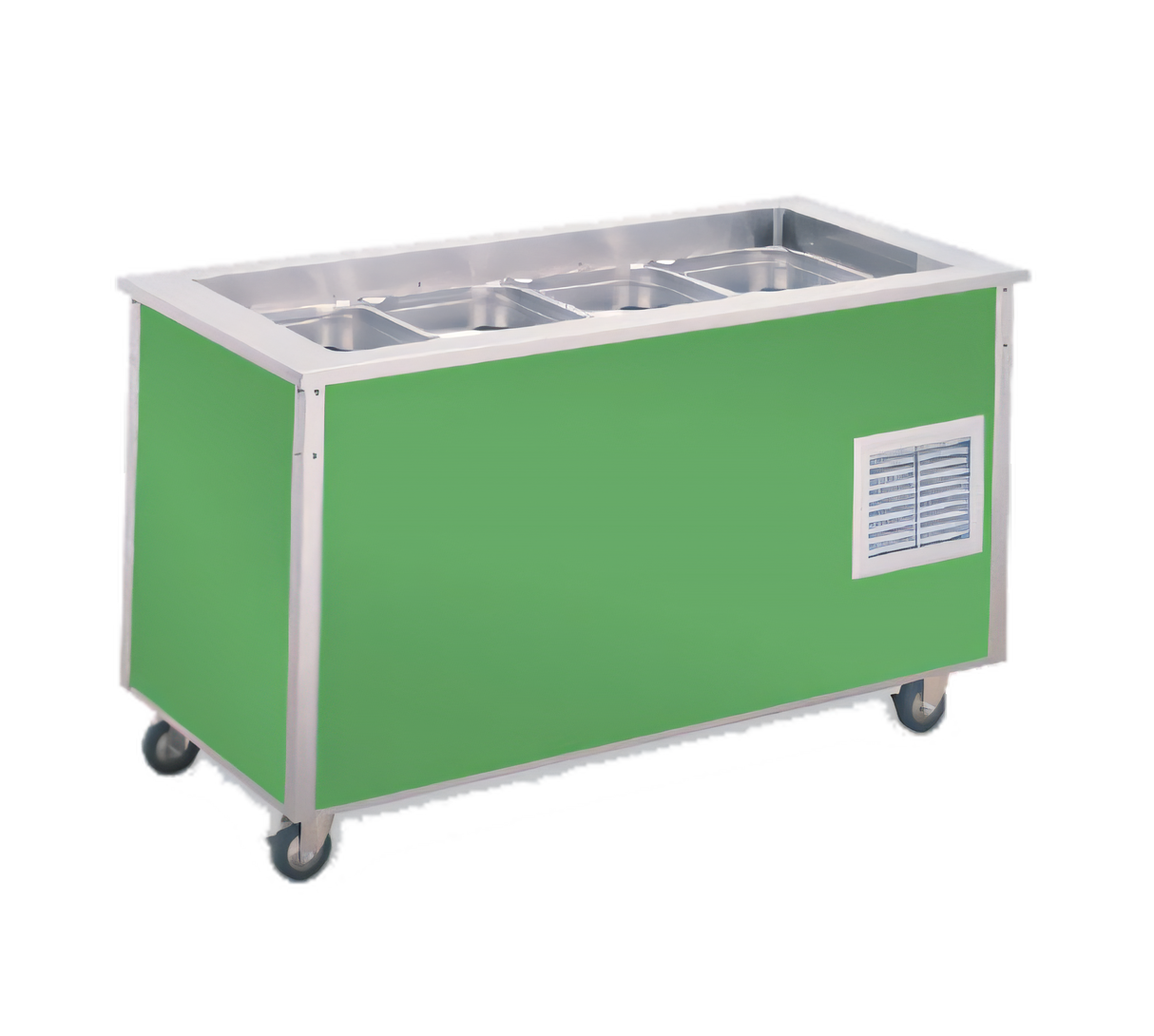

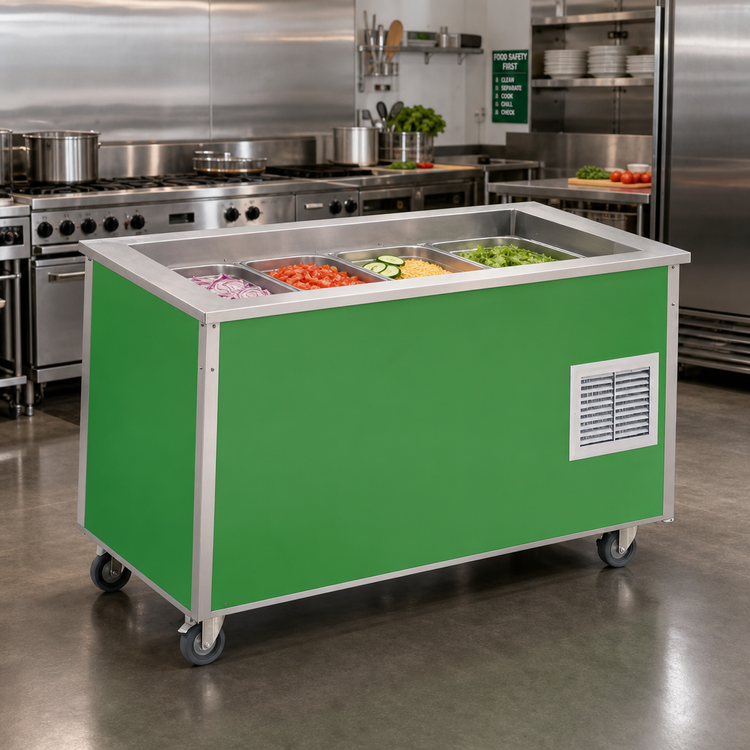

4-Series Signature Server® Cold Station – 74" Stainless Steel Countertop
NSF7 self-contained refrigerated unit with Bloomington-style recessed wellKeep salad, deli, and grab-n-go items cold and enticing in high-traffic serving lines. This 30-inch-high 4-Series Signature Server® delivers rock-solid Vollrath performance, rugged stainless construction, and energy-efficient R290 refrigeration – all in a mobile, made-in-USA package that drops effortlessly into any cafeteria or marketplace concept.
Why You’ll Love It
- NSF7 open-top cold station maintains 41 °F (5 °C) or below for food-safe holding.
- Bloomington-style recessed well positions pans 3" (7.6 cm) below the counter to shield product from ambient air.
- Seamless 300-series stainless well and one-piece top clean up fast and resist corrosion.
- 18-ga 400-series stainless base is lightweight, durable, and ready for daily transport.
- Eco-friendly R290 refrigerant and foamed-in-place polyurethane insulation maximize efficiency.

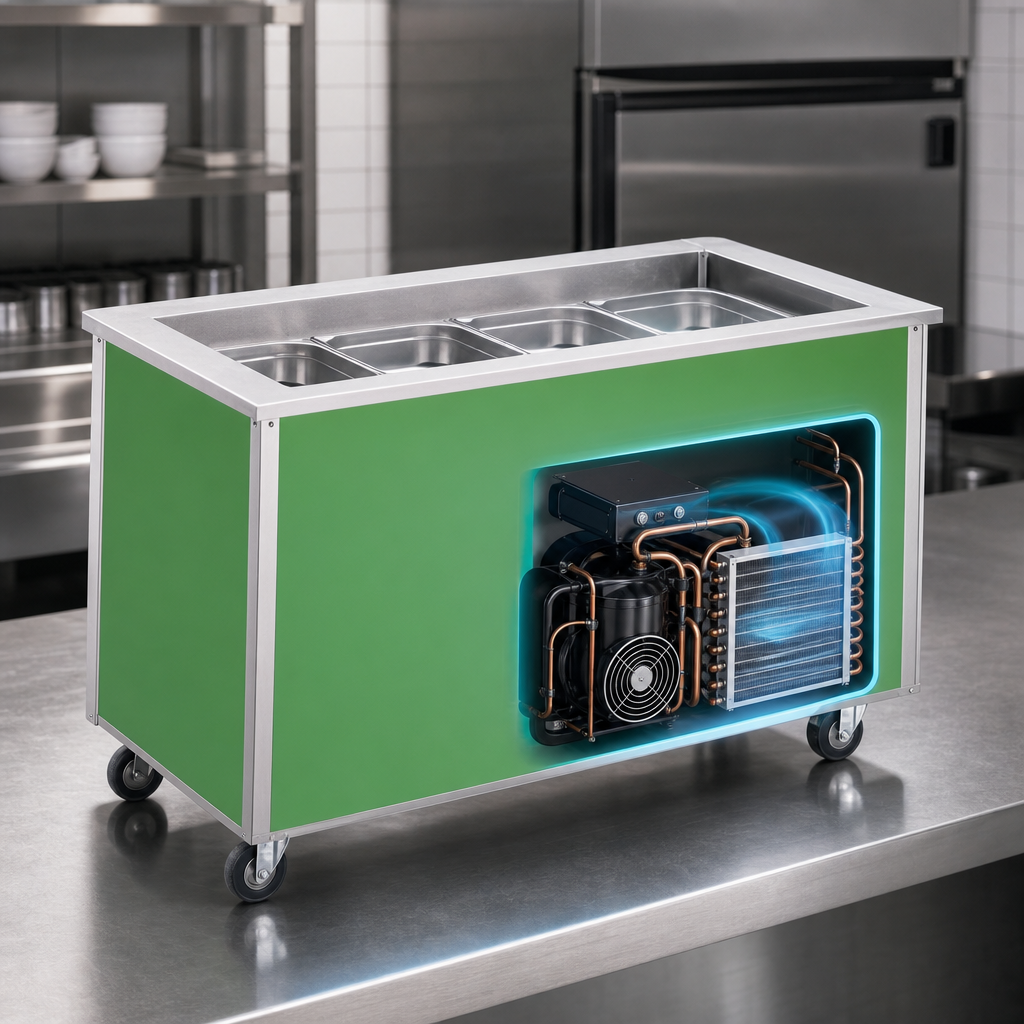

- Refrigeration coils surround the sidewalls for even, consistent chilling.
- Holds standard 6" (15.2 cm) deep full or fractional pans (pans not included).
- 1" integral drain with operator-side hose & valve speeds tear-down while keeping the customer side pristine.
- 4" swivel casters with brakes provide stable mobility for cleaning or re-configuration.
- 8 ft (2.4 m) cord and NEMA 5-15P plug – no remote compressor needed.
- cULus listed, NSF certified, and proudly made in Sheboygan, Wisconsin USA.
Technical Specs
| Exterior dimensions | 74" W × 28" D × 30" H (188 × 71 × 76 cm) |
|---|---|
| Well opening | 63" W × 19-7/8" D × 6-5/8" H (160.0 × 50.5 × 16.8 cm) |
| Pan capacity | Accepts 6" deep pans in full & fractional sizes |
| Compressor | 1/3 HP, self-contained |
| Refrigerant | R290, 7 oz charge |
| Electrical | 120 V / 60 Hz / 1-ph, 7.2 A, NEMA 5-15P |
| Certifications | NSF 7, cULus |
| Country of origin | USA |
Use in ambient temperatures above 86 °F (30 °C) or altering factory-set refrigeration parameters will remove NSF compliance and may void the warranty.
For complete warranty terms, please visit vollrathfoodservice.com.
