Vollrath 36175 4-Series Signature Server® Serving Counters
Description
Vollrath 4-Series Signature Server® Cold Food Station – 74 in.
Self-Contained Refrigerated • Stainless Steel Countertop • 5-Pan • 30 in. HighElevate your serving line with Vollrath’s 4-Series Signature Server® cold food station. Engineered for durability, efficiency and mobility, this 74-inch, USA-made unit delivers reliable 33–41 °F holding temperatures without the mess of ice or the headache of remote refrigeration.
Key Features

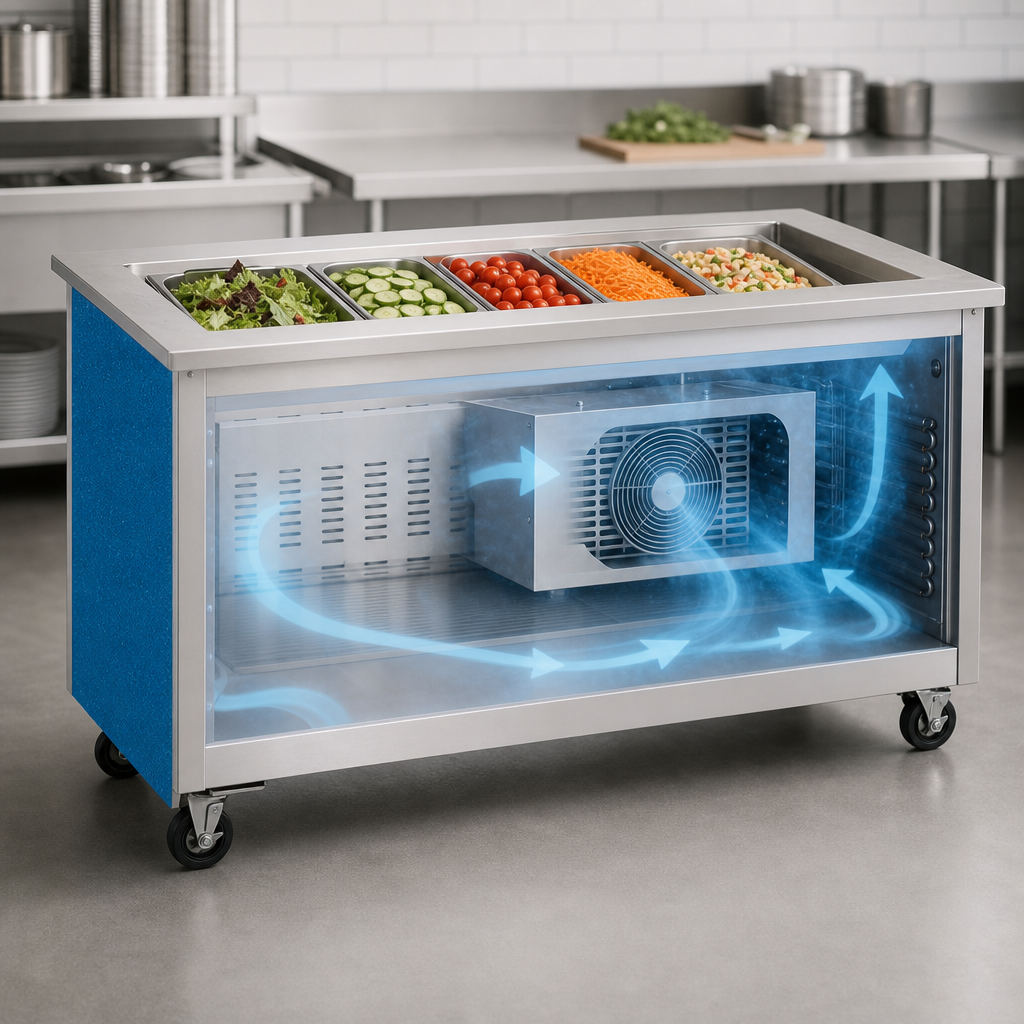

- Self-contained 1/3 HP refrigeration system charged with eco-friendly R290 refrigerant.
- Spacious 63 × 19-7/8 × 8 in. stainless well accommodates five full-size (12 × 20 in.) pans or fractional equivalents.
- Foamed-in-place polyurethane insulation maximizes cold retention and lowers energy use.
- One-piece 300-series stainless steel top and 18-ga 400-series base stand up to daily commercial abuse.
- Operator-side drain hose with shut-off valve keeps the customer side clean and speeds end-of-day cleanup.
- All-swivel 4 in. casters (two braking) for easy roll-in placement and thorough floor sanitation.
- 8 ft cord with NEMA 5-15P plug—simply plug into any 120 V outlet (6 A draw).
- Part of the modular Signature Server® line; pairs seamlessly with matching hot, beverage, utility and cashier stations.
- NSF/ANSI 2 listed, cULus certified and proudly Made in the USA.
Specifications
| Description | Self-contained refrigerated cold food station |
|---|---|
| Overall dimensions (W × D × H) | 74 × 28 × 30 in. (188 × 71 × 76 cm) |
| Well dimensions | 63 × 19-7/8 × 8 in. (160 × 50 × 20 cm) |
| Pan capacity | 5 full-size 12 × 20 in. pans |
| Compressor | 1/3 HP, hermetically sealed |
| Refrigerant | R290, 60 g charge |
| Heat rejection | ≈ 4 800 BTU/h |
| Electrical | 120 V / 60 Hz / 1-phase, 6 A |
| Plug | NEMA 5-15P (8 ft cord included) |
| Mobility | (4) 4 in. swivel casters, 2 locking |
| Construction | 18-ga 400-series stainless base; 300-series stainless well & top |
| Certifications | NSF/ANSI 2, cULus |
| Origin | Sheboygan, Wisconsin, USA |
Ideal Applications
- School & university cafeterias
- Healthcare tray lines
- Hotel breakfast buffets
- Corporate dining & catering
Compressor carries a 5-year parts warranty. For complete warranty terms, visit vollrathfoodservice.com. Modifying the electrical cord or refrigeration parameters may void the warranty.
