Vollrath 36166 4-Series Signature Server® Serving Counters
Description

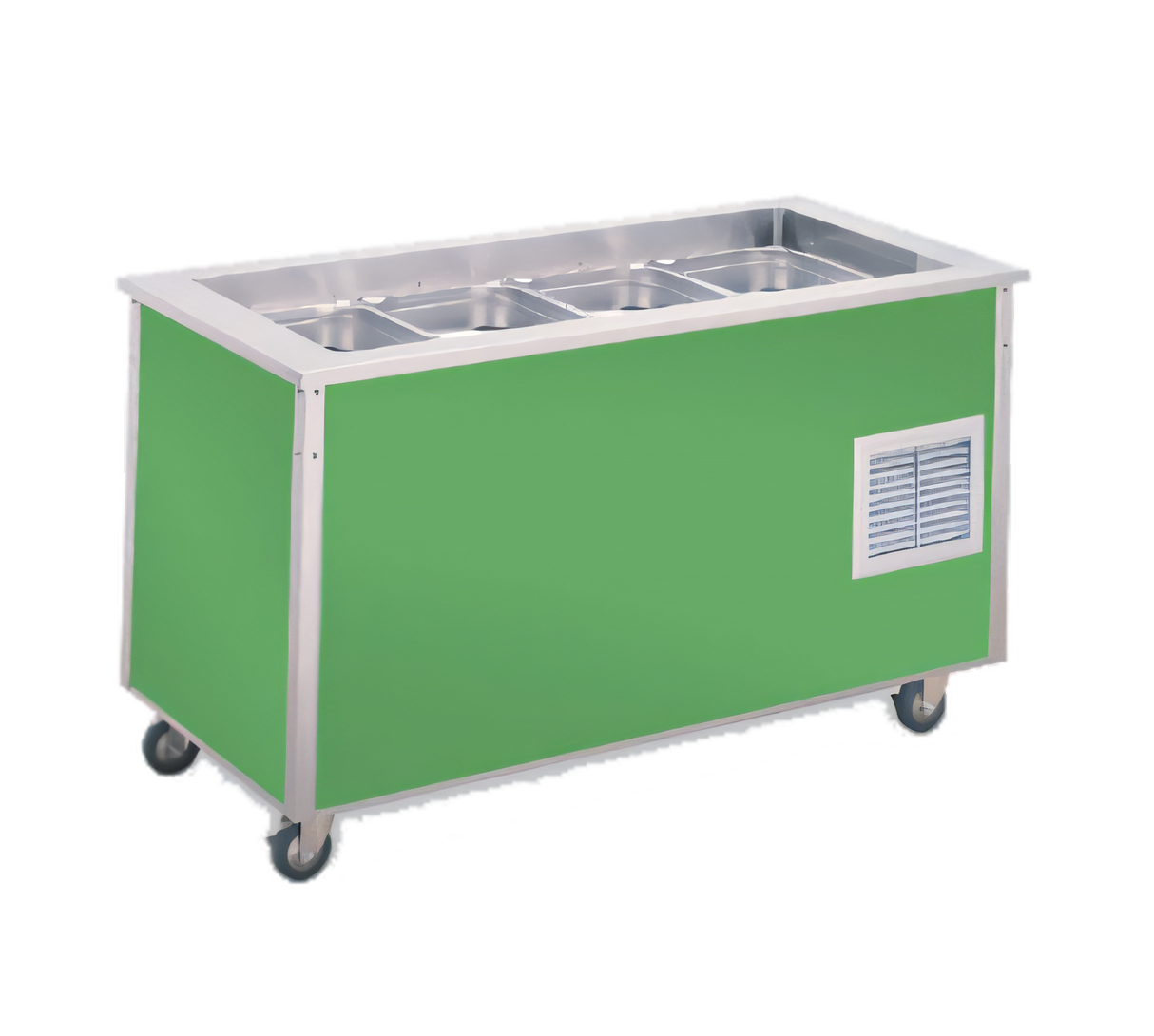

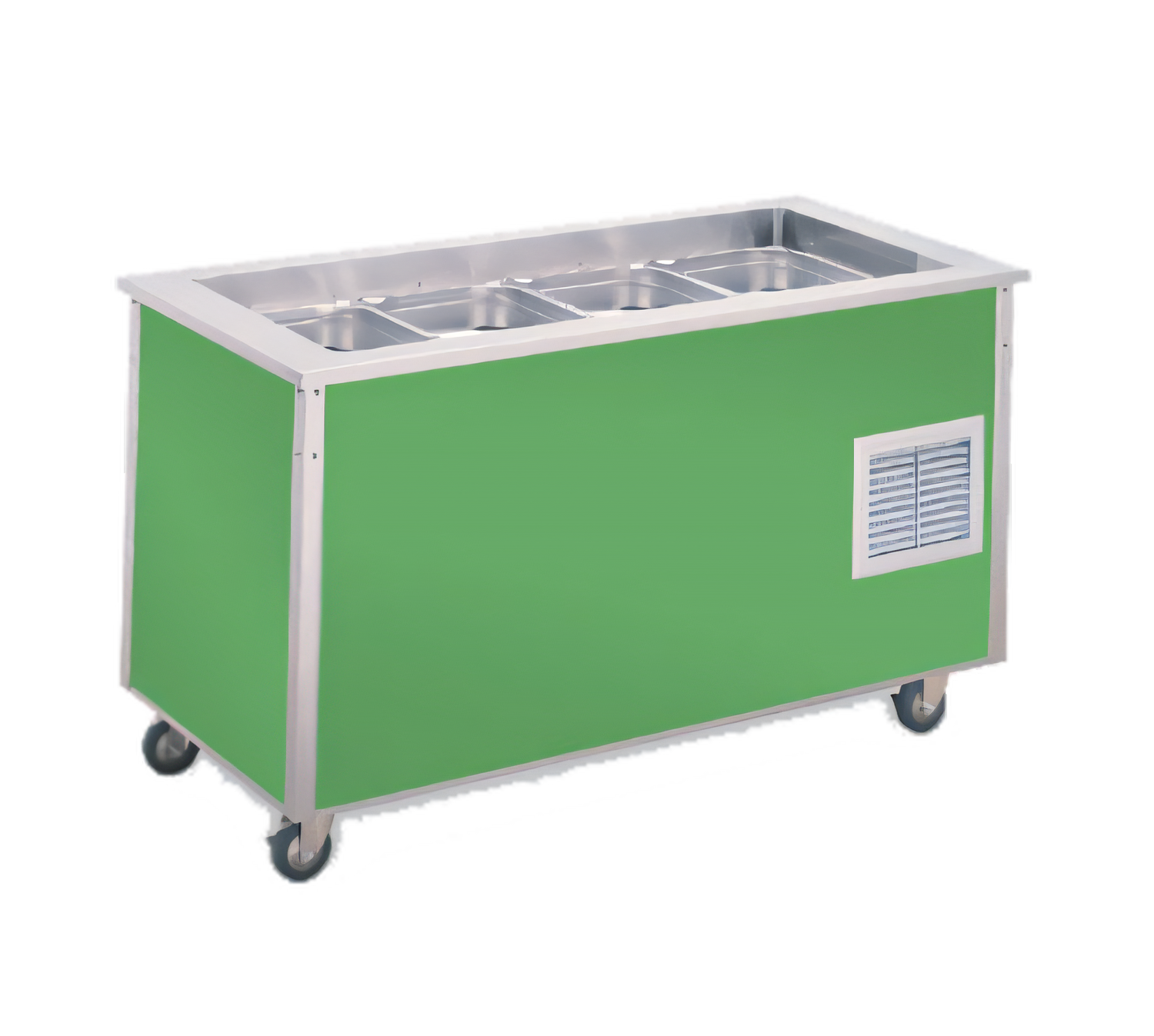

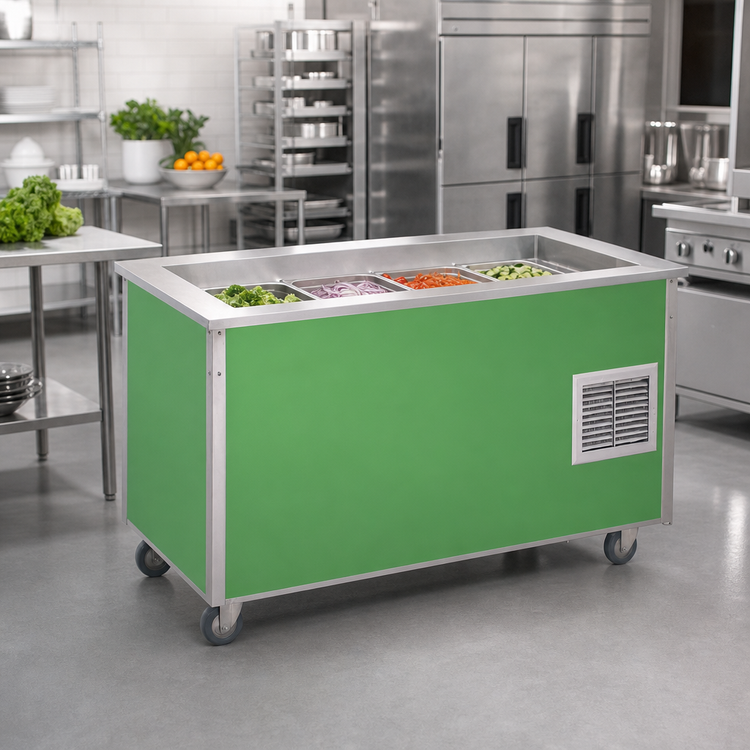

4-Series Signature Server® NSF7 Cold Station – 60" Countertop
Model 36166 • Self-contained refrigeration • Made in USAGive guests a fresh, chilled presentation while your staff enjoys plug-and-play convenience. The Vollrath 4-Series Signature Server® Cold Station combines rugged stainless-steel construction with energy-efficient R290 refrigeration to keep up to four full-size pans of salad, fruit or grab-and-go items safely below 41 °F – even in busy service lines.
Why you’ll love it
- NSF 7 listed for open-top, refrigerated buffet service.
- Bloomington-style recessed well holds pans 3" below the work surface, protecting food with a cold-air curtain.
- Seamless 300-series stainless well surrounds pans with refrigeration coils for even chilling.
- Accepts (4) full-size, 6"-deep steam-table pans (or fractional equivalents) – pans not included.
- Foamed-in-place polyurethane insulation maximizes efficiency and minimizes condensation.
- 1" integral drain with operator-side hose and valve speeds clean-up.
- Durable 18-ga 400-series stainless base & one-piece countertop stand up to daily wear.

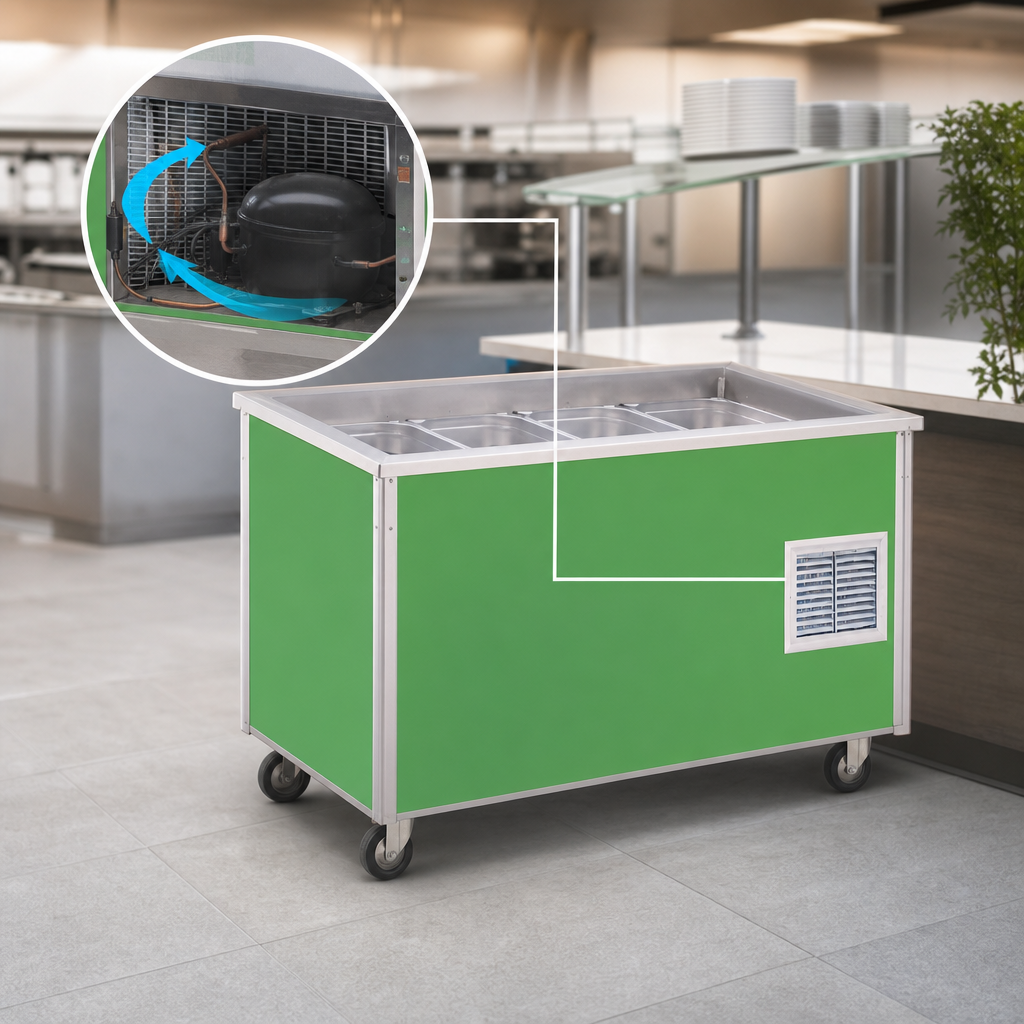

- Quiet, self-contained ¼ HP compressor uses eco-friendly R290 refrigerant.
- 8 ft (2.4 m) cord with NEMA 5-15P plug – no hard-wiring required.
- 4" swivel casters with brakes provide easy mobility and stable serving.
- cULus & NSF certified; built and assembled in Sheboygan, Wisconsin.
Technical specifications
| Model / Item # | 36166 | 4-Series Signature Server® Cold Station |
|---|---|
| Exterior dimensions | 60"W × 28"D × 30"H (152.4 × 71.1 × 76.2 cm) |
| Display pan opening | 50 ¼"W × 19 ⅞"D × 6 ⅝" deep |
| Pan capacity | (4) full-size 12"×20" pans, up to 6" deep |
| Refrigeration | Self-contained, ¼ HP compressor, R290 refrigerant |
| Electrical | 120 V / 60 Hz / 1-Ph, 5.2 A, NEMA 5-15P |
| Certifications | NSF 7, cULus |
| Cord length | 8 ft (2.4 m) |
| Drain | 1" integral with hose & valve (operator side) |
| Casters | 4" swivel, two with brakes |
| Construction | 18-ga 400-series stainless base; 300-series seamless well & top |
One-year limited parts & labor warranty plus five-year compressor coverage. See the complete policy at vollrathfoodservice.com.
