Vollrath  |  4-Series Signature Server®  |  SKU: 36165

Vollrath 36165 4-Series Signature Server® Serving Counters

$6,390.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

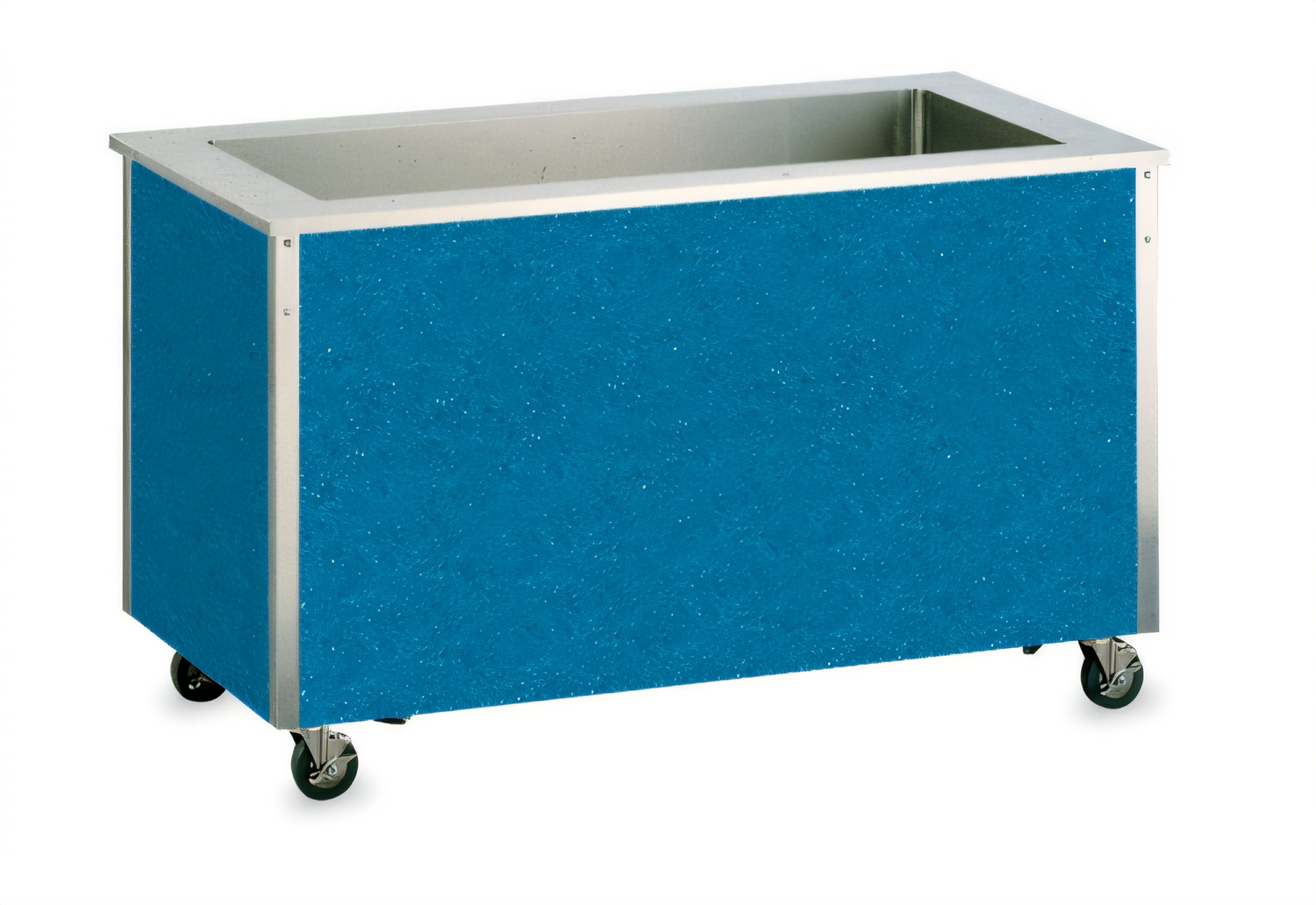

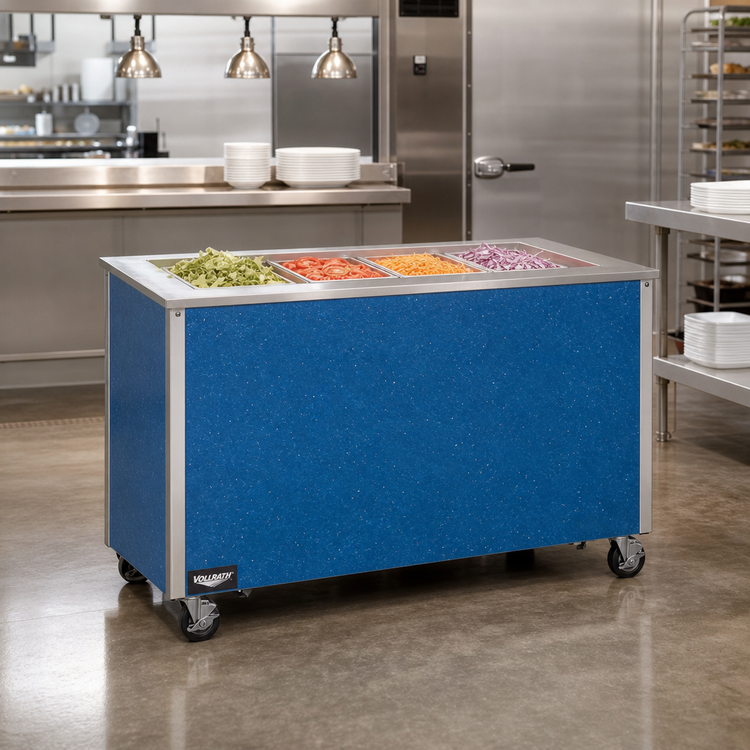

Vollrath 4-Series Signature Server® Cold Food Station – 60"

Stainless Steel Countertop • Self-Contained Refrigeration • 4-Pan Capacity

Keep salads, desserts and grab-n-go favorites safely chilled and beautifully displayed with the 4-Series Signature Server® Cold Food Station. Built on Vollrath’s proven mobile base, this 60-inch model combines heavy-duty stainless construction with energy-efficient R290 refrigeration—perfect for cafeterias, catering lines and corporate dining rooms that demand reliable performance and polished presentation.

Why You’ll Love It

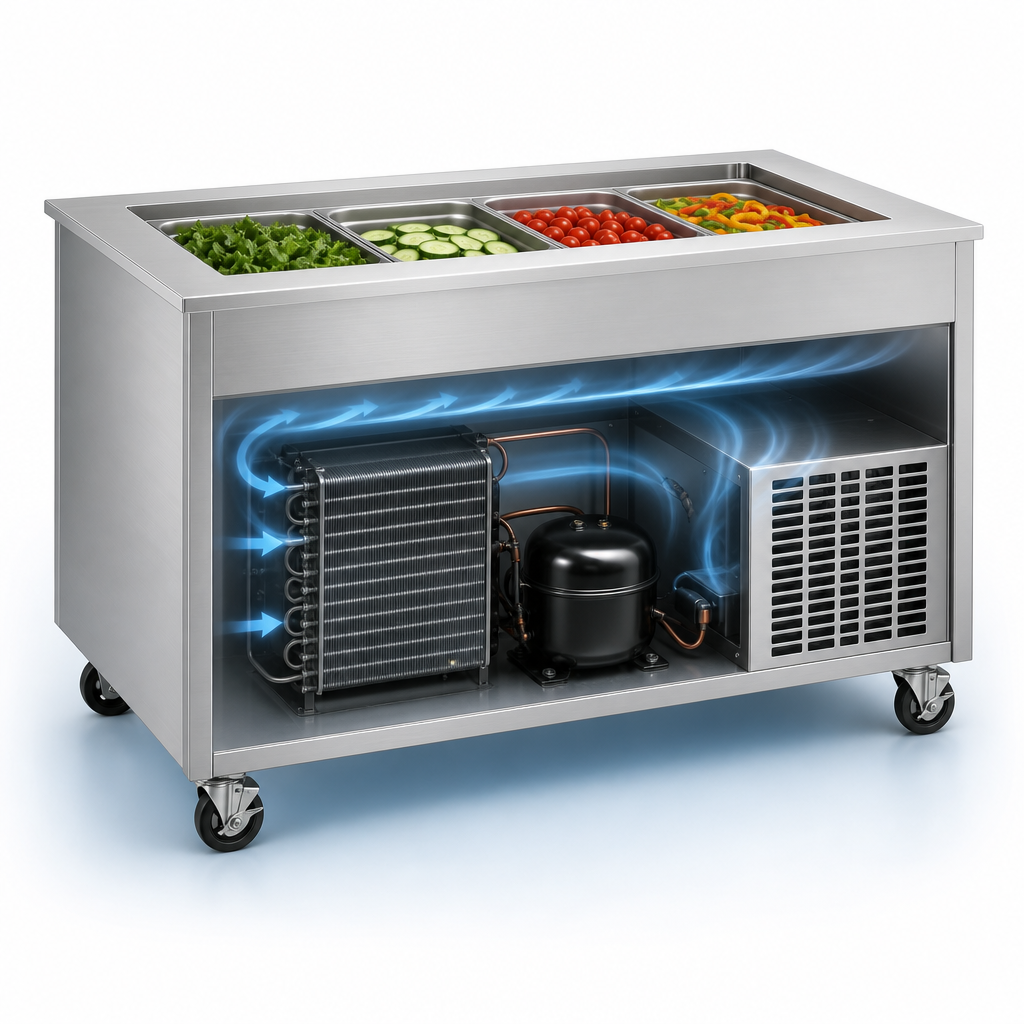

  • Self-contained 1/4 hp refrigeration system uses eco-friendly R290 refrigerant for a lower global-warming potential.
  • Foamed-in-place polyurethane insulation surrounds the well, holding < 41 °F (5 °C) with less compressor run time.
  • One-piece 300-series stainless steel top with a 50 1/4" W × 19 7/8" D × 8" H well fits four full-size 12" × 20" pans (or fractional equivalents).
  • 18-ga 400-series stainless base is lightweight, dent-resistant and fully enclosed for a clean, professional look.
  • Operator-side drain hose and valve speed up end-of-day clean-up—no more lugging heavy pans of melt water.
  • 4" swivel casters (two locking) roll effortlessly and lock firmly in place during service.
  • 8 ft (2.4 m) cord with NEMA 5-15P plug—just roll it in, plug it in and start chilling.
  • NSF/ANSI 2 listed for sanitation and cULus listed for electrical safety; proudly made in the USA.

Technical Specifications

Footprint 60" W × 28" D × 30" H (152 × 71 × 76 cm)
Well Dimensions 50 1/4" W × 19 7/8" D × 8" H (127.6 × 50.5 × 20.3 cm)
Pan Capacity 4 full-size 12" × 20" pans (6" max depth) or fractional equivalents
Refrigeration Self-contained, 1/4 hp compressor, R290 refrigerant
Electrical 120 V / 60 Hz / 6 A • NEMA 5-15P • 8 ft cord
Mobility 4" swivel casters, two with brakes
Construction 300-series stainless well & top, 18-ga 400-series stainless base, enclosed cabinet
Certifications NSF/ANSI 2, cULus
Country of Origin Made in Sheboygan, Wisconsin, USA

Provide at least 3" (7.6 cm) of clearance in front of the condenser vents and avoid drafts across the well surface for optimal performance.

Important: This unit contains flammable R290 refrigerant. Install and service only in accordance with local codes and Vollrath guidelines.

Warranty

Covered by Vollrath’s standard limited warranty, including 5-year coverage on the refrigeration compressor. Refer to vollrathfoodservice.com for full policy details.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

NSF, cULus, Made in USA

Height

30.0in

Width

60.0in

Depth

28.0in

Shipping Weight

551.0lbs

Base Construction

vinyl covered steel

Working Height

30"

Mobile or Stationary

mobile

Overall Width (side - side)

55" - 60"

Top Construction

stainless steel top

Base Finish

specify

Base Design

fully enclosed

Pan Capacity

(4) pan

Cooling Type

refrigerated

Specifications

4-Series Signature Server® Stainless Steel Countertop with Cold Food Station, self contained refrigeration, 60"W x 28"D x 30"H, modular, enclosed base, with stainless steel 50-1/4"W x 19-7/8"D x 8" deep top well, 4-pan size, 1/4 hp, 120v, 6 amps, NEMA 5-15P, Made in USA, NSF, cULus (Refer to vollrathfoodservice.com for full warranty policy)
