Vollrath 36145 4-Series Signature Server® Serving Counters
Vollrath 36145 4-Series Signature Server® Serving Counters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Vollrath 36145 4-Series Signature Server® Serving Counters
Description

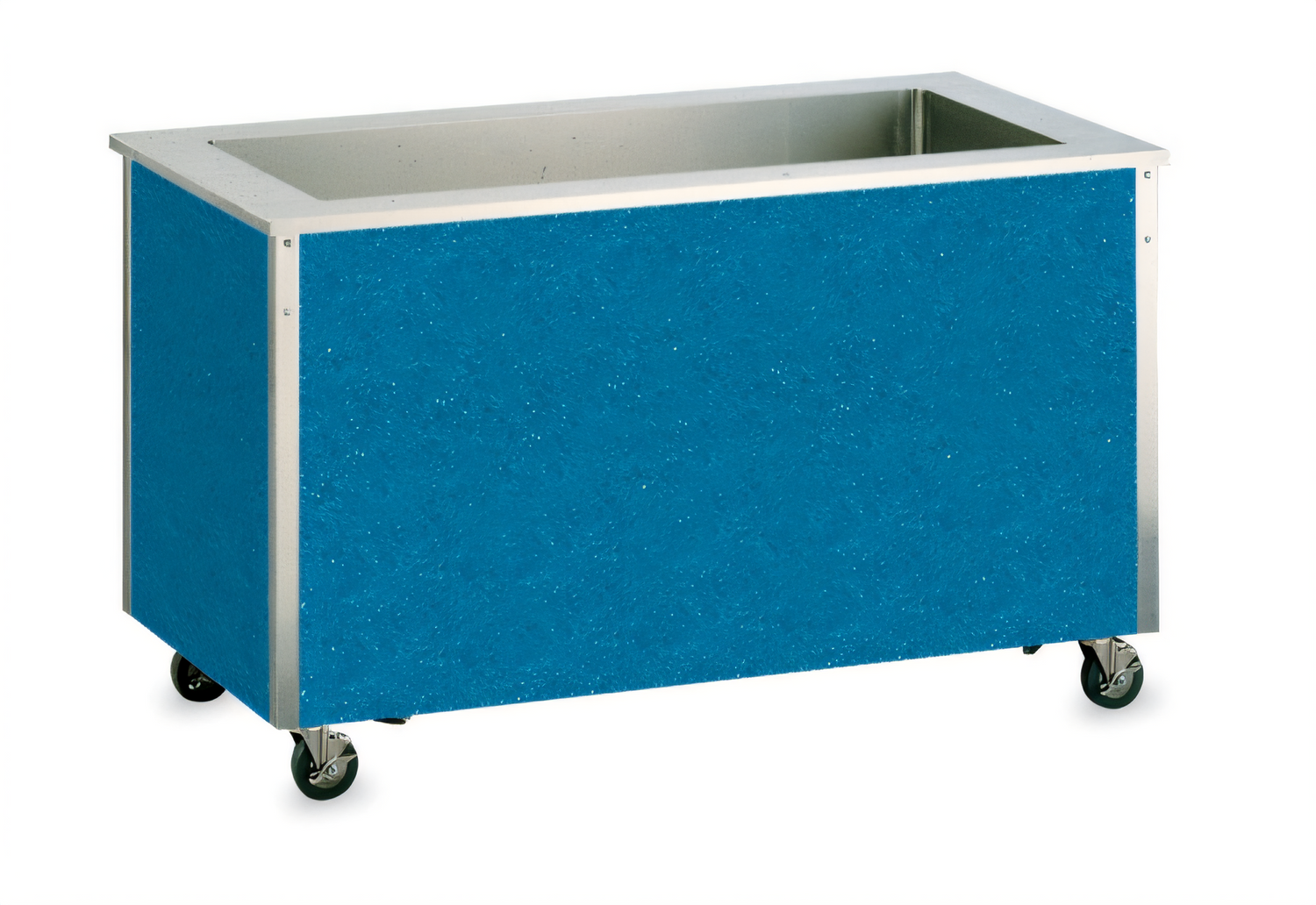

Vollrath 4-Series Signature Server® Cold Food Station – 46"

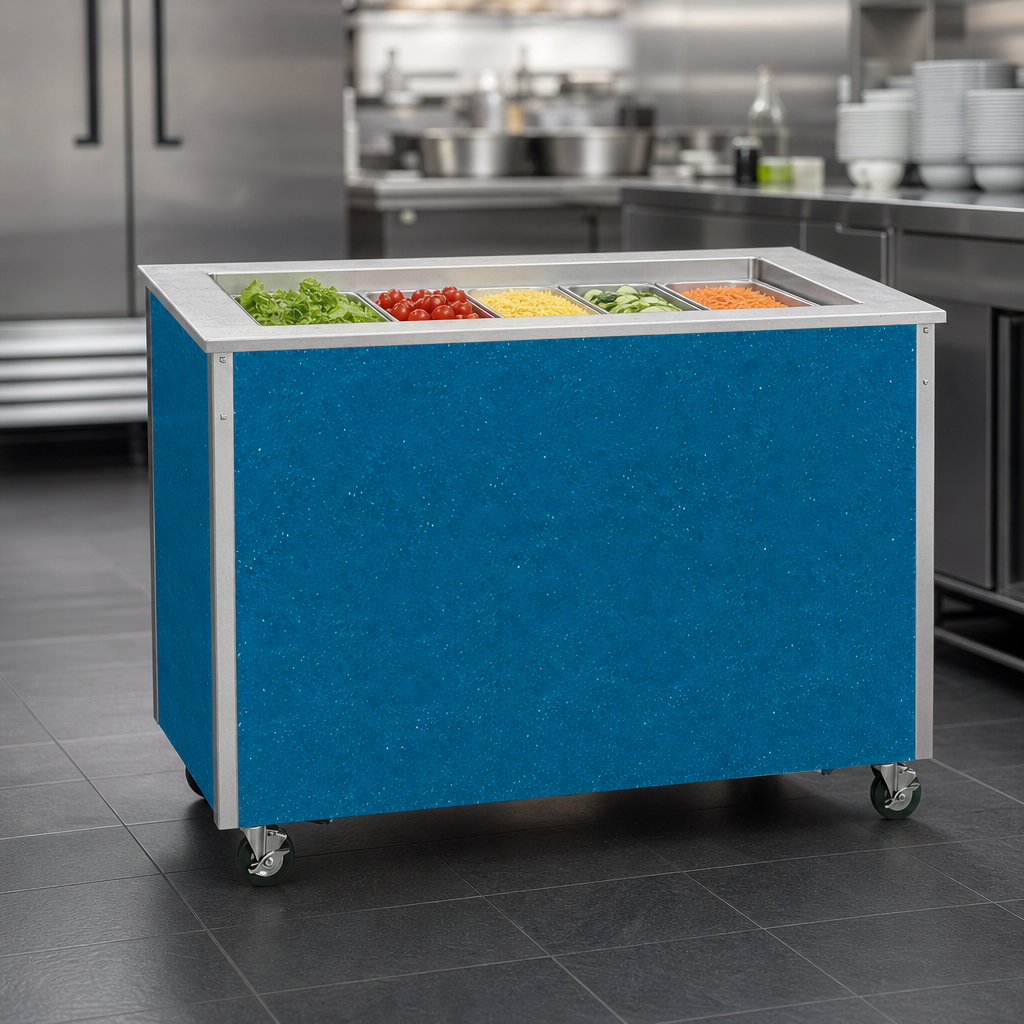

Stainless Steel Countertop • Self-Contained Refrigerated • 3-Pan CapacityKeep salads, fruit, desserts and grab-n-go favorites perfectly chilled and beautifully presented with the Vollrath 4-Series Signature Server®. This 46-inch modular station combines rugged stainless-steel construction with energy-efficient R290 refrigeration, delivering dependable NSF-approved performance in a compact footprint.
Key Features- Self-contained ¼ HP refrigeration maintains 33-41 °F (0.5-5 °C) without ice or glycol.
- Eco-friendly R290 refrigerant offers a lower Global Warming Potential (GWP).
- 19 ⅞" × 37 ½" × 8" deep stainless well—foamed-in-place insulation maximizes cold retention.
- Accommodates three full-size (12" × 20") hotel pans or fractional equivalents.
- One-piece 300-series stainless well and 18-ga 400-series base withstand daily commercial use.
- Operator-side drain hose/valve speeds cleanup and keeps customer side clutter-free.
- Four 4" swivel casters (two locking) deliver true mobility and rock-solid stability.
- 8 ft power cord with NEMA 5-15P plug—just roll in and plug in.
- NSF 2 sanitation and cULus electrical safety listed.
- Made in the USA and backed by Vollrath’s 5-year compressor warranty (see full policy).
| Model | 4-Series Signature Server® Cold Food Station |
|---|---|
| Vollrath Part # | 36145 |
| Overall Dimensions | 46" W × 28" D × 30" H (117 × 71 × 76 cm) |
| Well Dimensions | 19 ⅞" × 37 ½" × 8" (50.5 × 95.3 × 20.3 cm) |
| Pan Capacity | 3 full-size 12" × 20" pans |
| Compressor | ¼ HP, self-contained |
| Refrigerant | R290, 60 g charge |
| Peak Heat Rejection | 2,800 BTU/hr |
| Voltage | 120 V / 60 Hz / 1 ph |
| Amperage | 3.8 A |
| Plug Type | NEMA 5-15P |
| Cord Length | 8 ft (2.4 m) |
| Casters | (4) 4" swivel, two locking |
| Construction | Stainless steel countertop, well & 18-ga base |
| Certifications | NSF 2, cULus |
| Country of Origin | Made in USA |
- Provide at least 3" (7.6 cm) clearance in front of ventilation louvers for unobstructed airflow.
- Avoid positioning under HVAC drafts for optimal temperature maintenance.
- Drain and wipe the well daily; clean condenser coils regularly as directed in the owner’s manual.
- Do not modify the power cord or refrigeration settings—doing so voids the warranty.
Need matching breath guards, tray slides or custom laminate wraps? The modular Signature Server® line lets you build a cohesive serving solution—ask us for details.
