Vollrath  |  4-Series Signature Server®  |  SKU: 36140

Vollrath 36140 4-Series Signature Server® Serving Counters

$5,332.43
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

4-Series Signature Server® 4-Well Hot Food Counter – 60" x 28"

by Vollrath Foodservice · Model 36140 · Made in USA

Keep entrées, sides and sauces at safe serving temperatures in any cafeteria, buffet or grab-and-go line with the Vollrath 4-Series Signature Server® Hot Food Counter. This self-contained, mobile station couples four independently controlled hot wells with a rugged stainless-steel countertop and unibody base—delivering the performance operators trust and the presentation guests expect.

Key Features

  • (4) 12" × 20" × 6⅜" wells, each heated by an energy-efficient 625 W element.
  • Touch-Temp® programmable controls provide individual digital temperature settings and read-outs for every well.

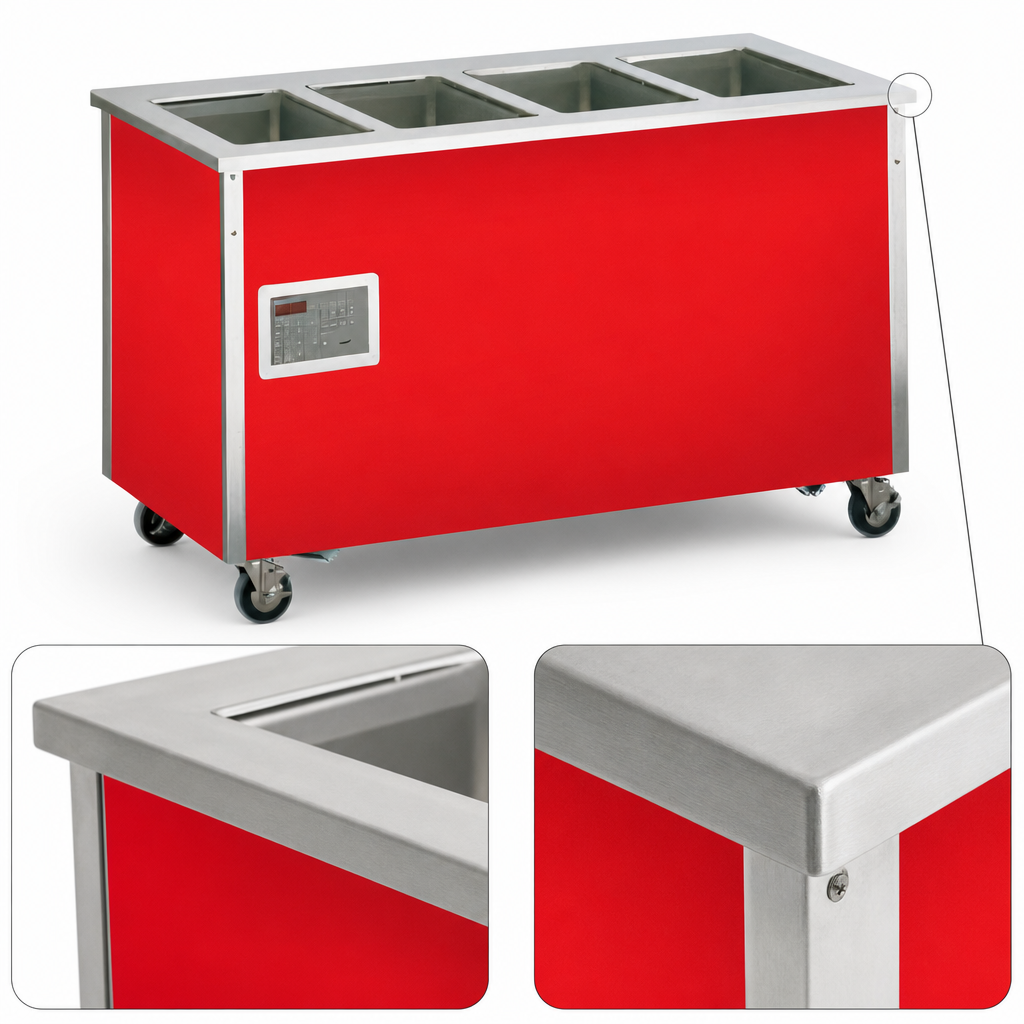

  • One-piece 18 ga 300-series stainless-steel countertop with 1" turndown on all sides—easy to clean and corrosion-resistant.

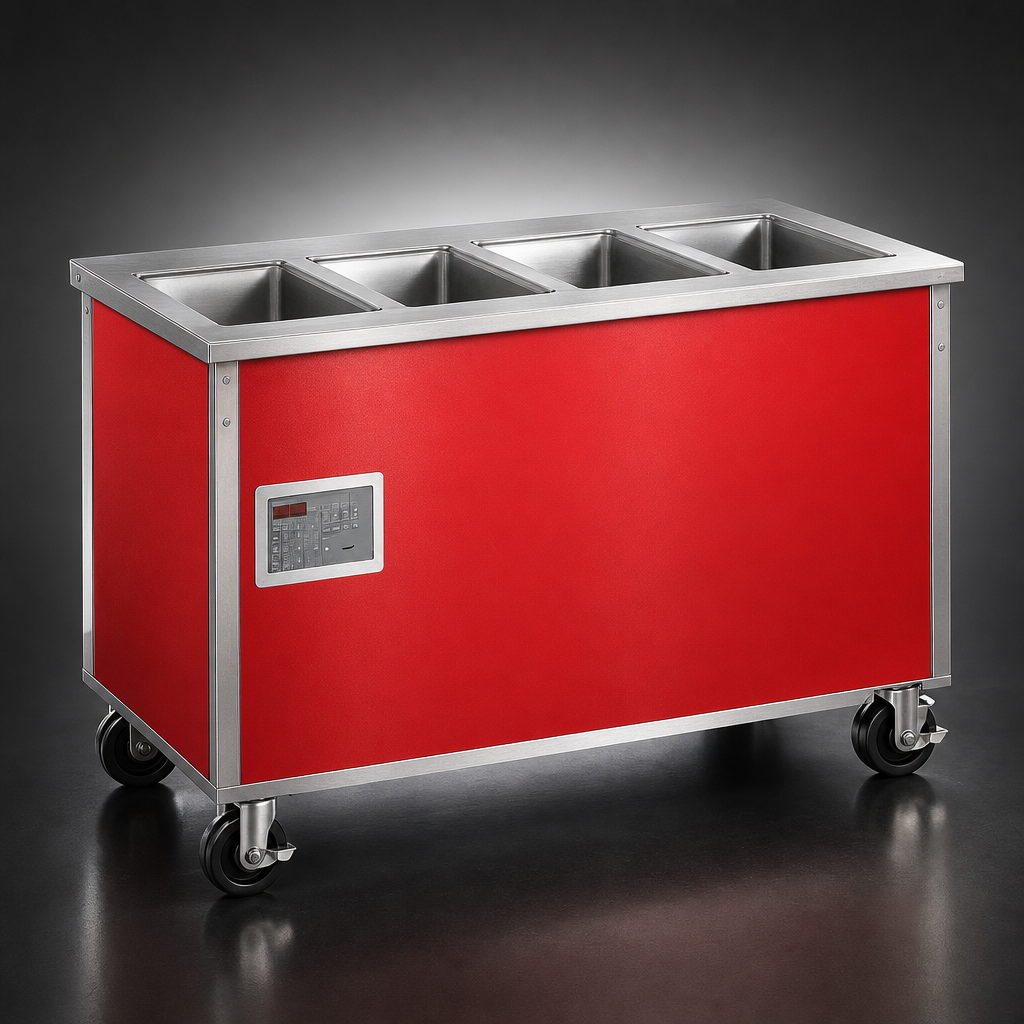

  • Reinforced 18 ga 400-series stainless-steel unibody base for maximum durability with minimal weight.
  • 1½" high-density fiberglass insulation around wells boosts efficiency and keeps exterior surfaces cool.
  • Pull-out ball-valve manifold drain with operator-side hose speeds end-of-day cleanup.
  • Heavy-duty 4" swivel casters (front brakes) for effortless mobility and secure positioning.
  • Factory-installed 8 ft (2.4 m) power cord and plug—ready to use right out of the box.
  • cULus and NSF 4 listed for electrical and sanitation safety.

Factory Options & Accessories

  • Progressive, Traditional or Contemporary breath guards (single- or double-sided, heated or lighted).
  • Custom exterior finishes: laminate, powder coat or stainless steel.
  • Tray slides, cutting boards, storage modules, toe-kicks, electrical outlets and more.
  • Extended warranty programs—ask your Vollrath representative.

Signature Server® equipment is built to order; once in production, orders cannot be cancelled or returned.

Specifications

Model 36140 (4-Series Signature Server®)
Overall dimensions 60" W × 28" D × 30" H (152 × 71 × 76 cm)
Well size (each) 12" × 20" × 6⅜"
Capacity Four full-size steam-table pans (or fractional equivalents)
Heating power 625 W per well / 2,500 W total
Controls Individual Touch-Temp® digital thermostats
Electrical 208–240 V, 1-phase, 12.1 A @ 208 V / 10.5 A @ 240 V, NEMA 6-15P
Construction 18 ga 300-series stainless top; 18 ga 400-series stainless base
Mobility (4) 4" locking swivel casters
Drain Pull-out manifold with ball valve & hose (operator side)
Listings cULus, NSF 4
Country of origin USA
Important: Unit ships wired for the voltage and plug type listed above. Please confirm site power, doorway clearances and service connections before ordering.

For complete warranty details visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

NSF, cULus, Made in USA

Height

30.0in

Width

60.0in

Depth

28.0in

Shipping Weight

595.0lbs

Overall Width (side - side)

55" - 60"

Design

enclosed base

Base Finish

vinyl covered steel

Pan Capacity

(4) pan

Type

mobile

Working Height

30"

Top Construction

stainless steel

Specifications

4-Series Signature Server® Hot Food Serving Counter, 60"W x 28"D x 30"H, 18/300 stainless steel top with 1" turndown on all sides, (4) 12" x 20" x 6-3/8" deep wells with 625 watt elements, individual Touch-Temp® programmable controls, enclosed base, 18/400 series stainless steel unibody construction, pull-out ball valve drain, 2500 watts, cord, plug, cULus, NSF, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
