Vollrath  |  4-Series Signature Server®  |  SKU: 36117

Vollrath 36117 4-Series Signature Server® Serving Counters

$8,914.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Countertop Food Displays Food Displays & Merchandisers Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

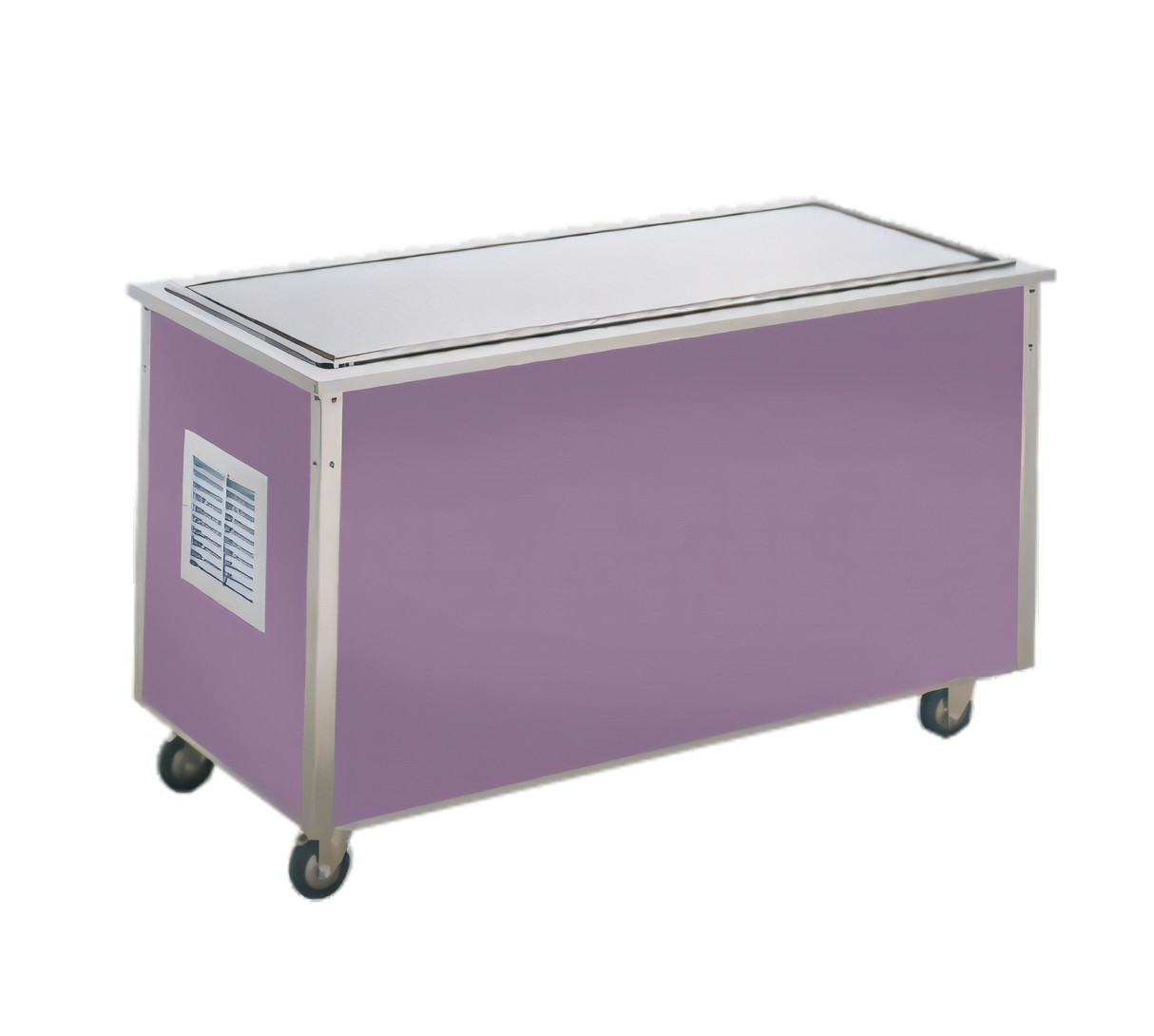

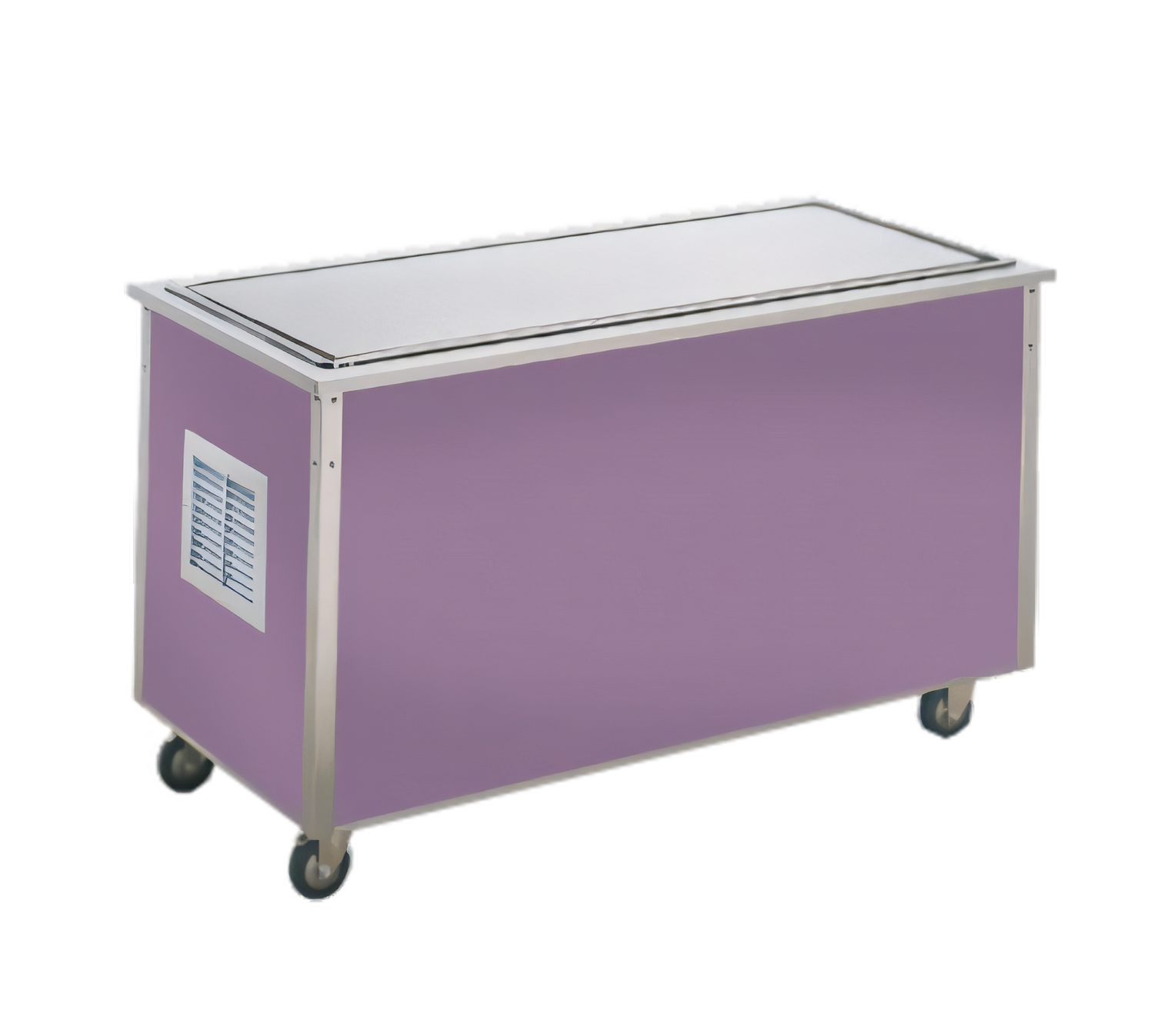

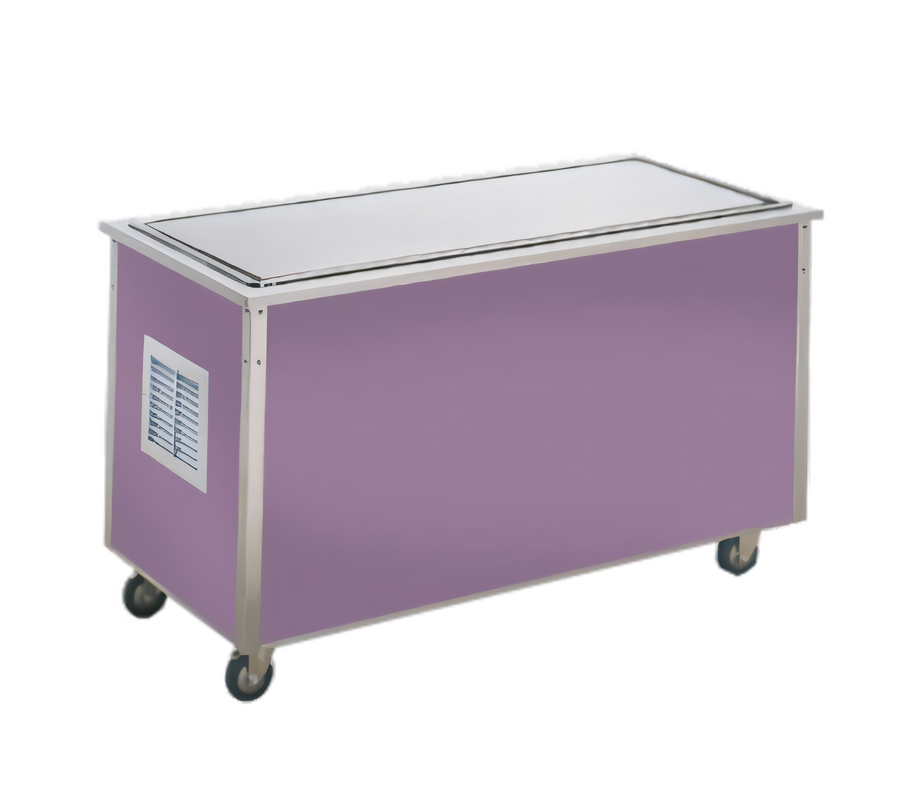

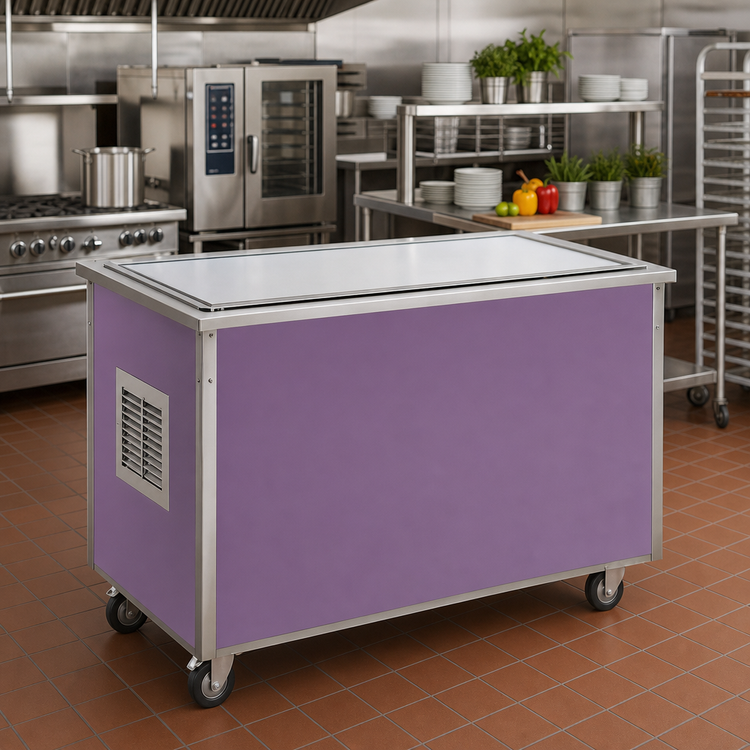

4-Series Signature Server® Frost Top Serving Counter – 88" x 28"

Vollrath Model 36117  |  30" working height

Create an eye-catching, permanently frosted display for salads, desserts and grab-n-go beverages with Vollrath’s 4-Series Signature Server®. The oversized 75-¼ inch frost deck, rugged stainless-steel construction and roll-away mobility make this counter the cold-holding workhorse for high-traffic cafeterias, hotels and convenience lines.

Why you’ll love it

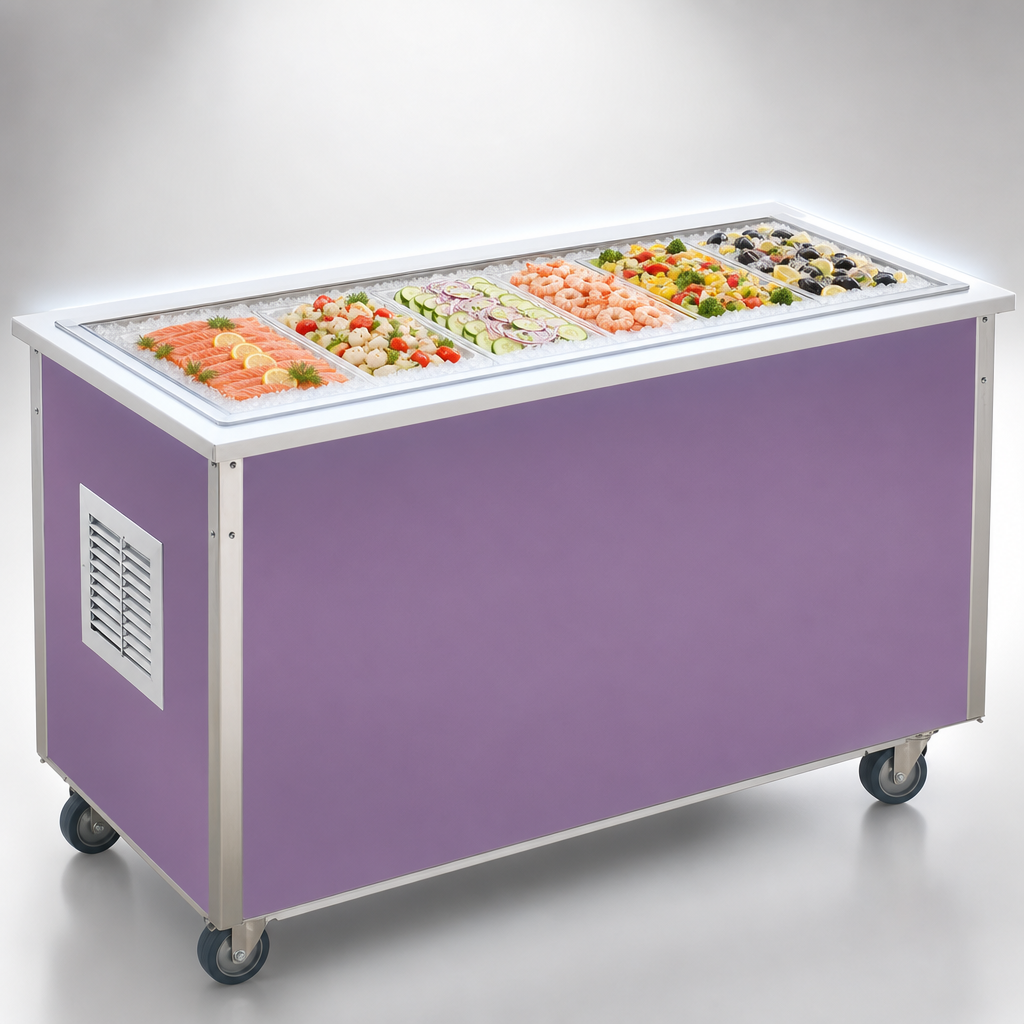

  • Generous 75-¼" W frost top keeps sheet pans and platters chilled and appetizing.

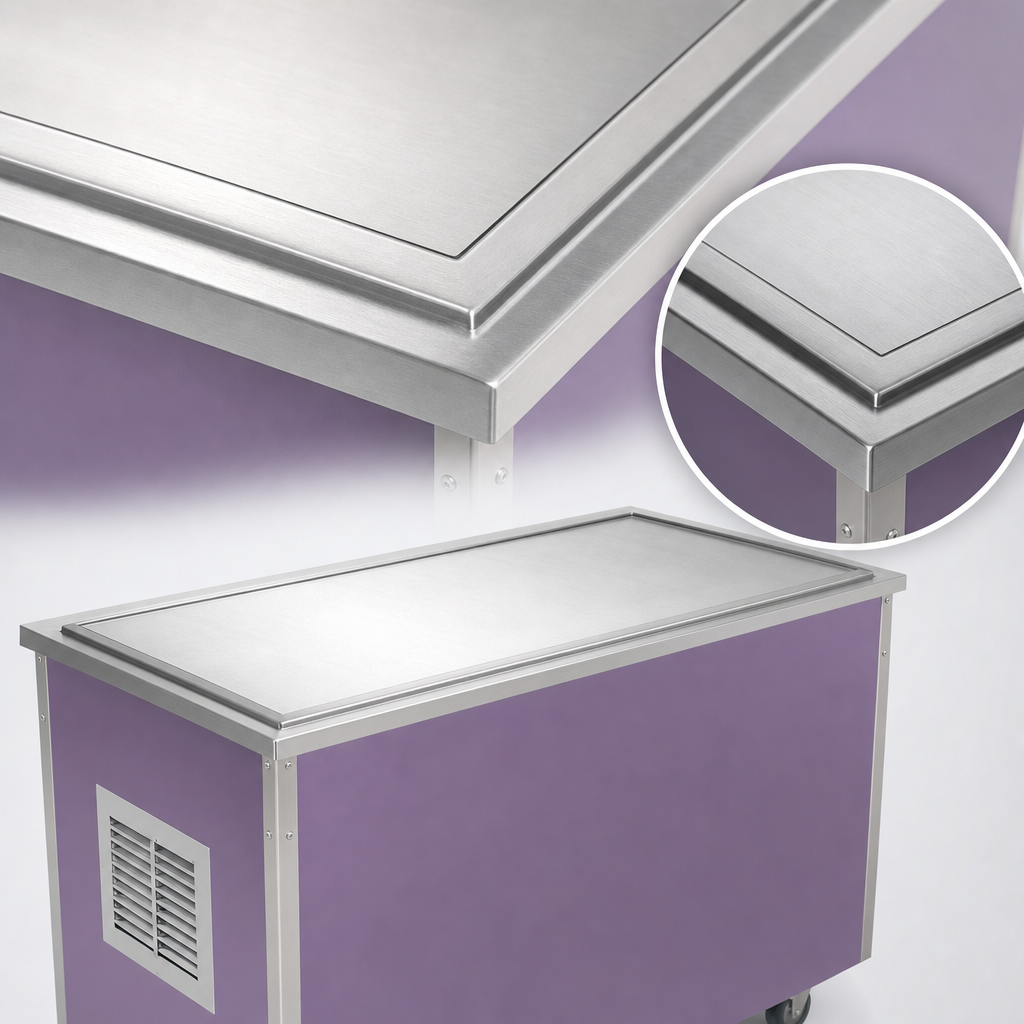

  • 16-ga 300-series stainless-steel top with 1" turndown on all sides resists dents and daily cleaning chemicals.
  • Full-coverage refrigeration coils bonded to the underside deliver an even sheet of frost across the entire deck.
  • 1" recessed drip trough and pull-out ball-valve drain manage condensation for a spotless presentation.
  • 18-ga 400-series stainless-steel unibody base with factory-applied black laminate—lightweight yet incredibly strong.
  • Self-contained ½ HP refrigeration system uses eco-friendly, low-GWP R513A refrigerant.
  • Heavy-duty 4" swivel casters (two locking) let one person reposition or service the unit with ease.
  • 8 ft (2.4 m) cord with NEMA 5-15P plug—no hard-wiring required.
  • cULus listed and proudly made in the USA.
Ideal for
  • Universities and corporate cafeterias
  • Healthcare nutrition services
  • Hotel breakfast & dessert buffets
  • Resort and theme-park concessions
  • Supermarket grab-and-go islands
Technical specifications
Display (frost) area 75 ¼ in W × 20 in D (190.5 × 50.8 cm)
Overall dimensions 88 in W × 28 in D × 30 in H (224 × 71 × 76 cm)
Construction 16-ga 300-series stainless top; 18-ga 400-series stainless unibody base
Refrigeration ½ HP self-contained system, R513A refrigerant
Electrical 120 V / 60 Hz / 1-ph, 7.8 A (no lighting)  •  NEMA 5-15P
Peak heat rejection 4 800 BTU/hr
Insulation Foamed-in-place high-density polyurethane
Mobility (4) 4" swivel casters, two with brakes
Certifications cULus
Country of origin USA
Popular add-ons (sold separately)
  • Breath guards – Progressive, Traditional or Contemporary styles with incandescent, fluorescent or LED lighting
  • Tray slides (tubular or V-rib) and cafeteria shelves
  • Cutting boards and stainless end shelves for prep/plating space
  • Custom laminate colors, wood-grain wraps or full stainless exterior

For complete warranty information, please visit vollrathfoodservice.com.

Important: Signature Server® counters are built to order and cannot be cancelled or returned once production begins.

Features & Specs

Manufacturer

Vollrath

Brand_name

4-Series Signature Server®

Certifications

cULus, Made in USA

Height

30.0in

Width

88.0in

Depth

28.0in

Type

mobile modular

Base Finish

specify

Working Height

30"

Overall Width (side - side)

85" - 90"

Design

enclosed

Specifications

4-Series Signature Server® Frost Top Serving Counter, 88"W x 28"D x 30"H, 16/300 series stainless steel top with 1" turndown on all sides, 75-1/4"W display area, 1" recessed drip trough with drain, enclosed base, 18/400 series stainless steel unibody construction, pull-out ball valve drain, 1/2 HP, cord, cULus, Made in USA (Refer to vollrathfoodservice.com for full warranty policy)
