Vollrath 36115 4-Series Signature Server® Serving Counters
Description

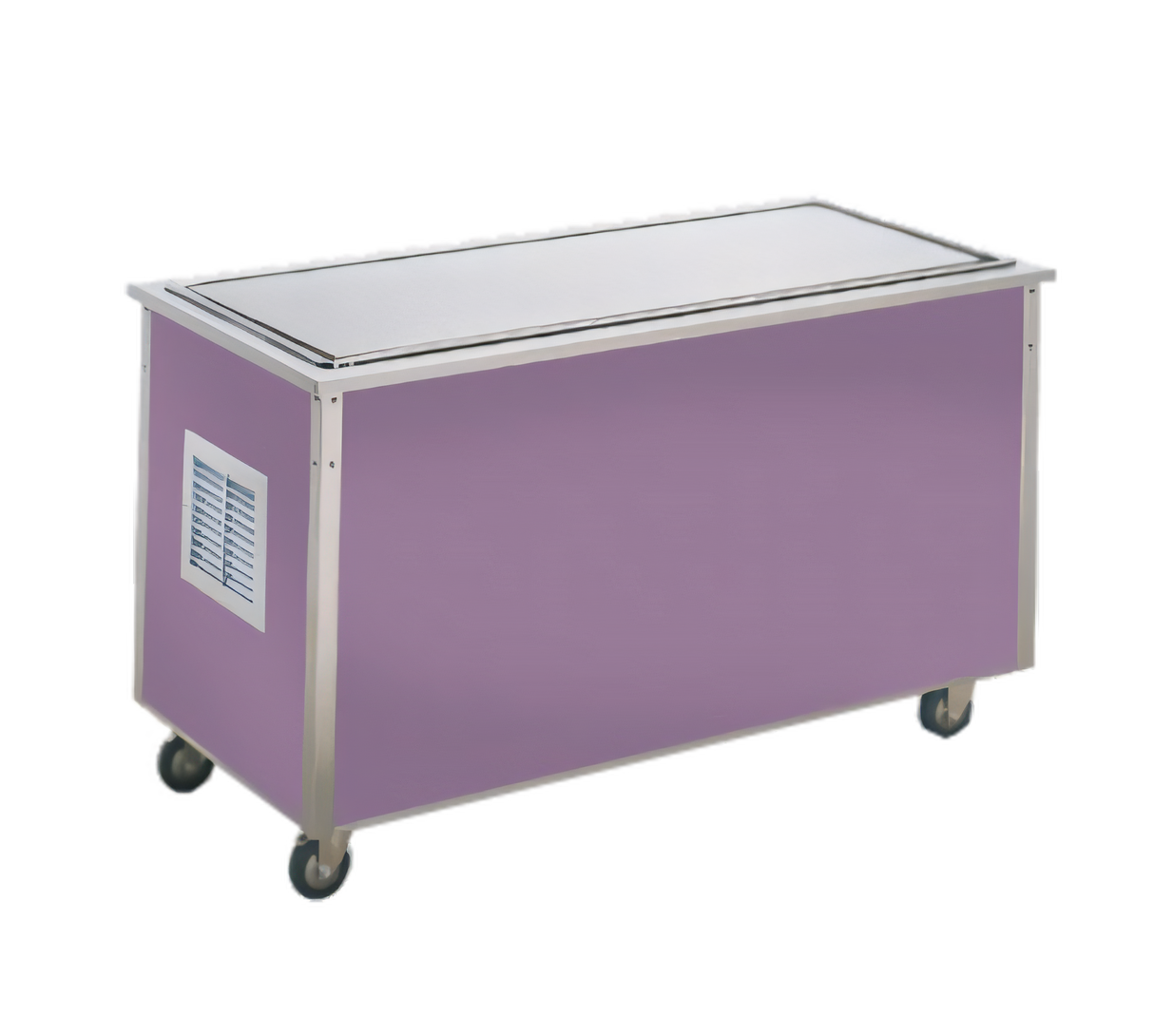

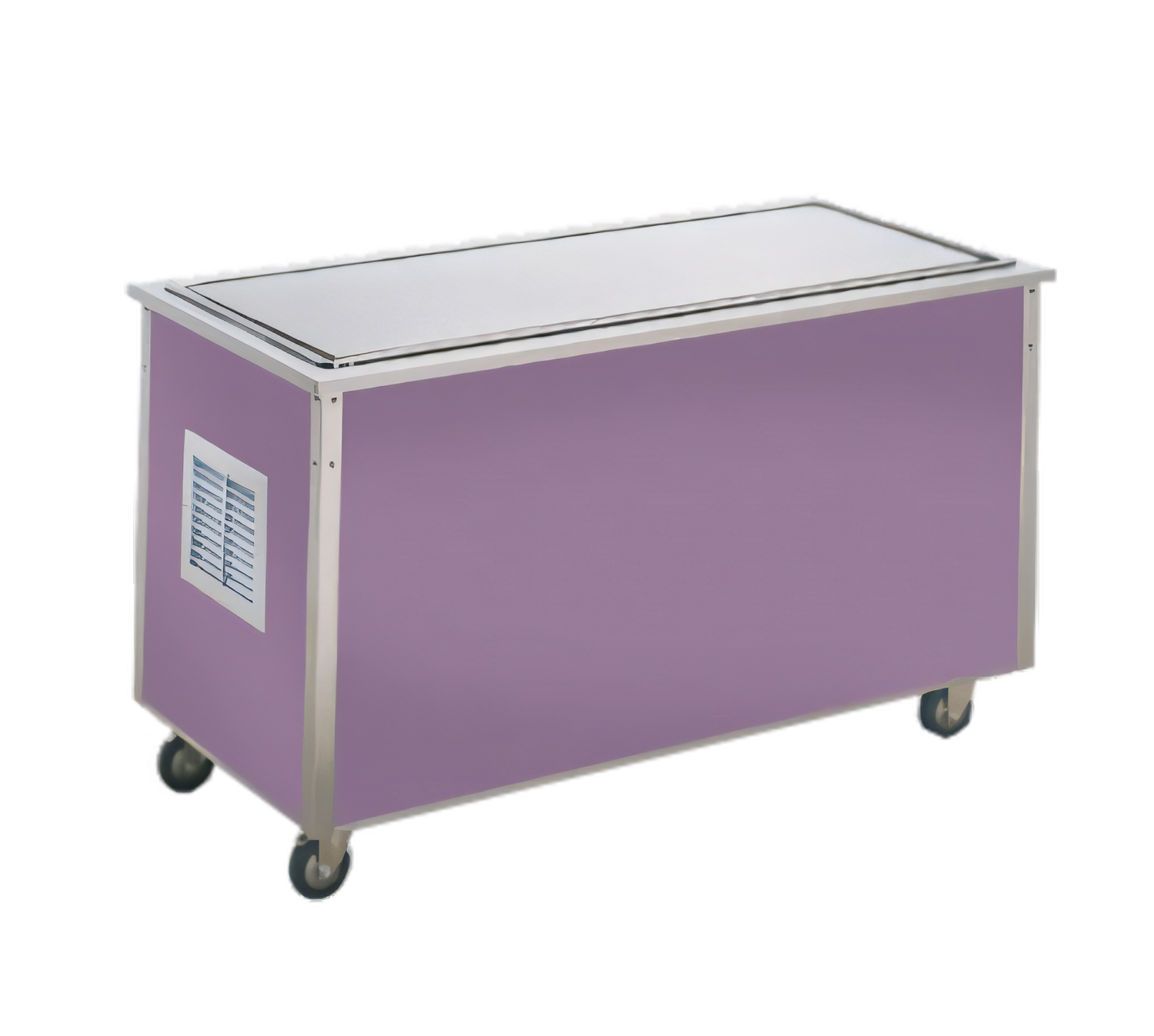

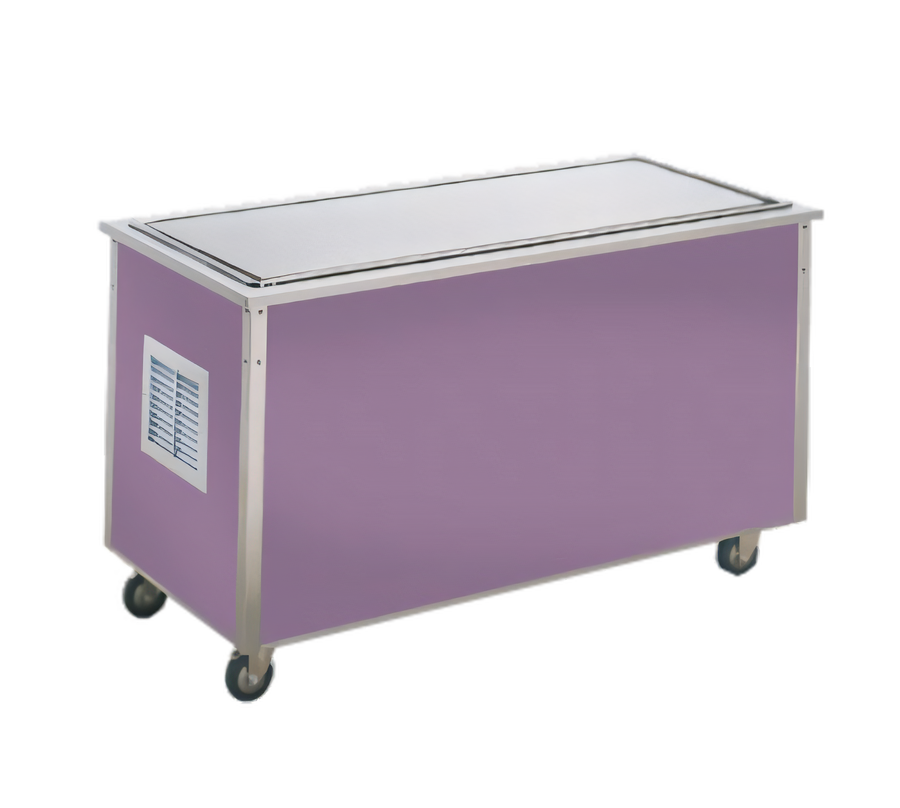

4-Series Signature Server® Frost Top Serving Counter – 88 in W
by Vollrath Foodservice | cULus Listed • Made in USAKeep plated desserts, salads, sushi or chilled grab-and-go items ice-cold and beautifully presented with Vollrath’s largest Frost Top Signature Server. The 4-Series stands 34 inches high for ergonomic service, combines a full-surface frost pattern with a recessed drip trough, and rolls effortlessly wherever you need a reliable cold station.
Key Features & Benefits

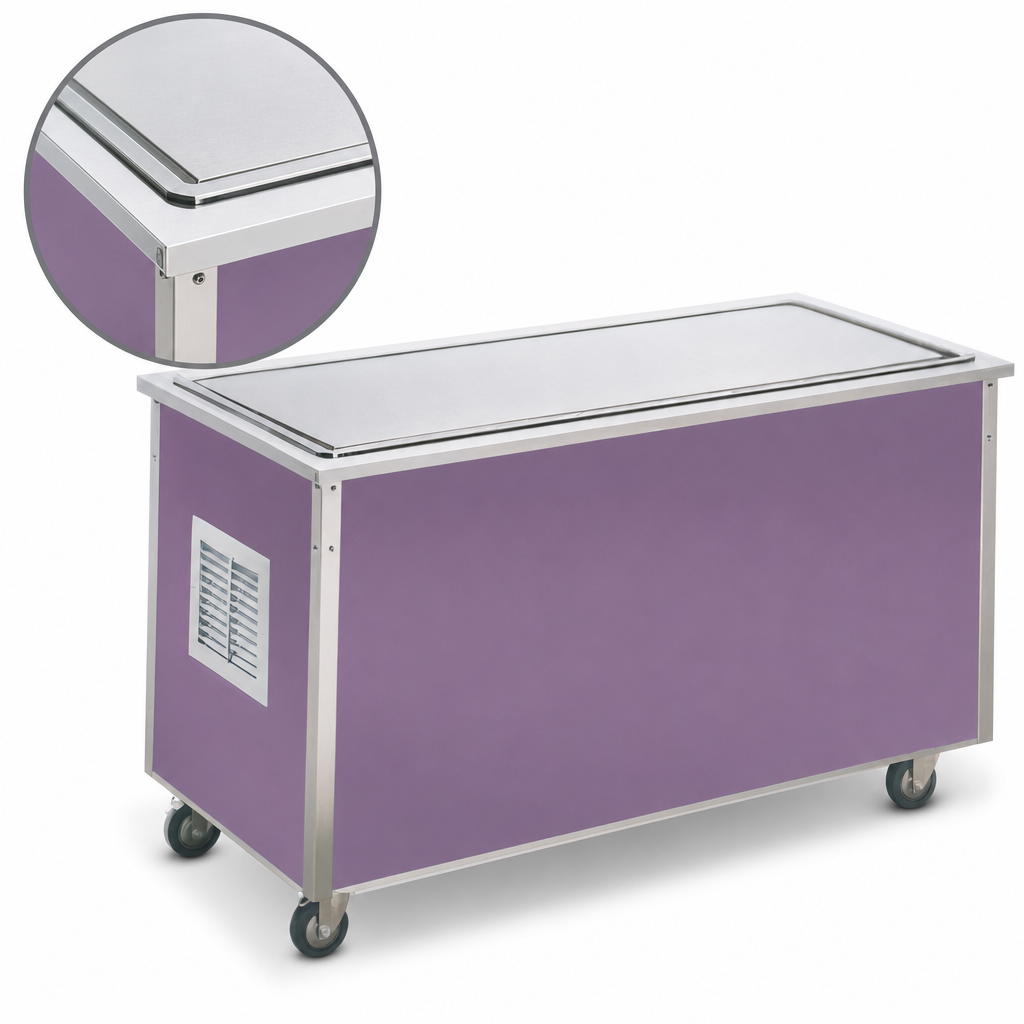

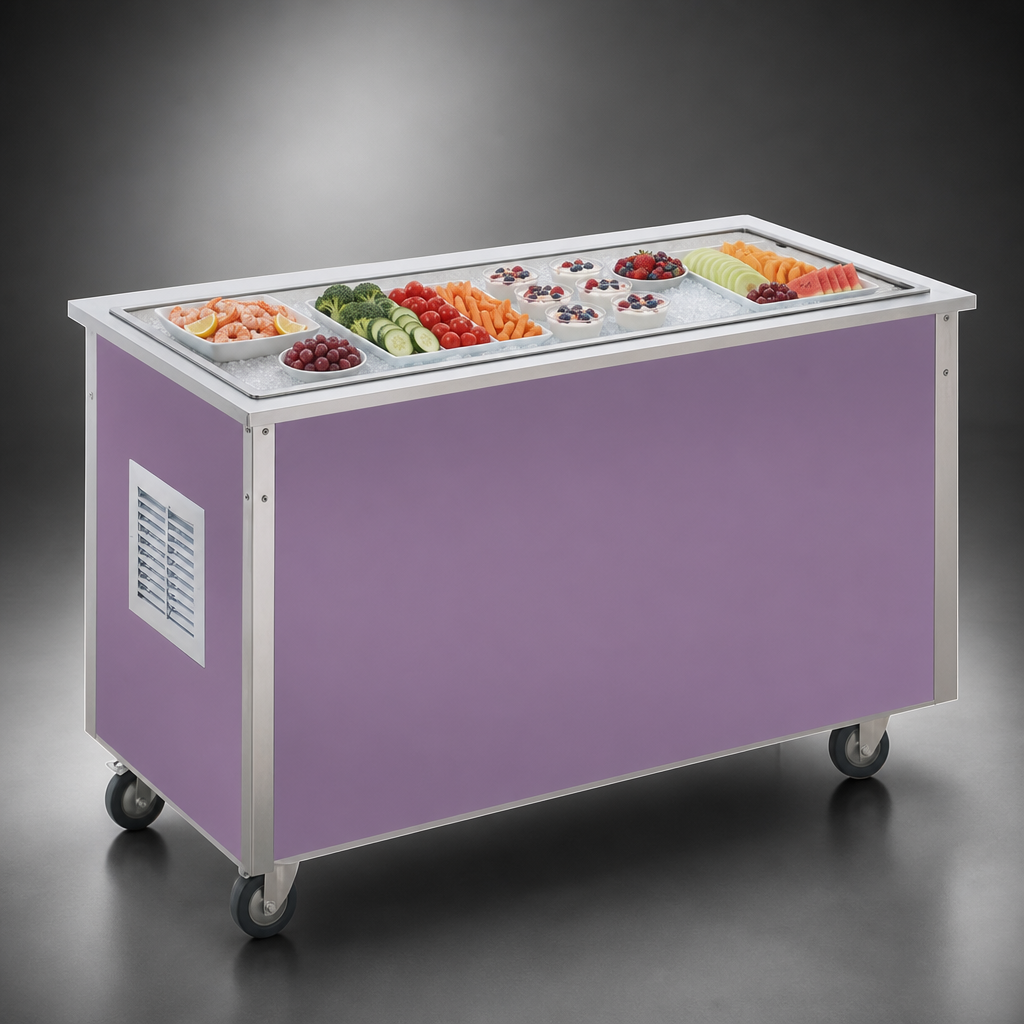

- 75 ¼ in (190.5 cm) frost-top display area rapidly pulls down to 20 °F / −6 °C for a thin, even layer of ice.
- 16 ga, 300-series stainless-steel countertop with 1 in turndown on all sides—tough enough for daily institutional use.
- 1 in recessed drip trough with pull-out ball-valve drain keeps condensation off the counter and speeds clean-up.
- Rugged 18 ga, 400-series stainless-steel unibody base with factory-applied black laminate finish.
- High-efficiency 1/2 HP refrigeration system uses eco-friendly R513A (non-flammable, low-GWP).
- Factory-insulated with polyurethane foam for superior temperature retention and energy savings.
- Heavy-duty 4 in swivel casters (2 locking) make repositioning safe and simple.
- 8 ft (2.4 m) cord with NEMA 5-15P plug—just roll in and power up.
- Compatible with Vollrath breath guards, tray slides, cutting boards and other Signature Server® accessories (sold separately).
Technical Specifications
| Model / Item No. | 4-Series | 36117 |
|---|---|
| Overall Dimensions (W × D × H) | 88 in × 28 in × 34 in (224 cm × 71 cm × 86 cm) |
| Usable Frost-Top Width | 75 ¼ in (190.5 cm) |
| Compressor | 1/2 HP, self-contained |
| Refrigerant / Charge | R513A • 10 oz (283 g) |
| Electrical | 120 V / 1 ph / 60 Hz, 7.8 – 9.8 A* NEMA 5-15P, 8 ft cord |
| Casters | 4 in (10 cm) swivel, 2 with brakes |
| Certifications | cULus Listed |
| Country of Origin | USA |
*Amperage varies with optional fluorescent or incandescent lighting.
Installation & Operation Tips
- Provide at least 4 ½ in (11.4 cm) clearance in front of the side vents for unobstructed airflow.
- Always start the unit 30 minutes before loading food to allow the frost layer to build.
- After service, open the ball-valve drain and wipe down the top with warm, soapy water—no harsh chemicals needed.
Warranty
Covered by Vollrath’s standard Limited Warranty (5 years on the refrigeration compressor, 1 year on other components). See VollrathFoodservice.com for complete terms.
