Victory Refrigeration

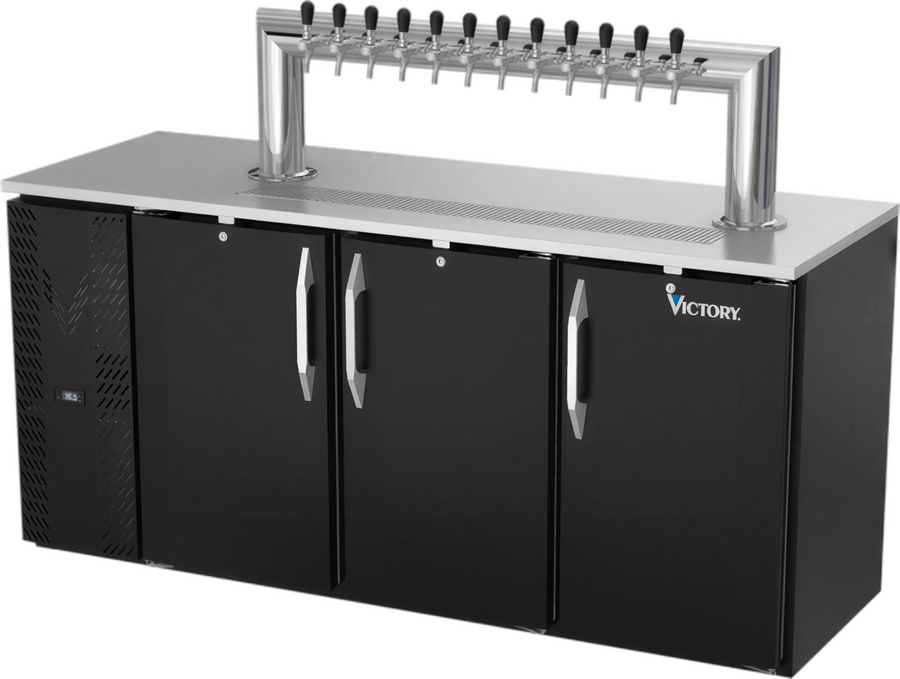

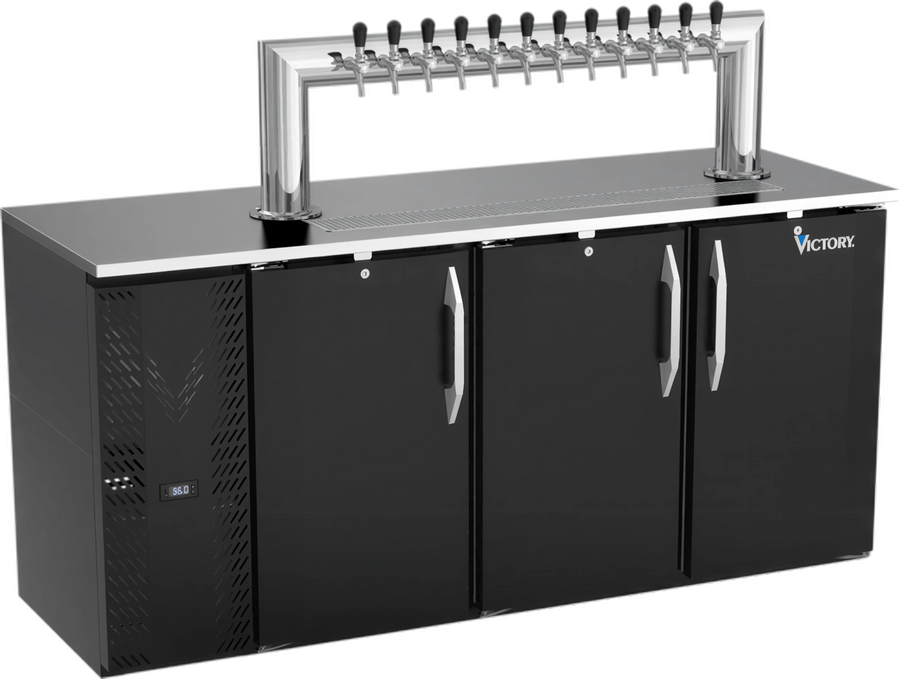

Victory Refrigeration VDDN72HC-B-12T Direct Draw Beer Dispenser, 72-inch, 3 Half-Keg Capacity, 12-Tap Tower, Black Exterior

SKU: VDDN72HC-B-12T
$15,189.84
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Beer Dispensers Commercial Refrigeration Commercial Refrigerators Draft Beer & Wine Coolers Draft Beer & Wine Cooling Equipment New Arrivals Refrigeration & Ice Restaurant Equipment Victory Refrigeration

The Victory Refrigeration VDDN72HC-B-12T is a 72-inch direct draw dispenser with capacity for three half-kegs and a 12-tap tower. Its black painted steel exterior features a heavy-duty stainless steel top and drip tray.

Self-contained R-290 refrigeration uses a 1/3 HP condensing unit and maintains product temperature from 36°F to 38°F. The cabinet has three locking doors, galvanized steel walls and ceiling, and a heavy-duty stainless steel floor.

  • 115 V, 60 Hz, single-phase electrical system with a NEMA 5-15P plug
  • Automatic, non-electric defrost
  • UL EPH Classified and cULus

Overall Dimensions:

72.0"W x 26.13"D x 49.88"H

Product Weight:

383.0 lb

12-tap tower

The dispenser is specified with a twelve-tap tower.

Three half-keg capacity

The cabinet accommodates three 1/2 kegs.

Self-contained refrigeration

The refrigeration system uses R-290 refrigerant and a 1/3 HP condensing unit.

Temperature control

The refrigerator is capable of maintaining product temperature from 36°F to 38°F.

Stainless steel top and drip tray

The top and drip tray are constructed from heavy-duty stainless steel.

Door access and security

Three self-closing doors include locks, magnetic gaskets, and a 120° stay-open feature for loading.

Interior construction

The interior uses galvanized steel on the walls and ceiling with a heavy-duty stainless steel floor.

3-in-1 draft solution

The same tap system can dispense beer, wine, coffee, or other non-alcoholic beverages without line or manifold changes.

Electronic controls and lighting

The unit includes full electronic control and LED lighting.

Dispenser type Direct draw
Net capacity 23.643 cu. ft.
Door count 3
Keg capacity 3 half-kegs
Tap tower 12 taps
Exterior finish Black painted steel
Top and drip tray Heavy-duty stainless steel
Interior construction Galvanized steel walls and ceiling; heavy-duty stainless steel floor
Refrigeration system Self-contained
Refrigerant R-290
Condensing unit 1/3 HP
Temperature range 36°F to 38°F
Defrost Automatic, non-electric
Electrical 115 V / 60 Hz / 1 phase
Current 3.3 A
Plug NEMA 5-15P
Internal usable width 57 in
Internal depth 19 1/2 in
Internal height 30 1/2 in

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor limited warranty; 7-year compressor part warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The VDDN72HC-B-12T has capacity for three 1/2 kegs.
It has a 12-tap tower.
The overall dimensions are 72.0 inches wide by 26.13 inches deep by 49.88 inches high.
It uses 115 V, 60 Hz, single-phase power, draws 3.3 A, and has a NEMA 5-15P plug.
It uses R-290 refrigerant in a self-contained refrigeration system.
The refrigerator is capable of maintaining product temperature from 36°F to 38°F.
Yes. The unit has three doors with locks, magnetic gaskets, and a self-closing design.
The manufacturer describes a 3-in-1 draft solution for beer, wine, coffee, and other non-alcoholic beverages without line or manifold changes.
