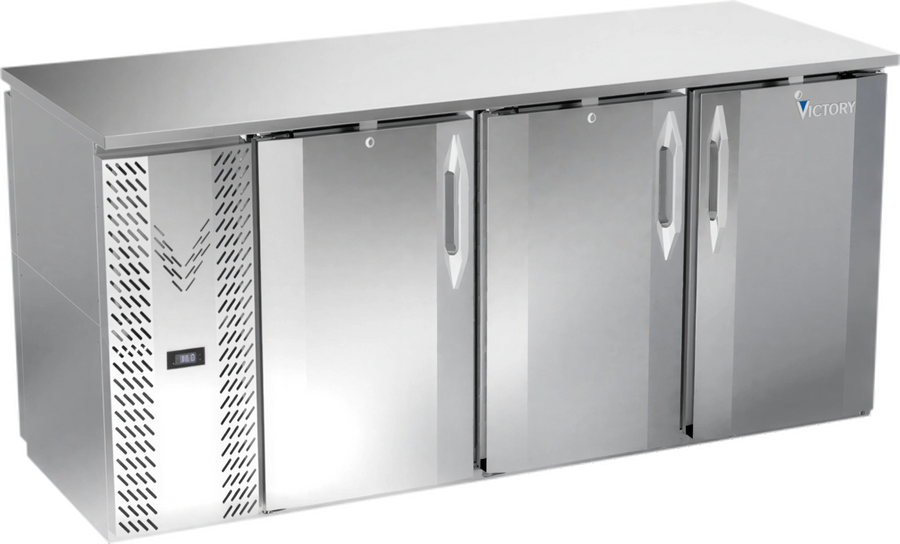

Victory Refrigeration VBBN72HC-PT-S Pass-Thru Back Bar Refrigerator, 72"W, Three-Section, 6 Solid Self-Closing Doors, Stainless Steel

SKU: VBBN72HC-PT-S
$10,055.39
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Back-Bar & Bottle Cooling Equipment Back-Bar Refrigerators Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment Victory Refrigeration

The Victory Refrigeration VBBN72HC-PT-S is a three-section pass-thru back bar refrigerator with 19.618 cu. ft. of net capacity, six solid self-closing doors, and six epoxy-coated steel shelves.

It features a stainless steel exterior, 1-inch stainless steel top, galvanized steel interior walls and ceiling, stainless steel floor, LED lighting, full electronic control, and R-290 hydrocarbon refrigerant.

  • Capacity for three 1/2-barrel kegs
  • 120° stay-open door feature, magnetic door gaskets, and door locks
  • 115 V, 60 Hz, single-phase operation with NEMA 5-15P plug
  • UL EPH Classified and cULus

Overall Dimensions:

72.0"W x 29.56"D x 34.0"H

Product Weight:

421.0 lb

Pass-thru configuration

Three-section cabinet specified as a pass-thru back bar refrigerator.

Solid self-closing doors

Six solid doors include a 120° stay-open feature, magnetic door gaskets, and door locks.

Storage capacity

Provides 19.618 cu. ft. of net capacity, six epoxy-coated steel shelves, and capacity for three 1/2-barrel kegs.

Stainless steel construction

Features a stainless steel exterior, 1-inch stainless steel top, and stainless steel floor with galvanized steel walls and ceiling.

Electronic refrigeration control

Includes full electronic control, adaptive defrost, an epoxy-coated evaporator coil, and a balanced forced-air refrigeration system.

LED lighting

Interior LED lighting is specified for the refrigerator.

Electrical connection

Operates at 115 V, 60 Hz, single phase, draws 3.3 amps, and uses a NEMA 5-15P plug.

Product Type Pass-thru back bar refrigerator
Sections Three-section
Net Capacity 19.618 cu. ft.
Door Quantity 6 doors
Door Type Solid
Door Operation Self-closing
Door Opening Feature 120° stay-open feature
Door Locks Included
Shelf Quantity 6
Shelf Material and Finish Epoxy-coated steel
Keg Capacity 3 half-barrel kegs
Lighting LED
Temperature Range 36°F to 38°F
Controls Full electronic control
Defrost Adaptive defrost
Exterior Finish Stainless steel exterior
Interior Construction Galvanized steel walls and ceiling
Floor Material Stainless steel
Top Finish 1-inch stainless steel
Refrigeration Location Self-contained, side-mounted
Refrigerant R-290 hydrocarbon
Compressor Size 1/3 HP
Voltage 115 V
Frequency and Phase 60 Hz, single phase
Current 3.3 amps
Plug NEMA 5-15P
Cord Length 8 ft.
Weight 421 lb

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Seven-year limited warranty for Continental USA and Canada: parts and labor for six years, with sealed-compressor part coverage for an additional year, subject to the manufacturer's terms.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has six solid self-closing doors with a 120° stay-open feature, magnetic door gaskets, and door locks.
The net capacity is 19.618 cu. ft., with capacity for three 1/2-barrel kegs.
The listed dimensions are 72 inches wide, 29.56 inches deep, and 34 inches high.
It operates at 115 V, 60 Hz, single phase, draws 3.3 amps, and uses a NEMA 5-15P plug.
The product cutsheet lists a seven-year warranty covering parts, labor, and the compressor. The warranty terms specify parts and labor for six years, with sealed-compressor part coverage for an additional year, subject to the manufacturer's conditions and limitations.
