Victory Refrigeration

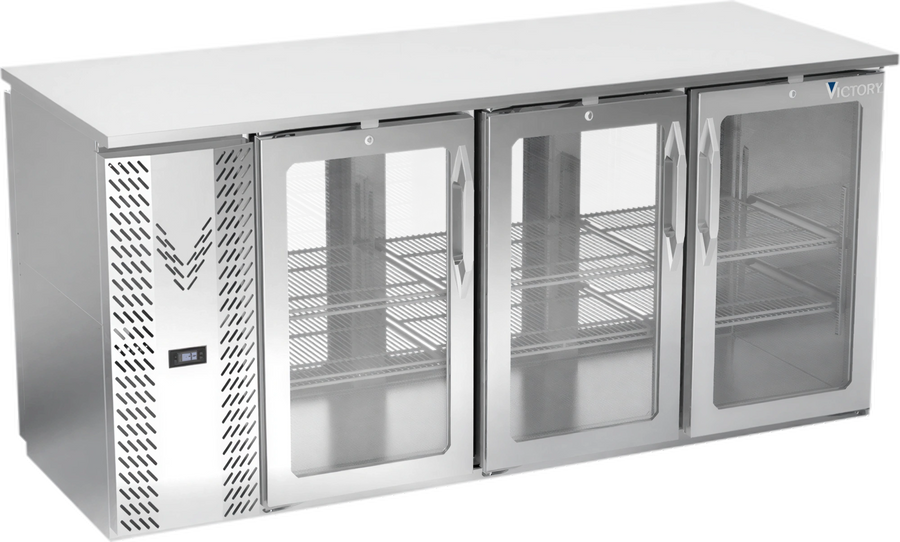

Victory Refrigeration VBBN72HC-FG-PT-S Pass-Thru Back Bar Refrigerator, 72"W, Three-Section, 6 Glass Doors, Stainless Steel

SKU: VBBN72HC-FG-PT-S
$12,110.81
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Victory Refrigeration VBBN72HC-FG-PT-S is a food-rated, three-section pass-thru back bar refrigerator with six self-closing glass doors, 19.618 cu. ft. of capacity, and storage for three 1/2-barrel kegs.

  • Stainless steel exterior and interior with a 1-inch stainless steel top
  • Six epoxy-coated steel shelves and LED lighting
  • Full electronic control, adaptive defrost, and R-290 hydrocarbon refrigerant
  • Magnetic door gaskets, door locks, and a 120-degree stay-open door feature
  • 115 V, 3.3 A electrical connection with NEMA 5-15P plug

Overall Dimensions:

72.0"W x 28.75"D x 34.0"H

Product Weight:

412.0 lb

Pass-thru, food-rated design

Identified as a pass-thru back bar refrigerator and certified for open food product.

Six glass doors

The six self-closing glass doors include a 120-degree stay-open feature, magnetic gaskets, and door locks.

Refrigerated storage

Provides 19.618 cu. ft. of capacity, six epoxy-coated steel shelves, and storage for three 1/2-barrel kegs.

Electronic refrigeration control

Uses full electronic control, adaptive defrost, and a balanced, forced-air refrigeration system.

Temperature range

The refrigerator is capable of maintaining product temperatures from 36°F to 38°F.

Stainless steel cabinet

The exterior and interior are stainless steel, with a standard 1-inch stainless steel top.

LED lighting

Interior LED lighting is included.

Self-contained refrigeration

The refrigeration system is self-contained and side-mounted, with the compressor standard on the left side.

Electrical connection

Operates at 115 V, 60 Hz, single phase, draws 3.3 A, and uses a NEMA 5-15P plug with an 8-foot cord.

ADA compliance

The cutsheet identifies the standard-height unit as ADA compliant.

Related Searches

Back Bar Coolers Back Bar Coolers Back-Bar & Bottle Cooling Equipment Back-Bar Refrigerators Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment Victory Refrigeration
Product type Pass-thru back bar refrigerator
Food rating Food-rated; certified for open food product
Sections Three
Capacity 19.618 cu. ft.
Door count 6 doors
Door type Glass
Door operation Self-closing; 120° stay-open feature
Door gasket Magnetic
Door locks Included
Shelves 6 epoxy-coated steel shelves
Keg capacity 3 half-barrel kegs
Lighting LED
Control type Full electronic control
Defrost Adaptive
Refrigeration system Balanced, forced-air
Refrigeration location Self-contained, side-mounted
Product temperature range 36°F to 38°F
Refrigerant R-290 hydrocarbon
Compressor size 1/3 HP
Exterior finish Stainless steel
Interior finish Stainless steel
Top 1 in. stainless steel
Voltage 115 V
Frequency 60 Hz
Phase Single phase
Current 3.3 A
Plug NEMA 5-15P
Cord length 8 ft

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

The model cutsheet lists a 7-year parts, labor, and compressor warranty, a 2-year warranty on magnetic door gaskets, and a lifetime parts-only warranty on handles and hinges.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It has six self-closing glass doors with a 120-degree stay-open feature and door locks.
The refrigerator has 19.618 cu. ft. of capacity and accommodates three 1/2-barrel kegs.
Six epoxy-coated steel shelves are included.
The unit is capable of maintaining product temperatures from 36°F to 38°F.
It uses R-290 hydrocarbon refrigerant.
It operates at 115 V, 60 Hz, single phase, draws 3.3 A, and uses a NEMA 5-15P plug.
Yes. The cutsheet identifies the unit as certified for open food product.
The model cutsheet lists a 7-year parts, labor, and compressor warranty, a 2-year warranty on magnetic door gaskets, and a lifetime parts-only warranty on handles and hinges.
