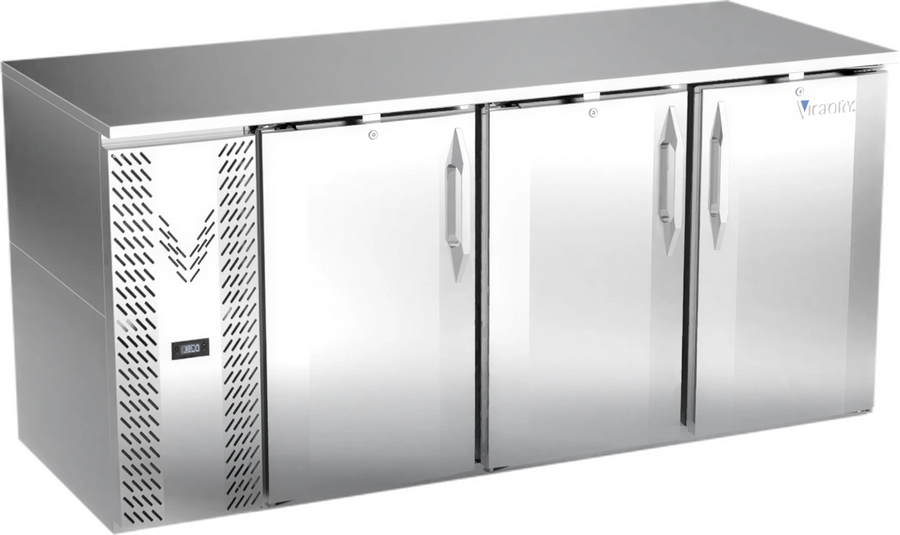

Victory Refrigeration VBB72HC-S Back Bar Refrigerator, 72"W x 30-1/8"D x 34"H, 3 Solid Self-Closing Doors, Stainless Steel

SKU: VBB72HC-S
$8,190.82
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Victory Refrigeration VBB72HC-S is a two-section back bar refrigerator with 23.643 cu. ft. of capacity, three solid self-closing doors, and space for three half-barrel kegs.

  • Three doors include a 120° stay-open feature, magnetic gaskets, and door locks.
  • Six epoxy-coated steel shelves, LED lighting, and full electronic control support organized storage.
  • The cabinet has a stainless steel exterior and top, galvanized steel interior walls and ceiling, and a stainless steel floor.
  • The self-contained refrigeration system uses R-290 refrigerant and adaptive defrost.
  • Designed for packaged products only.

Overall Dimensions:

72.0"W x 30.13"D x 34.0"H

Product Weight:

372.0 lb

Self-closing solid doors

Three solid doors include a 120° stay-open feature, magnetic gaskets for positive sealing, and door locks.

Storage capacity

The refrigerator provides 23.643 cu. ft. of capacity, six epoxy-coated steel shelves, and space for three half-barrel kegs.

Cabinet construction

The cabinet has a stainless steel exterior and 1-inch stainless steel top, with galvanized steel walls and ceiling and a heavy-duty stainless steel floor.

Temperature control

Full electronic control, adaptive defrost, and a balanced forced-air refrigeration system are specified for a 36°F to 38°F product temperature range.

LED lighting

LED lighting is included for cabinet illumination.

Refrigeration system

The self-contained, side-mounted refrigeration system uses R-290 hydrocarbon refrigerant and a 1/3 HP condensing unit.

Electrical connection

The unit operates at 115 V, 60 Hz, single phase, draws 3.3 A, and uses a NEMA 5-15P plug with an 8-foot cord.

Related Searches

Back Bar Coolers Back Bar Coolers Back-Bar & Bottle Cooling Equipment Back-Bar Refrigerators Bar & Beverage Refrigeration Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Refrigeration & Ice Restaurant Equipment Victory Refrigeration
Product type Back bar refrigerator
Configuration Two-section
Net capacity 23.643 cu. ft.
Door count 3
Door type Solid
Door operation Self-closing with 120° stay-open feature
Door locks Yes
Shelf count 6
Shelf construction Epoxy-coated steel
Keg capacity 3 half-barrel kegs
Product temperature range 36°F to 38°F
Control Full electronic control
Defrost Adaptive
Lighting LED
Exterior finish Stainless steel
Interior construction Galvanized steel walls and ceiling
Floor construction Stainless steel
Top construction 1-inch stainless steel
Refrigeration location Self-contained, side mounted
Compressor location Left side
Refrigerant R-290 hydrocarbon
Condensing unit size 1/3 HP
Electrical requirements 115 V / 60 Hz / 1 phase
Current draw 3.3 A
Plug NEMA 5-15P
Cord length 8 ft
Required clearance 0 in
Product handling Packaged products only
Internal usable width 57 in
Internal depth 23 1/2 in
Internal height 30 1/2 in

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

The manufacturer cutsheet lists a 7-year parts, labor, and compressor warranty, a 2-year warranty on magnetic door gaskets, and a lifetime parts-only warranty on handles and hinges.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

The unit measures 72 in. wide by 30.13 in. deep by 34 in. high.
The VBB72HC-S has 23.643 cu. ft. of net capacity.
It has three solid self-closing doors and six epoxy-coated steel shelves.
Yes. The specified capacity is three half-barrel kegs.
It requires 115 V, 60 Hz, single-phase power, draws 3.3 A, and uses a NEMA 5-15P plug.
It uses R-290 hydrocarbon refrigerant.
The manufacturer cutsheet lists a 7-year parts, labor, and compressor warranty, a 2-year warranty on magnetic door gaskets, and a lifetime parts-only warranty on handles and hinges.
