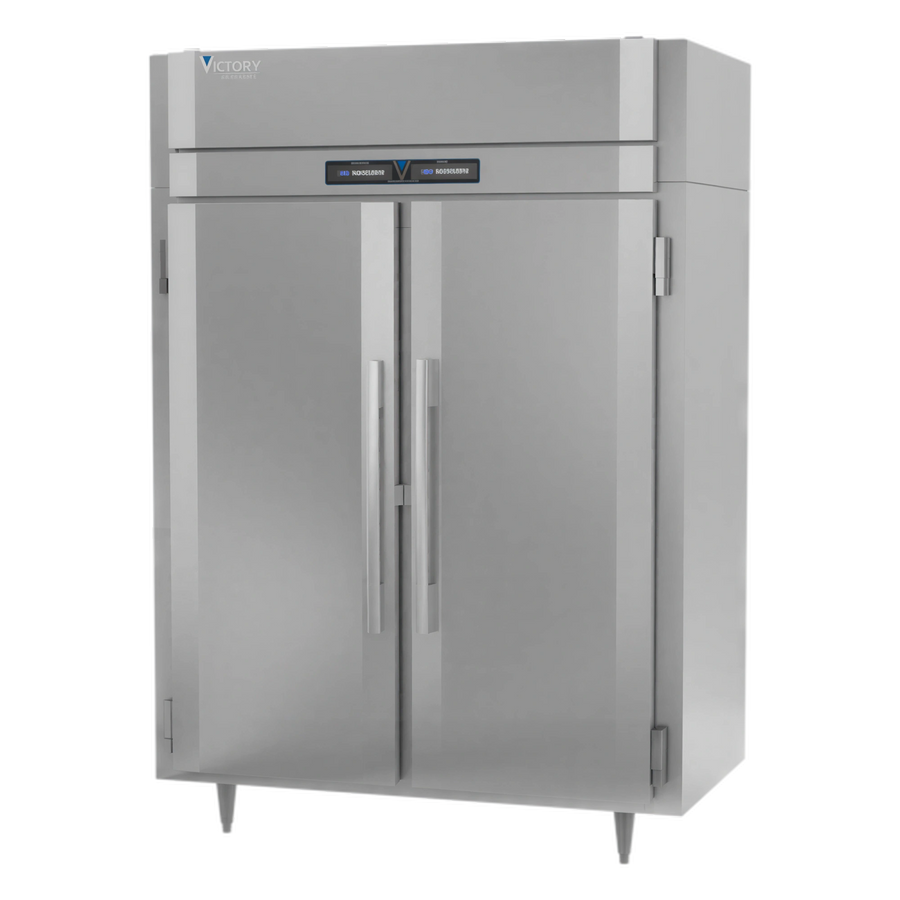

Victory Refrigeration UltraSpec™ RFSA-2D-S1-EW-HC Two-Section Reach-In Refrigerator/Freezer, Solid Hinged Doors, Stainless Steel

SKU: RFSA-2D-S1-EW-HC
$17,110.91

Want to speak to an expert?

The UltraSpec™ RFSA-2D-S1-EW-HC is a two-section, dual-temperature reach-in refrigerator/freezer with separate refrigerator and freezer compartments.

  • Storage: Each section is listed at 24.08 cu. ft.; the refrigerator is on the left and the freezer is on the right.
  • Construction: Stainless steel exterior, aluminum interior, stainless steel interior door liners, and an insulated partition wall.
  • Access: Two wide, full-height solid hinged doors with stay-open functionality, cylinder locks, and six silver freeze wire shelves.
  • Refrigeration: Self-contained, top-mounted refrigeration powered by V-Core™, with expansion valve technology, adaptive defrost, and R-290 refrigerant.
  • Controls: TOUCH POINT™ electronic temperature control and indicators with LED interior lighting.

Overall Dimensions:

58.38"W x 34.88"D x 84.25"H

Product Weight:

700.0 lb

Dual-temperature storage

The refrigerator is on the left and the freezer is on the right, with 24.08 cu. ft. listed for each section.

Solid hinged doors

Two wide, full-height solid hinged doors include a stay-open feature for product loading.

Durable cabinet construction

The cabinet has a stainless steel exterior, aluminum interior, stainless steel interior door liners, and an insulated partition wall.

Electronic control and LED lighting

TOUCH POINT™ electronic temperature control and indicators work with LED interior lighting.

Self-contained refrigeration

The unit uses top-mounted compressors, expansion valve technology, adaptive defrost, variable speed compressor technology, and R-290 refrigerant.

Six wire shelves

Six silver freeze, chrome-style wire shelves are specified for the unit.

Loading and access features

Stay-open doors, heavy-duty cylinder locks, magnetic door switches, and low-profile vertical handles support loading and access.

Product type Reach-in refrigerator/freezer
Configuration Two-section, dual-temperature
Capacity per section 24.08 cu. ft.
Refrigeration system Self-contained
Door configuration (2) wide, full-height solid hinged doors
Section arrangement Refrigerator left; freezer right
Shelves (6) silver freeze wire shelves
Exterior finish Stainless steel
Interior finish Aluminum
Depth classification Standard depth
Temperature control TOUCH POINT™ electronic temperature control and indicators
Thermometer Exterior digital
Refrigerator temperature capability 36°F to 38°F
Freezer temperature capability -10°F
Compressor horsepower Refrigerator 1/3 HP; freezer 3/4 HP
Compressor location Top mounted
Refrigerant R-290
Lighting LED interior lighting
Electrical 115/60/1
Amperage Refrigerator 6.5 A; freezer 9.1 A
NEMA plugs (2) 5-15P
Door opening 23 in. x 54 5/8 in.
Required top clearance 12 in.
Legs 6 in. adjustable stainless steel legs

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty; 2-year magnetic door gasket warranty; lifetime warranty on handles and hinges for parts only.

Frequently Asked Questions

Each refrigerator or freezer section is listed at 24.08 cu. ft. of capacity.
The refrigerator is on the left and the freezer is on the right.
The refrigerator is capable of maintaining 36°F to 38°F, and the freezer is capable of maintaining -10°F.
It uses 115/60/1 electrical service, with refrigerator amperage of 6.5 A, freezer amperage of 9.1 A, and two 5-15P plugs.
The cutsheet specifies 12 inches of top clearance.
The product warranty specifies 7 years on parts, labor, and the compressor, 2 years on magnetic door gaskets, and a lifetime warranty on handles and hinges for parts only.
