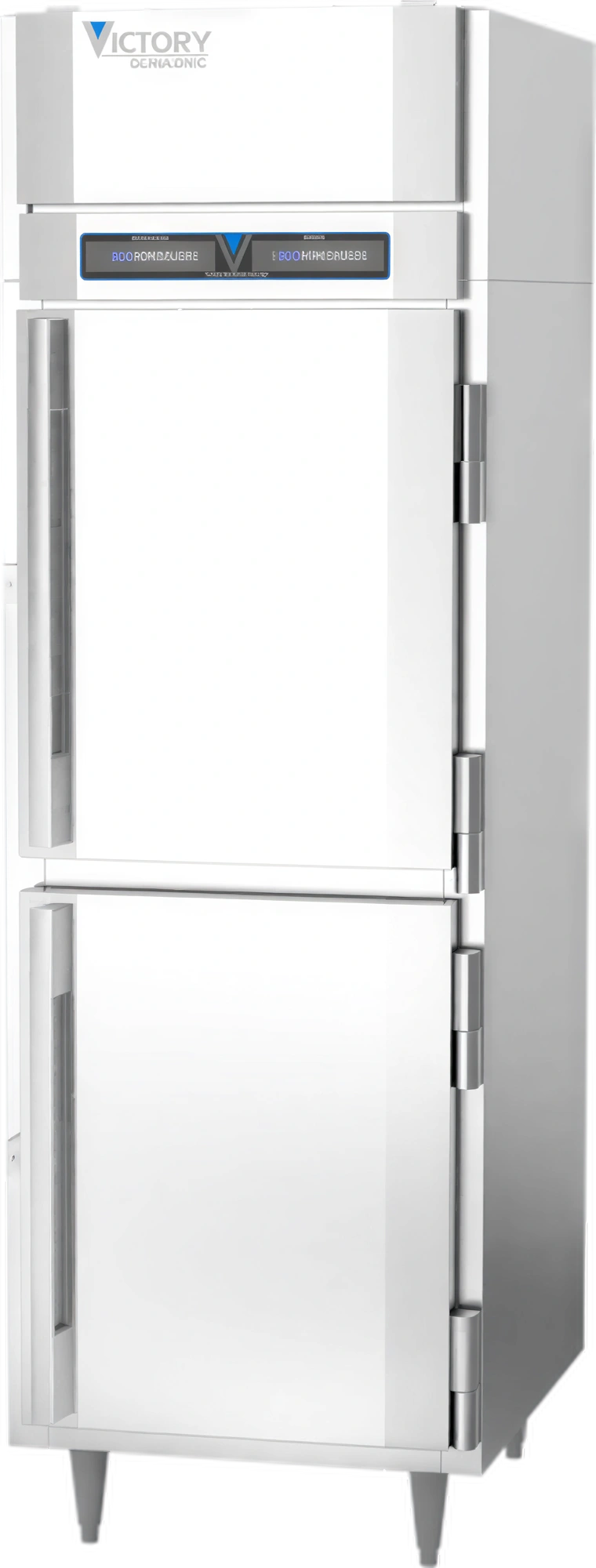

Victory Refrigeration UltraSpec™ RFSA-1D-S1-HD-HC One-Section Reach-In Refrigerator/Freezer, Half-Height Solid Doors, Stainless Steel

SKU: RFSA-1D-S1-HD-HC
$14,055.53

Want to speak to an expert?

The Victory UltraSpec™ RFSA-1D-S1-HD-HC is a one-section, self-contained reach-in refrigerator/freezer with the refrigerator compartment above the freezer compartment. Each section provides 8.99 cu. ft. of capacity.

It features two half-height solid hinged doors, a stainless steel exterior, an aluminum interior, TOUCH POINT™ electronic temperature control and indicators, and LED lighting.

  • Refrigerator section capable of maintaining 36°F to 38°F.
  • Freezer section capable of maintaining -10°F.
  • Top-mounted compressors, expansion valve technology, adaptive defrost, and R-290 refrigerant.

Overall Dimensions:

26.5"W x 35.0"D x 84.13"H

Product Weight:

402.0 lb

Dual-temperature layout

The refrigerator compartment is on top and the freezer compartment is on the bottom, separated by an insulated partition wall.

Half-height solid doors

Two half-height solid hinged doors include a stay-open feature for loading.

Self-contained refrigeration

The unit uses self-contained refrigeration with top-mounted compressors.

Electronic temperature control

A full electronic TOUCH POINT™ interface provides temperature control and indicators.

Interior lighting

Magnetic door switches automatically activate the interior LED lighting.

Cooling system

Expansion valve technology, adaptive defrost, and variable-speed compressor technology support the refrigeration system.

Cabinet construction

The cabinet has a stainless steel exterior and aluminum interior.

Access and security

Heavy-duty cylinder locks and a manager’s lockout feature are included.

Product type One-section dual-temperature reach-in refrigerator/freezer
Refrigeration Self-contained refrigeration
Capacity Refrigerator 8.99 cu. ft.; freezer 8.99 cu. ft.
Door configuration 2 half-height solid hinged doors
Exterior finish Stainless steel
Interior finish Aluminum
Shelving Silver freeze (chrome-style) wire shelves
Temperature control TOUCH POINT™ electronic temperature control and indicators
Lighting LED
Temperature range Refrigerator 36°F to 38°F; freezer capable of maintaining -10°F
Defrost Adaptive defrost
Compressor location Top mounted
Compressor size Refrigerator 1/6 HP; freezer 1/2 HP
Compressor technology Variable speed
Refrigerant R-290
Cabinet depth Standard depth
Electrical service 115/60/1
Total amperage Refrigerator 3.0 A; freezer 7.0 A
Plug (2) 5-15P with 8 ft cord

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty; 2-year warranty on magnetic door gaskets; lifetime parts-only warranty on handles and hinges.

Frequently Asked Questions

Yes. It is a one-section dual-temperature refrigerator/freezer with the refrigerator compartment on top and the freezer compartment on the bottom.
The refrigerator and freezer each have 8.99 cu. ft. of capacity.
The refrigerator is capable of maintaining 36°F to 38°F, and the freezer is capable of maintaining -10°F.
The product measures 26.5 in wide by 35.0 in deep by 84.13 in high and weighs 402.0 lb.
The unit uses 115/60/1 electrical service. Listed total amperage is 3.0 A for the refrigerator and 7.0 A for the freezer.
It has two half-height solid hinged doors.
The published warranty specifies 7-year coverage for parts, labor, and compressors, a 2-year warranty on magnetic door gaskets, and a lifetime parts-only warranty on handles and hinges.
