Victory UltraSpec 23.32 Cu. Ft. One-Section Reach-In Bottom Mount Glass Door Merchandiser Freezer

SKU: LSF23HC-1
$9,424.99
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Freezers Commercial Refrigeration Display Refrigeration Food Merchandisers Glass Door Freezers Glass Door Merchandisers Glass Door Merchandisers New Arrivals Restaurant Equipment Victory Refrigeration

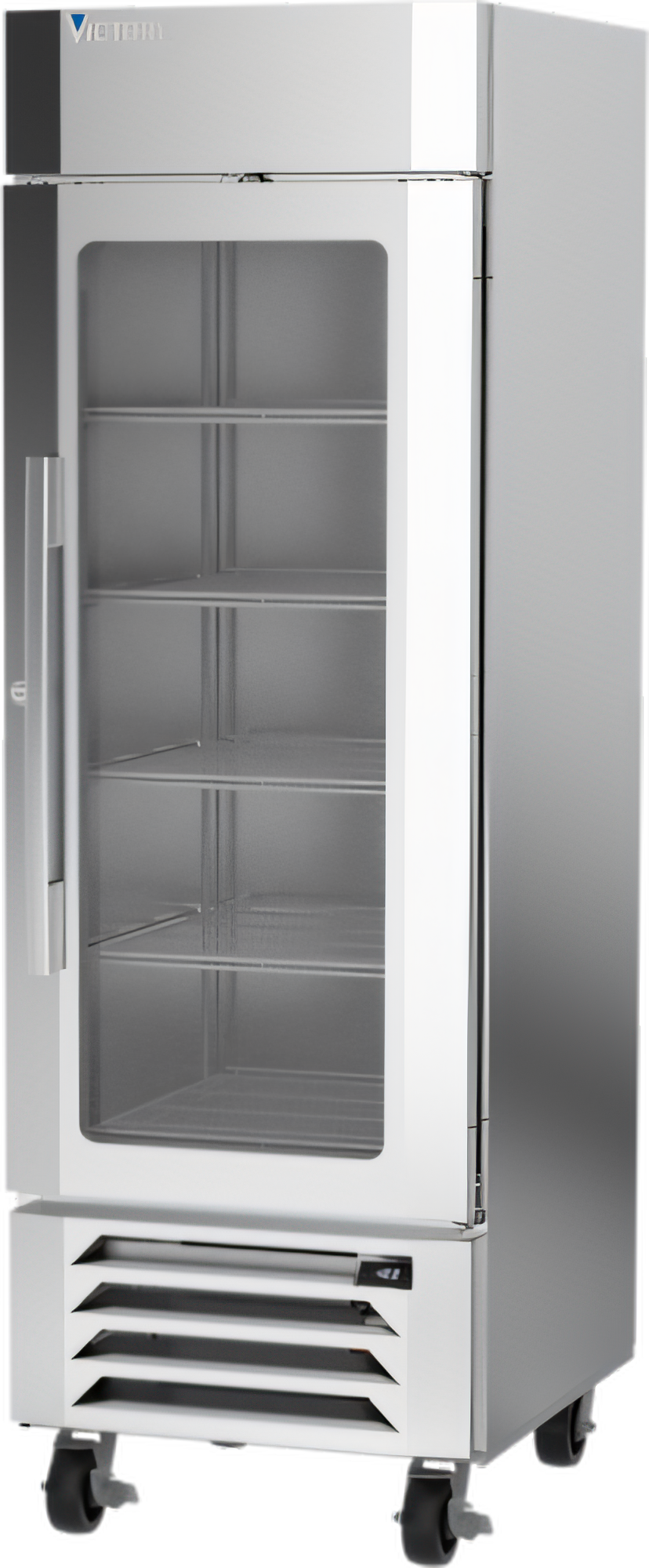

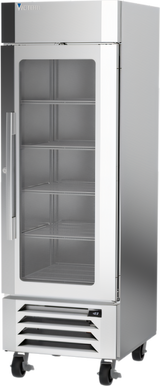

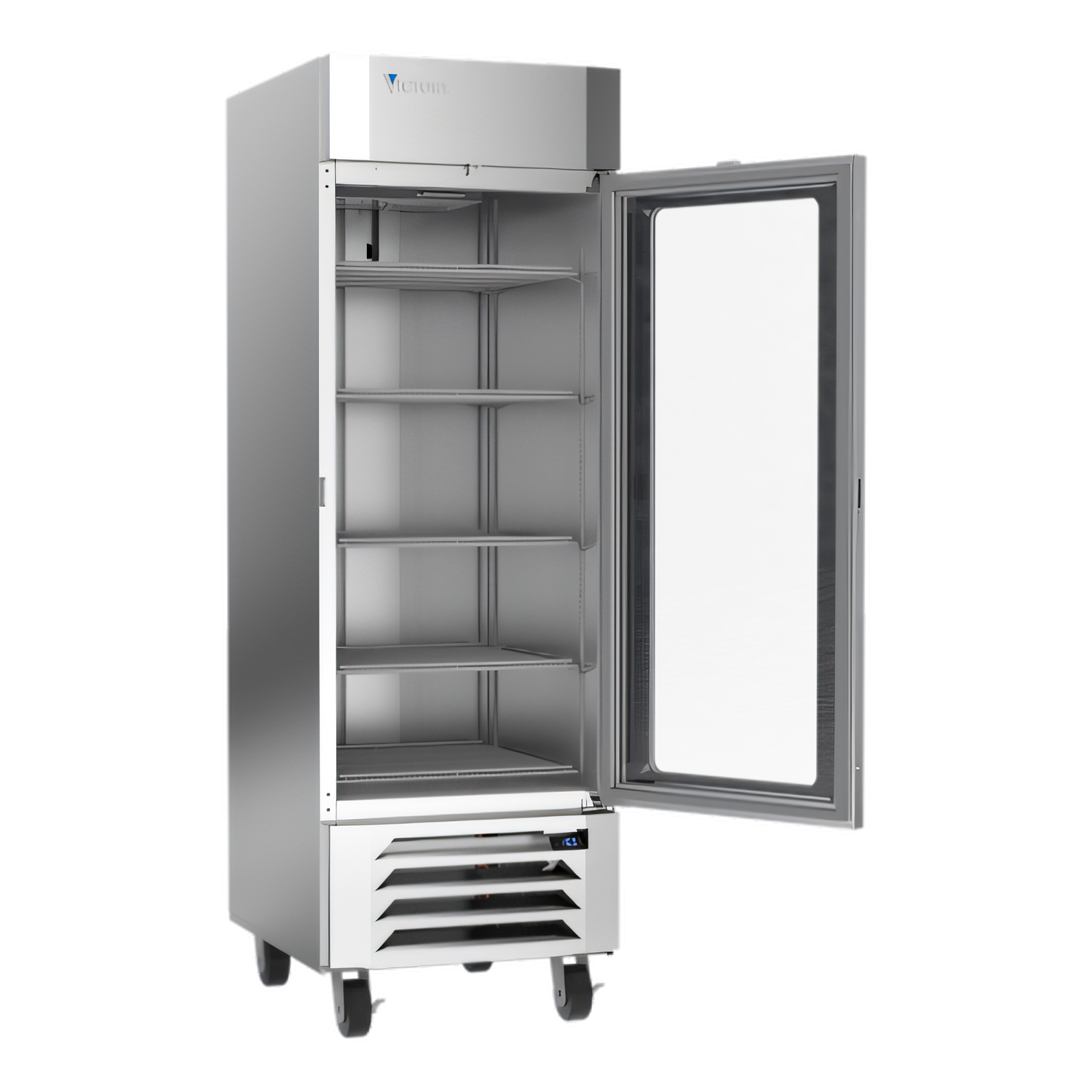

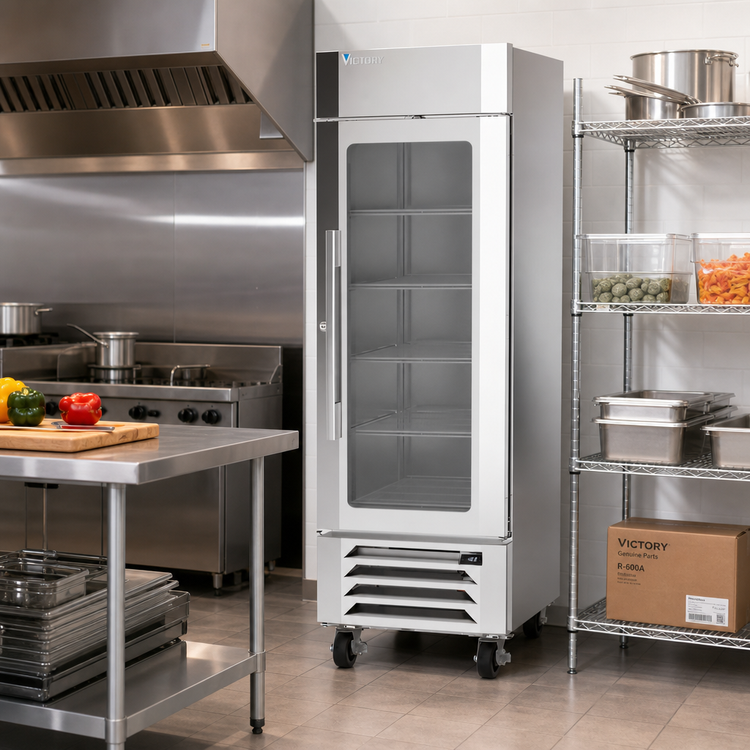

Victory UltraSpec 23.32 Cu. Ft. One-Section Reach-In Bottom Mount Glass Door Merchandiser Freezer

Self-Contained, Triple-Pane Door, Standard Depth

Built for high-visibility frozen merchandising, this self-contained bottom-mount freezer combines V-Core performance with a triple-pane glass door and LED lighting.

  • 23.32 cu. ft. one-section reach-in freezer for frozen food merchandising
  • Bottom-mount, self-contained refrigeration supports balanced loading and easier service access
  • Triple-pane glass door and LED lighting showcase product clearly
  • Stainless steel exterior and aluminum interior provide durable commercial construction
  • Five epoxy-coated shelves and a standard door lock help organize and secure inventory
  • R-290 refrigerant, adaptive defrost, and electronic controls support reliable freezer performance
  • Designed to maintain product temperatures at 0°F

Overall Dimensions:

27.25"W x 34.0"D x 84.12"H

Product Weight:

450.0 lb

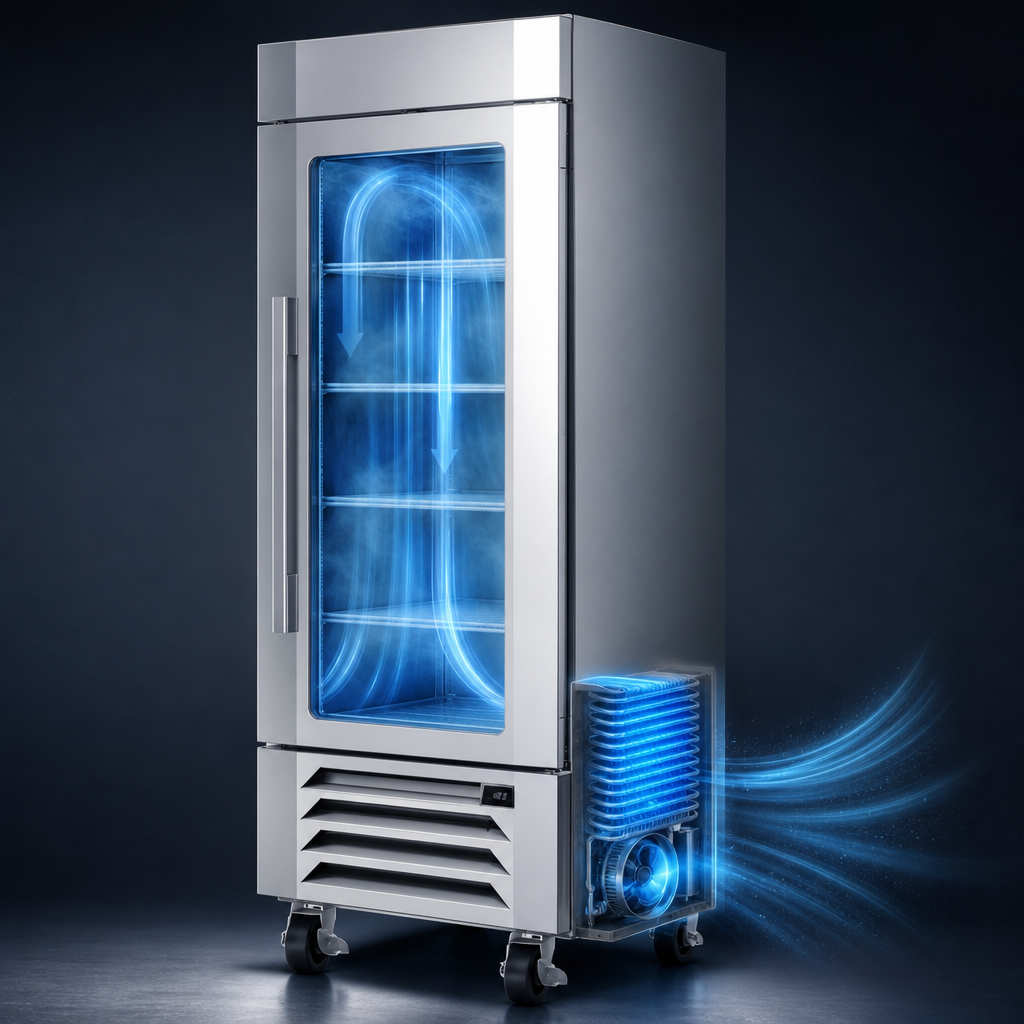

V-Core Cooling Technology

Powered by V-Core for advanced cooling performance and faster pull-down.

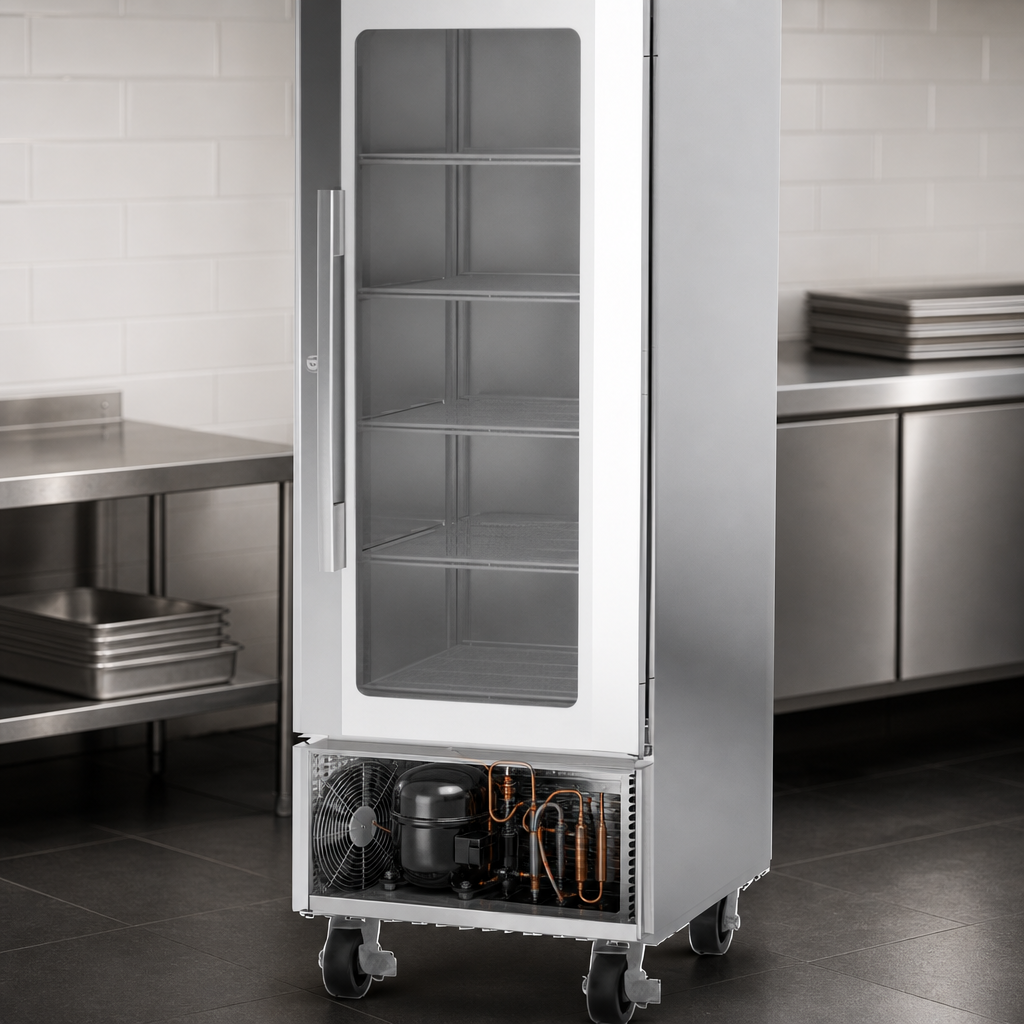

Bottom-Mounted, Self-Contained Refrigeration

Integrated refrigeration system places the compressor at the bottom for better balance and service access.

Triple-Pane Glass Door

Improves product visibility while helping preserve cabinet insulation.

LED Interior Lighting

Bright interior lighting enhances product presentation.

Electronic Controls

Full electronic control simplifies operation and temperature management.

Anti-Condensate Door Heaters

Helps reduce condensation on the glass door for clearer visibility.

Adaptive Defrost

Automated defrost management helps support consistent temperatures and energy savings.

Hot Gas Condensate Evaporator

Helps manage condensate without requiring a separate drain solution.

R-290 Refrigerant

Uses R-290 refrigerant for freezer performance and environmental compliance.

Five Epoxy-Coated Shelves

Durable shelves provide organized frozen product display.

Stainless Steel Exterior / Aluminum Interior

Commercial-grade cabinet construction designed for durability and easy cleaning.

Door Lock Standard

Factory-installed lock helps secure inventory after hours.

Field-Reversible Door

Door swing can be changed in the field; hinge kit is not included.

Maintains 0°F

Designed to hold frozen product temperatures at 0°F.

Type Glass Door Merchandiser Freezer
Style Reach-In
Installation Type Floor Model
Capacity 23.32 Cu. Ft.
Refrigeration Type Self-Contained
Material Stainless Steel
Interior Finish Aluminum
Finish Stainless Steel
Controls Electronic
Refrigerant Type R-290
Compressor Horsepower 3/4 HP
BTU 2097 BTU/HR
Voltage 115 Volts
Amps 6.34 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Compartments 1
Shelf Count 5
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 28 Inches
Shipping Depth 34 Inches
Shipping Height 85 Inches
Shipping Weight 450 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty; 2 years on magnetic door gaskets; lifetime warranty on handles and hinges (parts only).

Documents

PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF V-core™ brochure PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 23.32 cu. ft. of capacity and a one-section reach-in design.
The unit uses 115/60/1 power, draws 6.34 amps, and includes an 8-foot cord with a NEMA 5-15P plug.
It uses R-290 refrigerant.
Yes, it is designed to maintain product temperatures at 0°F.
Yes, the door is field reversible; the hinge kit is not included.
Units shipped on or after July 1, 2024 include a 7-year parts, labor, and compressor warranty, plus 2 years on magnetic door gaskets and lifetime coverage on handles and hinges (parts only).
