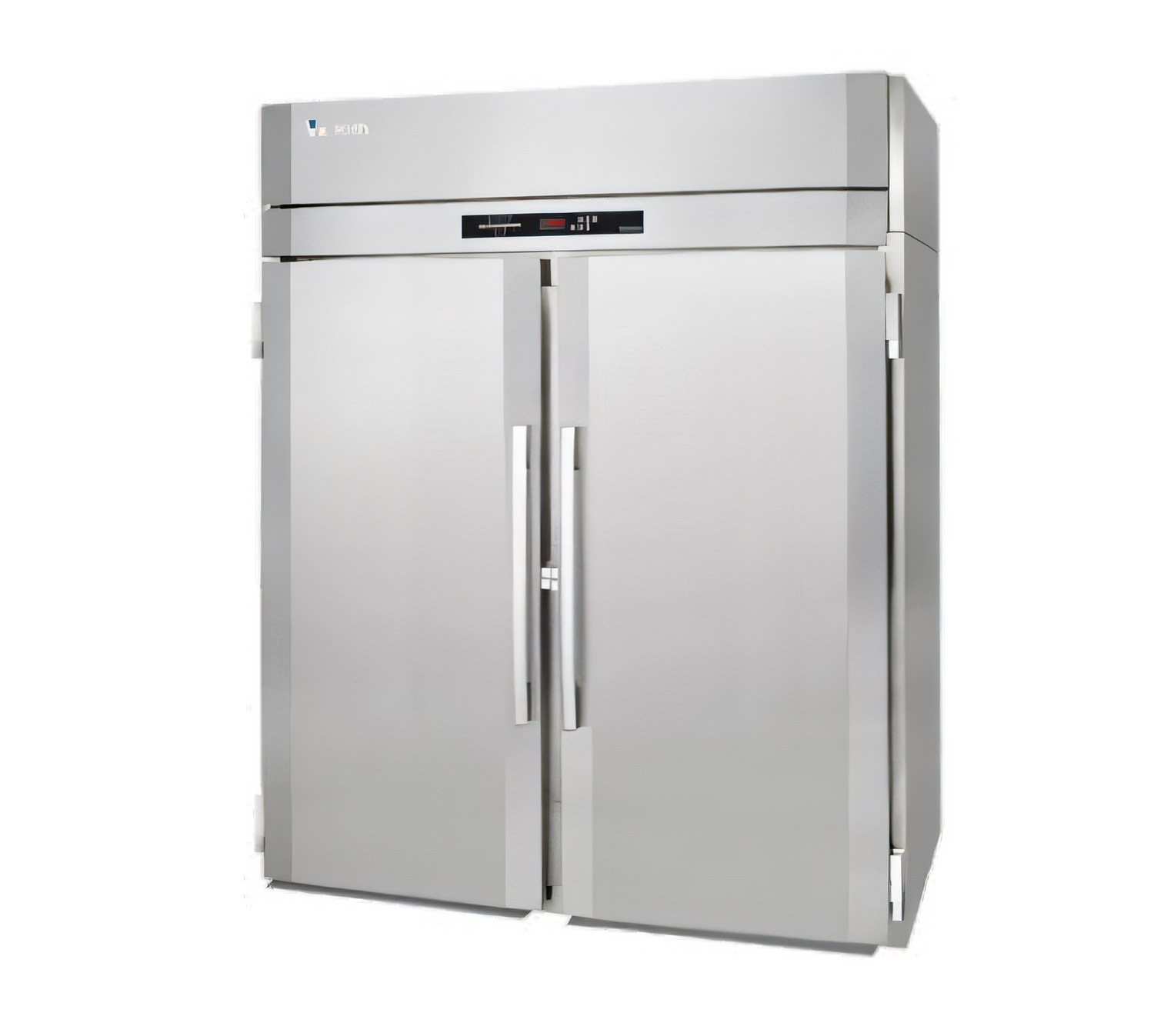

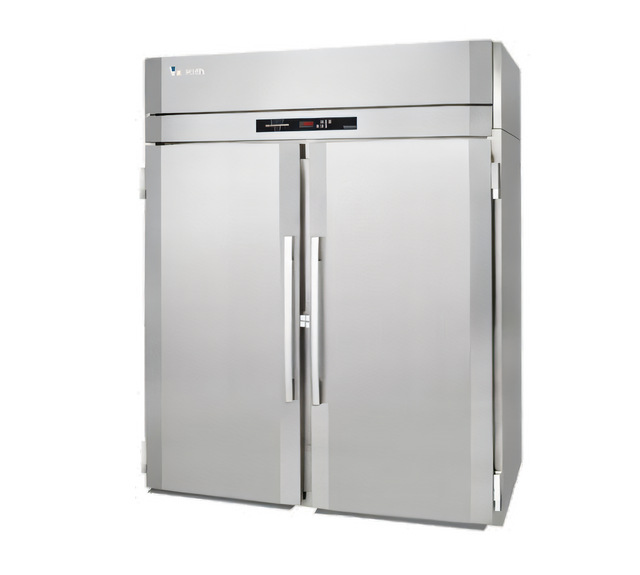

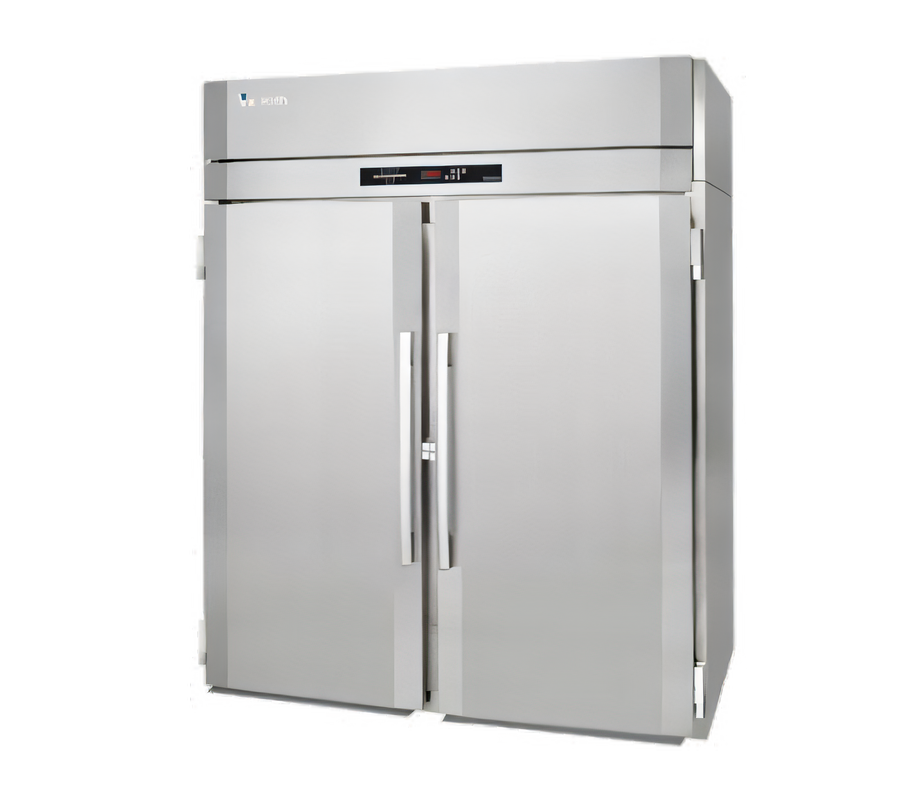

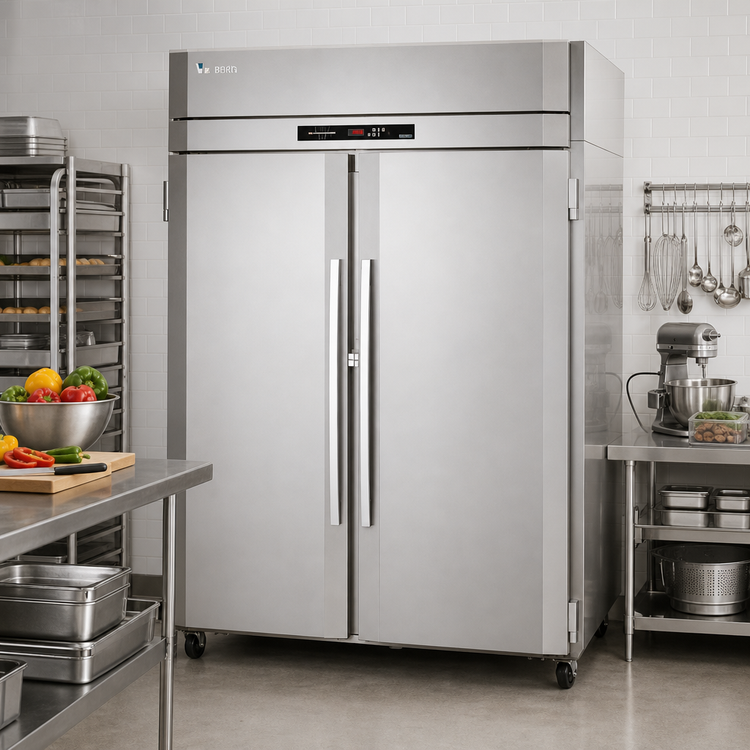

UltraSpec™ Extra Tall Roll-Thru Heated Cabinet with Solid Doors, 2-Section, 77.3 Cu. Ft.

Powered by V-Core™, Standard Depth, Stainless Steel Exterior, Aluminum Interior

Keep high-volume service moving with an extra-tall roll-thru cabinet that combines precise electronic heat control, humidity management, and easy cart loading.

  • 77.3 cu. ft. two-section roll-thru heated cabinet built for large-volume holding.
  • TouchPoint electronic control with an adjustable 80°F to 180°F temperature range.
  • Built-in adjustable humidity vent helps maintain food quality during holding.
  • Stainless steel exterior and aluminum interior support durability and easy cleaning.
  • Extra high solid doors include stay-open convenience, heavy-duty cam hinges, and magnetic gaskets.
  • Accepts a 26 1/2"W x 28"D x 71 1/2"H cart (cart not included).

Overall Dimensions:

68.88"W x 40.63"D x 89.88"H

Product Weight:

600.0 lb

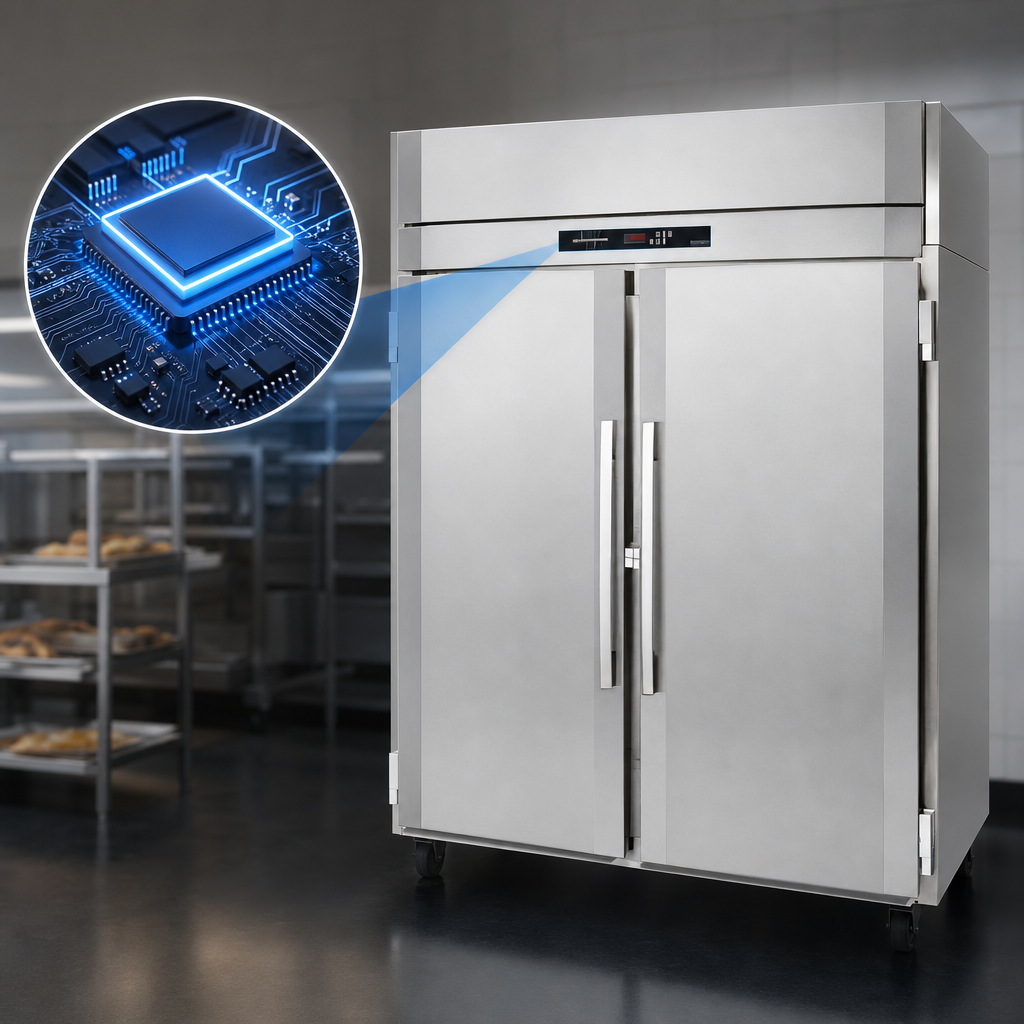

Powered by V-Core™

Factory-integrated platform designed to support consistent performance and efficient operation.

Powered by V-Core™

TouchPoint Electronic Control

Full electronic interface with temperature control and indicator for easy operation.

TouchPoint Electronic Control

Adjustable Temperature Range

Set the cabinet from 80°F to 180°F to match holding requirements.

Built-In Humidity Control Vent

Adjustable vent helps manage moisture inside the cabinet.

Externally Mounted Blower

Helps maintain even temperatures throughout the cabinet.

Roll-Thru Design

Allows carts to move through the cabinet for a faster, more efficient workflow.

Solid Door Construction

Heavy-duty 20-gauge stainless steel doors with stay-open feature, cam hinges, cylinder locks, and magnetic gaskets.

Stainless Steel Exterior / Aluminum Interior

Durable construction with easy-clean food-contact surfaces.

Manager's Lockout Feature

Helps prevent unauthorized changes to cabinet settings.

Cart-Ready Interior

Accepts a 26 1/2"W x 28"D x 71 1/2"H cart; cart is not included.

Factory Power Connection

Includes an 8-foot cord and plug for installation convenience.

Type Warming Cabinet
Style Roll-Thru
Installation Type Floor Model (With Casters)
Capacity 77.3 Cubic Feet
Compartments 2
Material Stainless Steel
Interior Finish Aluminum
Controls Electronic
Temperature Range 80°F to 180°F
Voltage 208-240 Volts
Amps 13 Amps
Watts 3 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type 6-20P
Cord Length 8 Feet
Country of Origin USA
Shipping Width 78 Inches
Shipping Depth 45 Inches
Shipping Height 95 Inches
Shipping Weight 670 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts and labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF V-core™ brochure PDF Download PDF Manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cabinet has an adjustable electronic temperature range from 80°F to 180°F.
It requires 208-240V, 60 Hz, single-phase power and draws 13 amps with a 6-20P plug.
It is a two-section cabinet with four doors.
Yes, it includes a built-in adjustable humidity control vent.
Documented options and accessories include a stainless steel back and shroud, exterior door laminate, door swing orientation at time of order, a glass door, and a correctional package.
The cabinet carries a 7-year parts and labor warranty, a 2-year warranty on magnetic door gaskets, and a lifetime warranty on handles and hinges (parts only).
