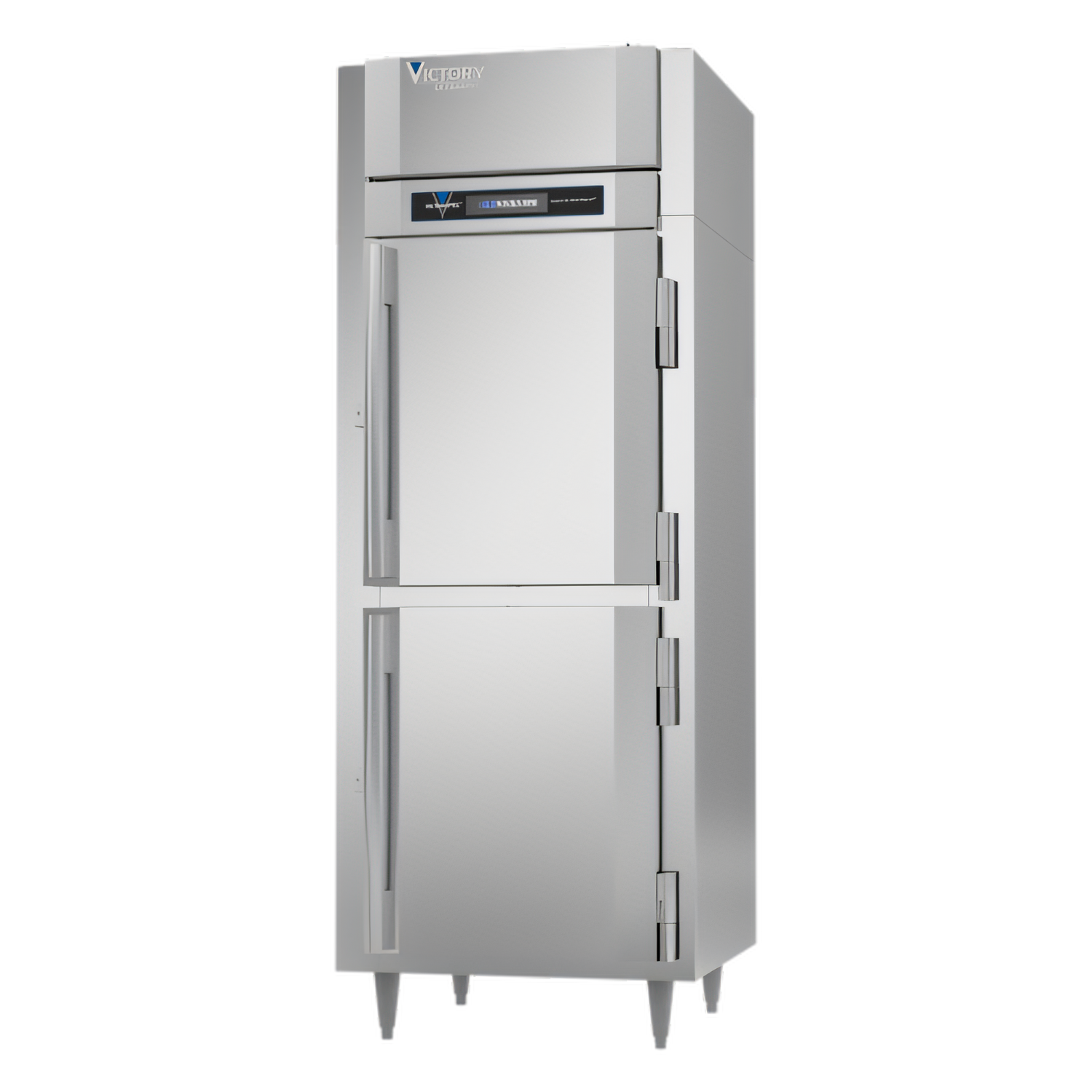

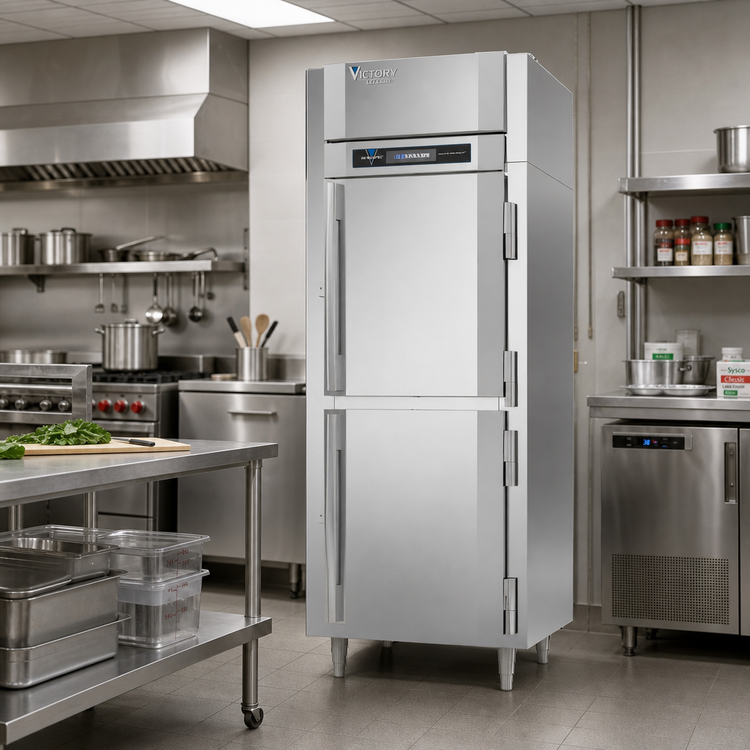

Victory UltraSpec Extra Wide Pass-Thru Solid Half-Door Freezer, 1-Section, 26.06 Cu. Ft., Self-Contained

Stainless Steel Exterior, Aluminum Interior, Powered by V-Core™

Built for high-volume kitchens, this extra-wide pass-thru freezer combines dual-side access, V-Core cooling, and rugged stainless-steel construction.

  • Extra-wide pass-thru design improves loading and retrieval from both sides of the cabinet.
  • 26.06 cu. ft. one-section capacity provides generous frozen storage in a compact footprint.
  • V-Core powered refrigeration with expansion valve technology helps deliver fast cooldown and consistent performance.
  • Four wide half-height solid hinged doors, heavy-duty locks, and stay-open functionality support busy service.
  • Stainless steel exterior, aluminum interior, and stainless steel breaker caps are built for daily commercial use.
  • TOUCH POINT electronic controls, LED lighting, and manager lockout simplify operation and product monitoring.
  • Includes 3 silver freeze wire shelves, 6-inch adjustable stainless steel legs, and an 8-foot cord with plug.

Overall Dimensions:

31.25"W x 39.25"D x 84.25"H

Product Weight:

380.0 lb

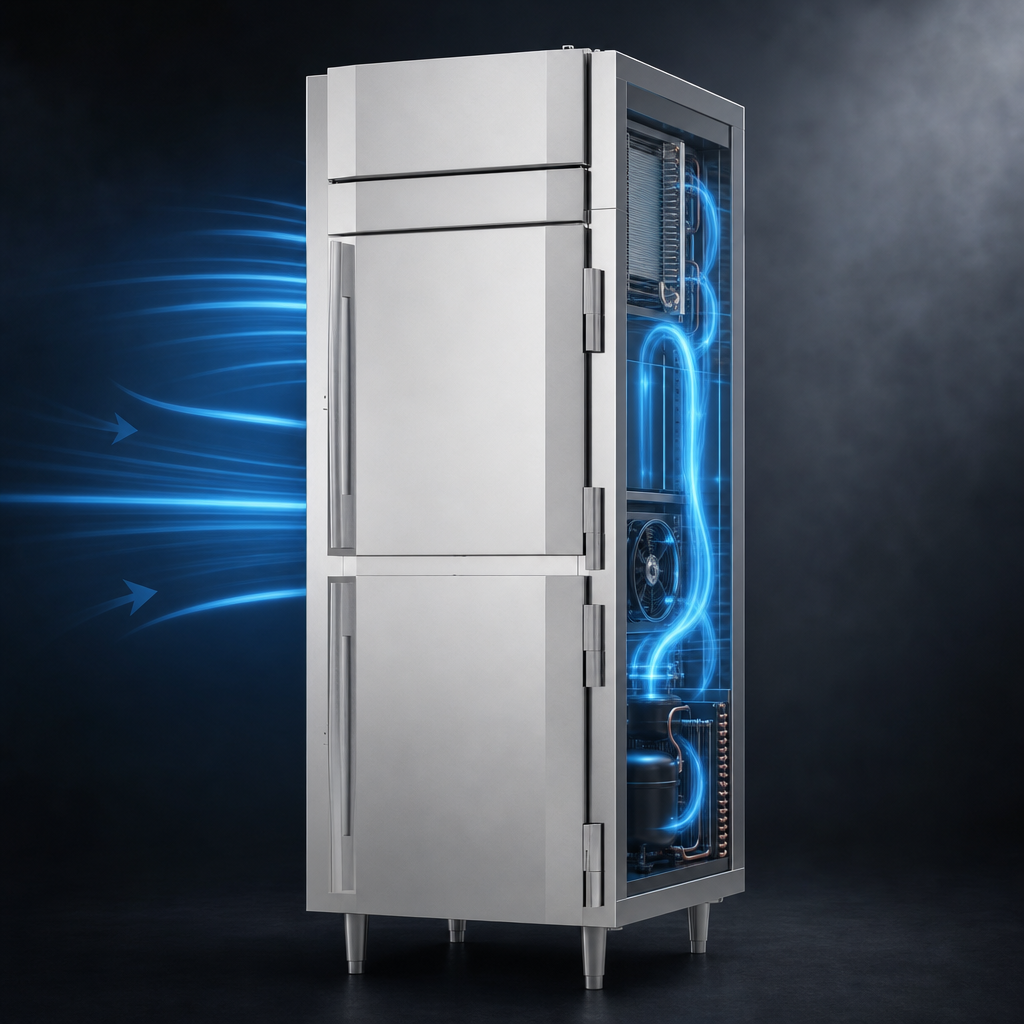

V-Core Cooling Technology

Advanced refrigeration system designed to improve cooldown speed and overall performance consistency.

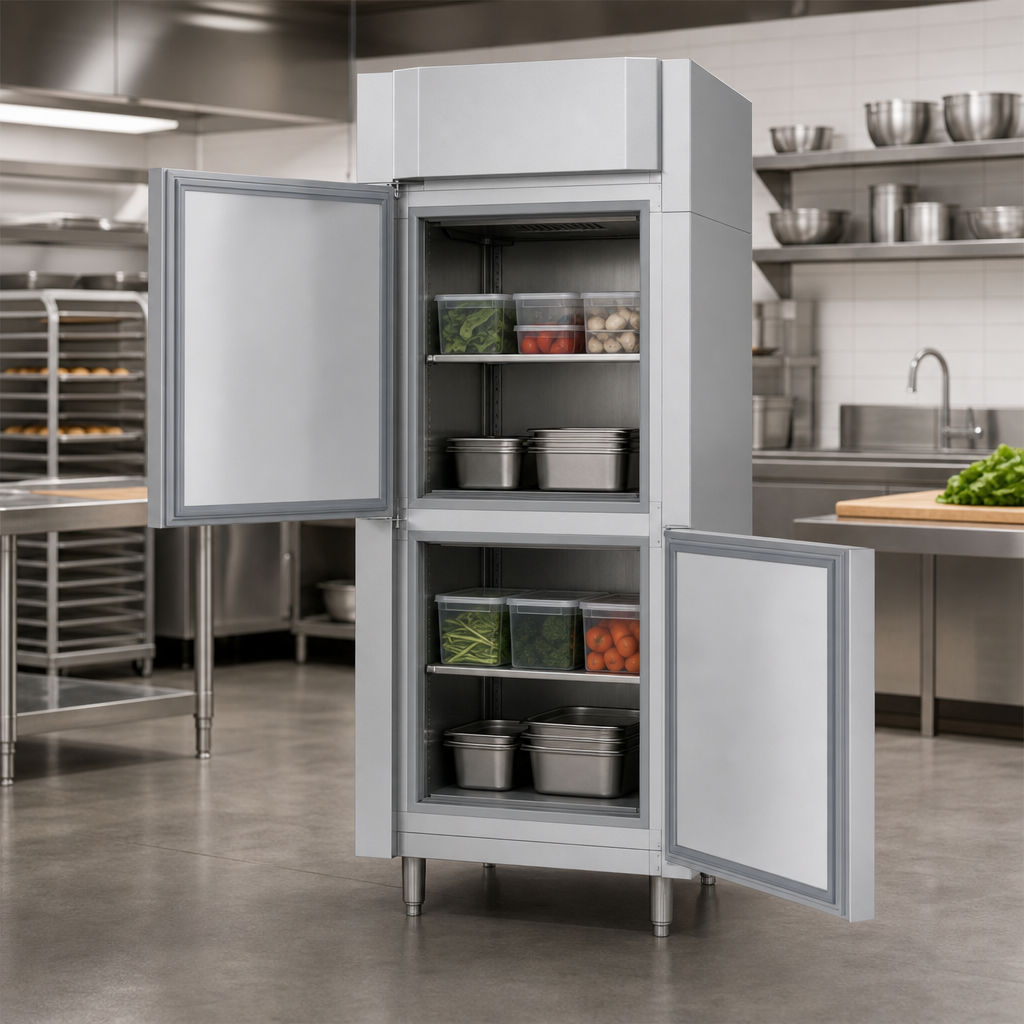

Pass-Thru Access

Doors on both sides make it easier to load, stage, and retrieve product in fast-paced kitchens.

Wide Half-Height Solid Doors

Four extra-wide 20-gauge stainless steel hinged half doors with stay-open feature and heavy-duty cylinder locks.

TOUCH POINT Electronic Control

Full electronic temperature control and indicator with manager's lockout feature for secure operation.

Stainless Steel Exterior And Aluminum Interior

Durable cabinet construction with a stainless steel exterior, aluminum interior, and stainless steel interior door liner.

LED Interior Lighting

Magnetic door switch automatically activates the interior LED light when the doors are opened.

Efficient Freezer Refrigeration System

Uses R-290 refrigerant, adaptive defrost, hot gas condensate evaporator, and anti-condensate perimeter heater.

Included Shelving And Base

Comes standard with 3 silver freeze wire shelves and 6-inch adjustable stainless steel legs.

Capacity 26.06 Cubic Feet
Controls Electronic
Type Freezer
Style Pass-Thru
Installation Type Floor Model
Material Stainless Steel
Interior Finish Aluminum
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R-290
BTU 2450 BTU/HR
Horsepower 3/4 HP
Voltage 115 Volts
Amps 9.1 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type 5-15P
Cord Length 8 Feet
Temperature Range -10°F
Shipping Width 41 Inches
Shipping Depth 41 Inches
Shipping Height 88 Inches
Shipping Weight 358 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor warranty; 2-year magnetic door gasket warranty; lifetime handles and hinges warranty (parts only).

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF Manual PDF Download PDF V-core™ brochure PDF Download PDF Glass door flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The freezer has a net capacity of 26.06 cubic feet.
The unit is capable of maintaining product temperature at -10°F.
It operates on 115/60/1 power, draws 9.1 amps, and comes with an 8-foot cord and 5-15P plug.
Standard features include four wide half-height solid hinged doors, 3 silver freeze wire shelves, LED lighting, and 6-inch adjustable stainless steel legs.
The unit includes a 7-year warranty on parts, labor, and compressor, plus an exclusive 2-year warranty on magnetic door gaskets and a lifetime warranty on handles and hinges (parts only).
