Victory Refrigeration

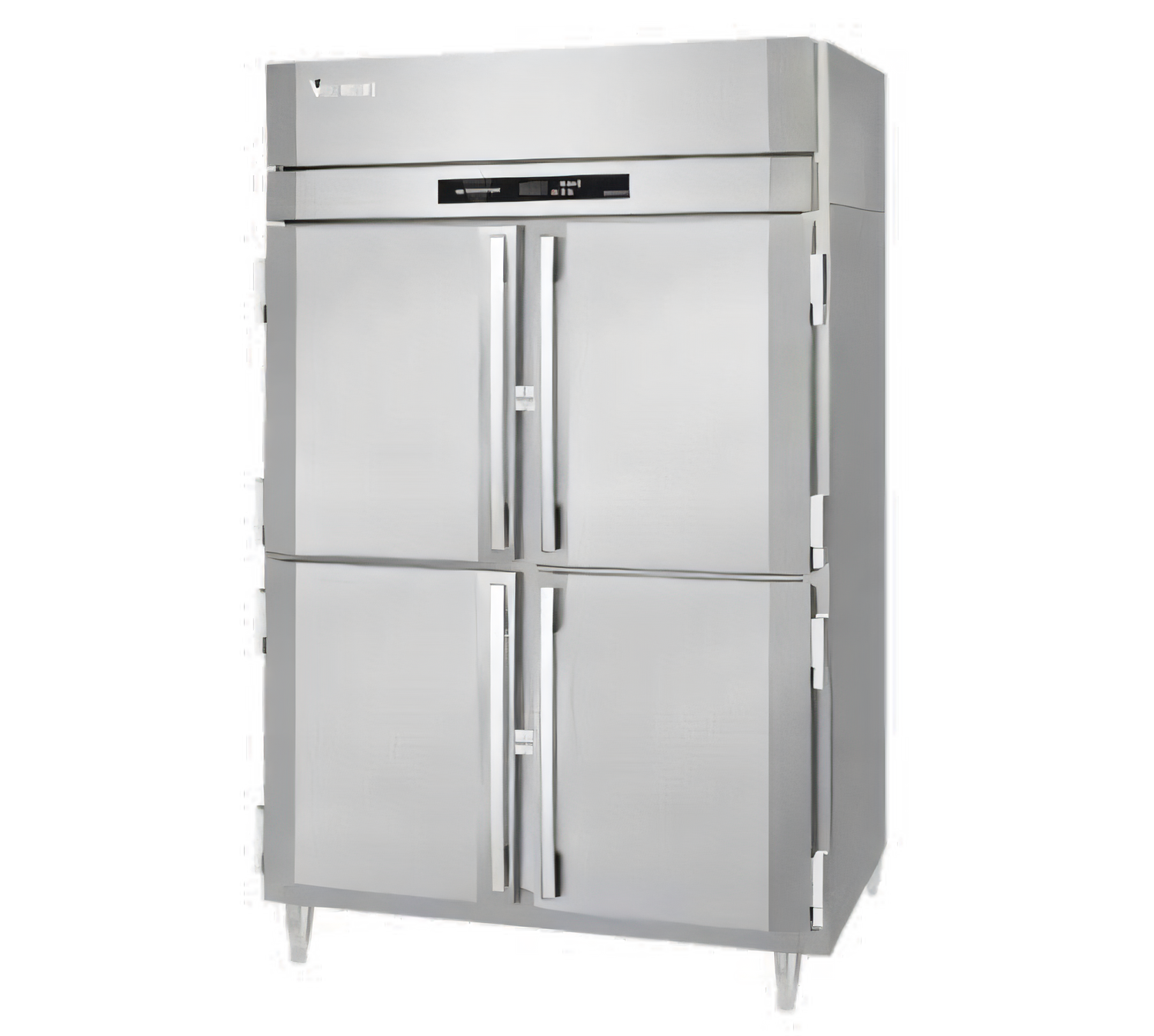

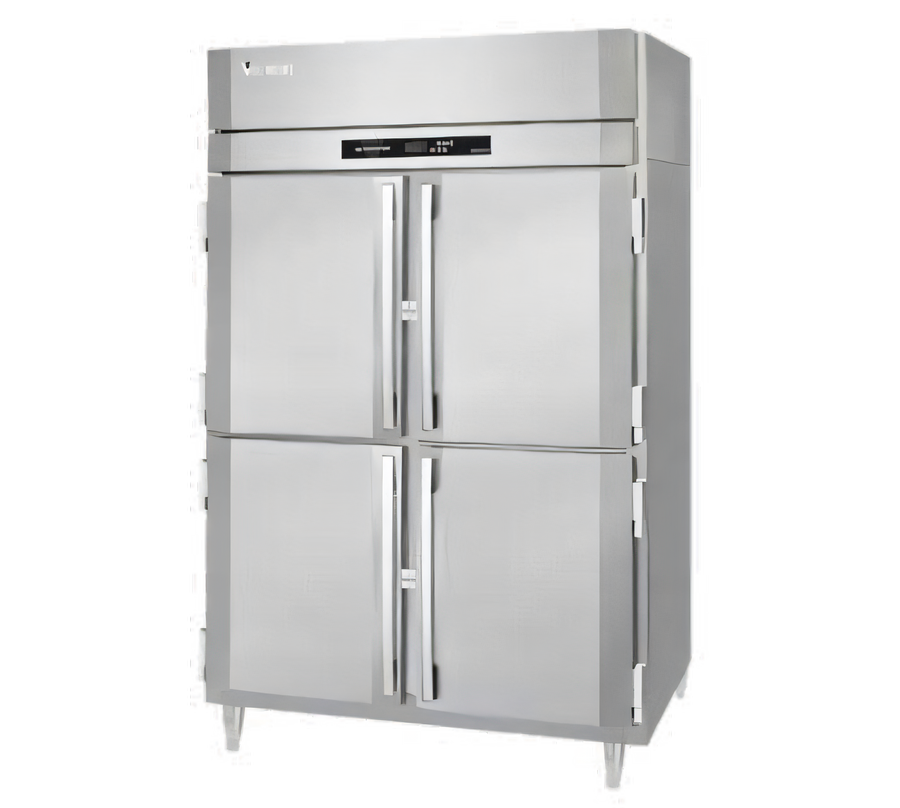

UltraSpec FS-2D-S1-PT-HD-HC Pass-Thru Two-Section Solid Half-Door Freezer

SKU: FS-2D-S1-PT-HD-HC
$19,931.08
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Refrigeration Commercial Refrigerators Countertop Refrigerators & Freezers Frozen Food Storage & Dispensers New Arrivals Reach-In Refrigerators & Freezers Restaurant Equipment Victory Refrigeration

UltraSpec FS-2D-S1-PT-HD-HC Pass-Thru Two-Section Solid Half-Door Freezer

48.33 cu. ft. Capacity, Stainless Steel, Standard Depth

This UltraSpec™ pass-thru freezer, powered by V-Core™ technology, offers superior food quality, storage consistency, and energy efficiency for demanding commercial kitchens.

  • Powered by V-Core™ Cooling Technology for 55% quicker cooldown and 35% better performance compared to competitors.
  • Robust stainless steel exterior and interior construction ensures durability and easy cleaning for commercial use.
  • Convenient pass-thru design with eight solid half-height doors allows for efficient loading and unloading from both sides.
  • Features TOUCH POINT™ electronic controls, expansion valve technology, and adaptive defrost for precise temperature management and energy savings.
  • Utilizes environmentally friendly R-290 refrigerant and is ENERGY STAR® qualified for reduced operational costs.
  • Backed by a comprehensive 7-year parts, labor, and compressor warranty, plus an exclusive 2-year door gasket warranty.

Overall Dimensions:

52.13"W x 39.25"D x 84.25"H

Product Weight:

545.0 lb

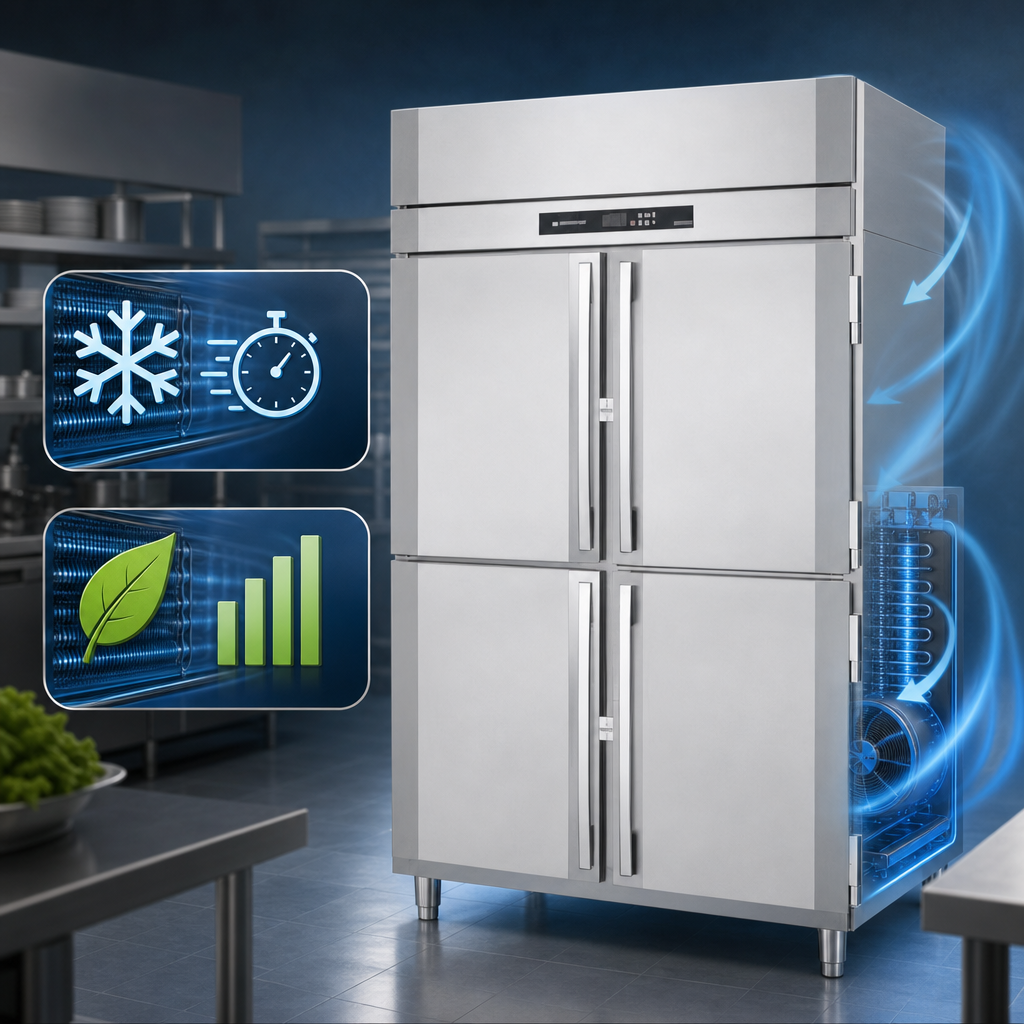

V-Core™ Cooling Technology

An advanced refrigeration system combining intelligent features for optimized performance, resulting in 55% quicker cooldown and 35% better energy efficiency.

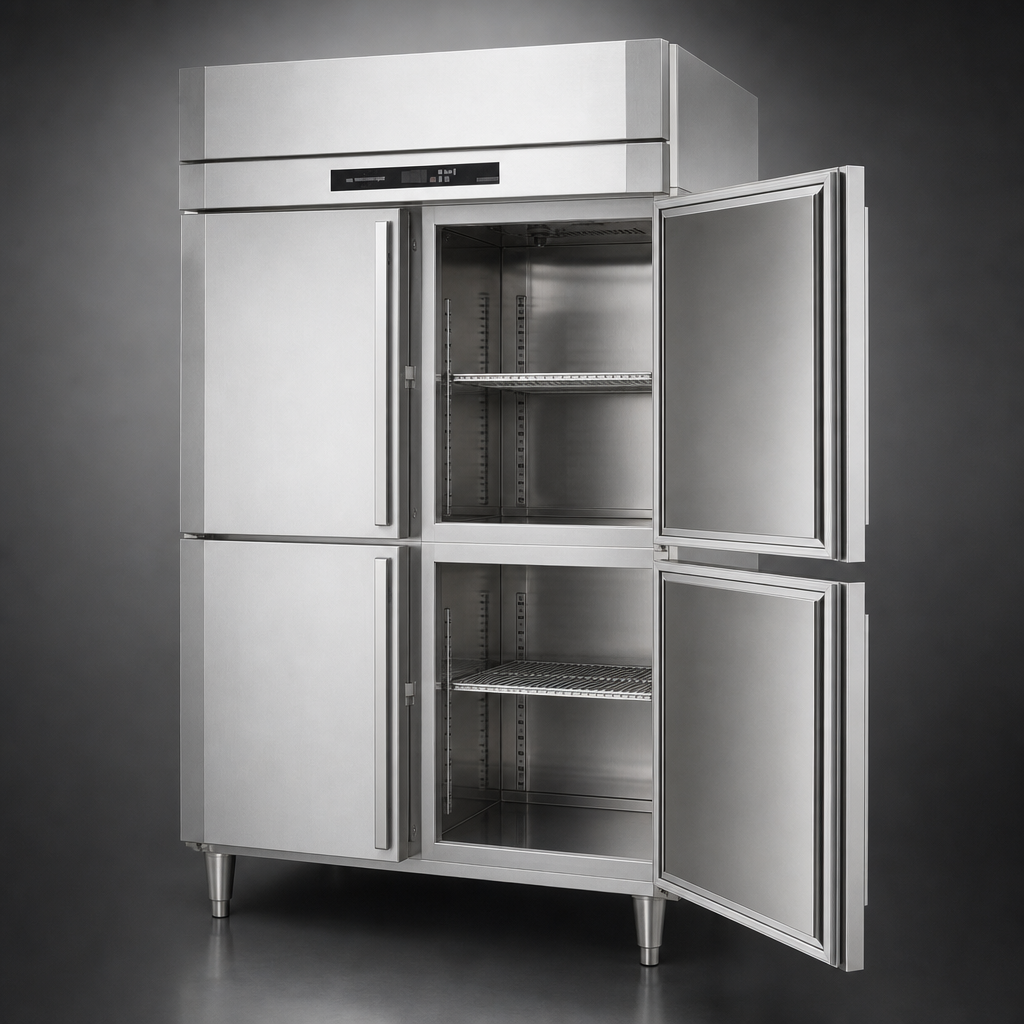

Full Stainless Steel Construction

Durable 20 gauge stainless steel exterior and interior for long-lasting performance and easy cleaning.

Pass-Thru Design

Allows for convenient loading and unloading of product from both sides of the unit, enhancing kitchen workflow.

Solid Half-Height Doors

Eight hinged half-height doors with a stay-open feature for easy product loading and magnetic door switches that activate interior LED lighting.

Advanced Electronic Control

TOUCH POINT™ interface provides full electronic control with a manager's lockout feature for precise temperature management.

Energy Efficient Refrigeration

Features R-290 hydrocarbon refrigerant, expansion valve technology, variable speed compressor, hot gas condensate evaporator, and adaptive defrost for reduced energy consumption and consistent temperatures.

Interior LED Lighting

Magnetic door switches automatically activate bright LED lighting for clear visibility of contents.

Heavy-Duty Locks

Cylinder locks provide security for stored contents.

One-Piece Magnetic Door Gaskets

Snap-in design allows for easy replacement and ensures a tight seal, backed by an exclusive 2-year warranty.

Anti-Condensate Perimeter Heater

Prevents condensation build-up around the door frame, maintaining cabinet integrity and visibility.

Adjustable Shelves

Includes six silver freeze wire shelves for organized storage.

Adjustable Legs

Equipped with 6-inch high adjustable stainless steel legs for leveling and easy cleaning underneath.

Type Pass-Thru Freezer
Style Solid Half-Door
Installation Type Floor Model (With 6" Adjustable Legs)
Capacity 48.33 cubic ft.
Compartments 2
Pan Capacity 6 Silver Freeze Wire Shelves
Refrigeration Type Self-Contained
Refrigerant Type R-290
Temperature Range -10°F
Compressor HP 3/4 HP
BTU 4900 BTU/HR
Heat Rejection 7350 BTU/HR
Refrigerant Charge 4.59 Ounces
Controls Full Electronic Control with Touchpoint Interface
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Material Stainless Steel
Voltage 115 Volts
Amps 13.9 Amps
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 8 Feet
Shipping Height 88 Inches
Shipping Width 60 Inches
Shipping Depth 45 Inches
Shipping Weight 647 lbs
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-Year Parts, Labor, & Compressor; 2-Year Magnetic Door Gaskets; Lifetime Handles & Hinges (parts only)

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Warranty update PDF Download PDF Glass door flyer PDF Download PDF Manual PDF Download PDF V-core™ brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This freezer uses R-290 hydrocarbon refrigerant, which is an environmentally friendly option complying with all environmental concerns.
For units shipped on or after July 1, 2024, it comes with a 7-year limited warranty on parts, labor, and the compressor, an exclusive 2-year warranty on magnetic door gaskets, and a lifetime warranty on handles and hinges (parts only).
No, the warranty does not apply for units installed in a residential application. These units are intended for commercial use only.
Due to variable speed compressor technology, this unit may cause nuisance tripping on Class A GFCI outlets. Victory recommends using an Eaton, SGF20, or HUBBELL Model Number GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle where GFCI circuit protection is required.
Yes, a 12-inch top clearance is required for proper operation and maintenance.
