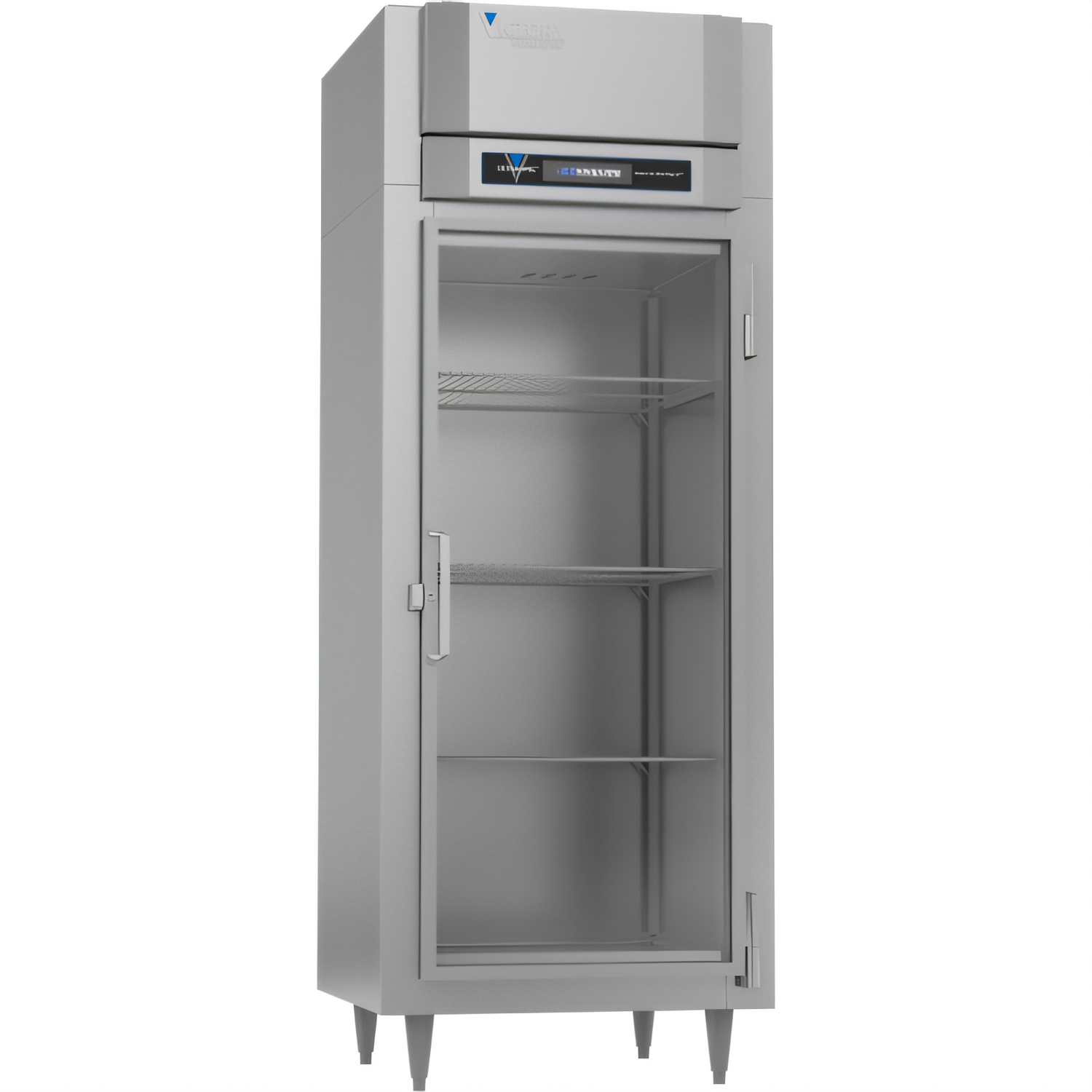

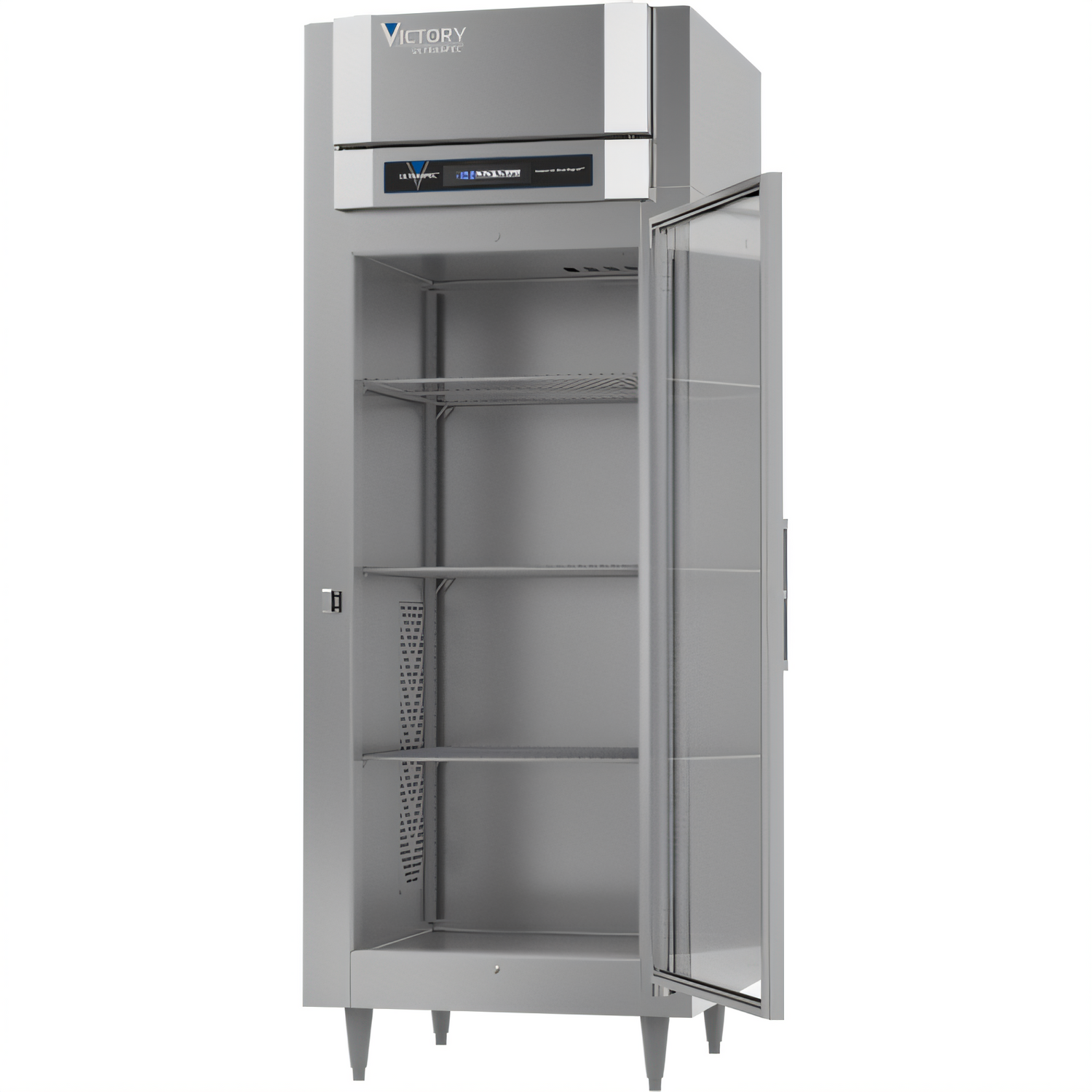

Victory UltraSpec™ FS-1D-S1-EW-G-HC One-Section Extra Wide Glass Door Reach-in Freezer

24.08 cu. ft. Capacity, 3/4 HP, Self-Contained, R-290 Refrigerant

Experience superior performance and energy efficiency with the Victory UltraSpec™ FS-1D-S1-EW-G-HC freezer, powered by advanced V-Core™ Cooling Technology.

  • Powered by V-Core™ Cooling Technology for 35% better performance and 55% quicker cooldown.
  • Durable stainless steel exterior and interior for long-lasting commercial use.
  • Features an extra-wide glass door, LED lighting, and a heavy-duty cylinder lock for security.
  • Equipped with a full electronic control with Touchpoint interface for precise temperature management.
  • Utilizes environmentally friendly R-290 hydrocarbon refrigerant.
  • Backed by an exclusive 7-year parts, labor, and compressor warranty.
  • Adaptive defrost and anti-condensate perimeter heater enhance operational efficiency.

Overall Dimensions:

31.25"W x 33.5"D x 84.13"H

Product Weight:

454.0 lb

V-Core™ Cooling Technology

An advanced refrigeration system combining intelligent features for optimized performance, delivering 55% quicker cooldown and 35% better energy performance compared to competitors.

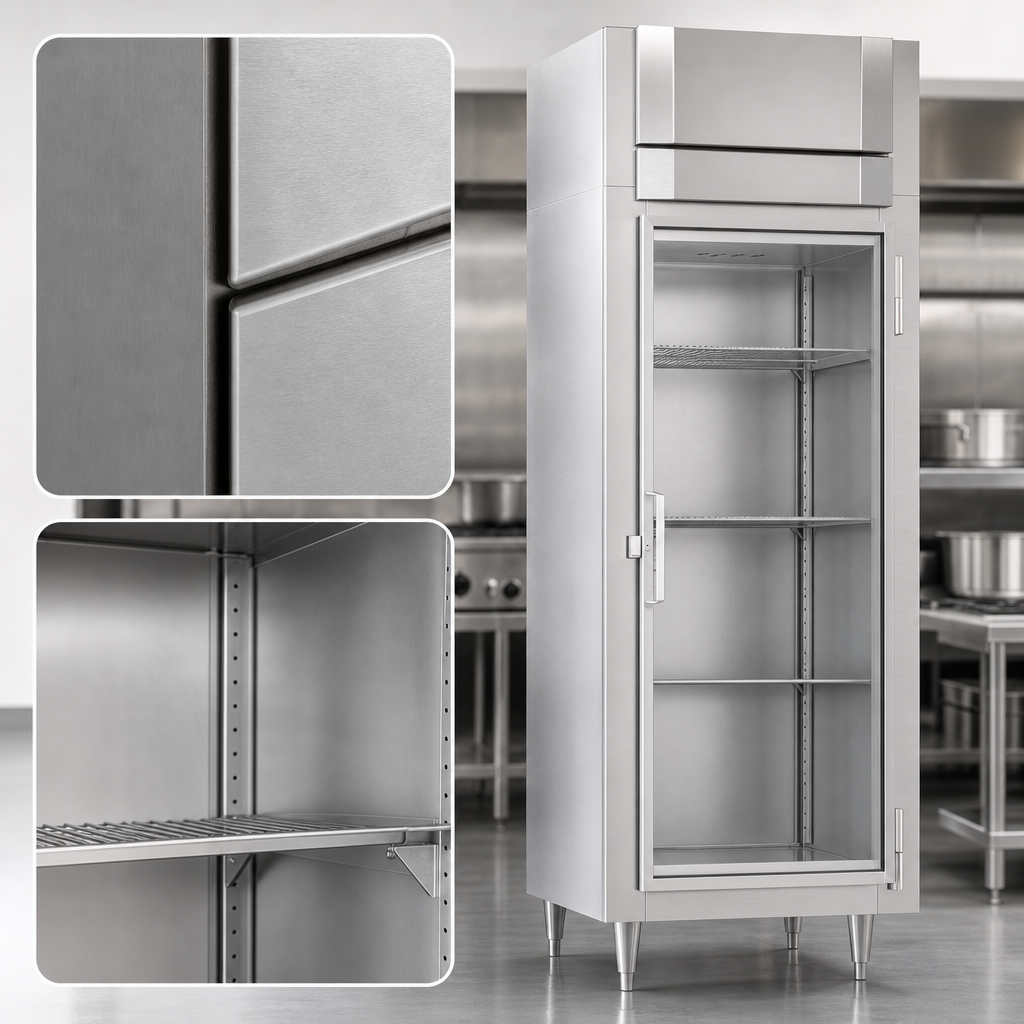

Stainless Steel Construction

Durable stainless steel exterior and interior provide a robust and easy-to-clean design for commercial environments.

Extra Wide Glass Door

A full-height hinged glass door allows for clear product visibility, featuring a stay-open function for easy loading and a heavy-duty cylinder lock for security.

Full Electronic Control with Touchpoint Interface

Provides precise temperature monitoring and control, including an LED on/off selection and a manager's lockout feature to prevent unauthorized adjustments.

Environmentally Friendly Refrigerant

The refrigeration system uses R-290 hydrocarbon refrigerant, complying with environmental concerns.

Energy Efficient Design

Includes an energy-saving thermal breaker, variable speed compressor technology, hot gas condensate evaporator, and adaptive defrost for reduced energy consumption and consistent product temperatures.

Epoxy Coated Evaporator Coil

Evaporator coil is epoxy coated for corrosion resistance and is located out of the food zone for maximum storage space.

Adjustable Shelving

Comes with 3 silver freeze wire shelves for organized storage, capable of holding various items.

Adjustable Legs

Equipped with 6-inch high adjustable stainless steel legs for leveling and ease of cleaning underneath the unit.

Anti-Condensate Perimeter Heater

Helps prevent moisture build-up around the door frame, maintaining clear visibility and proper sealing.

One-Piece Magnetic Door Gaskets

Snap-in magnetic door gaskets ensure a tight seal and are easily replaceable for maintenance.

Type Reach-in Freezer
Style One-Section, Extra Wide Glass Door
Installation Type Floor Model (With 6" Adjustable Legs)
Capacity 24.08 cu. ft.
Overall Width 31 1/4 Inches
Overall Depth 33 1/2 Inches
Overall Height 84 1/8 Inches
Depth with Door Open 90° 58 1/4 Inches
Door Opening (W x H) 22 7/8 Inches x 54 5/8 Inches
Compartments 1
Pan Capacity 3 Shelves
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Controls Full Electronic Control with Touchpoint Interface
Operating Temperature -10°F
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 9.1 Amps
Plug Type NEMA 5-15P
Cord Length 8 Feet
Compressor HP 3/4 HP
Refrigerant Type R-290
Refrigeration Type Self-contained
BTU 2450 BTU/HR
Heat Rejection BTU 3675 BTU/HR
Refrigerant Charge 0.2866 lbs (130 grams/4.59 ounces)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Height 88 Inches
Shipping Width 39 Inches
Shipping Depth 45 Inches
Shipping Weight 454 lbs

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7-year parts, labor, and compressor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Glass door flyer PDF Download PDF Manual PDF Download PDF Warranty update PDF Download PDF V-core™ brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This freezer comes with an exclusive 7-year warranty covering parts, labor, and the compressor. Additionally, it includes a 2-year warranty on magnetic door gaskets and a lifetime warranty on handles and hinges (parts only).
The Victory UltraSpec™ FS-1D-S1-EW-G-HC freezer utilizes R-290 hydrocarbon refrigerant, which is designed to comply with all environmental concerns.
V-Core™ Cooling Technology is Victory's advanced refrigeration system that optimizes performance, delivering a 55% quicker cooldown and 35% better energy efficiency compared to standard systems.
Yes, door swing orientation can be specified at the time of order as an optional configuration.
This unit requires a 115V/60Hz/1-Phase electrical connection with a NEMA 5-15P plug. Due to its variable speed compressor technology, if GFCI protection is required, Victory recommends using an Eaton SGF20 or HUBBELL Model Number GFRST83W 20A Heavy Duty Hospital Grade Self-Test GFCI Receptacle to avoid nuisance tripping.
Yes, the freezer includes three silver freeze wire shelves for organizing your products.
