Victory CBF96HC 96"W Two-Section Chef Base Freezer with V-Core™ Cooling

96" Wide, Two-Section, 17.60 cu. ft., R290 Hydrocarbon Refrigerant

The Victory CBF96HC Chef Base Freezer, powered by V-Core™ cooling technology, delivers exceptional food quality and significant energy savings in a robust, high-capacity design.

  • Equipped with V-Core™ Cooling Technology for 55% quicker cooldown and 35% better energy performance.
  • Durable stainless steel exterior with a marine top capable of supporting up to 1500 lbs.
  • Features four heavy-duty drawers, each accommodating three 6-inch deep full-size food pans (12 pans total).
  • Maintains product temperatures as low as -10°F, ideal for reliable frozen food storage.
  • Utilizes environmentally friendly R-290 hydrocarbon refrigerant.
  • Backed by an exclusive 7-year parts, labor, and compressor warranty for long-term peace of mind.

V-Core™ Cooling Technology

An advanced refrigeration system combining intelligent features for optimized performance, delivering 55% quicker cooldown and 35% better energy efficiency compared to competitors, resulting in significant daily energy savings (average 3.92 Kwh p/day).

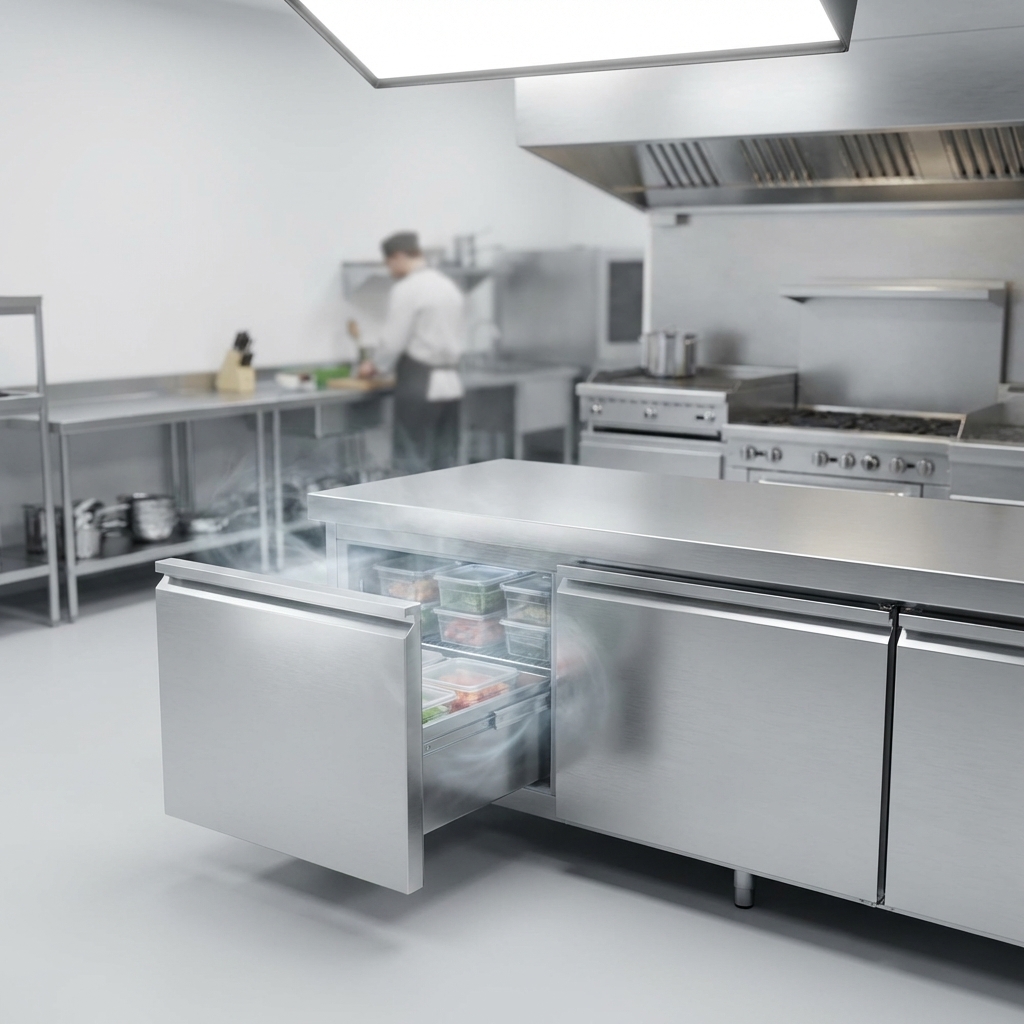

This image highlights the V-Core Cooling Technology of the Victory CBF96HC Chef Base Freezer, ensuring exceptional rapid cooling and energy-efficient performance for busy commercial kitchens.

Robust Cabinet Construction

Features a durable stainless steel exterior (with galvanized back and bottom) and an aluminum interior, built for commercial kitchen demands.

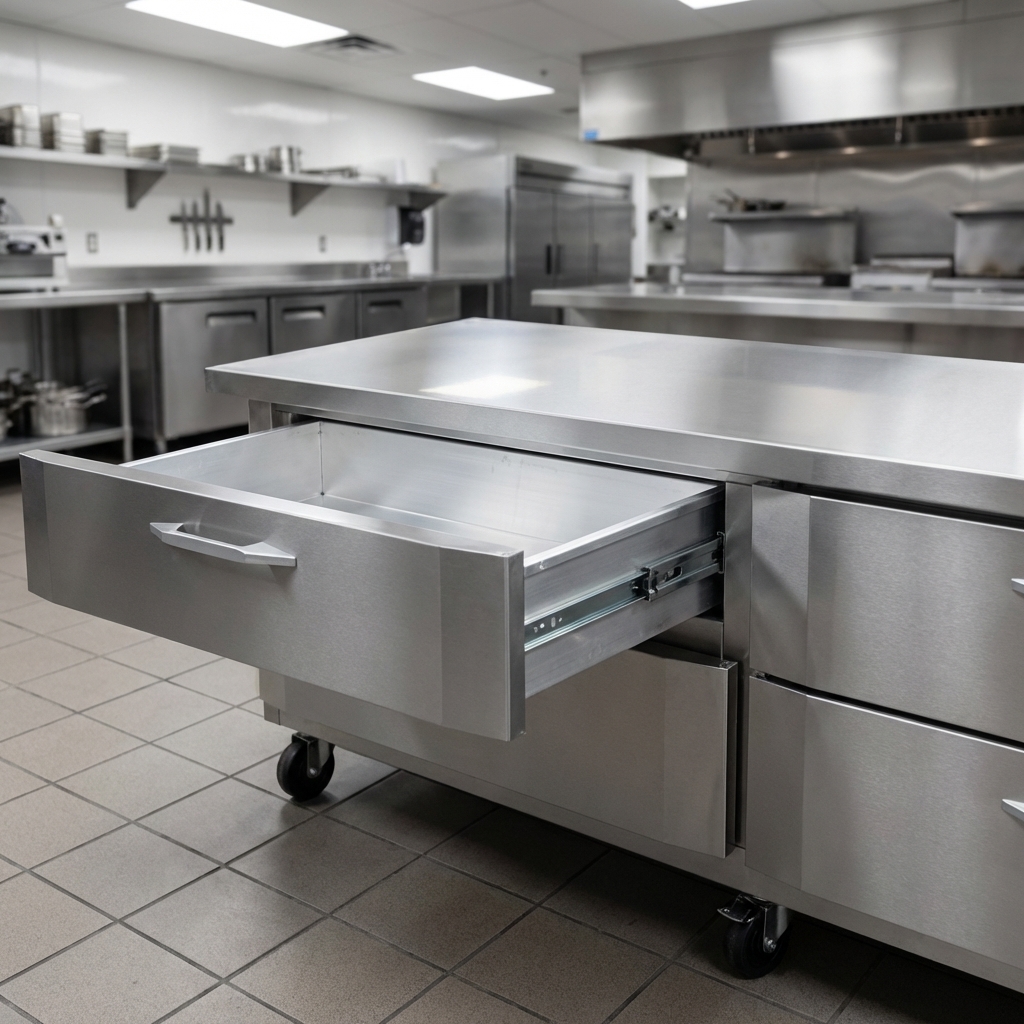

This image highlights the chef base freezer's robust cabinet construction, featuring its durable stainless steel exterior and clean aluminum interior, ready for demanding kitchen use.

Heavy-Duty Marine Top

Standard marine top is fire-proof insulated, 16 gauge, and designed to support up to 1500 lbs of equipment, serving as a reliable work surface.

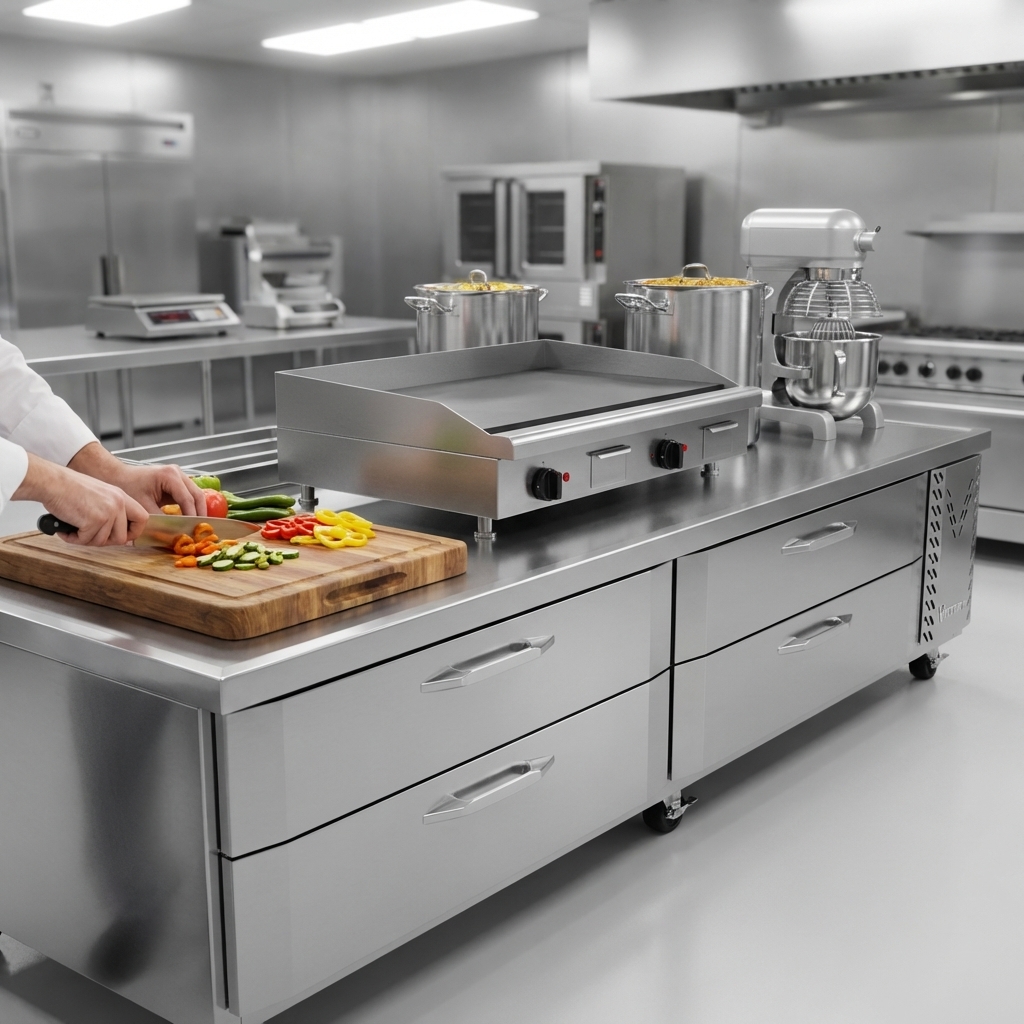

The chef base freezer's heavy-duty marine top provides a remarkably sturdy and expansive work surface, effortlessly supporting essential commercial kitchen equipment.

High-Capacity Drawers

Includes four heavy-duty drawers with a roller slide system, each rated for a 275 lbs load and featuring a self-closing mechanism. Each drawer accommodates three 12" x 20" x 6" deep full-size food service pans (not included).

Advanced Refrigeration System

A high-performance, side-mounted, self-contained system with full electronic control, capable of maintaining freezer temperatures down to -10°F.

Eco-Friendly Refrigerant

Uses R-290 hydrocarbon refrigerant, complying with all current environmental concerns and regulations.

Adaptive Defrost

Automatically adjusts defrost cycles for reduced energy consumption and more consistent product temperatures, minimizing temperature fluctuations.

Magnetic Drawer Gaskets

Equipped with one-piece, snap-in magnetic drawer gaskets, designed for easy replacement and an exclusive 2-year warranty for reliable sealing.

No Heat Shield Required

Designed to operate without a heat shield, requiring proper bottom and rear clearance for optimal performance and installation flexibility.

Specifications

Net Capacity 17.60 Cubic Feet
Pan Capacity 12 Full-Size Pans
Number of Drawers 4
Top Weight Capacity 1500 lbs
Drawer Load Rating 275 lbs Per Drawer
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 6.6 Amps
Plug Type NEMA 5-15P
Cord Length 10 Feet
Compressor HP 3/4 HP
Refrigerant Type R-290
BTU Capacity 2097 BTU/HR
Heat Rejection 3146 BTU/HR
Refrigerant Charge 0.254 lbs
Controls Full Electronic Control
Temperature Range -10°F
Exterior Finish Stainless Steel (Galvanized Back & Bottom)
Interior Finish Aluminum
Top Finish Stainless Steel Marine Top
Installation Type Floor Model (With Casters)
Shipping Height 27 Inches
Shipping Width 102 Inches
Shipping Depth 38 Inches
Shipping Weight 675 lbs
Country of Origin USA
Selling Unit Each
Units Per Case 1

Overall Dimensions:

96.0"W x 34.13"D x 24.38"H

Product Weight:

675.0 lb
Manufacturer Victory Refrigeration
Certifications ["cULus", "UL EPH Classified", "UL-Sanitation"]
Height 24.38in
Width 96.0in
Depth 34.13in
Shipping Weight 675.0lbs
Top Finish stainless steel top
Compressor HP 3/4 HP
Drawer Qty 4 drawers
Exterior Finish stainless steel front & sides
Refrigeration self-contained, side mounted
Width 91" - 96" wide
Specifications Chef Base Freezer, Powered by V-Core™, two-section, 96"W, self-contained, 20.42 cu. ft. capacity, (4) drawers (each drawer accommodates (3) 12" x 20" x 6" pans per drawer - not included), full electronic control, stainless steel exterior (galvanized back & bottom), aluminum interior, magnetic gaskets with 2 year warranty, side mounted self-contained refrigeration system, R290 hydrocarbon refrigerant, 3/4 HP, cULus, UL EPH Classified, UL-Sanitation

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

7 Year Parts, Labor, and Compressor Limited Warranty; 2 Year Exclusive Warranty on Magnetic Door Gaskets; Lifetime Warranty on Handles & Hinges (parts only).

Documents

PDF Cutsheet PDF Download PDF Manual PDF Download PDF V-core™ brochure PDF Download PDF Warranty update PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

V-Core™ Cooling Technology delivers 55% quicker cooldown times and 35% better energy performance, leading to significant daily energy savings and consistent product temperatures for exceptional food quality and storage.
The CBF96HC is designed to accommodate 6-inch deep full-size food service pans. Each of the four drawers can hold three 12" x 20" x 6" pans, for a total of 12 full-size pans.
This unit comes with an exclusive 7-year parts, labor, and compressor warranty. Additionally, magnetic door gaskets have a 2-year warranty, and handles and hinges have a lifetime parts-only warranty. This applies to units shipped on or after July 1, 2024.
Yes, the compressor is available on either the left or right side. This configuration must be specified at the time of unit order.
A 3 3/16-inch bottom clearance and a 1-inch rear clearance are required. No heat shield is necessary, but proper clearance should always be adhered to as per the owner's manual.
The CBF96HC is designed with energy efficiency in mind and uses V-Core™ technology. Buyers should verify specific qualifying units by visiting www.energystar.gov/cfs.
