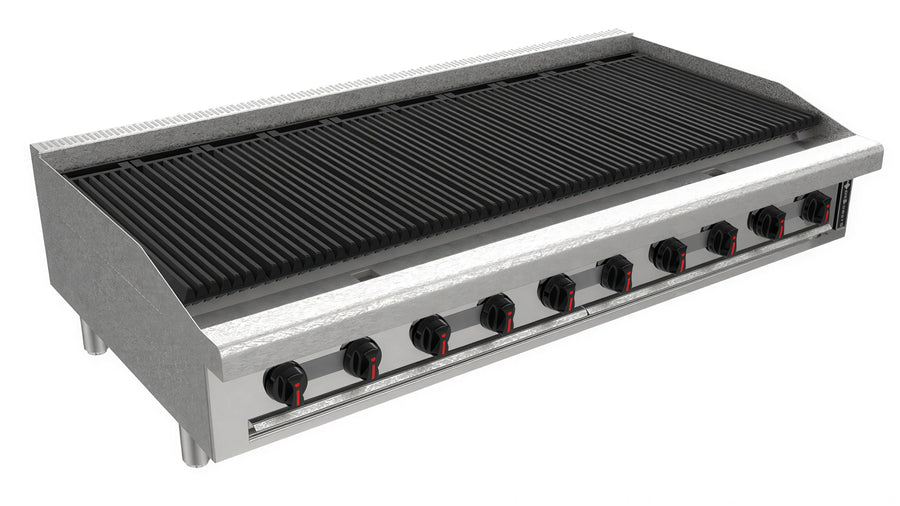

Venancio USA Elite Series R60CT-60C 60" Radiant Gas Countertop Charbroiler, Cast Iron Grates, Manual Controls

SKU: R60CT-60C
$3,449.75
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Charbroilers Charbroilers & Grills Commercial Charbroilers Commercial Grills Cooking Equipment Equipment Gas Charbroilers New Arrivals Restaurant Equipment Venancio USA

The R60CT-60C is a 60-inch countertop radiant gas charbroiler for commercial kitchens. It has 10 burners, manual controls, and double-sided cast iron grates that are angled and height adjustable.

Specified construction includes a 14-gauge stainless steel interlocking frame, polished stainless steel front and trim, grease trough and drawers, and 4-inch adjustable chrome legs. An LP conversion kit and pressure regulator are included.

  • Gas input: 166,660 BTU/h natural gas or 150,000 BTU/h propane
  • Product dimensions: 60 in. W x 34 in. D x 15.94 in. H
  • Certifications: cULus and UL EPH Classified

Overall Dimensions:

60.0"W x 34.0"D x 15.94"H

Product Weight:

540.0 lb

Radiant gas heating

The charbroiler uses radiant gas heating.

Ten burners

The R60CT-60C is specified with 10 burners.

Double-sided cast iron grates

The grates provide two cooking sides, including a side specified for meats and another for delicate fish.

Adjustable grate positioning

The cast iron grates are angled and height adjustable.

Manual controls

The unit uses manual controls.

Grease management

The unit includes a grease trough and drawers.

Stainless steel construction elements

The unit has a 14-gauge stainless steel interlocking frame with polished stainless steel front and trim.

Included gas components

An LP conversion kit and pressure regulator are included.

Fuel Natural gas or propane
Installation Countertop
Heating method Radiant gas
Width 60 in.
Depth 34 in.
Height 15.94 in.
Burner count 10
Control type Manual controls
Radiant material Cast iron
Grate material Cast iron
Grate configuration Double-sided; angled and height adjustable
Gas input 166,660 BTU/h natural gas; 150,000 BTU/h propane
Gas connection 3/4 in. NPT rear connection
Manifold pressure 4 in. W.C. natural gas; 10 in. W.C. propane
Grease management Grease trough and drawers
Frame material 14-gauge stainless steel interlocking frame
Front and trim material Polished stainless steel
Legs 4 in. adjustable chrome legs
Included components LP conversion kit and pressure regulator

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

1-year parts and labor warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty PDF Download

Frequently Asked Questions

The catalog-listed dimensions are 60 in. wide, 34 in. deep, and 15.94 in. high, with a listed weight of 540 lb.
It is a gas unit with utility data for natural gas and propane. The LP conversion kit and pressure regulator are included, and the gas type must be specified when ordering.
The grates are double-sided cast iron grates and are specified as angled and height adjustable. The cutsheet describes 0° and 15° cooking angles.
Yes. The R60CT-60C has manual controls.
The accepted charbroiler cutsheet lists a 1-year parts and labor warranty.
