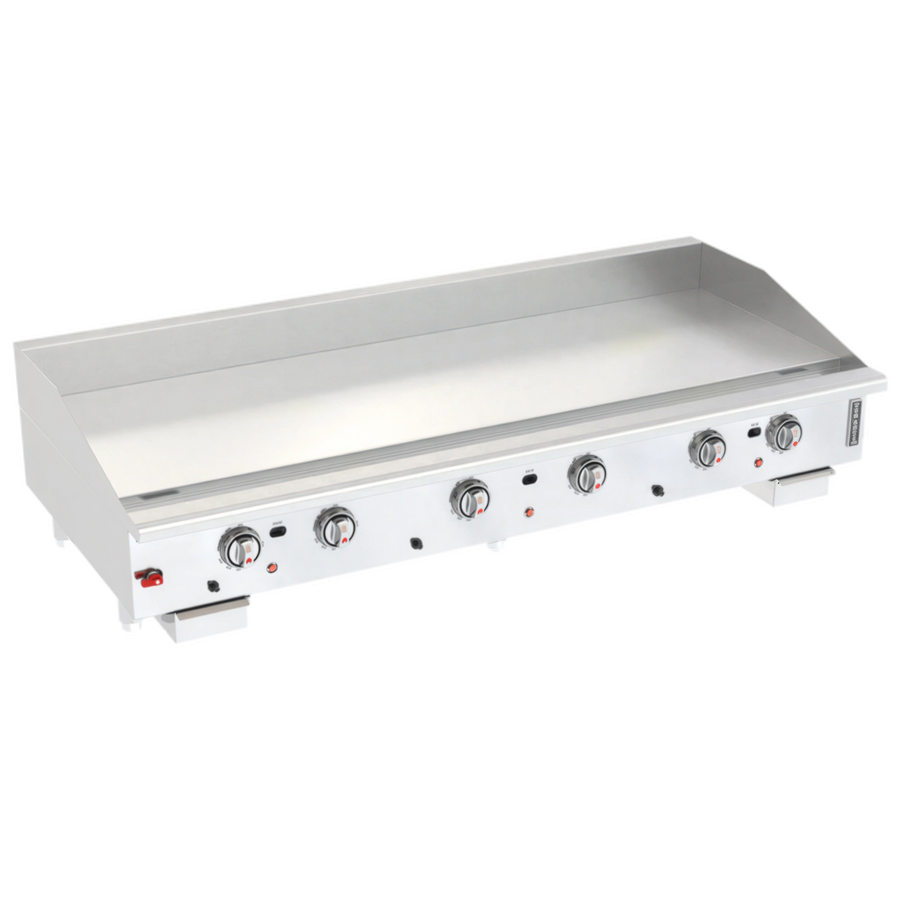

Venancio USA G72CT-72T Gas Countertop Griddle, Thermostatic, 72"W, 1" Smooth Polished Steel Plate

SKU: G72CT-72T
$19,158.66
/each Configurable
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Griddles Commercial Grills Cooking Equipment Equipment Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Venancio USA

The Venancio USA G72CT-72T is a gas countertop griddle with a 72-inch-wide by 24-inch-deep cooking surface, a 1-inch-thick smooth polished steel plate, and six thermostatic control valves.

  • Welded baffles beneath the griddle plate increase flame coverage by 50%.
  • Six enameled steel burners provide 150,000 BTU/h of input.
  • Double-wall stainless steel construction with ceramic insulation is used on the sides and front.
  • Two fully welded stainless steel grease trays provide 2.4-gallon capacity each.
  • The unit includes a 5-inch stainless steel splash guard, spark igniter, front gas shutoff valve, and four adjustable chrome steel legs.
  • An LP conversion kit is included.

Overall Dimensions:

72.0"W x 34.0"D x 15.93"H

Product Weight:

1060.0 lb

Smooth polished steel plate

The 1-inch-thick plate is double-welded at the top and bottom for leak protection and easier cleaning.

Thermostatic controls

Six thermostatic control valves provide temperature control across the griddle.

Burner and baffle design

Six enameled steel burners are arranged every 12 inches, with welded baffles beneath the plate designed to increase flame coverage by 50%.

Insulated stainless steel construction

Double-wall stainless steel with ceramic insulation is used on the sides and front.

Grease management

Two fully welded stainless steel grease trays have handles, wave brakes, and 2.4-gallon capacity each.

Splash protection

The unit has stainless steel front, sides, and splash guards, including a 5-inch-high splash guard.

Ignition and gas shutoff

The griddle includes a spark igniter, three standing pilots, and a gas shutoff valve at the front.

Adjustable support

Four adjustable chrome steel legs support a closed bottom under the hot area.

Product type Gas countertop griddle
Cooking surface 72 in W x 24 in D
Plate thickness 1 in
Plate finish Smooth polished steel
Plate construction Double-welded top and bottom
Controls Manual thermostatic controls
Control valves 6
Burners 6 enameled steel burners, one every 12 in
Heat input 150,000 BTU/h
Fuel Natural gas or propane
Gas connection 3/4 in NPT rear gas connection
Manifold pressure 10 in W.C. propane; 4 in W.C. natural gas
Ignition Spark igniter
Standing pilots 3
Grease trays 2 stainless steel trays; 2.4 gal capacity each
Splash guard height 5 in
Exterior finish Stainless steel front, sides, and splash guards
Frame Heavy-duty interlocking fully welded frame
Insulation Ceramic insulation in double-wall stainless steel sides and front
Deflector Stainless steel deflector beneath burners
Gas shutoff valve Front-mounted
Legs 4 adjustable chrome steel legs
Bottom construction Closed bottom under the hot area

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The cooking surface is 72 inches wide by 24 inches deep.
It uses a 1-inch-thick smooth polished steel plate.
The griddle has six thermostatic control valves.
The specifications list natural gas and propane. An LP conversion kit is included.
The rated gas input is 150,000 BTU/h.
The unit has two stainless steel grease trays, each with 2.4-gallon capacity.
