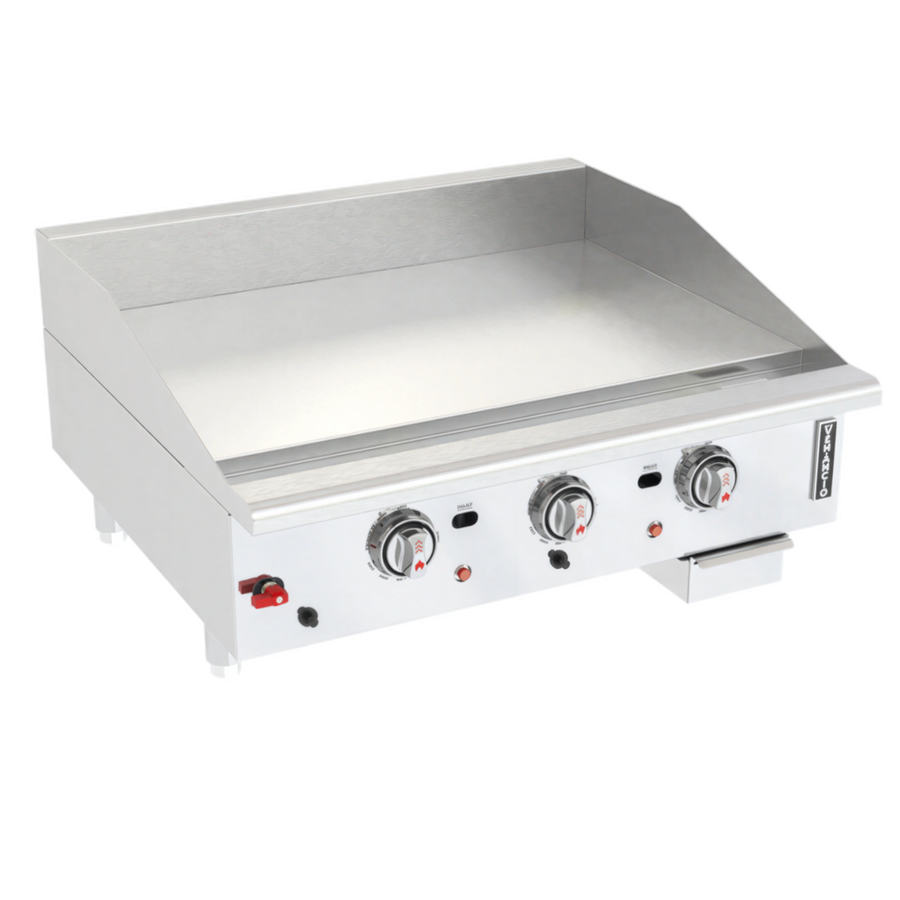

Venancio USA G36CT-36T Gas Countertop Griddle, Thermostatic, 36"W, 1" Smooth Polished Steel Plate

SKU: G36CT-36T
$10,436.22
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Venancio USA G36CT-36T is a gas countertop griddle with a 36-inch-wide by 24-inch-deep cooking surface, a 1-inch-thick smooth polished steel plate, and three thermostatic control valves.

Its welded under-plate baffles increase flame coverage by 50%, while a stainless steel deflector beneath the burners reflects secondary heat toward the plate. The griddle includes a 2.4-gallon stainless steel grease tray, spark ignition, two standing pilots, and a front-access gas shutoff valve.

  • 75,000 BTU/h heat input
  • Stainless steel front, sides, and splash guards
  • Double-wall stainless steel construction with ceramic insulation at the sides and front
  • Four adjustable 4-inch chrome steel legs
  • LP conversion kit included

Overall Dimensions:

36.0"W x 34.0"D x 15.93"H

Product Weight:

555.0 lb

Thermostatic controls

Three thermostatic control valves provide temperature control for the griddle.

Heat distribution

Welded baffles beneath the plate increase flame coverage by 50%, and a stainless steel deflector reflects secondary heat toward the plate.

Cooking plate

The 1-inch-thick smooth polished steel plate is double-welded at the top and bottom for double leak protection.

Grease management

The fully welded stainless steel grease tray has a 2.4-gallon capacity, handle, and wave brakes.

Construction

The unit has a heavy-duty interlocking fully welded frame, stainless steel front and sides, ceramic-insulated double walls, and a closed bottom under the hot area.

Ignition and pilots

Spark ignition and two standing pilots are included.

Gas flexibility

The griddle supports natural gas or propane operation, and an LP conversion kit is included.

Adjustable support

Four adjustable 4-inch chrome steel legs are included.

Related Searches

Best Sellers Commercial Griddles Commercial Griddles Commercial Grills Cooking Equipment Equipment Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Venancio USA
Griddle type Gas countertop griddle
Cooking surface 36 in W x 24 in D
Plate thickness 1 in
Plate finish Smooth polished steel
Controls Manual thermostatic controls; 3 thermostatic control valves
Burners 3 enameled steel burners, one every 12 in
Heat output 75,000 BTU/h
Flame coverage Welded under-plate baffles increase coverage by 50%
Grease tray capacity 2.4 gal
Grease tray material Stainless steel
Splash guard height 5 in
Ignition Spark igniter
Pilot system 2 standing pilots
Gas connection 3/4 in NPT rear connection
Gas shutoff Front-access gas shutoff valve
Fuel options Natural gas or propane
Manifold pressure 10 in W.C. propane; 4 in W.C. natural gas
Exterior finish Stainless steel front, sides, and splash guards
Insulation Ceramic insulation in double walls at sides and front
Legs 4 adjustable 4 in chrome steel legs
Knobs Chrome-plated aluminum knobs with cast iron shield
LP conversion kit Included

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The cooking surface is 36 inches wide by 24 inches deep.
The griddle has three thermostatic control valves with manual controls.
The G36CT-36T has a heat input of 75,000 BTU/h.
It is specified for natural gas or propane operation, and an LP conversion kit is included.
The stainless steel grease tray has a 2.4-gallon capacity and includes a handle and wave brakes.
The product is 36.0 inches wide, 34.0 inches deep, and 15.93 inches high.
