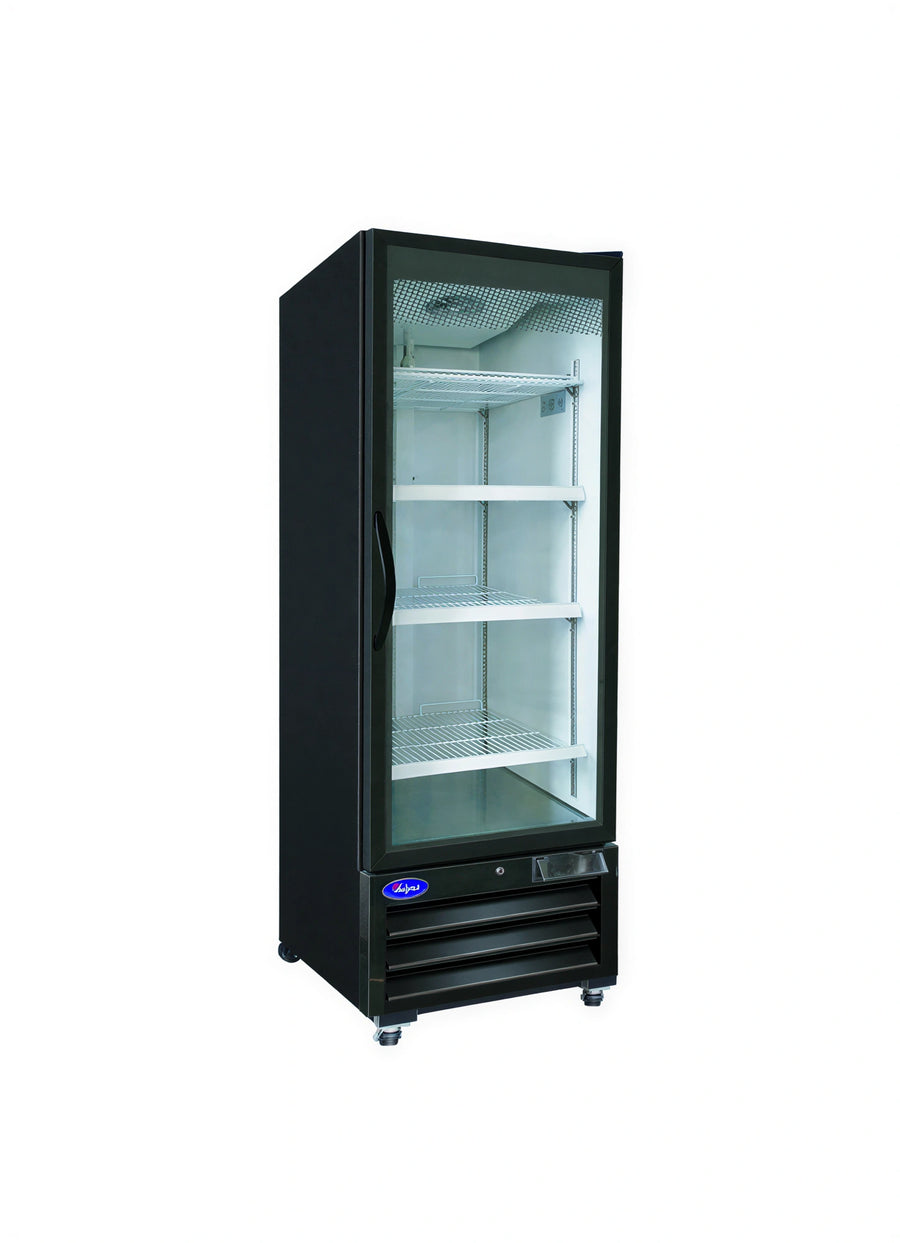

Valpro Commercial Refrigeration VP Series VP1R-23M 23 Cu. Ft. One-Section Glass-Door Refrigerated Merchandiser, Bottom-Mounted

SKU: VP1R-23M
$5,707.08

Want to speak to an expert?

The VP1R-23M is a one-section, 23 cu. ft. refrigerated merchandiser with a hinged glass self-closing door, bottom-mounted self-contained refrigeration, and LED interior lighting.

  • Maintains a temperature range of +33°F to +41°F with a digital thermostat and LED display.
  • Includes four adjustable wire shelves, a door lock, automatic defrost, and condensate evaporation.
  • Features baked enamel exterior and interior surfaces with a stainless steel floor.

Designed for commercial indoor storage and display of packaged products.

Overall Dimensions:

26.8"W x 33.5"D x 81.55"H

Product Weight:

330.0 lb

Bottom-mounted refrigeration

The self-contained refrigeration system is located at the bottom of the merchandiser.

Digital temperature control

A digital thermostat with LED display supports a +33°F to +41°F temperature range.

Glass self-closing door

The hinged glass door is self-closing and includes a lock.

Adjustable shelving

Four wire shelves are supported by pilasters for adjustable positioning.

LED interior lighting

LED lighting illuminates the interior cabinet.

Automatic defrost

Automatic defrost is paired with a condensate evaporation system.

Commercial construction

The cabinet uses baked enamel exterior and interior surfaces with a 304 series stainless steel floor.

Mobility

Four 1-inch wheels are included, with braking on two front wheels.

Configuration One-section reach-in refrigerated merchandiser
Capacity 23 cu. ft.
Refrigeration Self-contained, bottom-mounted
Temperature range +33°F to +41°F
Temperature control Digital thermostat with LED display
Defrost Automatic defrost with condensate evaporation
Door One hinged glass door, self-closing, with lock
Shelves 4 adjustable wire shelves
Interior lighting LED
Exterior material Black baked enamel steel
Interior wall material White baked enamel aluminum
Interior floor material 304 series stainless steel
Wheels 4 wheels, 1 in.; 2 front braking
Refrigerant R-290 hydrocarbon
Compressor 3/8 HP
Electrical 115 V / 60 Hz / 1 phase
Current 3.0 A
Plug NEMA 5-15P
Electrical cord 10 ft.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

Two-year limited parts and labor warranty for commercial use; compressor coverage extends to five years total.

Frequently Asked Questions

The merchandiser has 23 cu. ft. of net storage capacity.
The stated temperature range is +33°F to +41°F.
It includes four adjustable wire shelves supported by pilasters.
Yes. The hinged glass door is self-closing and includes a lock.
The unit operates at 115 V, 60 Hz, single phase, draws 3.0 A, and uses a NEMA 5-15P plug.
It uses R-290 hydrocarbon refrigerant.
