USR Brands

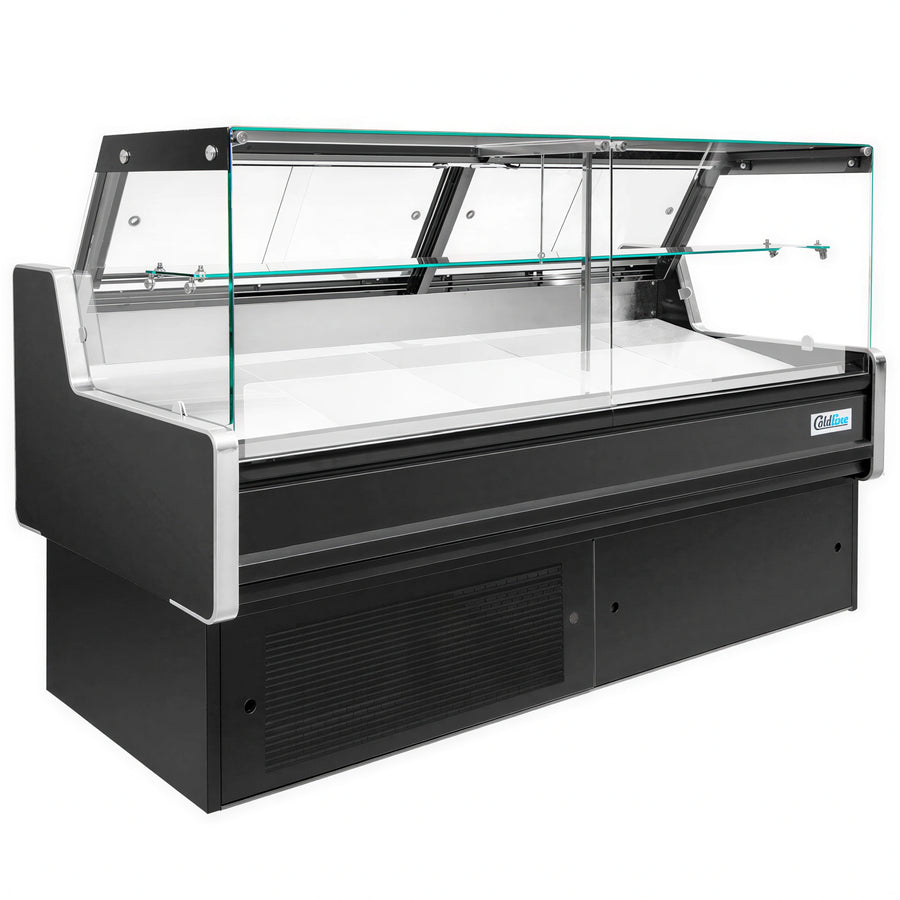

USR Brands Coldline LDC72 Refrigerated Straight Glass Meat Deli Display Case, 70.9"W, Rear Refrigerated Storage, 7.2" Deep Stainless Steel Worktop

SKU: LDC72 GTIN: 753389119077
$2,746.00
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Coldline LDC72 is a refrigerated straight-glass meat deli display case with rear refrigerated storage and a 7.2-inch-deep SS304 rear work surface.

  • Rear refrigerated storage provides 4.3 cu. ft. of capacity.
  • Tempered front glass and a removable tempered glass shelf support product presentation.
  • Bright interior LED lighting and a digital temperature controller with display are included.
  • The display case operates from 33°F to 41°F and uses R290 refrigerant.
  • The glass shelf is non-refrigerated and is not suitable for meat display.

Overall Dimensions:

70.9"W x 33.5"D x 47.2"H

Product Weight:

490.0 lb

Rear refrigerated storage

The unit provides 4.3 cu. ft. of refrigerated storage underneath the display area.

Tempered glass construction

Features tempered front straight glass, a rear sliding tempered glass door, and a removable tempered glass shelf.

SS304 work surface

Includes a 7.2-inch-deep SS304 rear work surface.

Digital temperature control

A digital temperature controller and display support operation from 33°F to 41°F.

LED interior lighting

Bright interior LED lighting illuminates the display area.

Self-contained refrigeration

The bottom-mounted compressor provides self-contained refrigeration using R290 refrigerant.

Electrical connection

Designed for 115 V, 60 Hz, single-phase operation with 11.2 amps and a NEMA 5-15P plug.

Mobility and leveling

Pre-installed low-profile casters and two leveling feet are specified.

Related Searches

Best Sellers Commercial Deep Fryers Display Refrigeration New Arrivals Refrigerated Deli, Bakery & Sushi Cases Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment USR Brands
Exterior dimensions 70.9 in W x 33.5 in D x 47.2 in H
Display area 10 sq. ft.
Rear storage capacity 4.3 cu. ft. (67.7 in L x 13.6 in D)
Work surface 7.2 in deep, SS304
Temperature range 33°F to 41°F
Temperature controller Digital
Refrigerant R290
Refrigeration system Bottom-mounted compressor, self-contained
Defrosting Automatic
Maximum ambient temperature 77°F
Exterior material Black painted steel
Interior material Pre-painted steel
Shelf quantity 1
Shelf material Tempered glass
Shelf size 68.5 in x 7.9 in x 0.5 in
Interior lighting LED
Horsepower 1/2 HP
Voltage 115 V
Frequency 60 Hz
Phase 1
Amperage 11.2 A
Plug type NEMA 5-15P
Power cord length 6.58 ft.
Unit weight 410 lb.
Weight 490 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The exterior dimensions are 70.9 in W x 33.5 in D x 47.2 in H.
Yes. It includes 4.3 cu. ft. of rear refrigerated storage measuring 67.7 in L x 13.6 in D.
The specified temperature range is 33°F to 41°F, controlled by a digital temperature controller.
The case operates at 115 V, 60 Hz, single phase, draws 11.2 amps, and uses a NEMA 5-15P plug.
No. The glass shelf is non-refrigerated, and its temperature is not suitable for meat display.
