Key specifications

Amps
3.9 Amps
Phase
1-Phase
Dimensions
71.77"W × 33.66"D × 55.35"H
Type
Refrigerated Deli Case
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
USR Brands SKU: HDC72 UPC: 761862474247

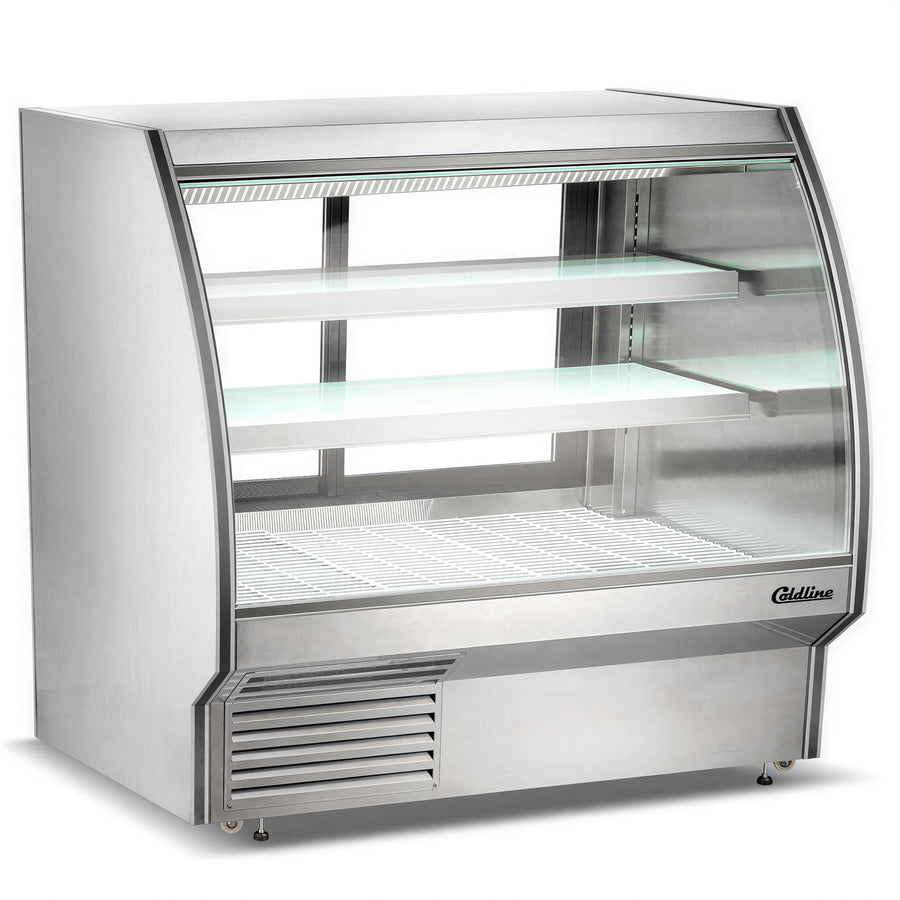

USR Brands Coldline HDC72 72-Inch Curved-Glass Deli Case

$3,104.00
/each
Estimated to ship in 5–8 business days
Included: USR Brands warranty 1-year parts and labor warranty, plus 5-year compressor parts warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $287/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Deli Case
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Aluminum and Stainless Steel
Front Type Curved Glass
Service Type Full Service
Capacity 34.5 cu. ft. Display
Rear Storage Capacity 8.5 cu. ft.
Shelf Count 2
Shelf Dimensions Upper 67.83 in. x 12.28 in.; Lower 67.83 in. x 14.25 in.
Temperature Range 32°F to 40°F
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Horsepower 3/4 HP
Controls Digital Temperature Control
Defrost Type Automatic
Interior Lighting LED
Door Type Sliding Rear Doors
Cooling System Double Gravity Coil System
Voltage 110-120 Volts
Amps 3.9 Amps
Watts 350 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 65 in.
Circuit Requirement Dedicated 15 Amp Circuit
Unit Weight 427 lb
Weight 517 lb

Description

The Coldline HDC72 is a refrigerated deli case with a curved-glass display area and rear refrigerated storage. Its bottom-mounted, self-contained refrigeration system uses R290 refrigerant and provides a 32°F to 40°F display-area temperature range.

  • 34.5 cu. ft. display net volume and 8.5 cu. ft. rear storage net volume.
  • Two adjustable shelves with LED interior lighting.
  • Digital temperature control and automatic defrost.
  • Stainless steel exterior, sliding rear doors, and a double gravity coil system.

Overall Dimensions:

71.77"W x 33.66"D x 55.35"H

Product Weight:

517.0 lb

Curved Glass Display

The front uses curved glass for the display area.

Rear Refrigerated Storage

The insulated rear storage compartment has an 8.5 cu. ft. net volume.

Self-Contained Refrigeration

Bottom-mounted refrigeration uses R290 hydrocarbon refrigerant.

Temperature Control

Digital control supports a 32°F to 40°F display-area temperature range.

Adjustable Shelves

Includes two adjustable shelves.

LED Interior Lighting

The display area has LED interior lighting.

Automatic Defrost

Defrosting is automatic.

Sliding Rear Doors

Rear storage access uses sliding doors.

Double Gravity Coil System

Frequently Asked Questions

The display area temperature range is 32°F to 40°F.
It has a 34.5 cu. ft. display net volume and an 8.5 cu. ft. rear storage net volume.
It includes two adjustable shelves.
It is rated at 110-120 Volts, 60 Hz, 1-Phase, 3.9 Amps, and 350 Watts, with a NEMA 5-15P plug.
The datasheet specifies a dedicated 15 Amp circuit installed by a licensed electrician.
It uses bottom-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
