Key specifications

BTU
90,000 BTU
Gas Type
Natural Gas
Dimensions
36.0"W × 27.2"D × 15.0"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
USR Brands SKU: CCB-36 UPC: 794811282372

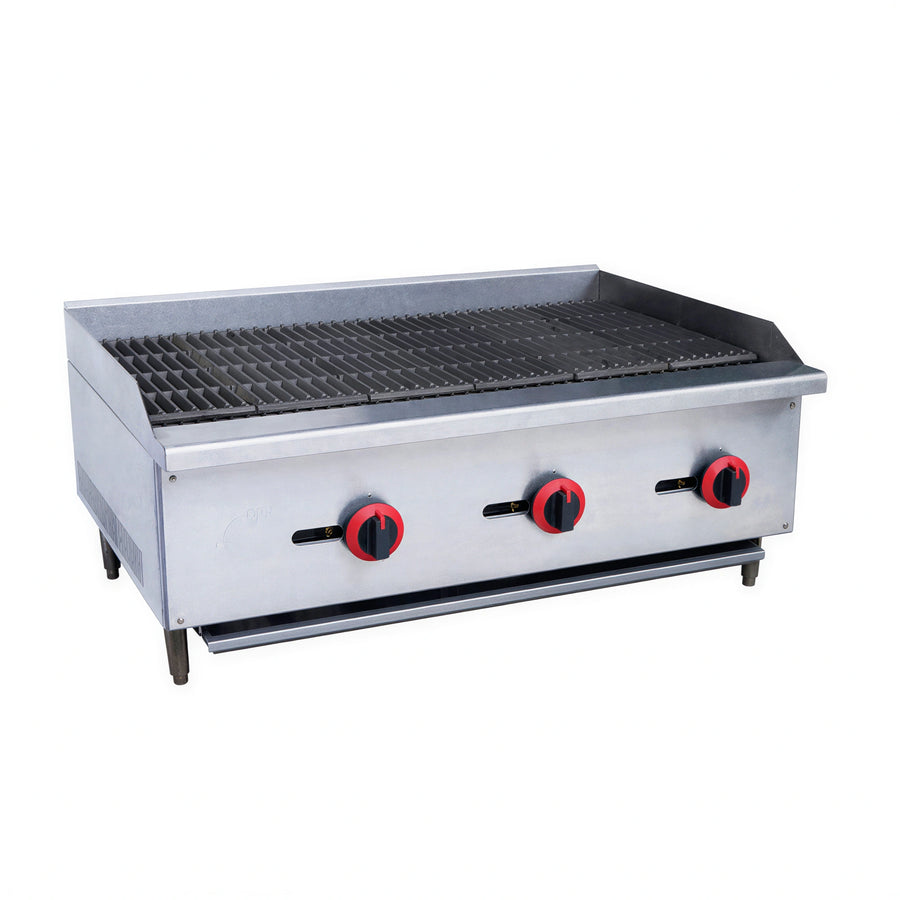

USR Brands Cookline CCB-36 36" Countertop Radiant Charbroiler

$661.00
/each
Estimated to ship in 5–8 business days
Size
Gas Connector
Included: USR Brands warranty 1-year parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $61/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Grate Material Cast Iron
Heating Source Radiant
Gas Type Natural Gas
BTU 90,000 BTU
Burner Count 3
Burner Output 30,000 BTU/hr
Controls Manual
Grate Type Removable
Gas Inlet Size 3/4 in NPT
Leg Count 4
Width 36 in
Depth 27.2 in
Height 15 in

Description

The Cookline CCB-36 is a 36-inch countertop natural gas radiant charbroiler with three steel U-shaped burners and a removable cast iron grate.

  • Three 30,000 BTU/hr burners provide a 90,000 BTU total burner rating.
  • Manual controls, a standby stainless steel pilot, and a shipped gas regulator support operation.
  • Front grease trough, stainless steel oil collector, and three-sided stainless steel splash guard manage grease and cooking-area protection.
  • Stainless steel front and sides and four adjustable heavy-duty legs complete the unit.
  • The charbroiler has a 3/4-inch NPT rear gas connection and supports field gas conversion.

Overall Dimensions:

36.0"W x 27.2"D x 15.0"H

Product Weight:

210.0 lb

Radiant Heating

Uses three steel U-shaped burners beneath a hot rolled steel radiant cover.

Three-Burner Configuration

Includes three burners rated at 30,000 BTU/hr each.

Removable Cast Iron Grate

The cast iron grate is removable for access and cleaning.

Manual Controls

The unit uses manual controls and a durable brass control valve.

Grease Collection

Includes a front grease trough or channel and a stainless steel oil collector.

Splash Guard

A stainless steel splash guard is provided on three sides.

Adjustable Legs

Four adjustable heavy-duty legs are included.

Gas Connection

Features a 3/4-inch NPT rear gas connection and ships with a gas regulator.

Frequently Asked Questions

Yes. The CCB-36 is a countertop radiant charbroiler with exterior dimensions of 36 inches wide by 27.2 inches deep by 15 inches high.
The CCB-36 uses natural gas and has a 3/4-inch NPT rear gas connection.
It has three steel U-shaped burners, each rated at 30,000 BTU/hr, for a 90,000 BTU total burner rating.
It includes a removable cast iron grate.
The CCB-36 includes a one-year limited manufacturer warranty covering parts and labor against manufacturing defects.
