Key specifications

Amps
5.04 Amps
Phase
1-Phase
Dimensions
60.0"W × 32.1"D × 25.4"H
Type
Refrigerated Chef Base
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
USR Brands SKU: CB60 UPC: 691054531567

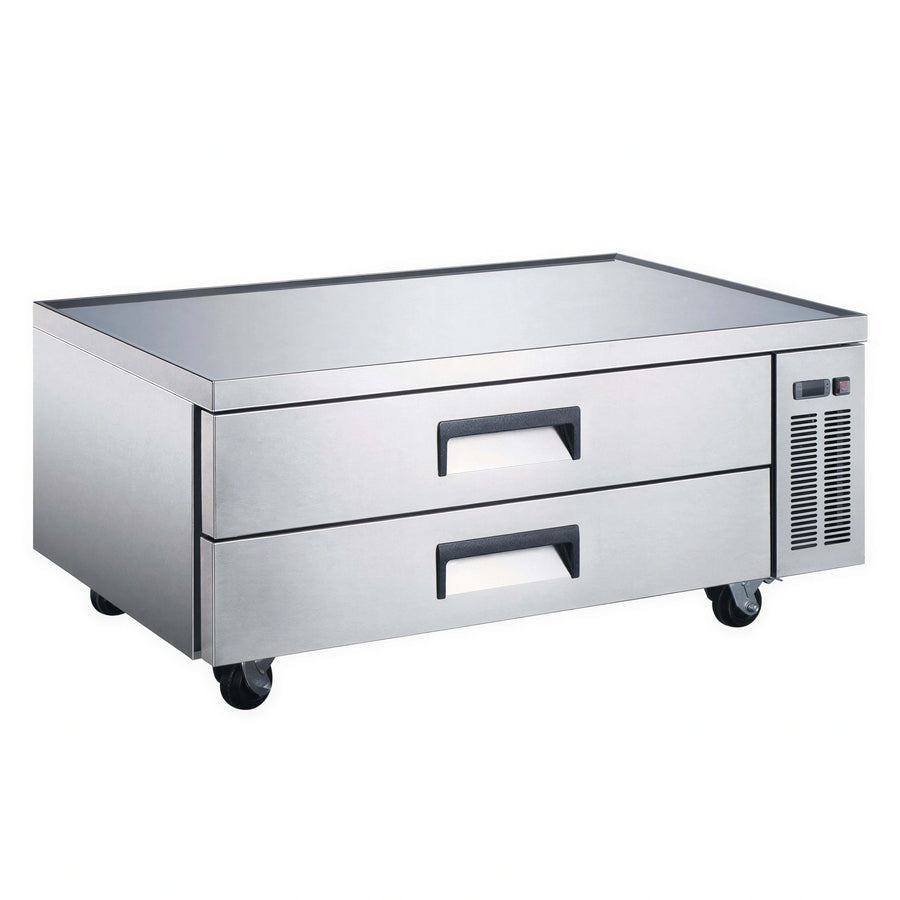

USR Brands Coldline CB60 60-Inch 2-Drawer Refrigerated Chef Base

$1,530.00
/each
Estimated to ship in 5–8 business days
Included: USR Brands warranty 1-year parts and labor warranty, plus 5-year compressor parts warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $142/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Chef Base
Installation Type Floor Model
Material Stainless Steel
Back Material Aluminum
Insulation Material Foamed-in-Place Polyurethane
Capacity 12.7 cu. ft.
Drawer Count 2
Pan Capacity 3 1/1 GN Pans Per Drawer
Top Edge Style Marine Edge
Top Thickness 1.75 in.
Top Weight Capacity 990 lb.
Refrigeration Type Self-Contained
Refrigeration Configuration Side-Mounted
Temperature Range 33°F to 41°F
Refrigerant Type R290
Defrosting Automatic
Controls Electronic with Digital Temperature Display
Voltage 115 Volts
Amps 5.04 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 84 in.
Horsepower 1/6 HP
Caster Count 4
Braked Caster Count 2
Maximum Ambient Temperature 90°F

Description

The Coldline CB60 is a refrigerated chef base with 12.7 cu. ft. of capacity and two drawers. It has a stainless steel interior and exterior, a stainless steel top with a marine edge, and an aluminum back.

Each drawer provides capacity for three 1/1 GN pans. Electronic controls with a digital temperature display support a 33°F to 41°F temperature range, while automatic defrost and side-mounted self-contained refrigeration support operation. Four casters, including two with brakes, provide mobility.

Overall Dimensions:

60.0"W x 32.1"D x 25.4"H

Product Weight:

281.0 lb

Two-Drawer Storage

Two drawers provide capacity for three 1/1 GN pans per drawer.

Temperature Control

Electronic controls with a digital temperature display support a 33°F to 41°F temperature range.

Stainless Steel Construction

The interior, exterior, and top are stainless steel; the top has a marine edge.

Self-Contained Refrigeration

Side-mounted refrigeration uses R290 refrigerant and automatic defrosting.

Caster Mobility

Four casters are preinstalled, with two casters equipped with brakes.

Electrical Connection

The unit operates at 115 Volts, 60 Hz, 1-Phase, 5.04 Amps, with an NEMA 5-15P plug.

Frequently Asked Questions

The temperature range is 33°F to 41°F.
It has two drawers, each with capacity for three 1/1 GN pans.
The unit operates at 115 Volts, 5.04 Amps, 60 Hz, and 1-Phase, with an NEMA 5-15P plug and an 84 in. cord.
It uses R290 refrigerant.
Yes. The unit has automatic defrosting.
The dimensions are 60 in. W x 32.1 in. D x 25.4 in. H, with a listed weight of 280 lb.
Yes. It has four casters, including two with brakes.
