Key specifications

Amps
4.32 Amps
Phase
1-Phase
Dimensions
48.4"W × 32.1"D × 25.4"H
Type
Refrigerated Chef Base
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
USR Brands SKU: CB48 UPC: 709401106198

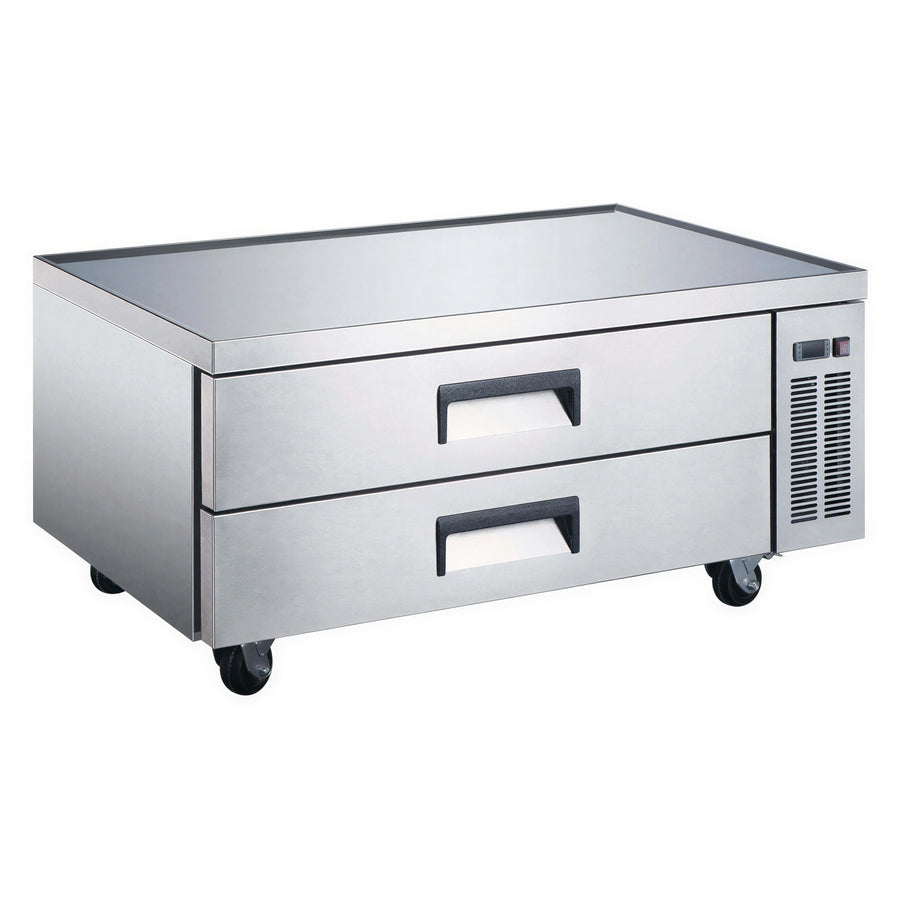

USR Brands Coldline CB48 48-Inch Refrigerated Chef Base, 2 Drawers

$1,296.00
/each
Estimated to ship in 5–8 business days
Included: USR Brands warranty 1-year parts and labor warranty, plus 5-year compressor parts warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $120/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Chef Base
Installation Type Floor Model
Material Stainless Steel
Back Material Aluminum
Capacity 9.6 cu. ft.
Drawer Count 2
Pan Capacity 2 × 1/1 GN per drawer
Voltage 115 Volts
Amps 4.32 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 84 in
Refrigerant Type R290 Hydrocarbon
Refrigeration Type Self-Contained
Temperature Range 33°F to 41°F
Controls Electronic with Digital Display
Defrosting Automatic
Horsepower 1/6 HP
Top Edge Style Marine Edge
Top Thickness 1.75 in
Top Weight Capacity 880 lb
Caster Count 4 Casters
Caster Brakes 2 Casters with Brakes
Insulation Material Foamed-In-Place Polyurethane

Description

The Coldline CB48 is a refrigerated chef base with a stainless steel top, stainless steel interior and exterior, and two drawers.

  • 9.6 cu. ft. capacity with a 33°F to 41°F temperature range
  • Side-mounted self-contained refrigeration with R290 refrigerant
  • Electronic controls with digital temperature display and automatic defrost
  • Stainless steel top with a marine edge
  • Four casters, including two with brakes

Overall Dimensions:

48.4"W x 32.1"D x 25.4"H

Product Weight:

250.0 lb

Self-Contained Refrigeration

Side-mounted self-contained refrigeration uses R290 hydrocarbon refrigerant.

Two Drawers

The unit has two drawers with 2 × 1/1 GN capacity per drawer.

Temperature Control

Electronic controls provide a digital temperature display for the 33°F to 41°F range.

Automatic Defrost

The refrigeration system includes automatic defrosting.

Stainless Steel Construction

The interior, exterior, and top are stainless steel.

Marine-Edge Top

The stainless steel top is equipped with a marine edge and has an 880 lb. weight capacity.

Caster Mobility

Four preinstalled casters are included, with two casters equipped with brakes.

Pull Handles

The drawers have heavy-duty pull handles.

Frequently Asked Questions

The temperature range is 33°F to 41°F.
The CB48 has two drawers.
The unit is rated at 115 Volts, 4.32 Amps, 60 Hz, and 1-Phase, with a NEMA 5-15P plug.
It uses R290 hydrocarbon refrigerant.
The dimensions are 48.4 in wide × 32.1 in deep × 25.4 in high.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
