Key specifications

Amps
2.52 Amps
Phase
1-Phase
Dimensions
36.38"W × 32.13"D × 25.38"H
Type
Refrigerated Chef Base
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
USR Brands SKU: CB36 UPC: 694536401600

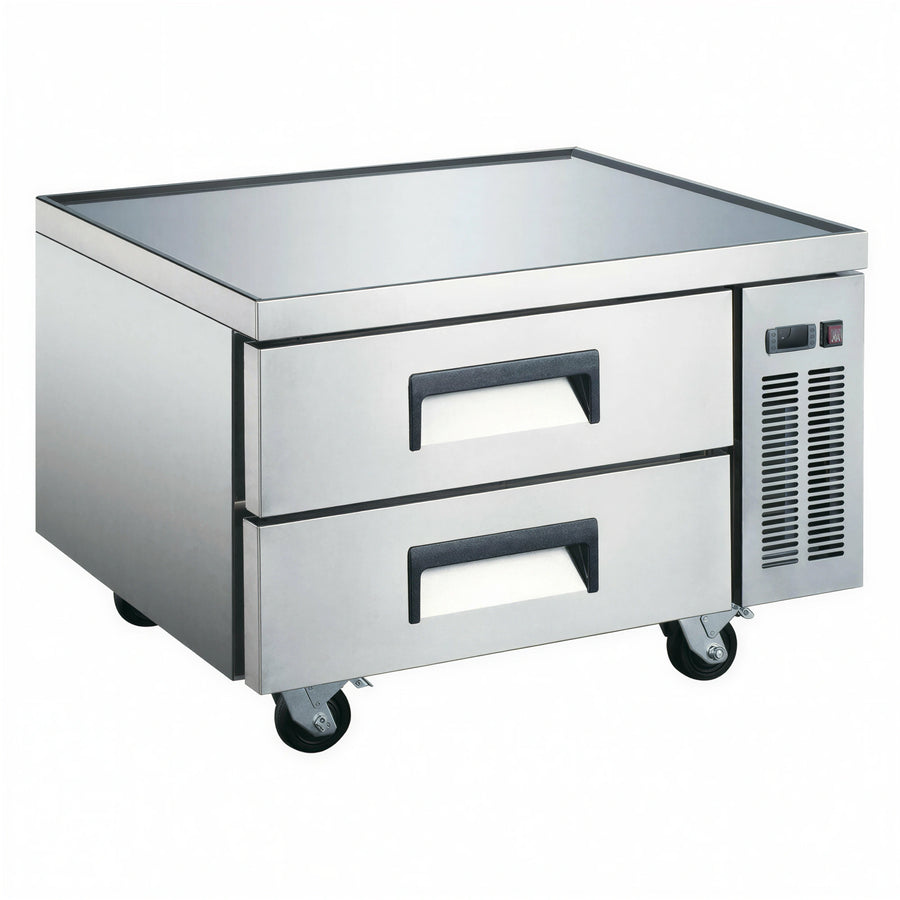

USR Brands Coldline CB36 36-Inch 2-Drawer Refrigerated Chef Base

$1,237.00
/each
Estimated to ship in 5–8 business days
Included: USR Brands warranty 1-year parts and labor warranty, plus 5-year compressor parts warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $114/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Refrigerated Chef Base
Installation Type Floor Model
Material Stainless Steel
Capacity 5.9 cu. ft.
Drawer Count 2 Drawers
Pan Capacity 1/1 GN + 3 x 1/6 GN per drawer
Finish Stainless Steel
Interior Finish Stainless Steel
Back Material Aluminum
Top Edge Type Marine Edge
Top Thickness 1.75 inches
Top Weight Capacity 730 lb.
Refrigeration Type Side-Mounted Self-Contained
Temperature Range 33°F to 41°F
Refrigerant Type R290 Hydrocarbon
Controls Electronic with Digital Temperature Display
Defrost Type Automatic
Compressor Horsepower 1/6 HP
Voltage 115 Volts
Amps 2.52 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 84 inches
Caster Count 4
Caster Brakes 2 Casters
Insulation Material Foamed-in-Place Polyurethane
Maximum Ambient Temperature 90°F

Description

The Coldline CB36 is a refrigerated chef base with 5.9 cu. ft. of capacity across two drawers. Side-mounted, self-contained refrigeration maintains a 33°F to 41°F temperature range, while the stainless steel top features a marine edge.

  • Each drawer accommodates one 1/1 GN pan and three 1/6 GN pans.
  • Electronic controls include a digital temperature display and automatic defrost.
  • The unit has a stainless steel interior and exterior, an aluminum back, and four casters.

Overall Dimensions:

36.38"W x 32.13"D x 25.38"H

Product Weight:

231.0 lb

Self-Contained Refrigeration

Side-mounted refrigeration maintains a 33°F to 41°F temperature range.

Two-Drawer Storage

Each drawer accommodates one 1/1 GN pan and three 1/6 GN pans.

Stainless Steel Top

The top has a marine edge and a 730 lb. weight capacity.

Electronic Controls

Electronic controls include a digital temperature display.

Automatic Defrost

The refrigeration system includes automatic defrost.

Caster Mobility

Four casters are included, with two equipped with brakes.

R290 Refrigerant

Uses R290 hydrocarbon refrigerant.

Frequently Asked Questions

The CB36 maintains a temperature range of 33°F to 41°F.
It has two drawers.
Each drawer accommodates one 1/1 GN pan and three 1/6 GN pans.
It uses side-mounted, self-contained refrigeration with R290 hydrocarbon refrigerant.
The unit operates at 115 volts, 60 Hz, single phase, draws 2.52 amps, and uses a NEMA 5-15P plug.
Yes. The refrigeration system has automatic defrost.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
