UNOX ChefTop MIND.Maps Plus BIG Gas Roll-In Combi Oven with Steam, 20 Sheet Pan Capacity, 120V

SKU: XAVL-2021-GPLS (GAS 120V)
$43,322.40
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens Cooking Equipment Equipment New Arrivals Ovens Restaurant Equipment UNOX USA

UNOX ChefTop MIND.Maps Plus BIG Gas Roll-In Combi Oven with Steam, 20 Sheet Pan Capacity, 120V

Floor Model, Left-Hand Door Opening, Trolley Included

Built for high-volume production, this roll-in gas combi oven combines convection, steam, and intelligent programming for repeatable results on every load.

  • Roll-in BIG combi oven designed for high-volume kitchens with capacity for 20 18" x 26" sheet pans or 40 hotel pans.
  • 9.5" touchscreen control with MIND.Maps™, CHEFUNOX, MULTI.TIME, and 1000+ programmable recipes.
  • Gas-fired cooking with steam generation, pressure steam, and a 4-speed fan system for versatile results.
  • ROTOR.Klean automatic washing, integrated detergent tank, and drain cooling valve help simplify maintenance.
  • Marine-grade stainless steel construction, triple glass door, and LED-lit chamber support durability and visibility.
  • Includes the XEVTL-2021 trolley; adapter grids GRP521 are needed to convert it for 18" x 26" sheet pans.

Overall Dimensions:

35.13"W x 49.5"D x 73.88"H

Product Weight:

815.7 lb

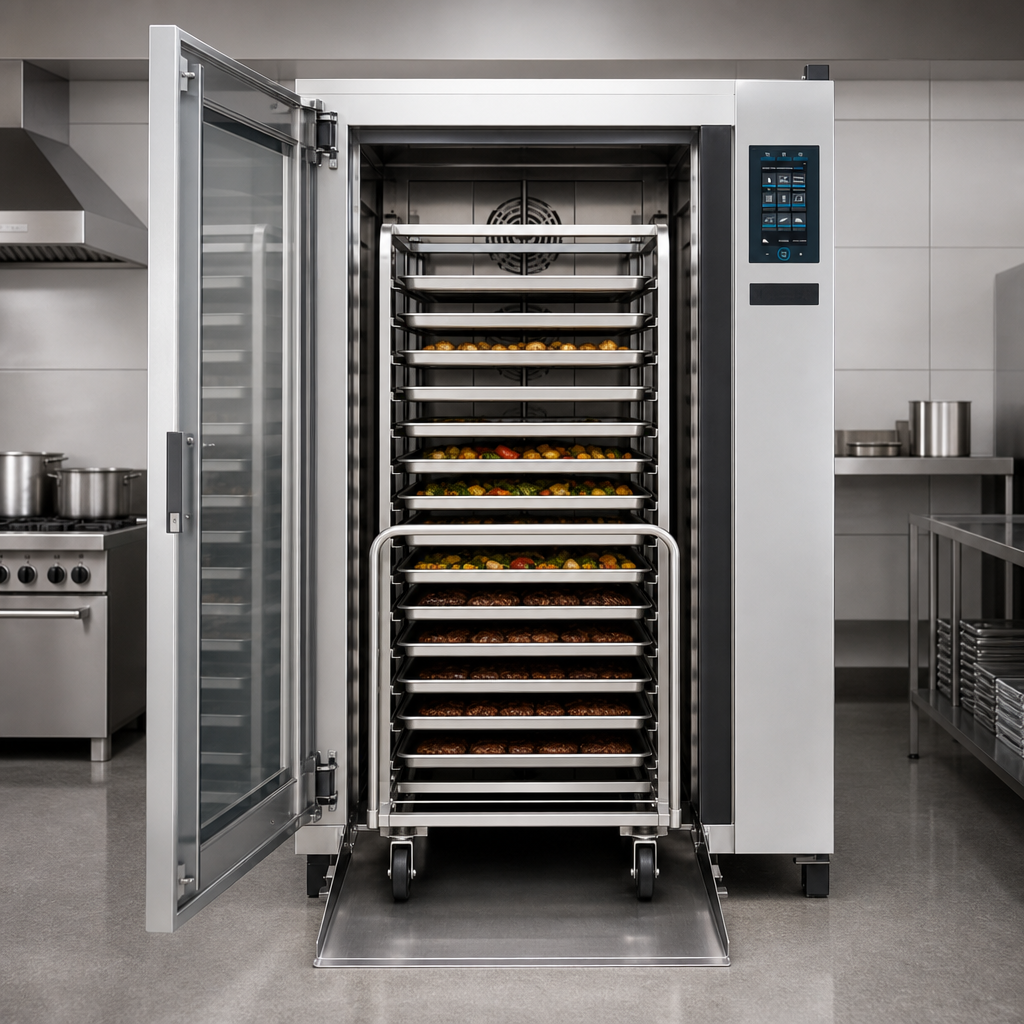

Roll-In BIG Capacity

Holds 20 18" x 26" full-size sheet pans or 40 hotel pans for large-batch production.

Roll-In BIG Capacity

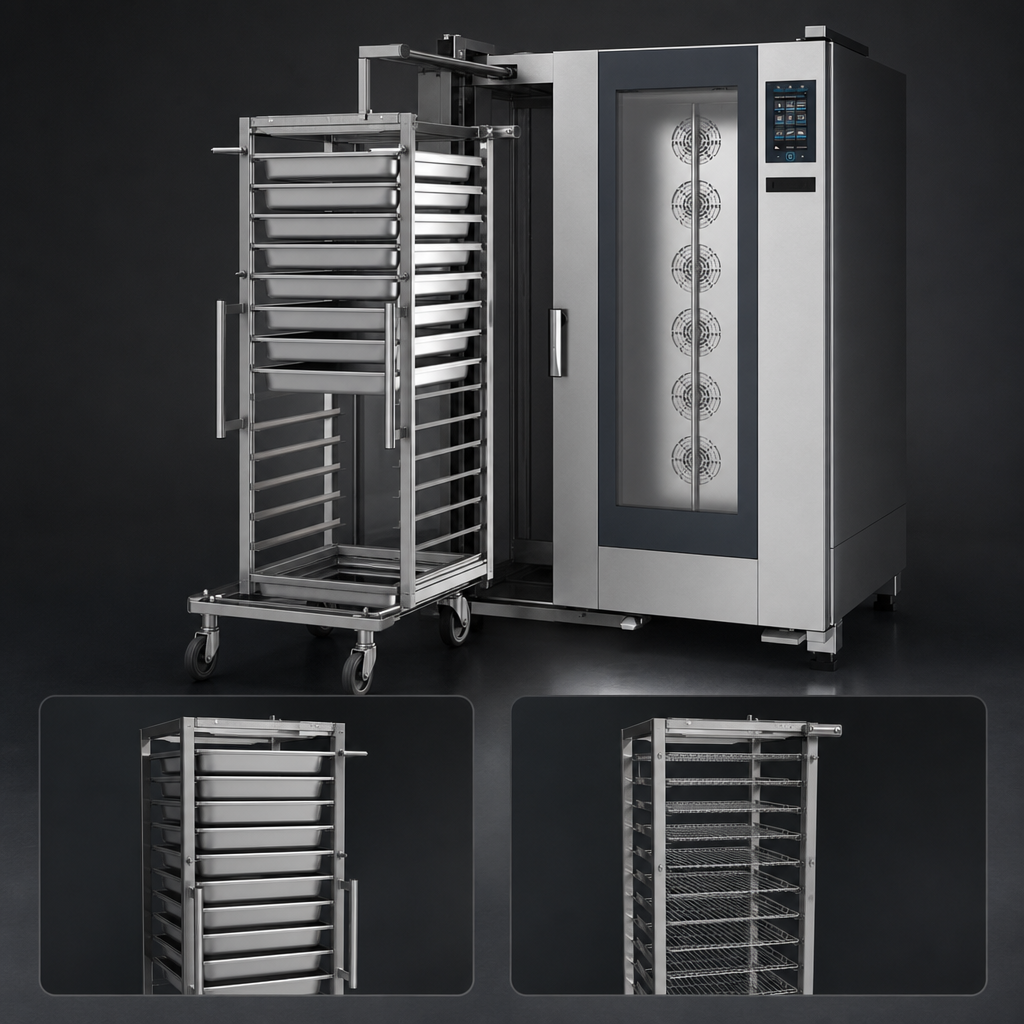

Included QUICK.Load Trolley

XEVTL-2021 trolley is included; it holds 40 full hotel pans and can be adapted for 20 full-size sheet pans with GRP521 grids.

Included QUICK.Load Trolley

MIND.Maps™ Plus Touch Control

9.5-inch capacitive touchscreen with programmable menus, 1000+ programs, CHEFUNOX, MULTI.TIME, MISE.EN.PLACE, and READY.COOK.

Steam Generator Cooking

Combines heat, hot air flow, and steam for combi cooking, including saturated steam production and pressure steam performance.

Automatic Washing System

ROTOR.Klean automatic washing, special wash behind the fan guard, integrated detergent container, and SENSE.Klean cleaning guidance.

Marine-Grade Stainless Steel Construction

Built with marine-grade stainless steel interior and exterior for durability and long service life.

Triple-Glass Door and LED Lighting

Triple glass door construction with integrated LED chamber lighting for better visibility and easier monitoring.

Connected Data Management

Integrated Wi-Fi and USB data functions support HACCP data transfer, program upload/download, and Data Driven Cooking services.

Left-Hand Door Opening

Right-side hinge with left-hand door configuration for convenient roll-in access.

High-Power Gas System

Pressure gas burners and symmetrical heat exchangers are designed for fast recovery and high-volume output.

Type Gas Combi Oven
Style Roll-In
Installation Type Floor Model
Pan Capacity 20 18" x 26" Full-Size Sheet Pans / 40 Hotel Pans
Pan Size 18 Inches x 26 Inches
Controls Programmable Touchscreen
Temperature Range 86°F to 500°F
Voltage 120 Volts
Amps 22 Amps
Watts 2.6 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type Not Included
Breaker Size 30 Amps
BTU 307,093 BTU/h
Gas Connection Size 1 Inch NPT
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Drain Connection Required
Drain Connection Size 1 1/8 Inches
Material 316L Stainless Steel
Interior Finish 316L Stainless Steel
Shipping Width 36 Inches
Shipping Depth 50 Inches
Shipping Height 74 Inches
Shipping Weight 815.7 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Up to 4 years or 10,000 working hours on parts, with 2 years on labor.

Documents

PDF Cutsheet PDF Download PDF Installation program PDF Download PDF Catalog PDF Download PDF Use & maintenance manual PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds 20 18" x 26" full-size sheet pans or 40 hotel pans.
Yes. The XEVTL-2021 trolley is included, and it holds 40 full hotel pans only. GRP521 adapter grids are needed to convert it for 20 18" x 26" sheet pans.
It requires 120V, 60 Hz, single-phase electrical service, a 30A breaker, a 1" gas connection, a 3/4" water inlet, and a drain connection.
Yes. It includes ROTOR.Klean automatic washing, a special wash behind the fan guard, and an integrated detergent container.
The manual cooking temperature range is 86°F to 500°F.
No. The gas line is not included with the oven and must be purchased separately.
