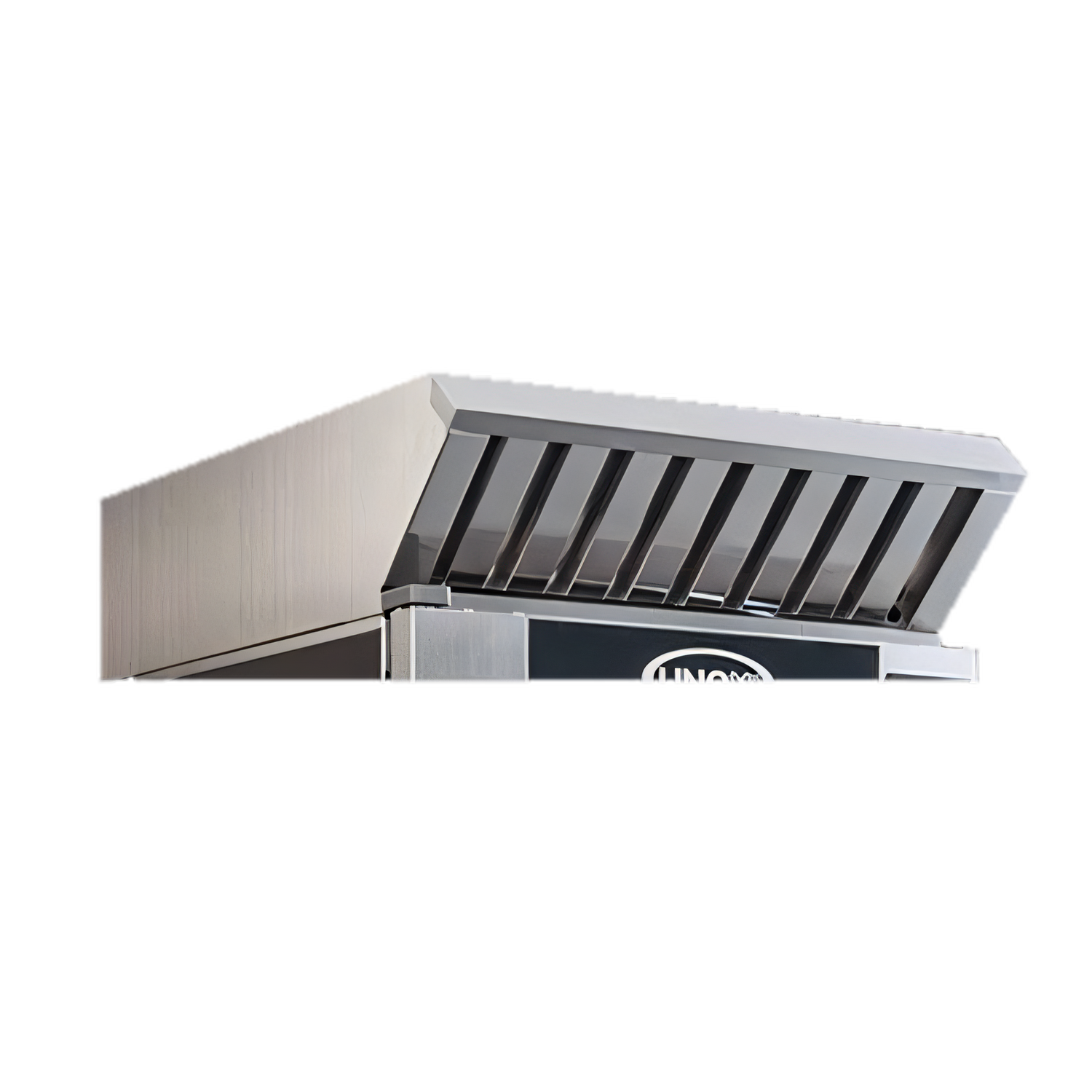

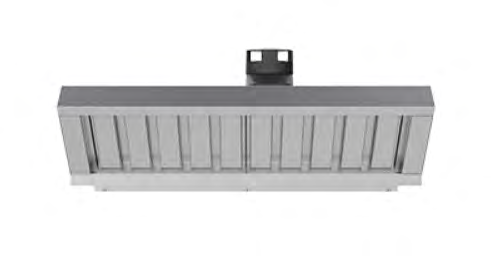

UNOX ChefTop MIND.Maps Plus Ventless Steam Condensing Hood

For 18 x 26 Countertop Electric Ovens, 208-240V

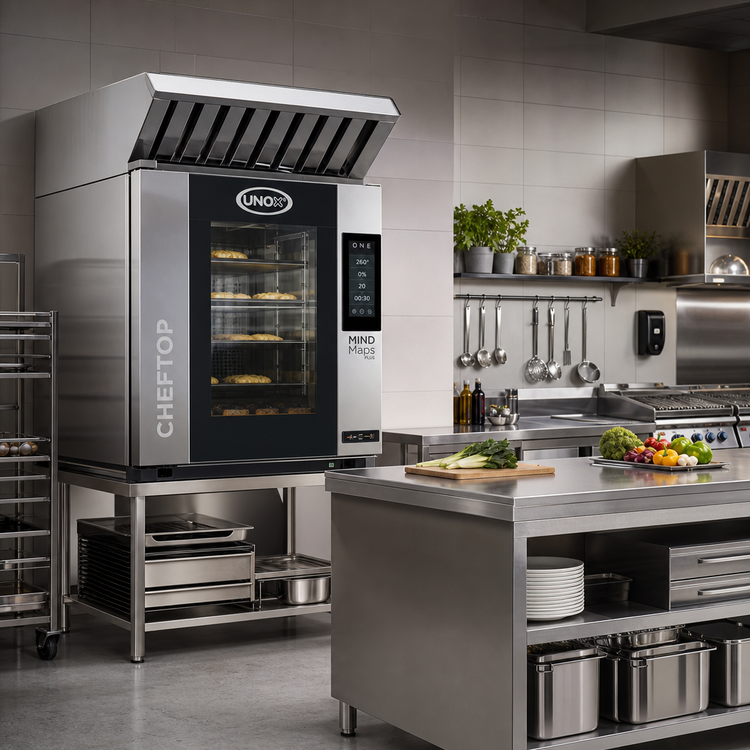

Keep smoke, odors, and exhaust heat under control with a self-cleaning ventless hood that works with compatible ChefTop MIND.Maps Plus countertop electric ovens.

  • Ventless steam condensing design helps reduce smoke, odors, grease vapors, and exhaust temperatures.
  • Self-cleaning condensation chamber and integrated filters simplify maintenance.
  • Intelligent extraction adjusts automatically to the amount of steam being produced.
  • Suction increases automatically when the oven door opens.
  • Stainless steel unibody construction delivers durability and a clean built-in look.
  • Includes a 1-1/2 m hose and two hose clamps for installation.
  • Designed for compatible ChefTop MIND.Maps Plus countertop electric ovens; not compatible with gas ovens and does not replace a Type II exhaust hood.

Overall Dimensions:

33.88"W x 45.06"D x 10.19"H

Product Weight:

55.11 lb

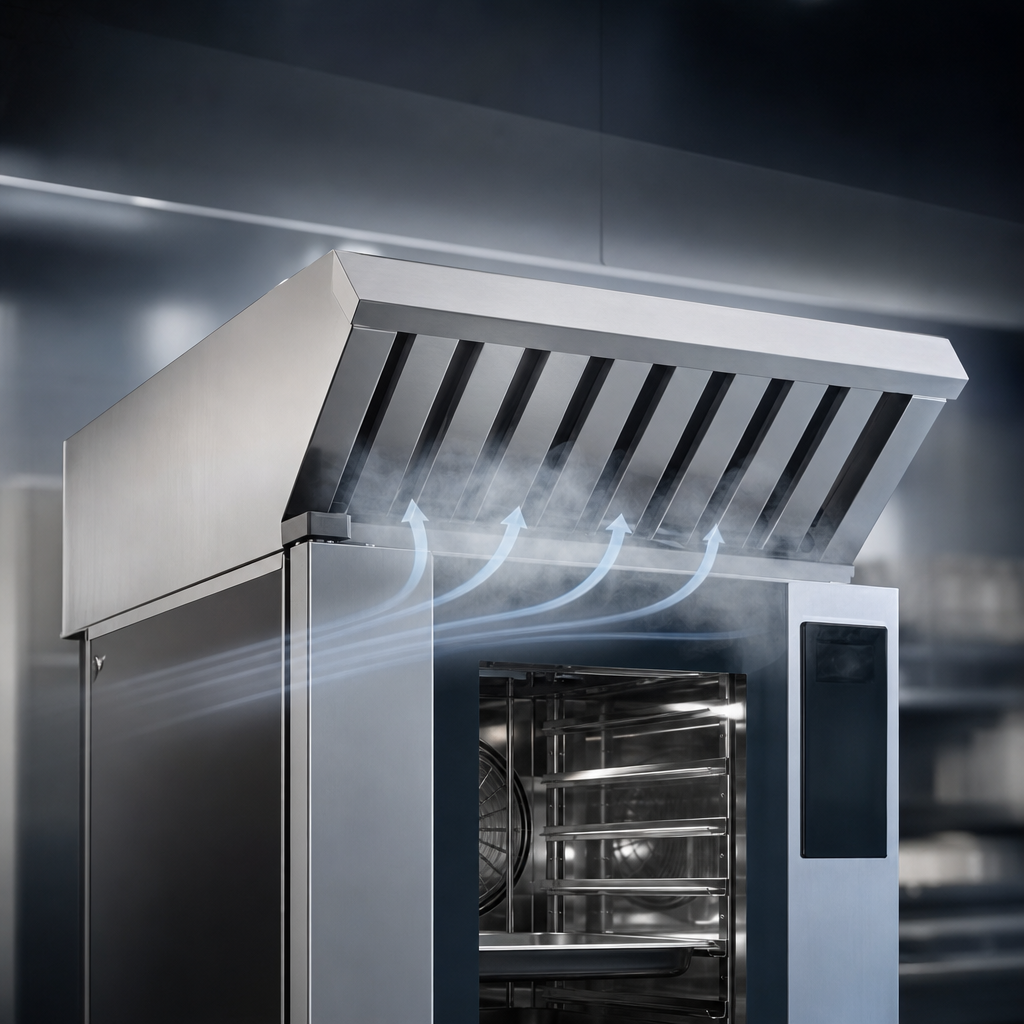

Ventless Steam Condensing Design

Helps reduce smoke, odors, grease-laden vapors, and exhaust temperatures without altering oven performance.

Ventless Steam Condensing Design

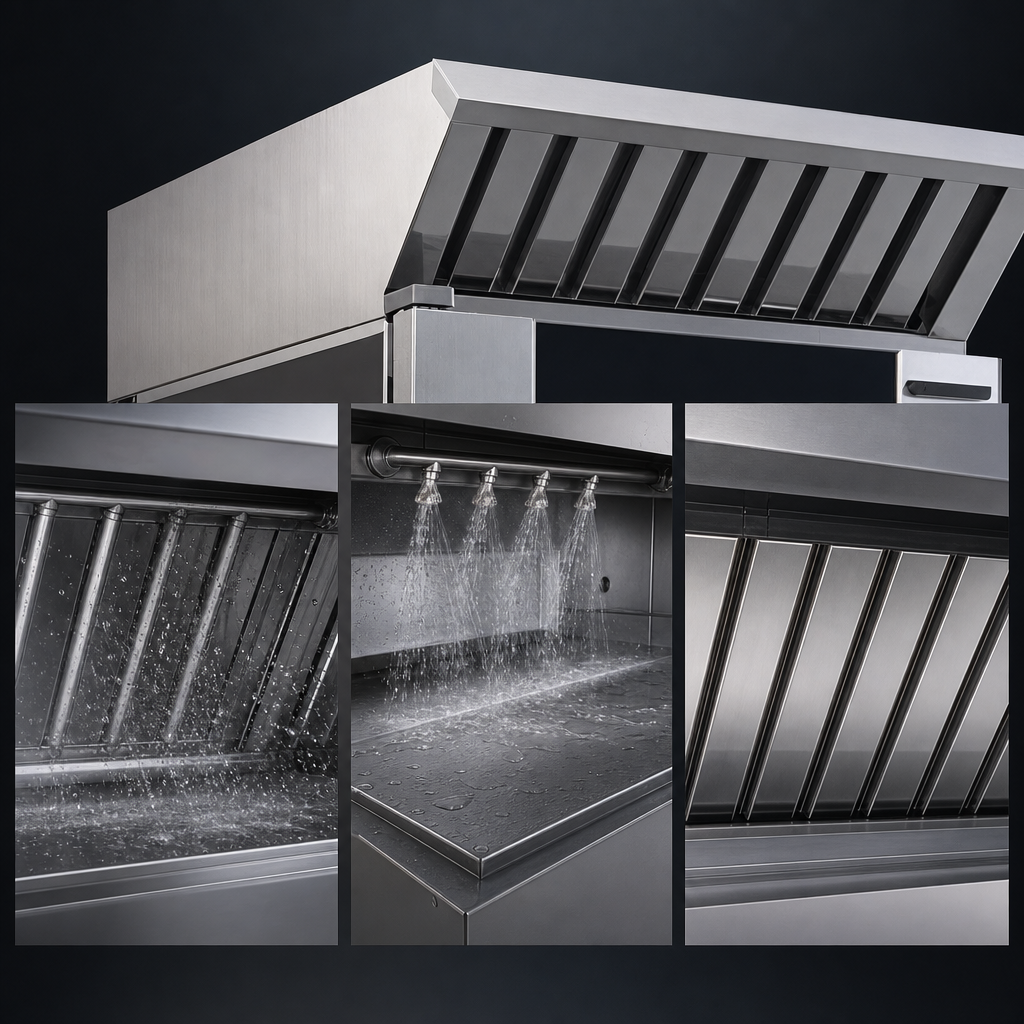

Automatic Self-Cleaning Filters

The integrated condensation chamber and filters are automatically washed to simplify upkeep.

Automatic Self-Cleaning Filters

Intelligent Extraction Control

Continuously adjusts extraction power to match the amount of steam being emitted.

Door-Activated Suction Boost

Automatically increases suction when the oven door opens.

Stainless Steel Unibody Construction

Rigid stainless steel build offers durability and a clean, integrated appearance.

Easy-Clean Front Filter

Front filter is easy to remove and is dishwasher safe.

Safety Thermostat

Front safety thermostat constantly monitors room temperature.

External Vent Compatibility

Can connect to an external vent or ceiling hood; not compatible with gas ovens.

Type Ventless Hood
Style Steam Condensing
Installation Type Countertop
Controls Automatic
Material Stainless Steel
Voltage 208-240 Volts
Amps 0.5 Amps
Watts 0.1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Breaker Size 0.5 Amps
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Drain Connection Required
Exhaust Chimney Diameter 4 3/4 Inches
Shipping Width 34 Inches
Shipping Depth 46 Inches
Shipping Height 11 Inches
Shipping Weight 55.11 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is compatible with XAVC-10FS-EPLM, XAVC-10FS-EPRM, XAVC-10FS-HPLM, XAVC-10FS-HPRM, XAVC-06FS-EPLM, XAVC-06FS-EPRM, XAVC-06FS-HPLM, and XAVC-06FS-HPRM.
No. It reduces smoke, odors, grease-laden vapors, and exhaust temperatures, but it does not replace a Type II exhaust hood; local codes still apply.
It requires 208-240V, 60 Hz, single-phase power with 0.1 kW total power, a 0.5 A maximum draw, and a NEMA 6-15P plug.
Yes. It uses a 3/4-inch NPT drinking water inlet and requires a condensate drain connection.
No. The documentation states that this ventless hood is not compatible with gas ovens.
It has automatic washing for the condensation chamber and integrated filters, plus a front filter that is easy to remove and dishwasher safe.
