UNOX ChefTop MIND.Maps Plus Ventless Steam Condensing Hood for Countertop Electric Ovens

SKU: XAVHC-HC11
$2,874.96
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Kitchen Hoods Equipment Facility Equipment Hoods & Ventilation Kitchen Ventilation & Climate Control New Arrivals Restaurant Equipment UNOX USA Ventless Hood Systems

UNOX ChefTop MIND.Maps Plus Ventless Steam Condensing Hood for Countertop Electric Ovens

29.5 Inch Wide, 208-240V, 1-Phase, Stainless Steel

Keep your cookline cleaner and cooler with a self-cleaning ventless hood that condenses steam, reduces odors and grease-laden vapors, and automatically adjusts extraction without affecting oven performance.

  • Reduces smoke, odors, grease-laden vapors, and exhaust temperatures for a cleaner kitchen environment.
  • Automatic washing of the condensation chamber and integrated filters helps minimize maintenance.
  • Intelligent power control continuously adjusts extraction to the amount of steam being produced.
  • Stainless steel unibody construction offers durability and easier cleaning.
  • Compatible with specified ChefTop MIND.Maps Plus countertop electric oven models only.
  • Includes a hose kit for installation and can connect to an external vent or ceiling hood.

Overall Dimensions:

29.5"W x 37.63"D x 10.19"H

Product Weight:

50.7 lb

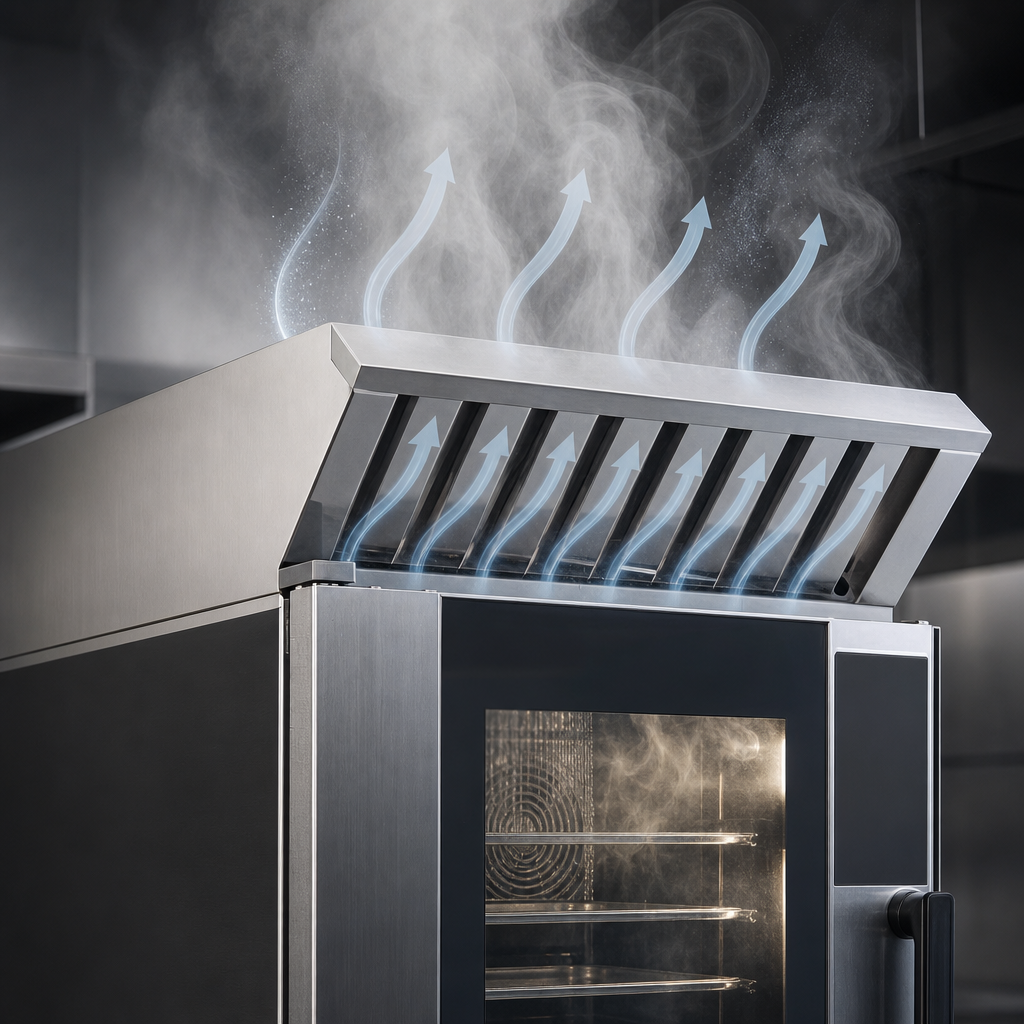

Steam Condensing Hood

Partially eliminates steam and odors from cooking fumes while lowering exhaust temperatures.

Steam Condensing Hood

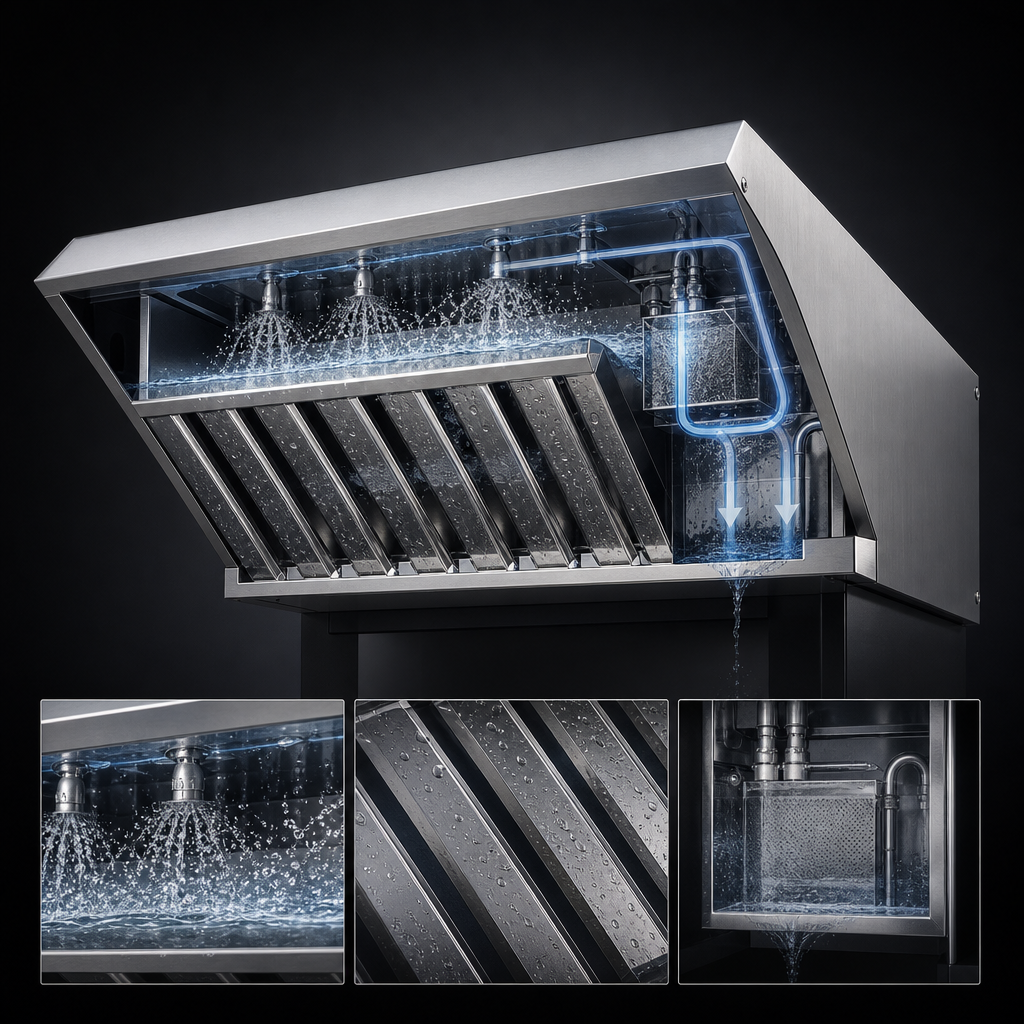

Self-Cleaning Filter Chamber

Automatic washing of the condensation chamber and integrated filters helps reduce manual upkeep.

Self-Cleaning Filter Chamber

Intelligent Extraction Control

Continuously adjusts extraction power to the amount of steam emitted and boosts suction when the oven door opens.

Stainless Steel Unibody Construction

Rigid stainless steel design supports durability and easy cleaning in busy commercial kitchens.

Removable Dishwasher-Safe Front Filter

Front filter removes easily for cleaning and is dishwasher safe.

External Vent Compatibility

Can connect to an external vent or ceiling hood; local code requirements still apply and it does not replace a Type II exhaust hood.

Included Installation Kit

Includes a 1 m hose and two hose clamps for installation.

Type Ventless Hood
Style Steam Condensing
Installation Type Countertop
Material Stainless Steel
Voltage 208-240 Volts
Amps 0.5 Amps
Watts 100 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Breaker Size 0.5 Amps
Water Connection Required
Water Inlet Size 3/4 Inch Female NPT
Drain Connection Required
Exhaust Chimney Diameter 4 3/4 Inches
Shipping Width 30 Inches
Shipping Depth 38 Inches
Shipping Height 11 Inches
Shipping Weight 50.7 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is compatible with XAVC-0511-EPL, XAVC-0511-EPR, XAVC-1011-EPL, and XAVC-1011-EPR models.
No. The documentation states that this ventless hood is not compatible with gas ovens.
No. It does not replace Type II exhaust hoods, and local codes must still be followed.
It requires 208-240V power, 60 Hz, 1-phase service, a 0.5 A maximum amp draw, and a NEMA 6-15P plug.
Yes. It uses a 3/4" female NPT water inlet and a condensate drain connection.
The hood includes a 1 m hose and two hose clamps.
