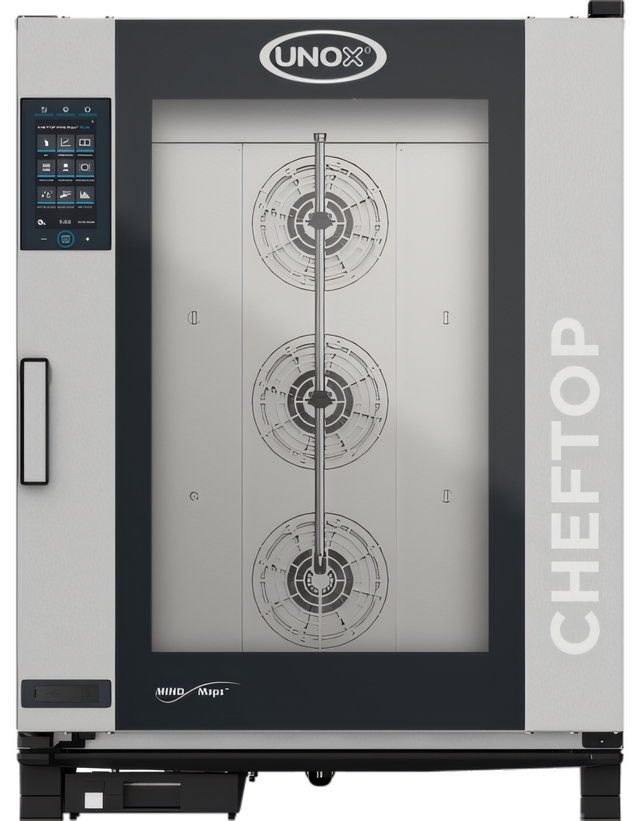

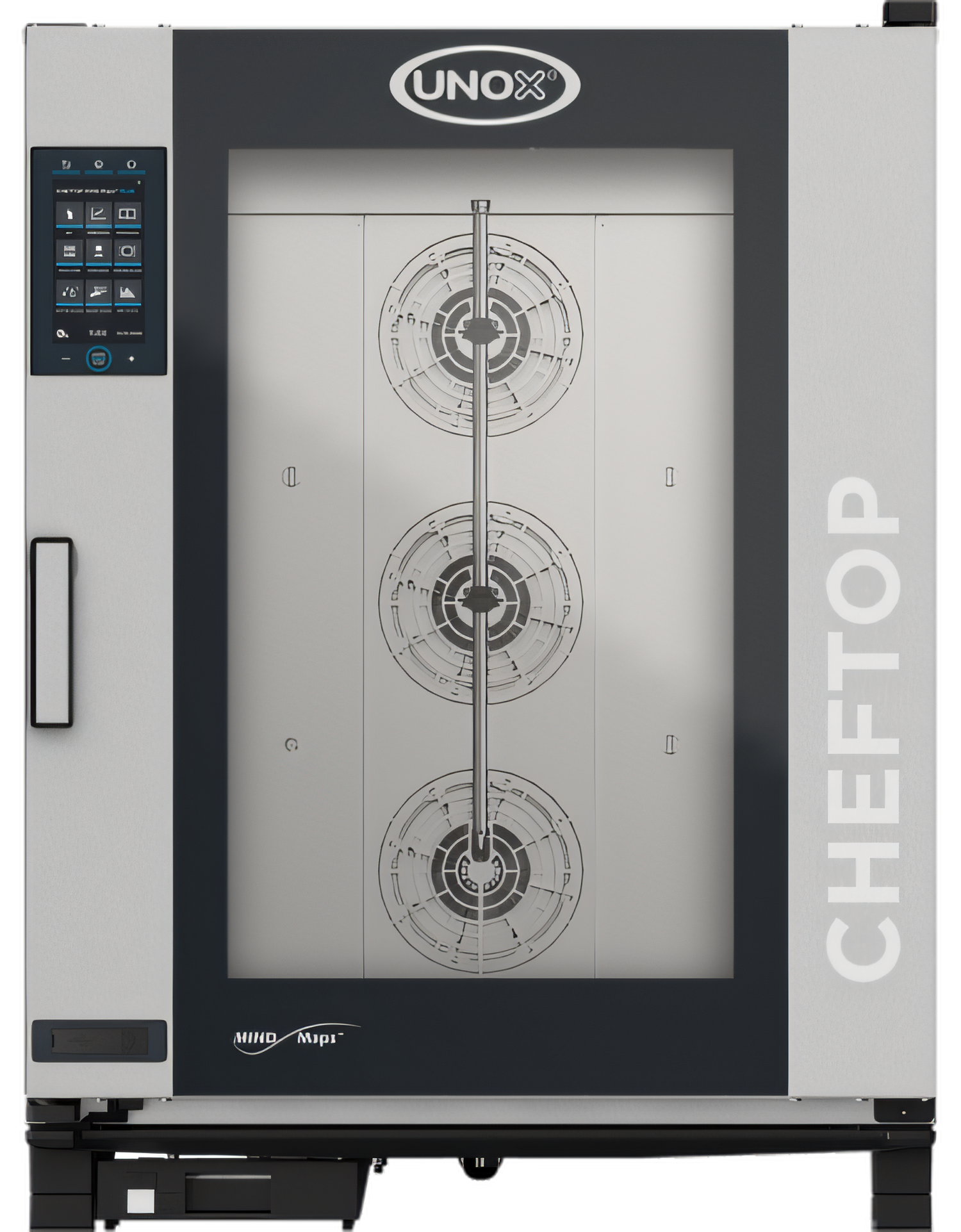

UNOX ChefTop MIND.Maps Plus 10-Tray Countertop Gas Combi Oven/Steam Oven with Left-Hand Door

10 Full-Size 18 x 26 Inch Pan Capacity, 120V, Programmable Touch Controls

Built for high-output kitchens, this gas countertop combi oven combines convection, steam, and smart programming for repeatable results.

  • Holds 10 full-size 18" x 26" sheet pans or 20 hotel-size pans.
  • Combines convection, steam, and mixed cooking modes for versatile menu execution.
  • 120V, 12A gas unit with a 3/4" female NPT gas connection.
  • 9.5" touch control panel with 1000+ programs and automated cooking functions.
  • Integrated Wi-Fi and USB simplify HACCP data transfer and program uploads/downloads.
  • Rotor.Klean automatic washing, triple glass door, and 316L stainless steel chamber help support cleanup and durability.

Overall Dimensions:

33.88"W x 38.06"D x 45.75"H

Built-In Steam Generator

Supports steam, mixed, and humidity-controlled cooking for a wide range of menu items.

Built-In Steam Generator

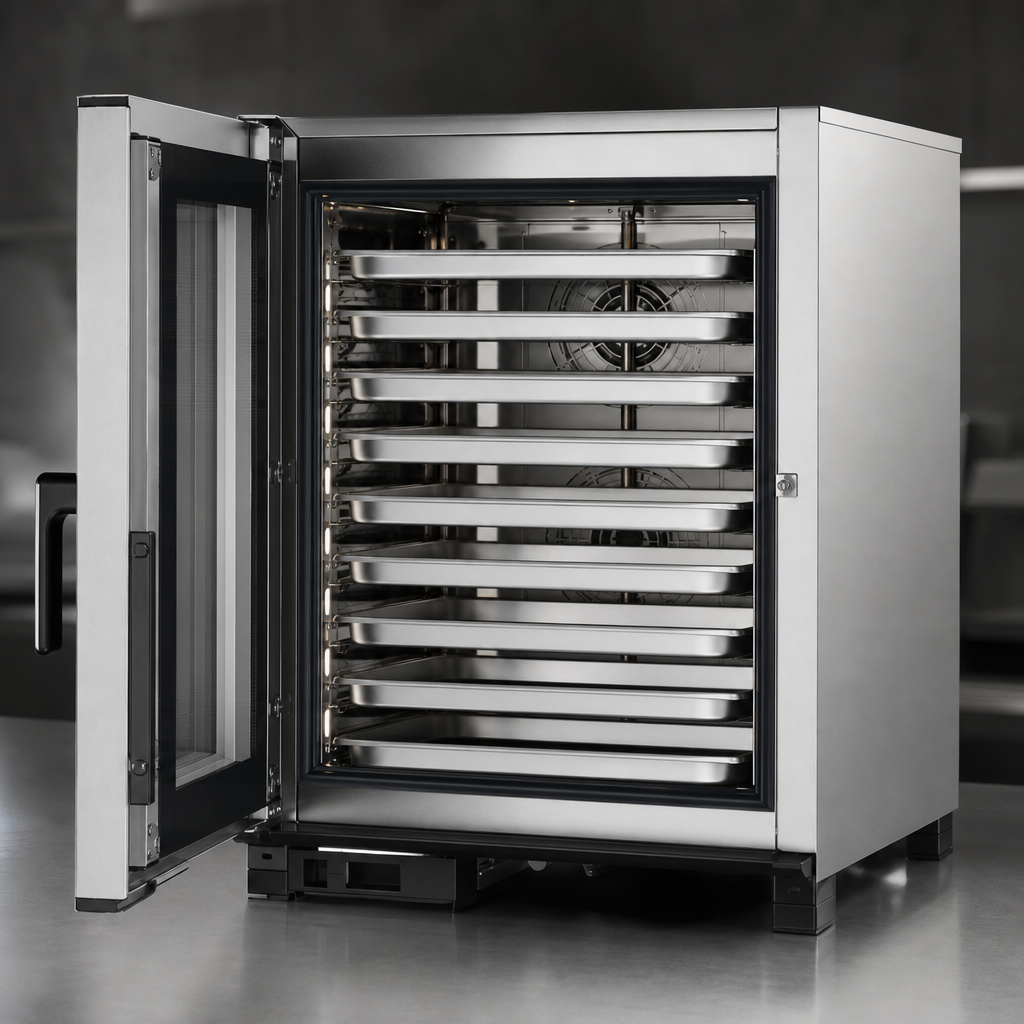

10-Tray Countertop Capacity

Accepts 10 full-size 18" x 26" sheet pans or 20 hotel-size pans for high-volume production.

10-Tray Countertop Capacity

9.5-Inch Touch Control Panel

Large touch interface provides fast access to cooking programs and manual settings.

CHEFUNOX and MIND.Maps

Automated and draw-to-program cooking tools help standardize results and simplify operation.

MULTI.TIME and MISE.EN.PLACE

Manage multiple cooking processes at once and coordinate tray loading so items finish together.

Wi-Fi / USB HACCP Transfer

Upload and download programs and HACCP data for easier connectivity and recordkeeping.

Rotor.Klean Automatic Washing

Built-in wash cycles and integrated detergent container help reduce manual cleaning work.

316L Stainless Steel Chamber

High-resistance cooking chamber with rounded edges and anti-tip tray supports for durability and easier cleaning.

Triple Glass Door

Improves chamber visibility while helping retain heat during cooking.

Left-Hand Door Opening

Hinge is on the right side for a left-to-right door opening; standard rack slides for sheet pans are included.

Type Combi Oven / Steam Oven
Style Countertop
Installation Type Countertop
Capacity 10 Full Size Sheet Pans
Pan Size 18 x 26 Inches
Controls Programmable
Temperature Range 86 °F to 500 °F
Voltage 120 Volts
Amps 12 Amps
Watts 1.4 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Breaker Size 15 Amps
BTU 119,424 BTU/h
Gas Connection Size 3/4 Inch Female NPT
Water Inlet Size 3/4 Inch Female NPT
Water Connection Required
Drain Connection Size 1 1/8 Inch Diameter Discharge Pipe
Drain Connection Required
Material Stainless Steel
Interior Finish 316L Stainless Steel
Shipping Width 34 Inches
Shipping Depth 39 Inches
Shipping Height 46 Inches
Shipping Weight 492 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Up to 4 years or 10,000 working hours on parts; 2 years on labor with LONG.Life4.

Documents

PDF Cutsheet PDF Download PDF Use & maintenance manual PDF Download PDF Installation program PDF Download PDF Catalog PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds 10 full-size 18" x 26" sheet pans or 20 hotel-size pans.
It requires 120 Volts, 12 Amps, 60 Hz, 1-Phase power and uses a NEMA 5-20P plug.
Yes. The oven uses a 3/4" water inlet and requires a drain connection for steam operation.
No. Gas lines are not included with the oven and must be purchased separately.
This model has a left-hand door with the hinge on the right side.
It includes 1000+ programs plus CHEFUNOX, MULTI.TIME, MISE.EN.PLACE, MIND.Maps, and READY.COOK functions.
