UNOX USA

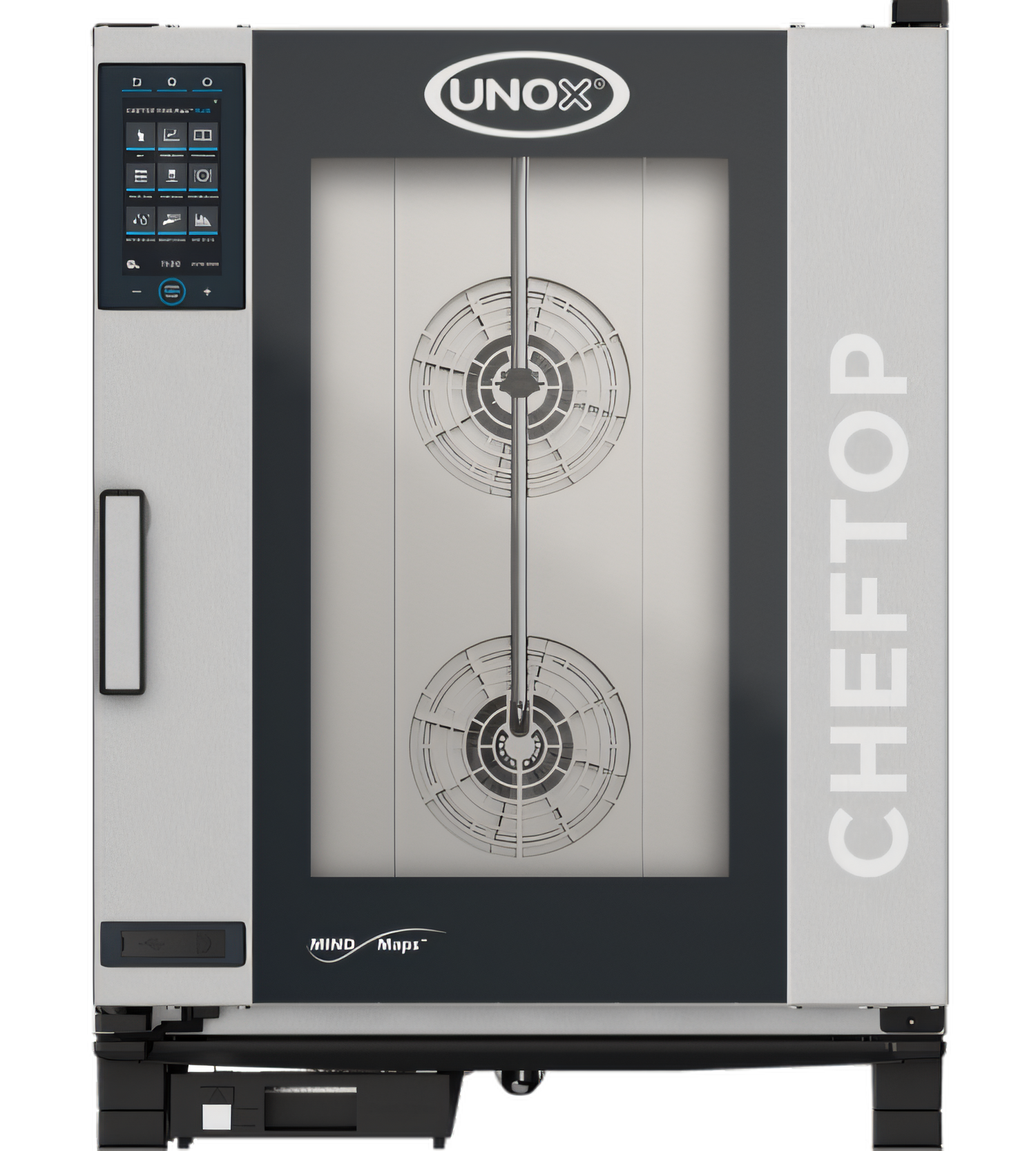

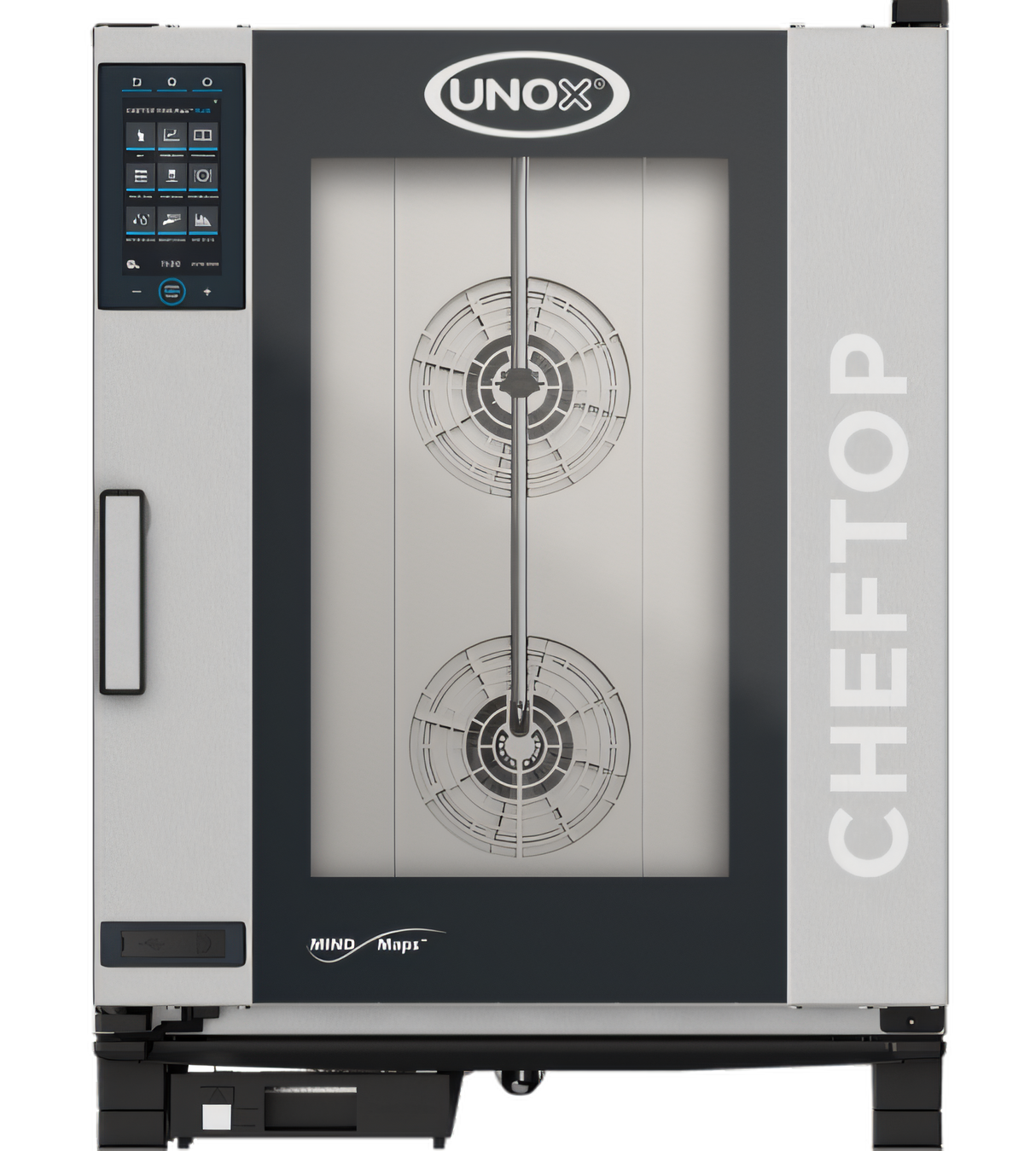

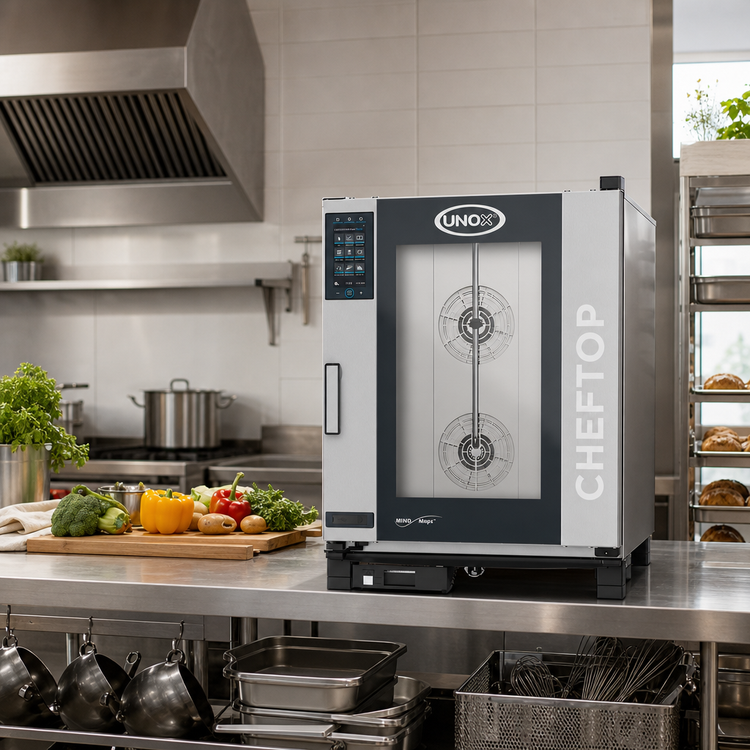

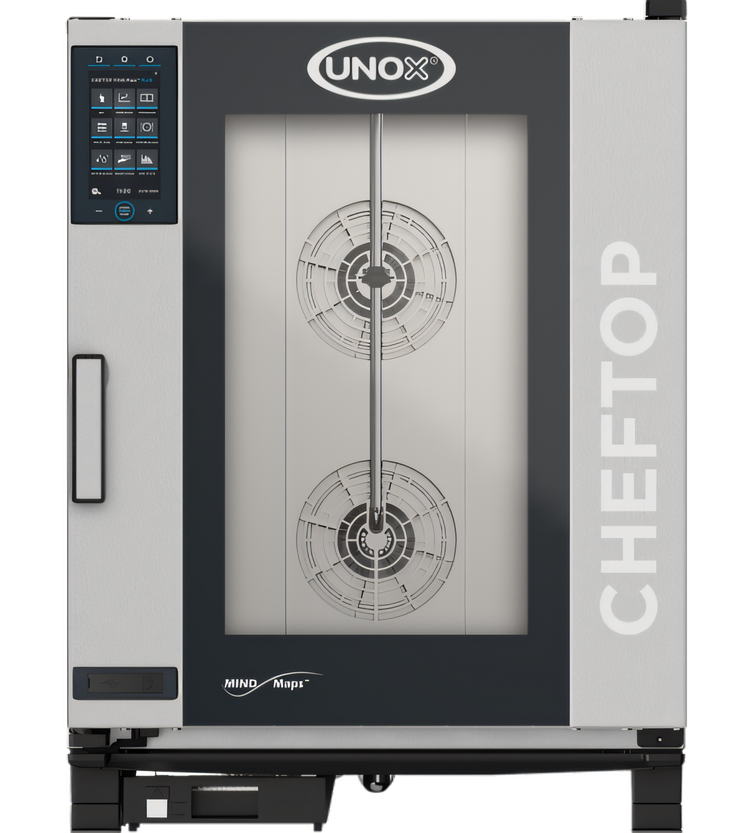

ChefTop MIND.Maps Plus Gas Countertop Combi Oven, 10 Full-Size Pan Capacity, Left-Hand Opening

SKU: XAVC-1011-GPLM
$19,285.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens Cooking Equipment Equipment New Arrivals Ovens Restaurant Equipment UNOX USA

ChefTop MIND.Maps Plus Gas Countertop Combi Oven, 10 Full-Size Pan Capacity, Left-Hand Opening

120 Volts, 1-Phase, Wi-Fi/USB Connectivity

A connected gas combi oven that combines steam, convection, and precise programmable control in a compact countertop footprint.

  • Holds 10 GN 1/1 or 12" x 20" pans for high-volume production.
  • Gas combi cooking delivers convection, steam, and mixed-mode performance in one unit.
  • MIND.Maps Plus supports repeatable cooking with up to 384 stored programs and 10 simultaneous processes.
  • Wi-Fi/USB connectivity supports recipe transfer and HACCP data workflows.
  • Stainless steel construction, glass door, and ENERGY STAR efficiency support daily durability and lower operating costs.

Overall Dimensions:

29.5"W x 30.81"D x 39.75"H

Product Weight:

258.0 lb

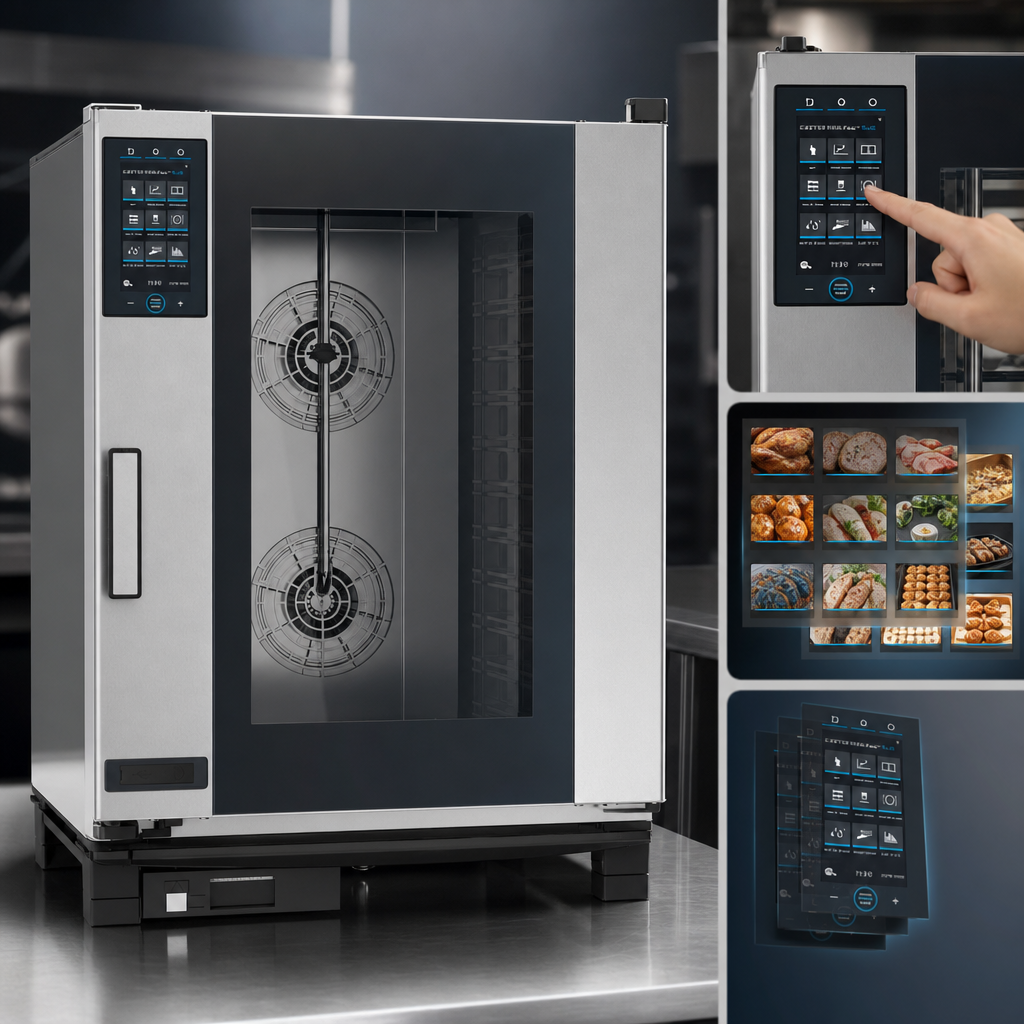

MIND.Maps Plus Control Panel

Capacitive touchscreen control with automatic and manual cooking processes, 384-program memory, and up to 10 simultaneous cooking operations.

MIND.Maps Plus Control Panel

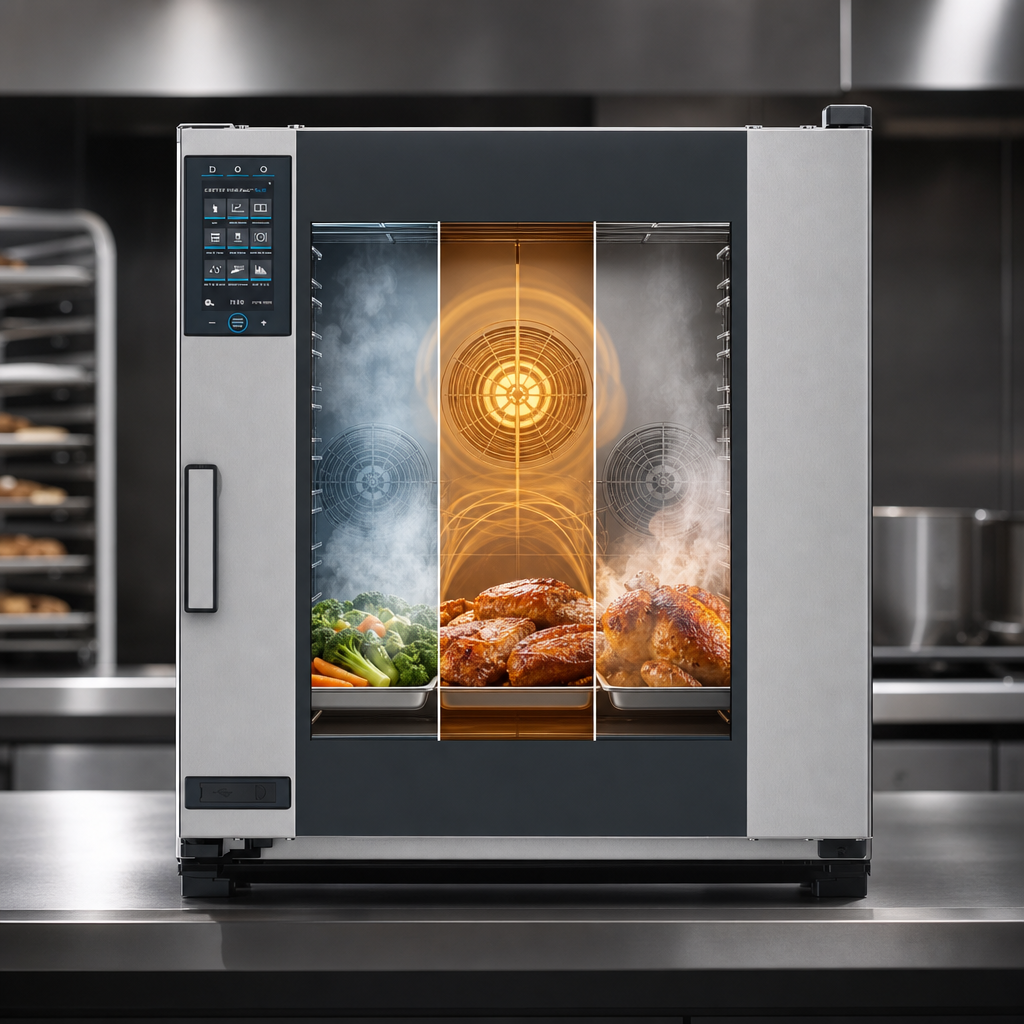

Steam, Convection, and Mixed-Mode Cooking

Gas-heated combi cooking combines hot air and steam for roasting, grilling, baking, steaming, browning, and regeneration.

Steam, Convection, and Mixed-Mode Cooking

10-Pan Countertop Capacity

Holds 10 GN 1/1 or 12" x 20" hotel pans with 2-11/16" shelf spacing for flexible batch production.

Connected Recipe And HACCP Transfer

Wi-Fi and USB connectivity support data transfer, recipe management, and HACCP software workflows.

Intelligent Cooking Functions

Adaptive.Cooking, CLIMALUX, SMART.Preheating, AUTO.Soft, and SENSE.Klean help maintain consistent results and simplify cleanup.

Stainless Steel Construction

Stainless steel interior and exterior with glass door, integrated LED light, and anti-condensation drip tray support durability and visibility.

Left-To-Right Door Opening

Configured with a left-hand opening door to help match kitchen workflow and installation layout.

Energy Efficient Design

EFFICIENT.Power supports ENERGY STAR-level efficiency to help reduce energy consumption.

Type Combi Oven
Style Countertop
Installation Type Countertop
Capacity 10 GN 1/1 Pans
Pan Size 12 Inches x 20 Inches
Controls Programmable Touchscreen
Voltage 120 Volts
Amps 8 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Breaker Size 15 Amps
BTU 75,067 Btu/h
Gas Connection Size 3/4 Inch NPT
Water Inlet Size 3/4 Inch MPT
Drain Connection Size 1 1/8 Inches
Water Connection Required
Drain Connection Required
Material Stainless Steel
Interior Finish 304 Stainless Steel
Shipping Width 30 Inches
Shipping Depth 31 Inches
Shipping Height 40 Inches
Shipping Weight 258 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

LONG.Life4 extended warranty: up to 4 years / 10,000 working hours on parts and 2 years on labor.

Documents

PDF Cutsheet PDF Download PDF Catalog PDF Download PDF Installation program PDF Download PDF Brochure PDF Download PDF Use & maintenance manual PDF Download

Frequently Asked Questions

It holds 10 GN 1/1 pans, or 12" x 20" hotel pans, with 2-11/16" shelf spacing.
This gas countertop oven requires a 120V, 60 Hz, 1-phase electrical connection, a 3/4" NPT gas connection, a water supply, and a drain connection.
No. The gas line is not included and must be purchased separately.
The MIND.Maps Plus control can store up to 384 programs.
Yes. Wi-Fi and USB connectivity support data transfer and HACCP software workflows.
LONG.Life4 extended warranty can provide up to 4 years or 10,000 working hours on parts and 2 years on labor when activated online.
