UNOX ChefTop MIND.Maps Plus 10-Tray Countertop Electric Combi Oven, Left-to-Right Door Opening, 240V/208V 3-Phase

SKU: XAVC-1011-EPLM
$17,146.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens New Arrivals Ovens Restaurant Equipment UNOX USA

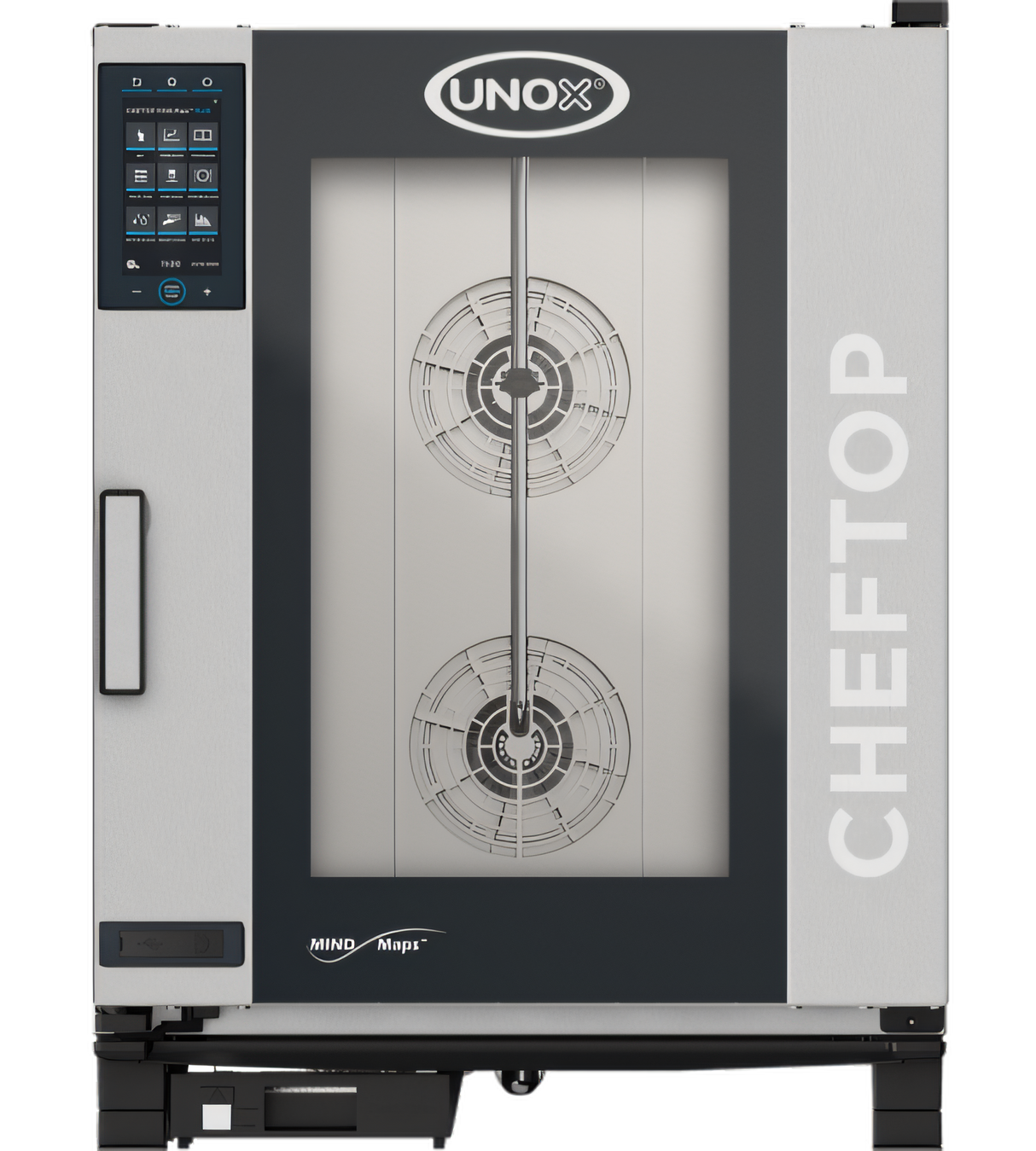

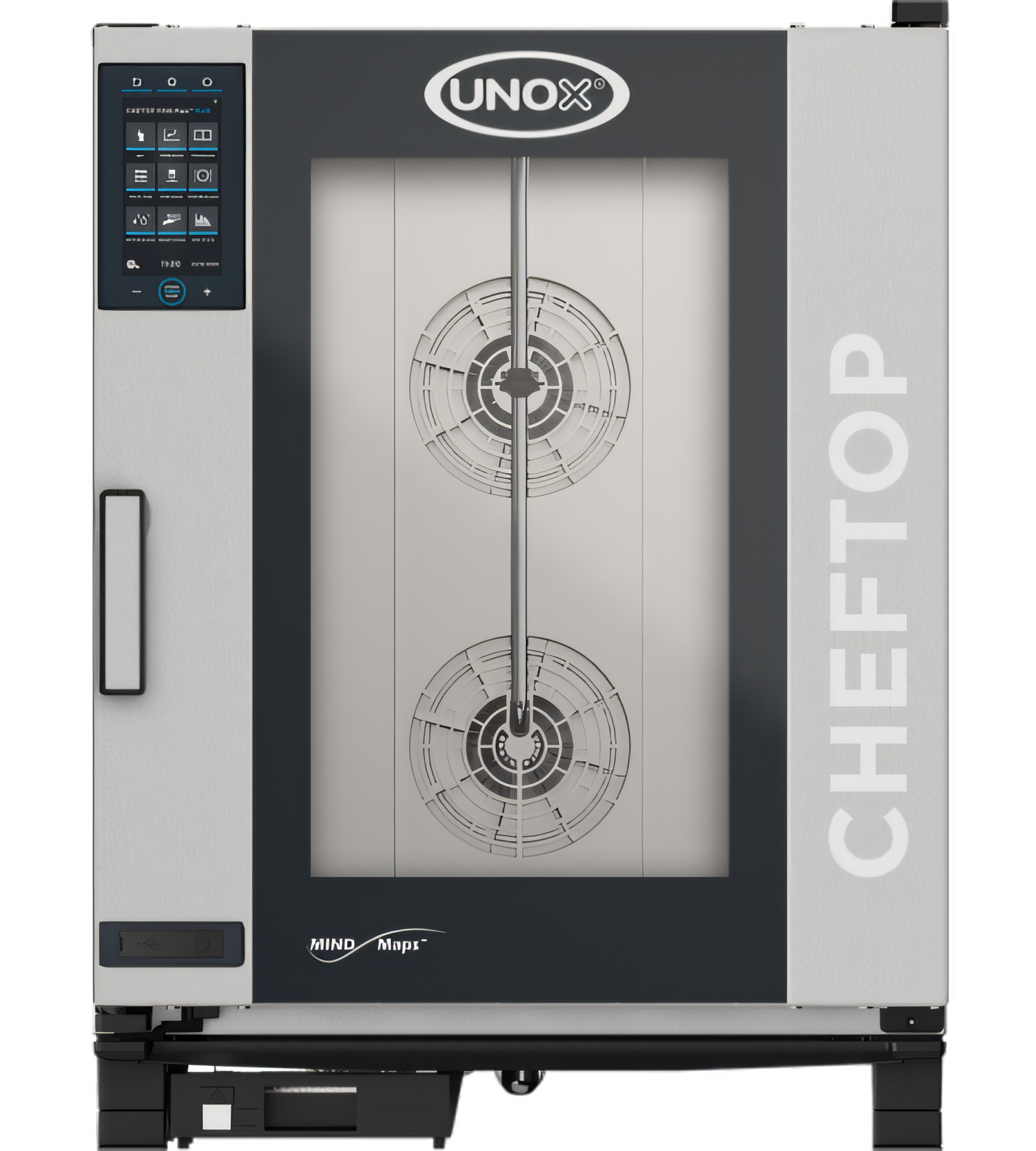

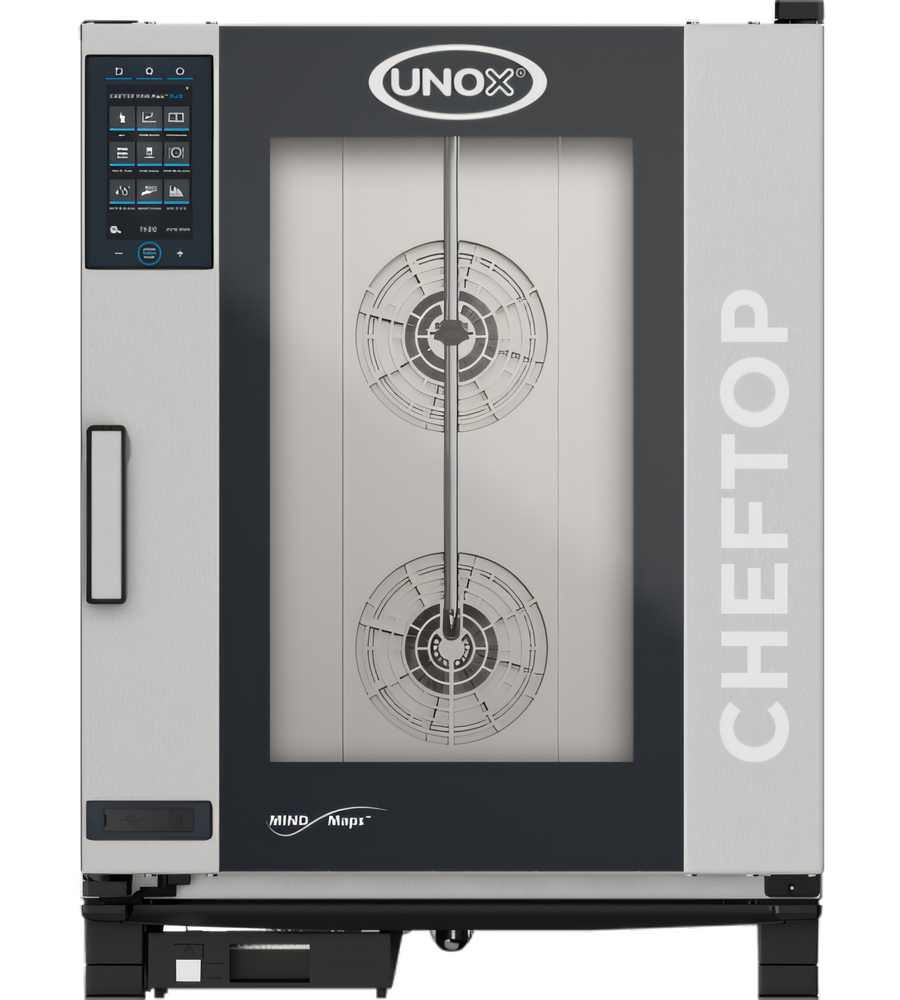

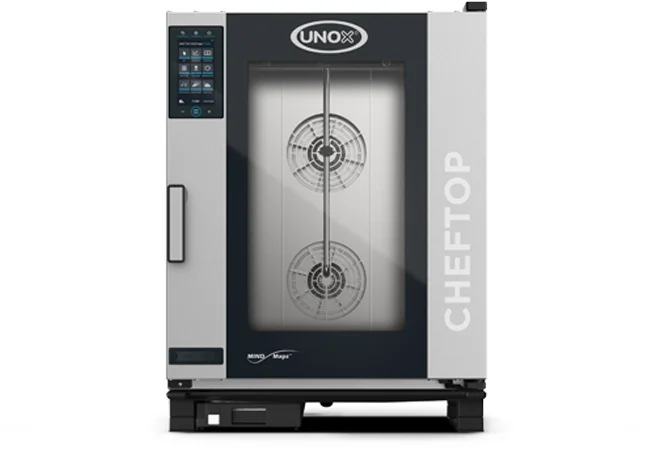

UNOX ChefTop MIND.Maps Plus 10-Tray Countertop Electric Combi Oven, Left-to-Right Door Opening, 240V/208V 3-Phase

Programmable Touchscreen, Wi-Fi/USB, Stainless Steel, ENERGY STAR

This connected countertop combi oven delivers repeatable steam, convection, and programmable precision in a 10-tray platform built for high-volume results.

  • Fits up to 10 GN 1/1 trays or 12 x 20 Inch hotel pans in a space-saving countertop footprint.
  • Programmable MIND.Maps Plus touchscreen supports CHEFUNOX, MULTI.TIME, and MISE.EN.PLACE workflows.
  • Combines convection, steam, and mixed cooking for roasting, baking, steaming, and regeneration.
  • Integrated Wi-Fi and USB simplify HACCP data transfer plus cooking program upload and download.
  • Triple-glass door, stainless steel construction, and automatic washing help streamline daily operation.
  • ENERGY STAR efficiency and 240V or 208V 3-phase power options suit commercial kitchens.
  • Includes a water line for connection to a 3/4 Inch MPT water supply within three feet of placement.

Overall Dimensions:

29.5"W x 30.81"D x 39.75"H

Product Weight:

216.0 lb

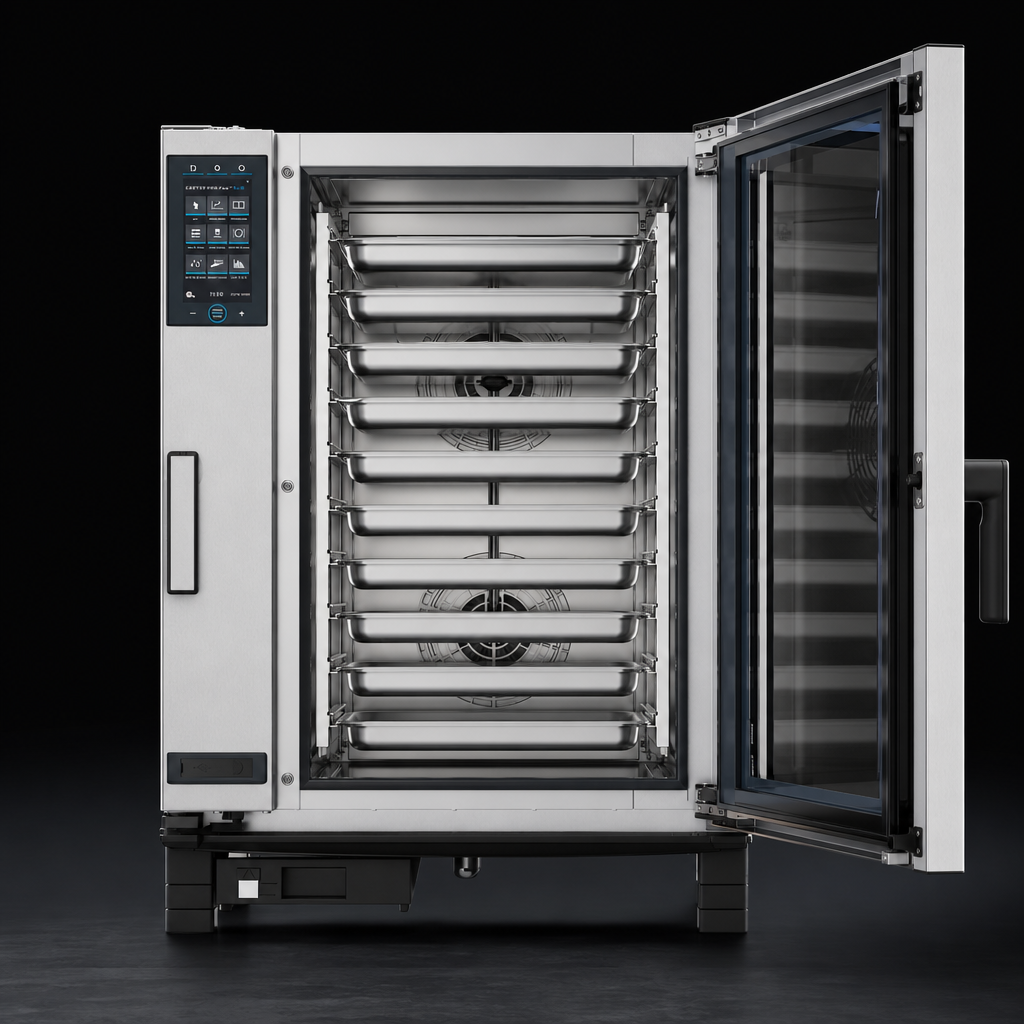

10-Tray GN 1/1 Capacity

Holds up to 10 GN 1/1 trays or 12 x 20 Inch hotel pans for high-volume production.

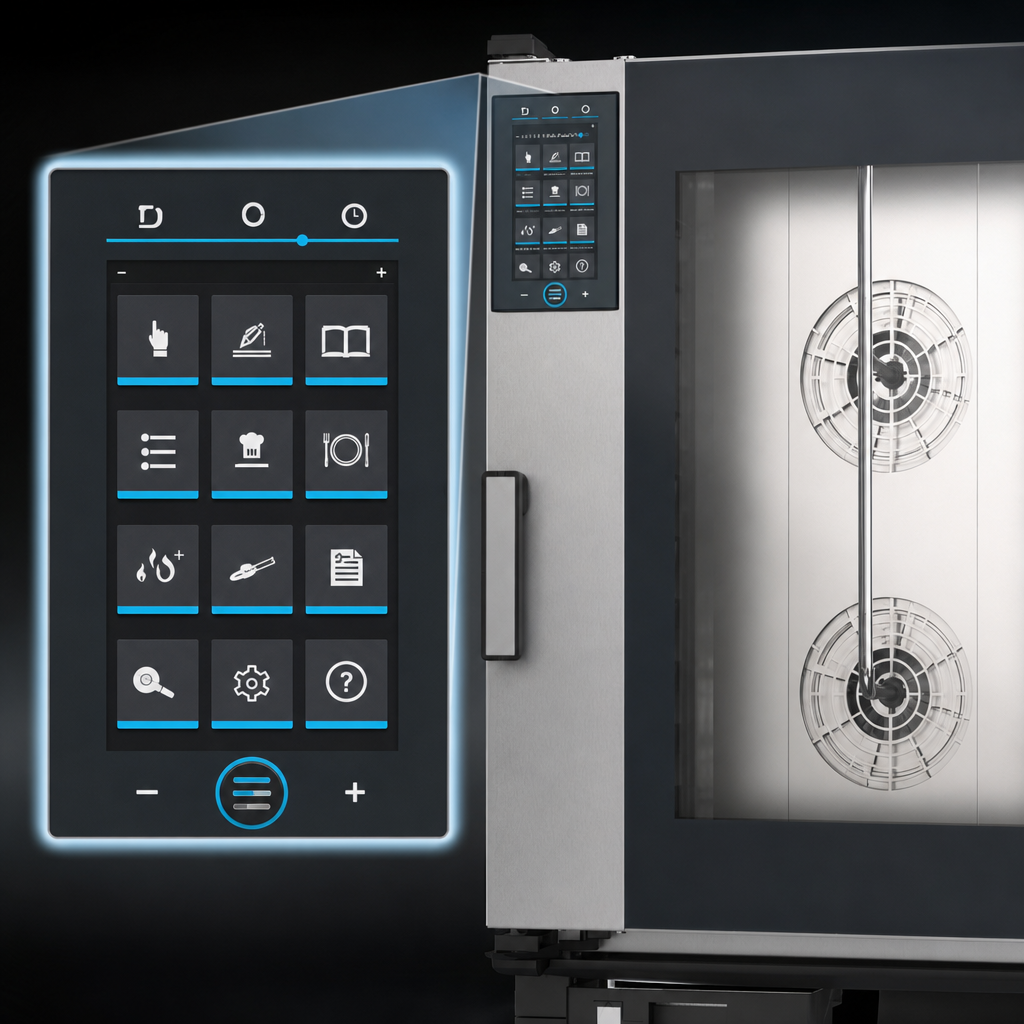

Programmable 9.5-Inch Touch Control

Large touch control panel with programmable menu functions for fast, repeatable cooking setup.

Steam Generator Combi Cooking

Combines heat, hot air flow, and steam for versatile cooking methods including steaming, roasting, baking, and regeneration.

Wi-Fi And USB Data Transfer

Built-in connectivity supports HACCP data transfer and upload/download of cooking programs.

Triple-Glass Door With Left-To-Right Opening

Right-side hinge and triple-glass construction improve visibility and help manage heat at the door.

Automatic Washing System

ROTOR.Klean and SENSE.Klean help automate washing and suggest the appropriate cleaning cycle.

Stainless Steel Construction

Stainless steel interior and exterior support durability and easy day-to-day cleanup.

ENERGY STAR Efficiency

ENERGY STAR performance helps reduce operating costs while maintaining strong cooking capability.

Included Water Connection Line

Water line is included to connect the oven to a 3/4 Inch MPT water connection within three feet of placement.

Type Combi Oven / Steam Oven
Style Countertop
Installation Type Countertop
Controls Programmable Touchscreen
Pan Capacity 10 Trays
Pan Size GN 1/1 / 12 x 20 Inches
Tray Pitch 2-11/16 Inches
Temperature Range 86°F to 500°F
Voltage 240 Volts / 208 Volts
Phase 3-Phase
Hertz 50/60 Hz
Amps 47 Amps / 41.5 Amps
Watts 19 kW / 14.5 kW
Plug Type Not Included
Material Stainless Steel
Interior Finish AISI 304 Stainless Steel
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Drain Connection Required
Drain Connection Size 40 mm
Shipping Width 30 Inches
Shipping Depth 31 Inches
Shipping Height 40 Inches
Shipping Weight 216 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

LONG.Life4 extended warranty up to 4 years or 10,000 working hours on parts, plus 2 years on labor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Catalog page PDF Download PDF Catalog PDF Download PDF French spec sheet PDF Download PDF Brochure PDF Download PDF Installation program PDF Download

Frequently Asked Questions

It holds up to 10 GN 1/1 pans or 10 12 x 20 Inch hotel pans.
The oven supports 240 Volts or 208 Volts, 3-Phase power at 50/60 Hz, with 19 kW or 14.5 kW total power depending on the electrical option.
Yes. A 3/4 Inch NPT water inlet is required, and a drain connection is also required. The included water line connects to a 3/4 Inch MPT water supply within three feet of the oven.
Yes. Integrated Wi-Fi and USB allow HACCP data and cooking programs to be uploaded or downloaded.
The brochure notes that floor positioning requires the dedicated floor positioning stand, so a suitable stand should be used if the oven is not installed on a countertop.
The LONG.Life4 extended warranty can provide up to 4 years or 10,000 working hours on parts and 2 years on labor, when the oven is connected to the internet and registered.
