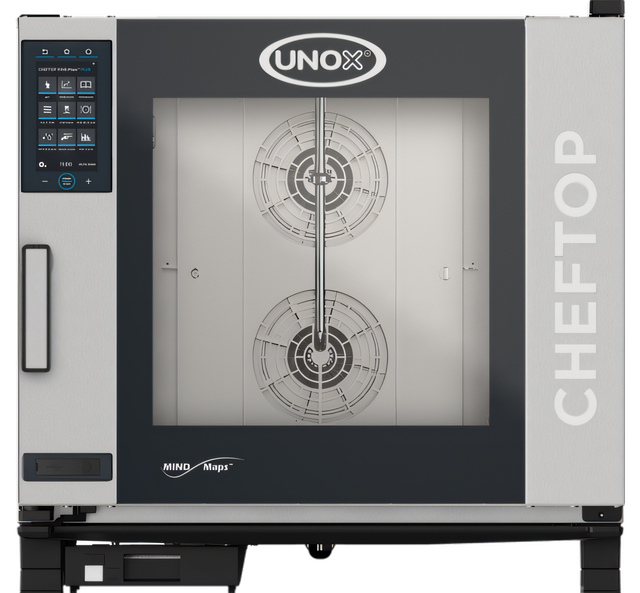

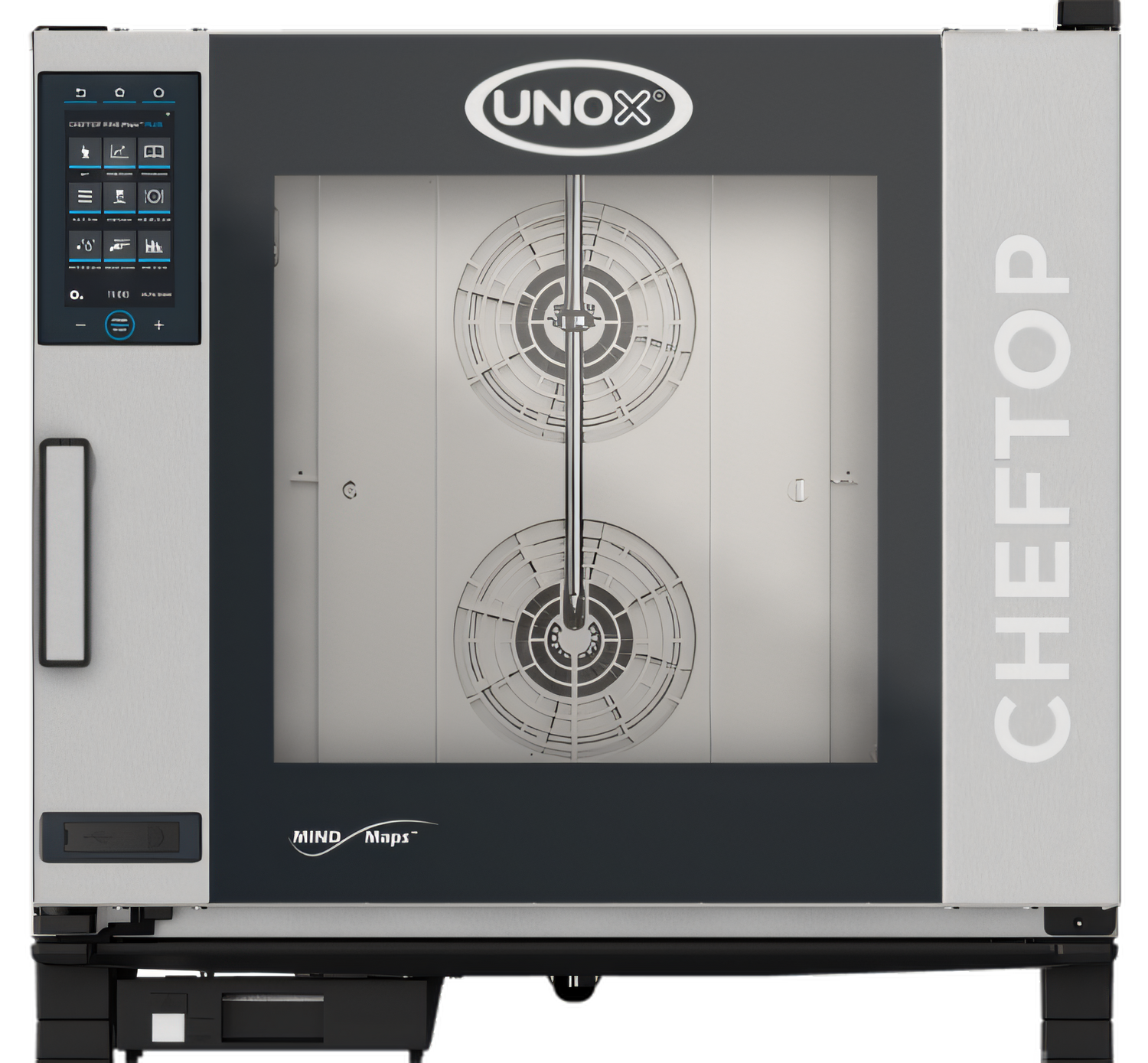

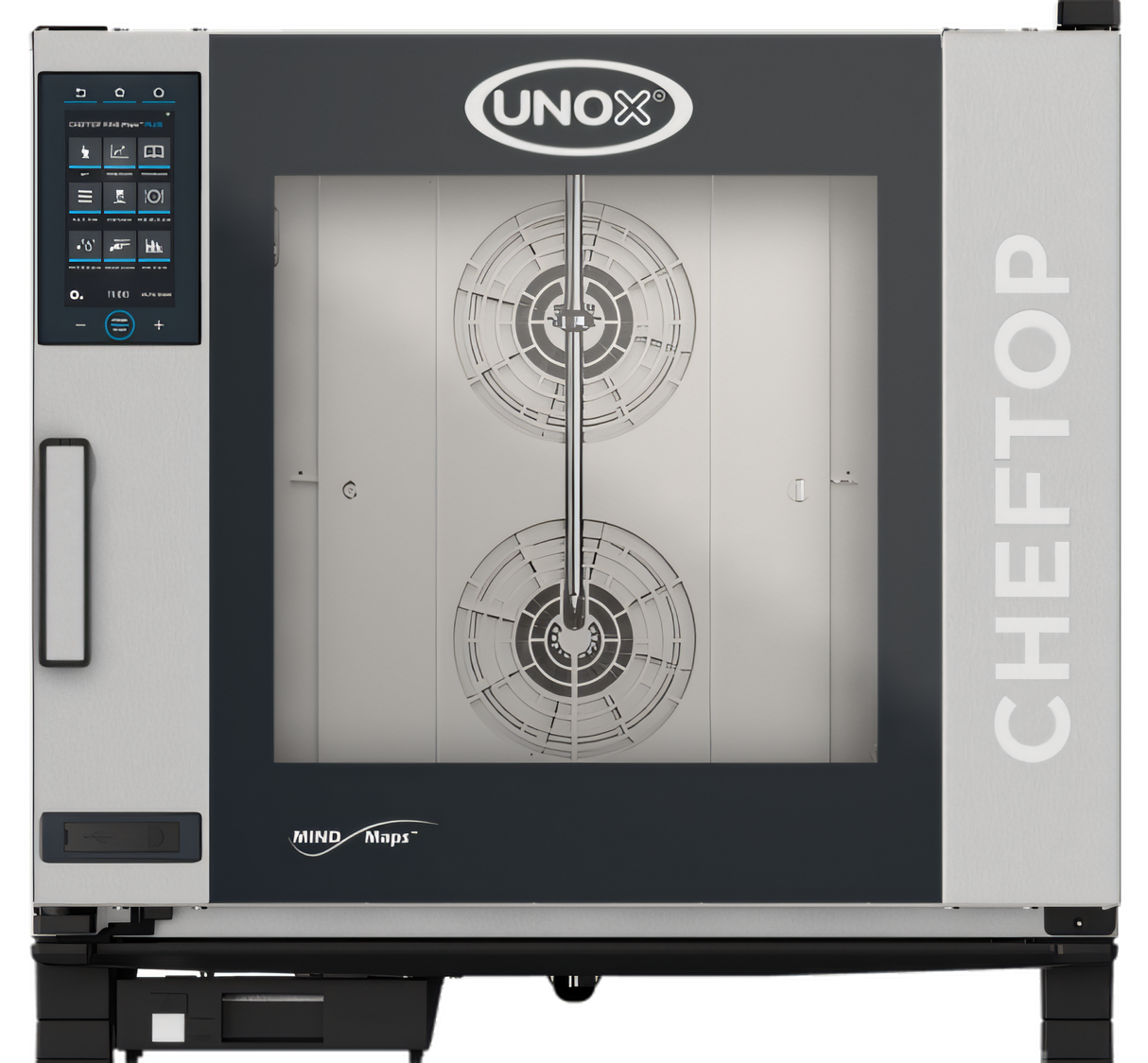

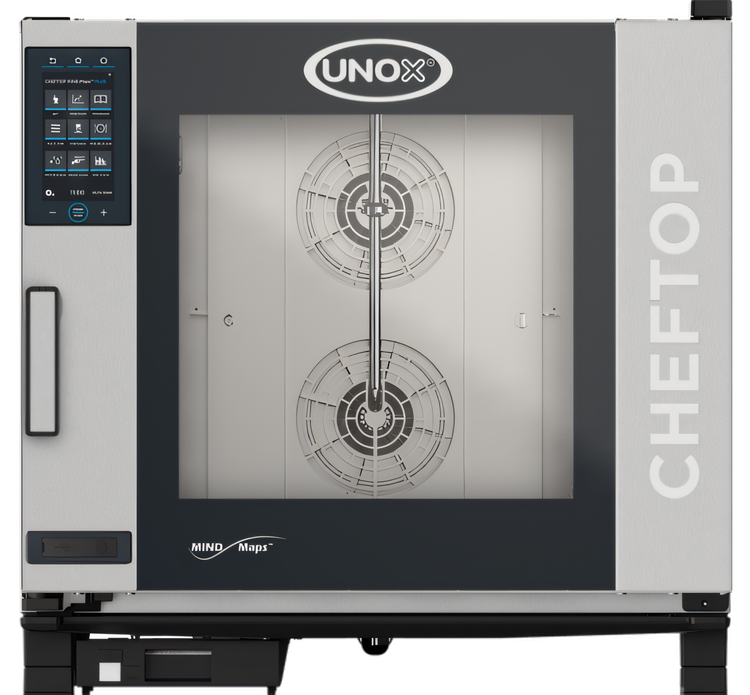

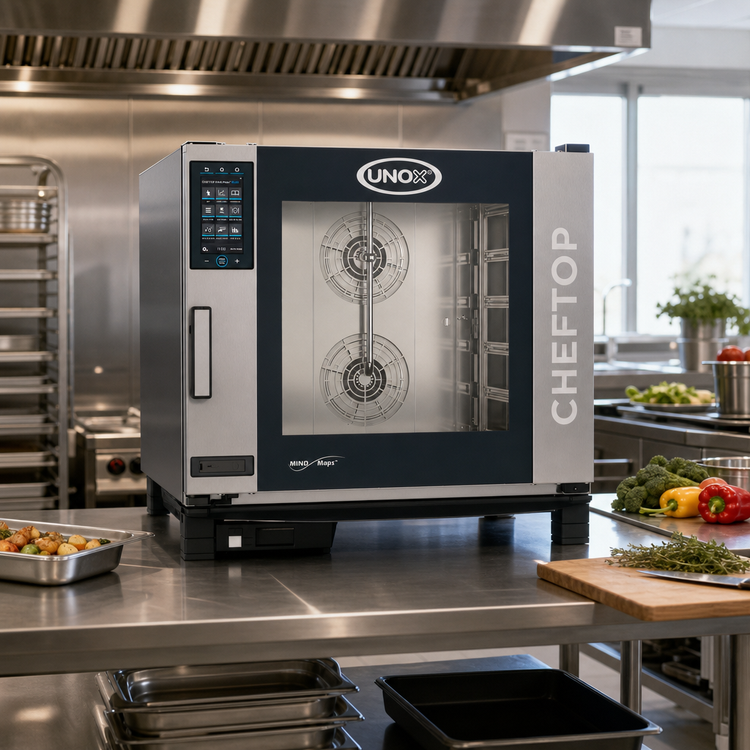

UNOX ChefTop MIND.Maps Plus Electric Countertop Combi Oven/Steam Oven, 6 Full-Size Sheet Pans

Left-Hand Door, High-Voltage, Wi-Fi/USB

Built for repeatable results, this connected countertop combi oven combines convection, steam, and programmable automation in a 6-pan footprint.

  • 6 full-size 18" x 26" sheet pan capacity or 12 hotel pan capacity in a countertop format.
  • 9.5" capacitive touchscreen with MIND.Maps programming and CHEFUNOX automation.
  • Combines convection, humidity, and saturated steam for baking, roasting, steaming, and regeneration.
  • Integrated Wi-Fi and USB support HACCP data transfer plus program upload/download.
  • AISI 316L stainless steel cooking chamber, triple glass door, and LED lighting improve durability and visibility.
  • ROTOR.Klean automatic washing and the integrated drain cooling valve simplify cleanup and maintenance.
  • Left-hand door opening and included water line connection help streamline installation and workflow.

Overall Dimensions:

33.88"W x 33.13"H

Product Weight:

247.0 lb

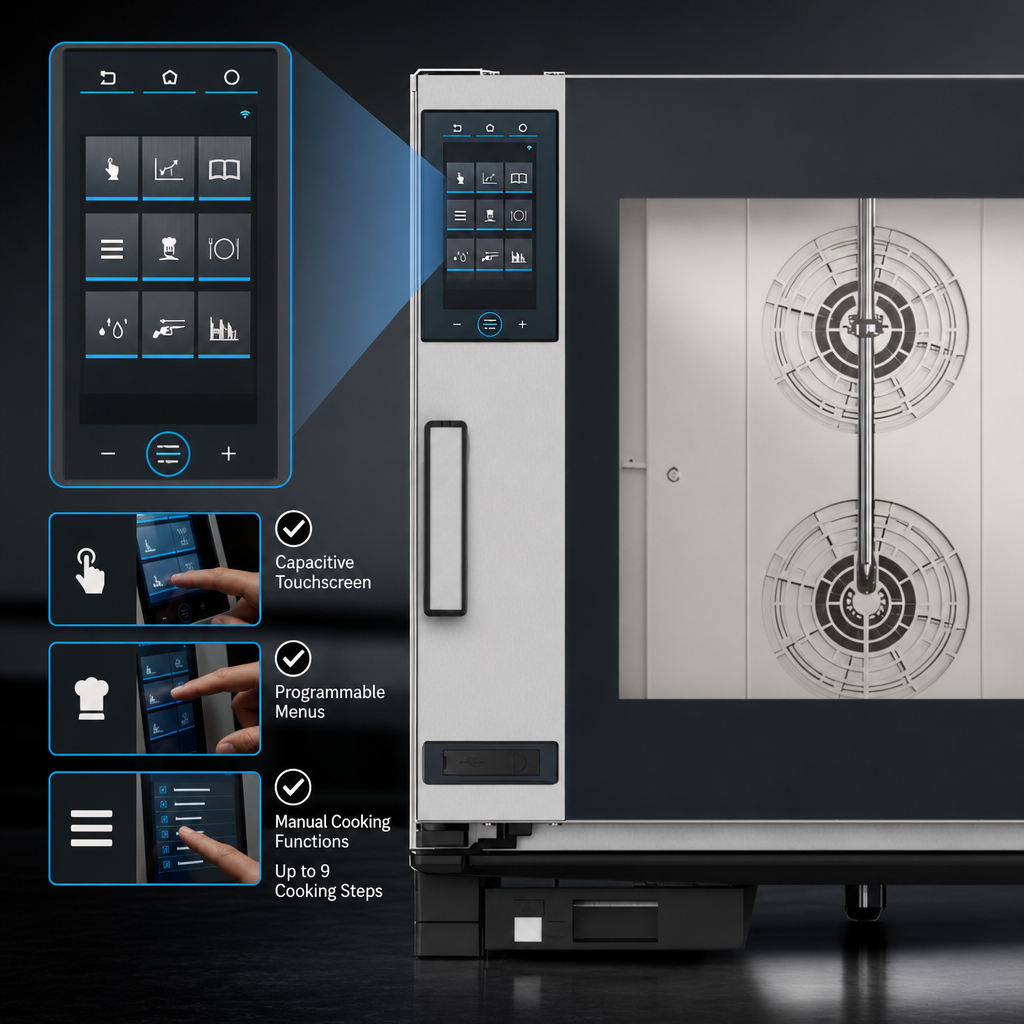

9.5-Inch Touch Control Panel

Capacitive touchscreen with programmable menus, manual cooking functions, and up to 9 cooking steps.

9.5-Inch Touch Control Panel

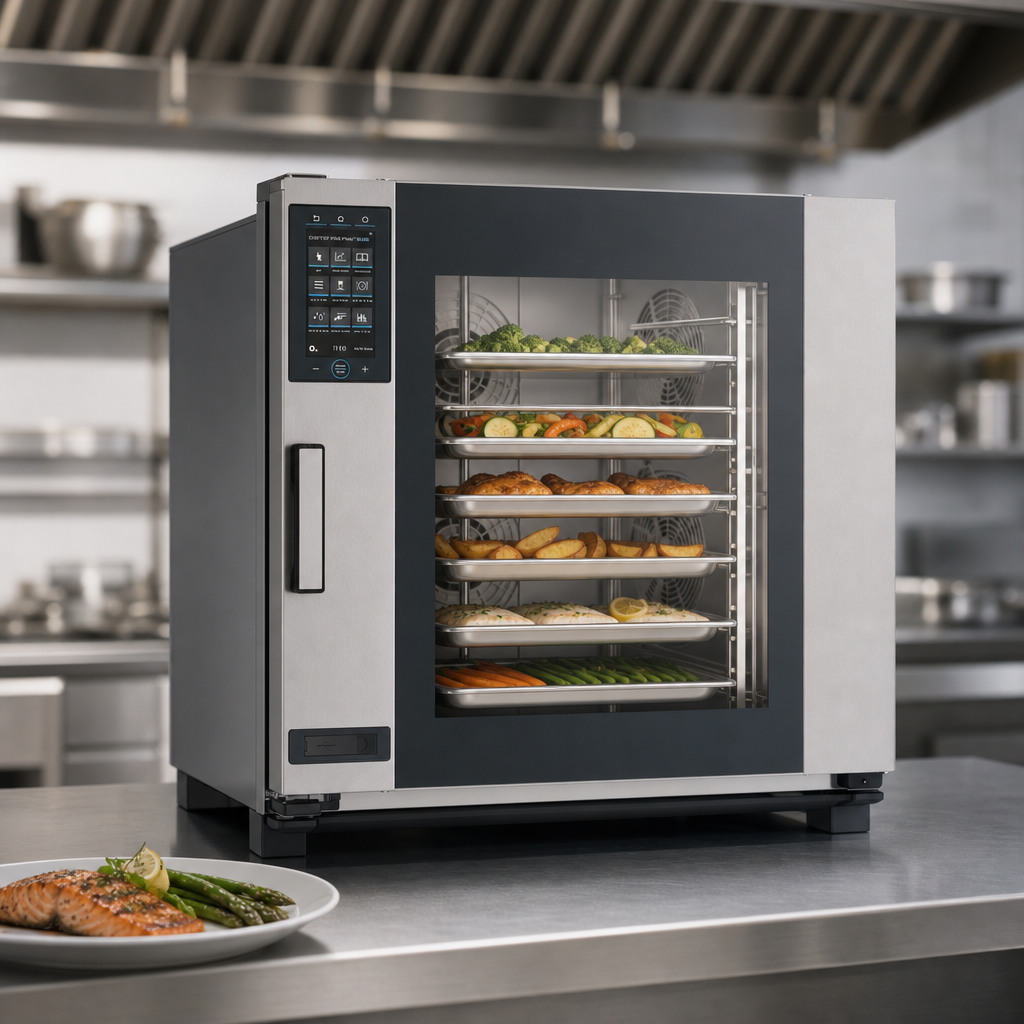

CHEFUNOX Automatic Cooking

Lets the oven automatically set cooking parameters based on the food and desired result.

CHEFUNOX Automatic Cooking

Multi-Time Cooking

Manages up to 10 cooking processes at the same time and supports tray scheduling with MISE.EN.PLACE.

Steam And Humidity Control

CLIMA.Control, DRY.Maxi, STEAM.Maxi, AIR.Maxi, and PRESSURE.Steam deliver precise combi-cooking performance.

Stainless Steel Cooking Chamber

High-resistance AISI 316L chamber with rounded edges, anti-tip tray supports, and LED lighting in the door.

Integrated Connectivity

Built-in Wi-Fi and USB connections support HACCP data transfer and recipe/program upload and download.

Automatic Washing System

ROTOR.Klean automates cleaning and includes an integrated detergent container plus drain cooling valve.

Left-Hand Door Opening

The hinge is on the right side, creating a left-to-right door swing for easier kitchen access.

Flexible Tray Spacing

2-11/16-inch tray pitch supports versatile pan loading and spacing.

Energy-Efficient Performance

EFFICIENT.Power is designed to support efficient operation in combi, dry air, and steam modes.

Included Water Connection Line

The water line to a 3/4" MPT water connection within 3 feet of the unit is included.

Type Combi Oven
Style Steam Oven
Installation Type Countertop
Pan Capacity 6 Full-Size Sheet Pans / 12 Hotel Pans
Pan Size 18 Inches x 26 Inches
Controls Programmable Touchscreen
Temperature Range 86°F to 500°F
Material Stainless Steel
Interior Finish 316L Stainless Steel
Voltage 480 Volts
Amps 27 Amps
Watts 21.8 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type Not Included
Breaker Size 35 Amps
Water Inlet Size 3/4 Inch NPT
Water Connection Required
Drain Connection Size 1 1/8 Inch Diameter Discharge Pipe
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Height 34 Inches
Shipping Weight 247 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Up to 4 years / 10,000 working hours on parts and 2 years on labor.

Documents

PDF Cutsheet PDF Download PDF Catalog PDF Download PDF Use & maintenance manual PDF Download PDF Installation program PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds 6 full-size 18" x 26" sheet pans or 12 hotel-size pans.
The standard power supply listed is 480 V, 3-phase, 60 Hz, 21.8 kW with a 35 A breaker; a 440 V option is also listed.
Yes. The hinge is on the right side, so the door opens left-to-right.
Yes. Integrated Wi-Fi and USB support HACCP data transfer as well as program upload and download.
Yes. The water line to connect the oven to a 3/4" MPT water connection within 3 feet of the unit is included.
Yes. It includes the ROTOR.Klean automatic washing system and an integrated detergent container.
