UNOX USA

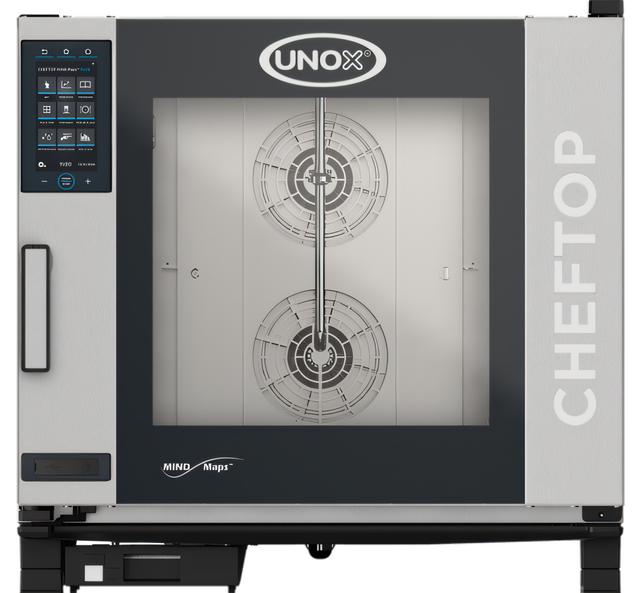

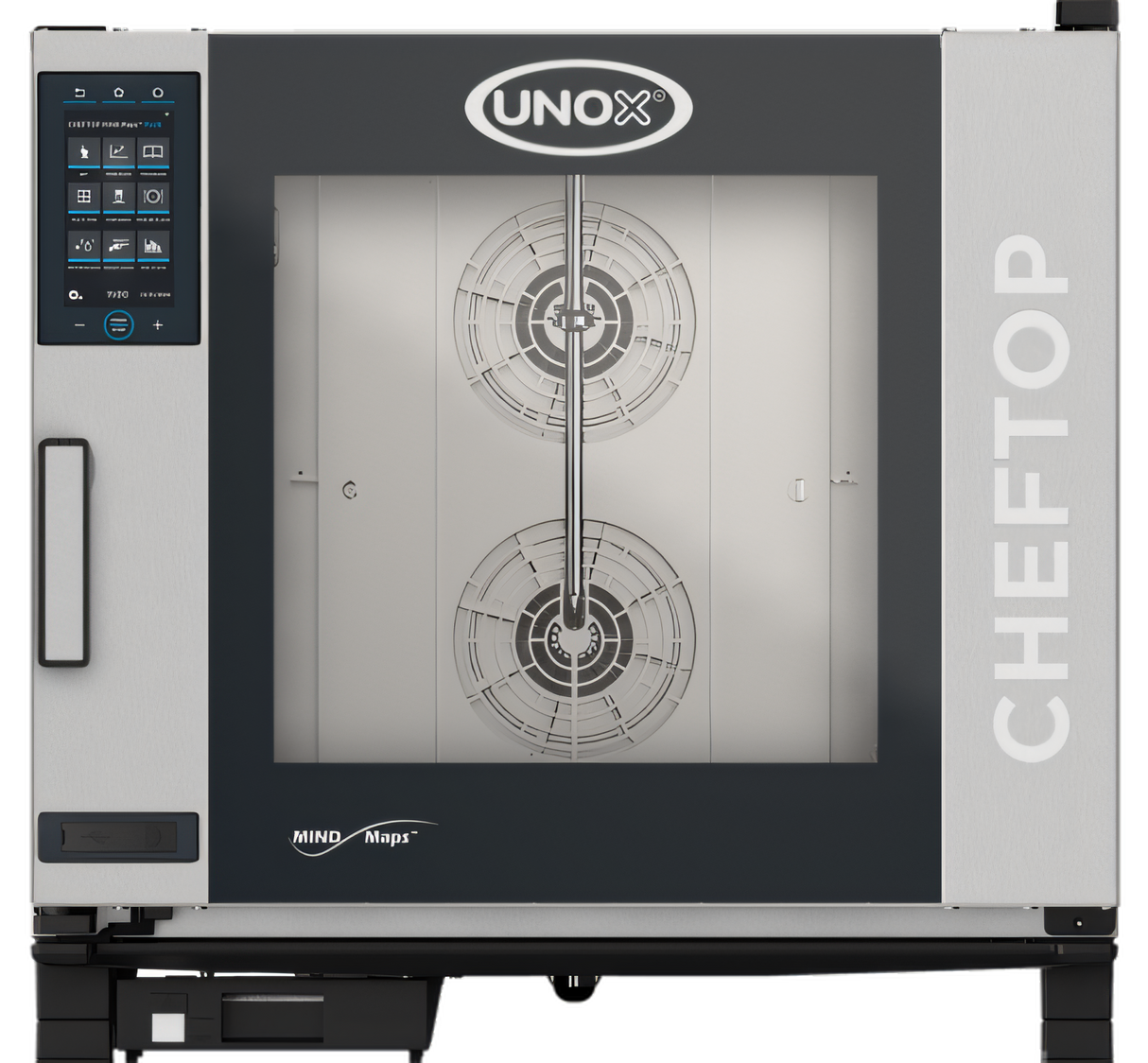

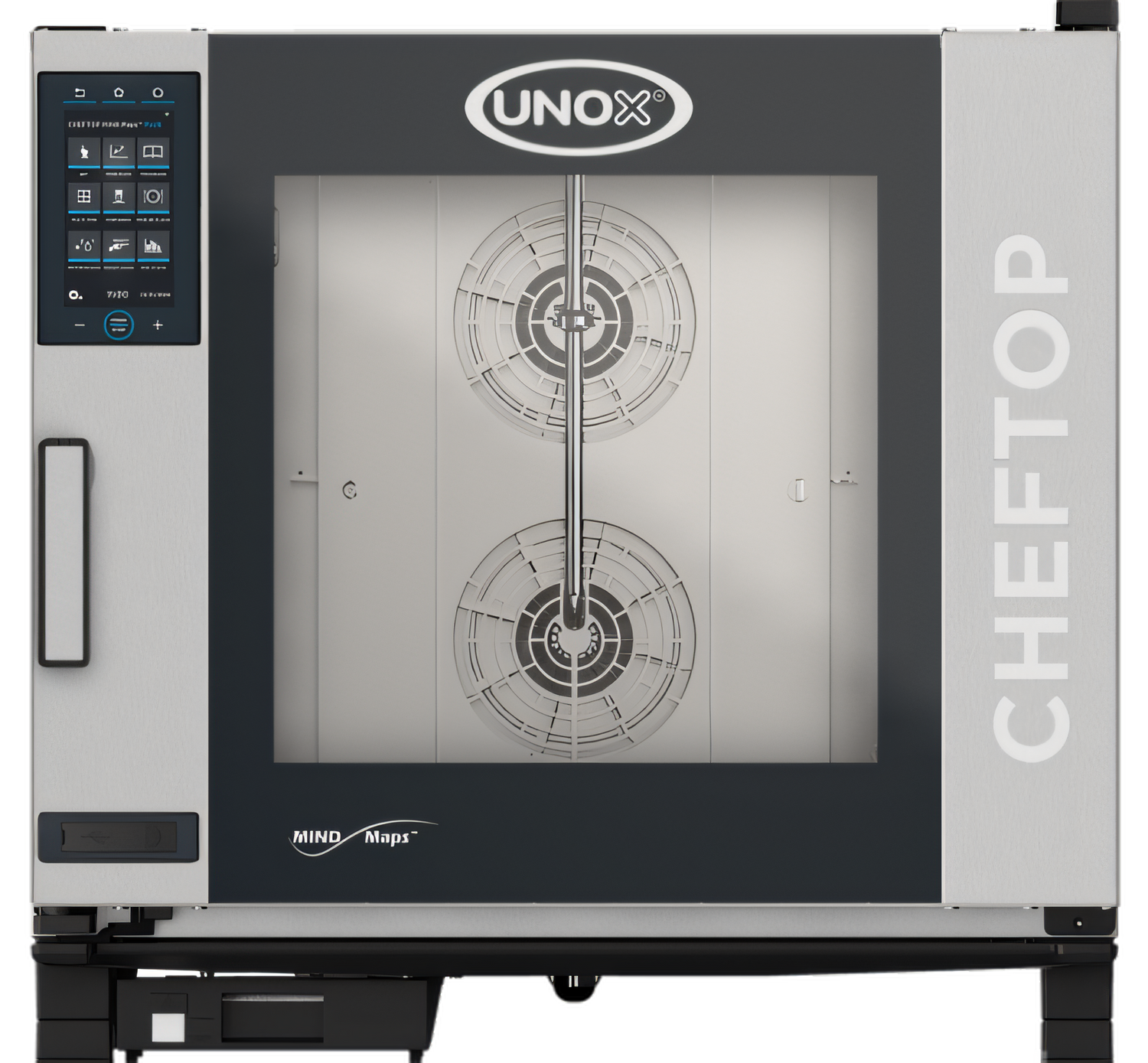

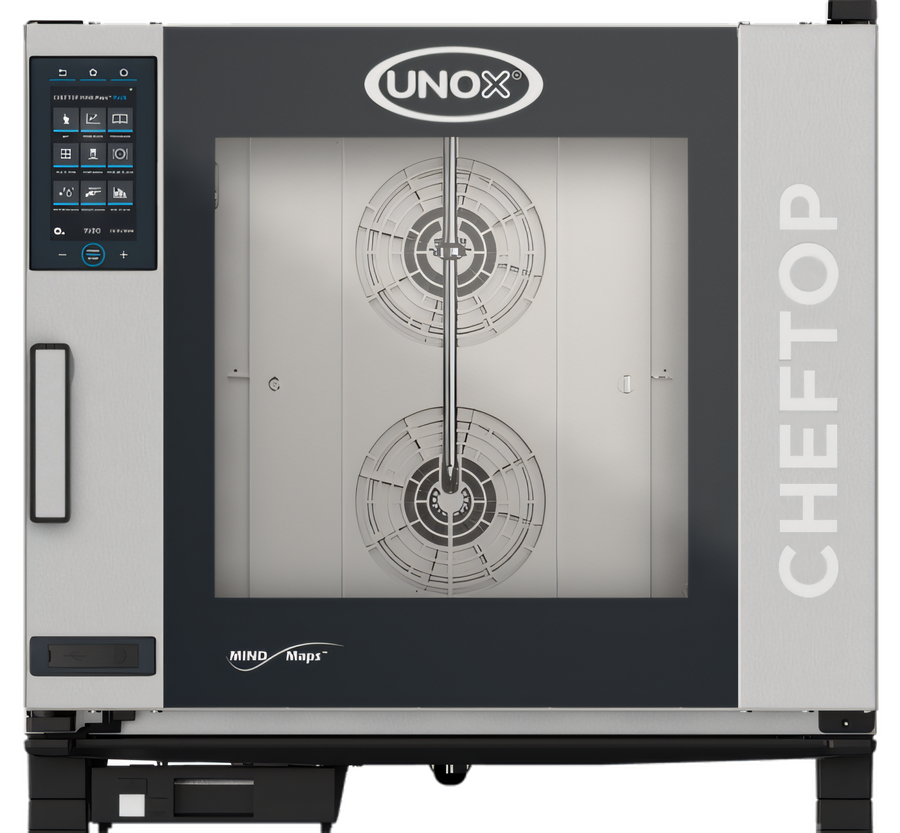

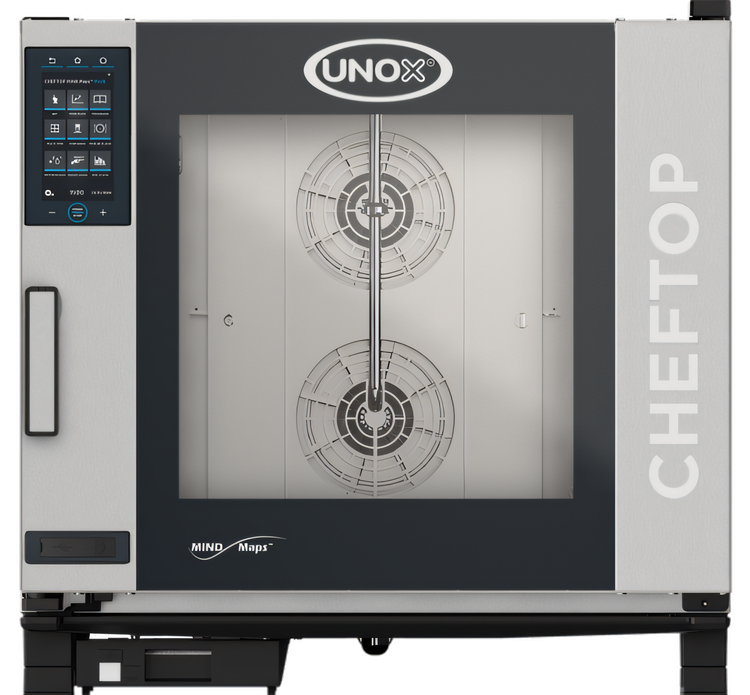

ChefTop MIND.Maps Plus Propane Countertop Combi/Steam Oven, 6 Full-Size Sheet Pan Capacity, Left-Hand Door

SKU: XAVC-06FS-GPLM
$20,394.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens New Arrivals Ovens Restaurant Equipment UNOX USA

ChefTop MIND.Maps Plus Propane Countertop Combi/Steam Oven, 6 Full-Size Sheet Pan Capacity, Left-Hand Door

Programmable 9.5-Inch Touchscreen, Wi-Fi/USB, Stainless Steel Chamber

This propane combi oven combines convection, steam, and intelligent programmed cooking to deliver consistent results with less hands-on labor.

  • Propane-fired countertop combi oven combines convection, hot air, and steam for versatile cooking.
  • Holds 6 full-size 18" x 26" sheet pans and is also listed with 12 hotel-pan capacity.
  • 1000+ programs, CHEFUNOX automation, and MIND.Maps controls help deliver repeatable results.
  • Integrated Wi-Fi and USB support HACCP data transfer and cooking program uploads/downloads.
  • Rotor.Klean automatic washing, 316L stainless steel chamber, triple glass door, and LED lighting support easier cleanup and durability.
  • 120V, 1-phase operation with NEMA 5-20P plug and 3/4" female NPT gas connection simplifies setup.
  • ENERGY STAR efficiency helps reduce operating costs.

Overall Dimensions:

33.88"W x 38.06"D x 33.13"H

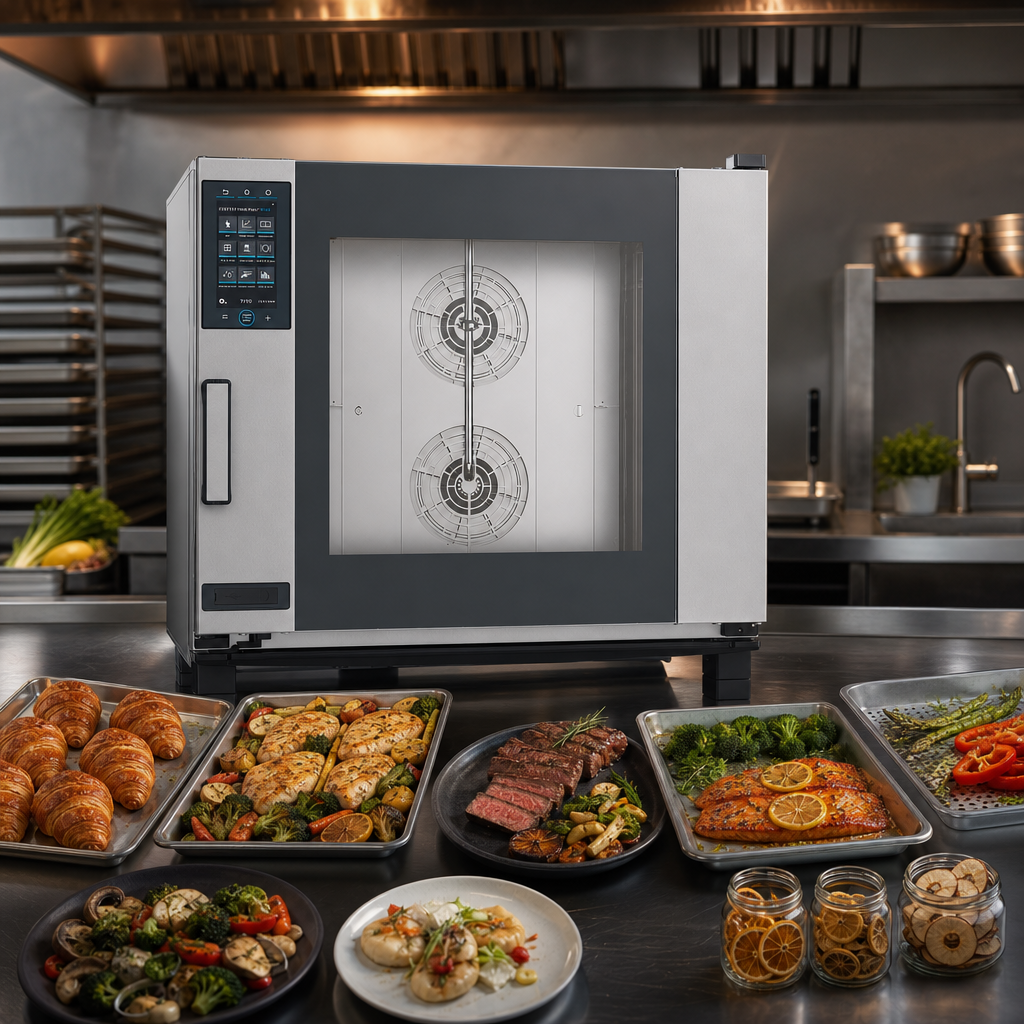

Propane-Fired Combi Cooking

Uses convection, hot air, and steam in one unit for baking, roasting, grilling, frying, steaming, dehydration, sous-vide, and regeneration.

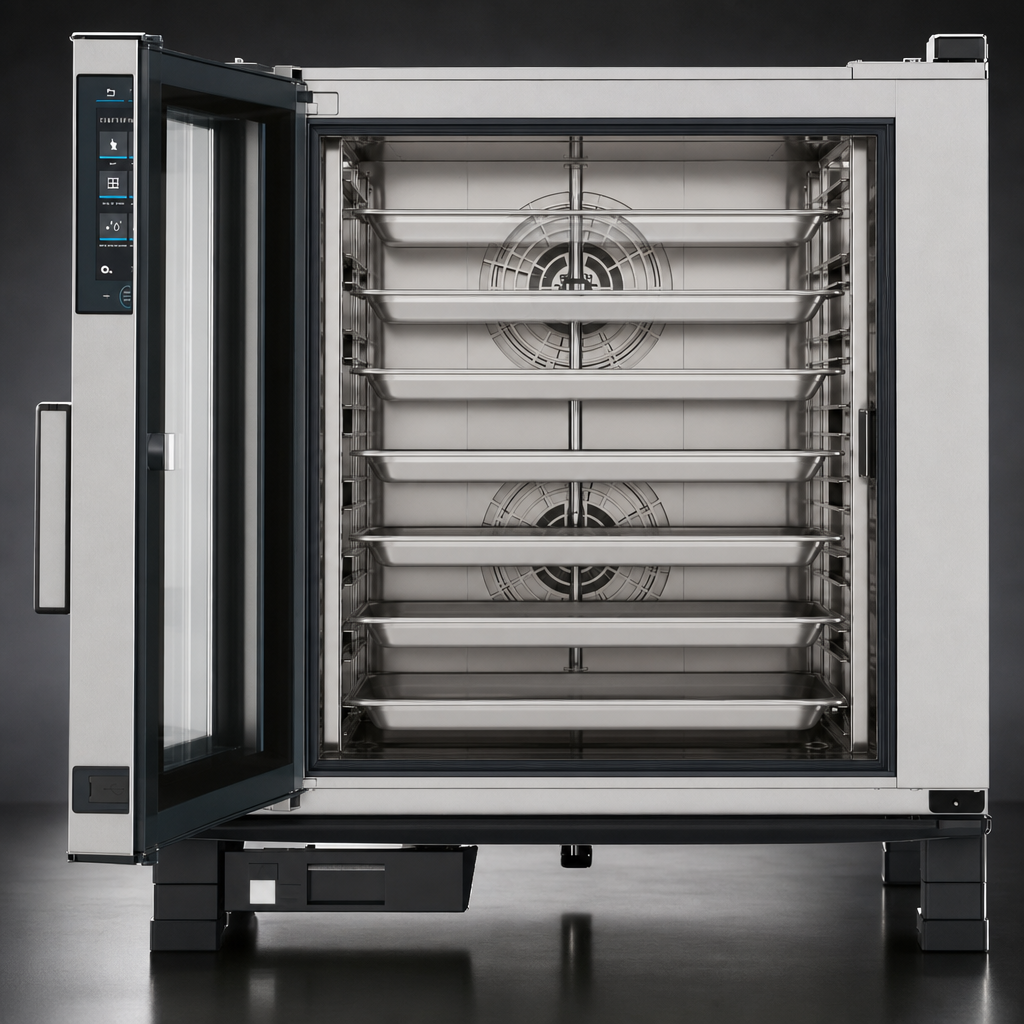

6-Tray Full-Size Capacity

Configured for six 18" x 26" sheet pans; documentation also references 12 hotel-size pan capacity.

MIND.Maps Plus Programming

Includes 1000+ programs, CHEFUNOX, MULTI.TIME, MISE.EN.PLACE, READY.COOK, and up to 9 cooking steps for repeatable results.

9.5-Inch Touchscreen

Capacitive touchscreen control panel provides fast access to recipes, cooking steps, and operating parameters.

Wi-Fi and USB Connectivity

Integrated Wi-Fi and USB ports allow download/upload of HACCP data and cooking programs.

Rotor.Klean Automatic Washing

Automatic washing system with integrated detergent container and intelligent cleaning suggestions helps reduce manual cleanup.

316L Stainless Steel Chamber

High-resistance AISI 316L cooking chamber with rounded edges, triple glass door, LED lighting, and anti-tip tray supports.

Left-Hand Door Opening

Right-side hinge creates a left-to-right opening for easier kitchen workflow.

Standard Rack Slides Included

Comes standard with rack slides for sheet pans.

Type Combi Oven
Installation Type Countertop
Controls Programmable Touchscreen
Pan Capacity 6 Full-Size 18 x 26 Inch Sheet Pans
Pan Size 18 x 26 Inches
Temperature Range 86°F to 500°F
Voltage 120 Volts
Amps 8 Amps
Watts 1 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
BTU 81,892 BTU/h
Gas Type Propane
Gas Connection Size 3/4 Inch Female NPT
Gas Inlet Pressure 8.0-13.0 Inches W.C.
Water Connection Required
Water Inlet Size 3/4 Inch Female NPT
Drain Connection Required
Drain Connection Size 1 1/8 Inch Diameter Discharge Pipe
Material Stainless Steel
Interior Finish 316L Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 39 Inches
Shipping Height 34 Inches
Shipping Weight 492 lbs

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Up to 4 years / 10,000 working hours on parts and 2 years on labor.

Documents

PDF Cutsheet PDF Download PDF Installation program PDF Download PDF Use & maintenance manual PDF Download PDF Catalog PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It holds 6 full-size 18" x 26" sheet pans, and the documentation also lists 12 hotel-size pan capacity.
It requires 120V power at 8 amps, 60 Hz, 1-phase service with a NEMA 5-20P plug, plus a 3/4" female NPT gas connection, water connection, and drain connection.
Yes. Integrated Wi-Fi and USB allow download/upload of HACCP data and cooking programs.
This model has a left-hand door with a right-side hinge, so it opens left-to-right.
No. The gas line is not included with the oven and must be purchased separately.
It includes the Rotor.Klean automatic washing system, an integrated detergent container, and intelligent cleaning assistance.
