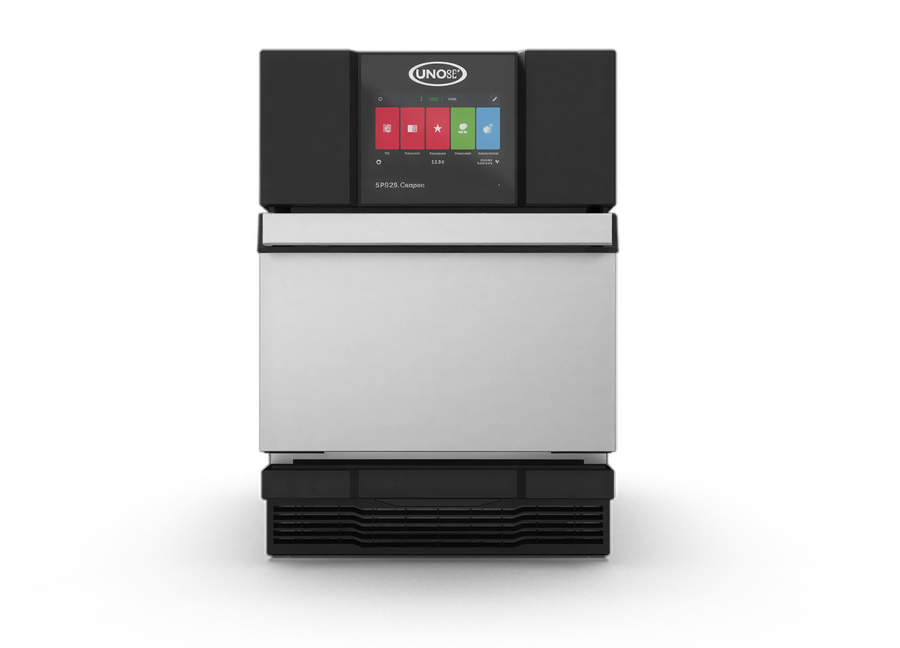

UNOX USA SPEED.Compact™ XAMA-01NS-MCDS Rapid-Cook Convection/Microwave Oven, Electric, Ventless, Drop-Down Door

SKU: XAMA-01NS-MCDS
$7,688.74
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The UNOX SPEED.Compact™ ECO is an electric convection/microwave speed oven designed to quickly reheat baked goods, snacks, and leavened items using microwaves and hot airflow.

It features a drop-down door, 9.5-inch touch control panel, 11.8-inch by 11.8-inch cooking chamber, integrated Wi-Fi, 384 Speed programs, and 10 favorite programs with one-touch CLICK&COOK.

  • Cooking temperature range of 86°F to 536°F
  • ADAPTIVE.Cooking™, SMART.Preheating, and SMART.Energy functions
  • Chamber-and-chimney catalysts to minimize gas, noise, and odor emissions
  • Step-by-step cleaning guidance from the control panel

The cutsheet states that the oven was tested and approved for ventless operation under EPA202 procedures and UL710B limits, except for fatty raw proteins.

Overall Dimensions:

16.68"W x 28.31"D x 24.25"H

Convection and microwave cooking

Uses microwaves and hot airflow to quickly reheat baked goods, snacks, and leavened items.

Ventless operation

The cutsheet states that the oven was tested and approved for ventless operation under EPA202 procedures and UL710B limits, except for fatty raw proteins.

384 Speed programs

Provides 384 programmable Speed programs.

CLICK&COOK

Starts favorite cooking programs directly from the main control screen with one touch.

SPEEDUNOX

Automatically sets cooking parameters from the oven's cooking library.

ADAPTIVE.Cooking™

Automatically regulates cooking parameters to support repeatable results.

SMART.Preheating

Automatically sets preheating temperature and duration.

SMART.Energy

Recognizes when food is absent from the cooking chamber and activates standby mode to reduce temperature and consumption.

Integrated Wi-Fi

Supports Wi-Fi and USB data transfer for HACCP data and cooking programs.

Cleaning guidance

Provides a step-by-step cleaning procedure through the control panel.

Catalyst system

Chamber-and-chimney catalysts help minimize gas, noise, and odor emissions.

Stainless steel cooking chamber

The cooking chamber is made from high-resistance AISI 304 stainless steel.

Related Searches

Best Sellers Commercial Convection Ovens Commercial Ovens Commercial Ovens Convection Ovens Convection Ovens Cooking Equipment Equipment New Arrivals Ovens Restaurant Equipment UNOX USA
Product type Electric convection/microwave speed oven
Cooking chamber 11.8 in. x 11.8 in.
Tray support 1 tray, 11.8 in. x 11.8 in.
Door Drop-down
Control panel 9.5-inch touch control panel
Cooking temperature 86°F to 536°F
Cooking steps Up to 9
Speed programs 384
Favorite programs 10
Electrical voltage 208/240 V
Phase 1-phase
Frequency 60 Hz
Total power 3.6 kW
Maximum amp draw 14.5 A
Required breaker 15 A
Plug NEMA 6-15P
Ingress protection IPX4
Cooking chamber material AISI 304 stainless steel
Ventless operation Tested and approved under EPA202 procedures and UL710B limits, except for fatty raw proteins
Net weight 132 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It combines microwave energy with hot airflow for convection/microwave cooking.
The oven supports 208 V or 240 V, single-phase, 60 Hz power, with 3.6 kW total power, a 15 A required breaker, and a NEMA 6-15P plug.
The oven measures 16-11/16 inches wide by 28-5/16 inches deep by 24-1/4 inches high and has a listed net weight of 132 lb.
It provides 384 Speed programs and 10 favorite programs, with up to 9 cooking steps.
The cutsheet states that no exhaust pipes or hoods are needed and that the oven was tested and approved for ventless operation under EPA202 procedures and UL710B limits, except for fatty raw proteins. Consult local HVAC codes and competent authorities for those foods.
Yes. It has integrated Wi-Fi and supports Wi-Fi and USB data transfer for HACCP data and cooking programs.
