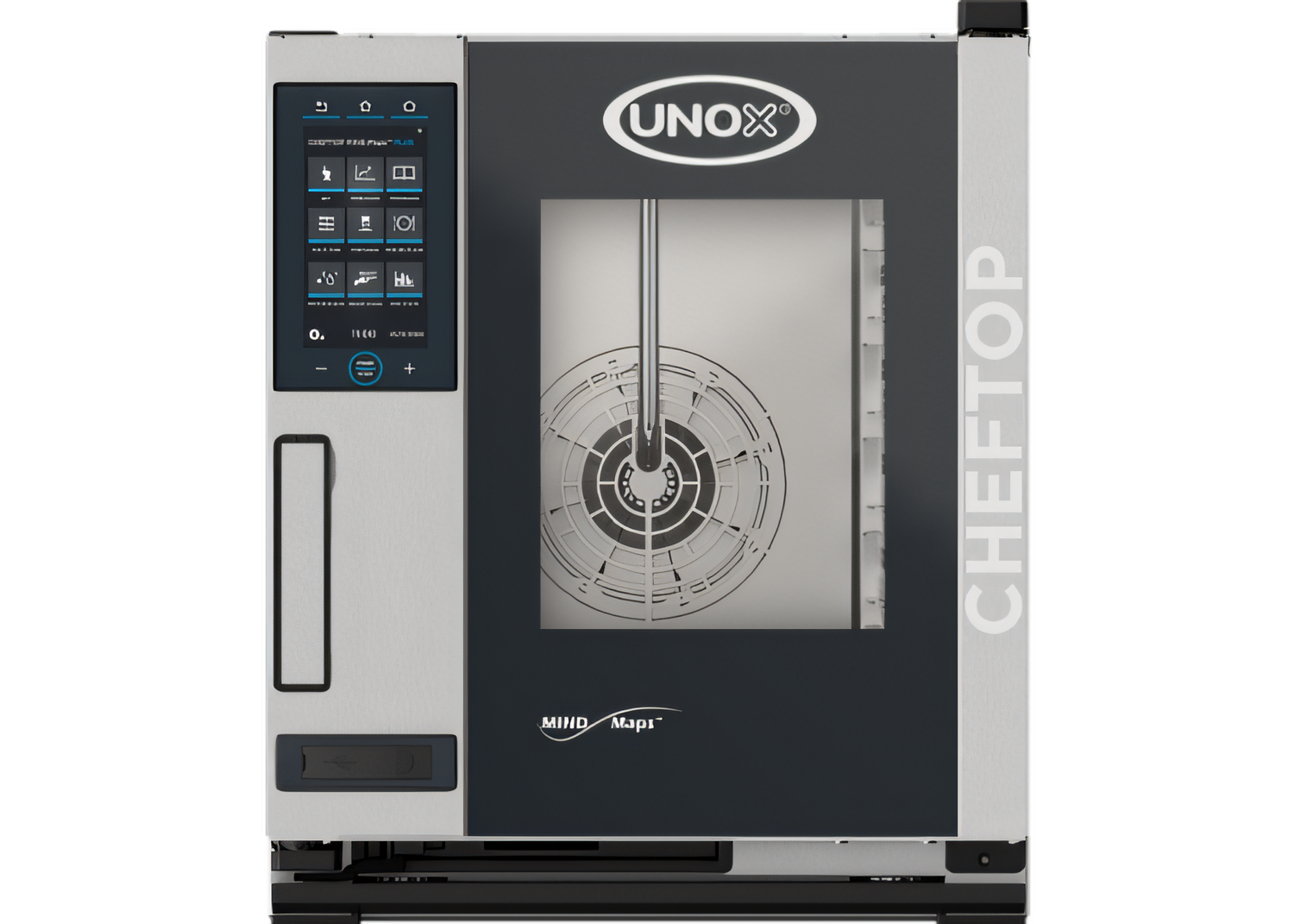

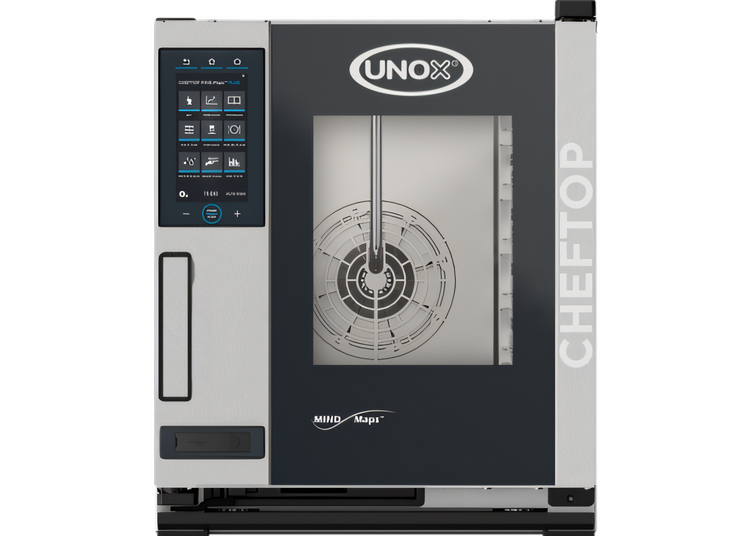

UNOX CHEFTOP MIND.Maps Plus Compact Countertop Electric Combi Oven, 5 GN 1/1, Left-to-Right Door

SKU: XACC-0513-EPLM
$10,612.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Combi Ovens Combi Ovens Commercial Ovens New Arrivals Ovens Restaurant Equipment UNOX USA

UNOX CHEFTOP MIND.Maps Plus Compact Countertop Electric Combi Oven, 5 GN 1/1, Left-to-Right Door

Programmable Controls, Wi-Fi/USB Connectivity, 208-240V, 3-Phase

A compact, ENERGY STAR-efficient combi oven that combines steam, convection, and smart programming in a small countertop footprint.

  • Compact countertop combi oven built for kitchens that need maximum performance in limited space.
  • Holds 5 GN 1/1 or 5 full-size 12" x 20" pans with 2-11/16" shelf spacing.
  • MIND.Maps Plus programmable controls support recipe memory and multi-step cooking programs.
  • Wi-Fi and USB connectivity help transfer recipes and cooking data to HACCP software.
  • Stainless steel construction and a triple-glass, left-to-right opening door add durability and visibility.
  • 208-240V, 3-phase electric design with steam-generator performance and an included water connection line.

Overall Dimensions:

21.06"W x 34.31"D x 25.56"H

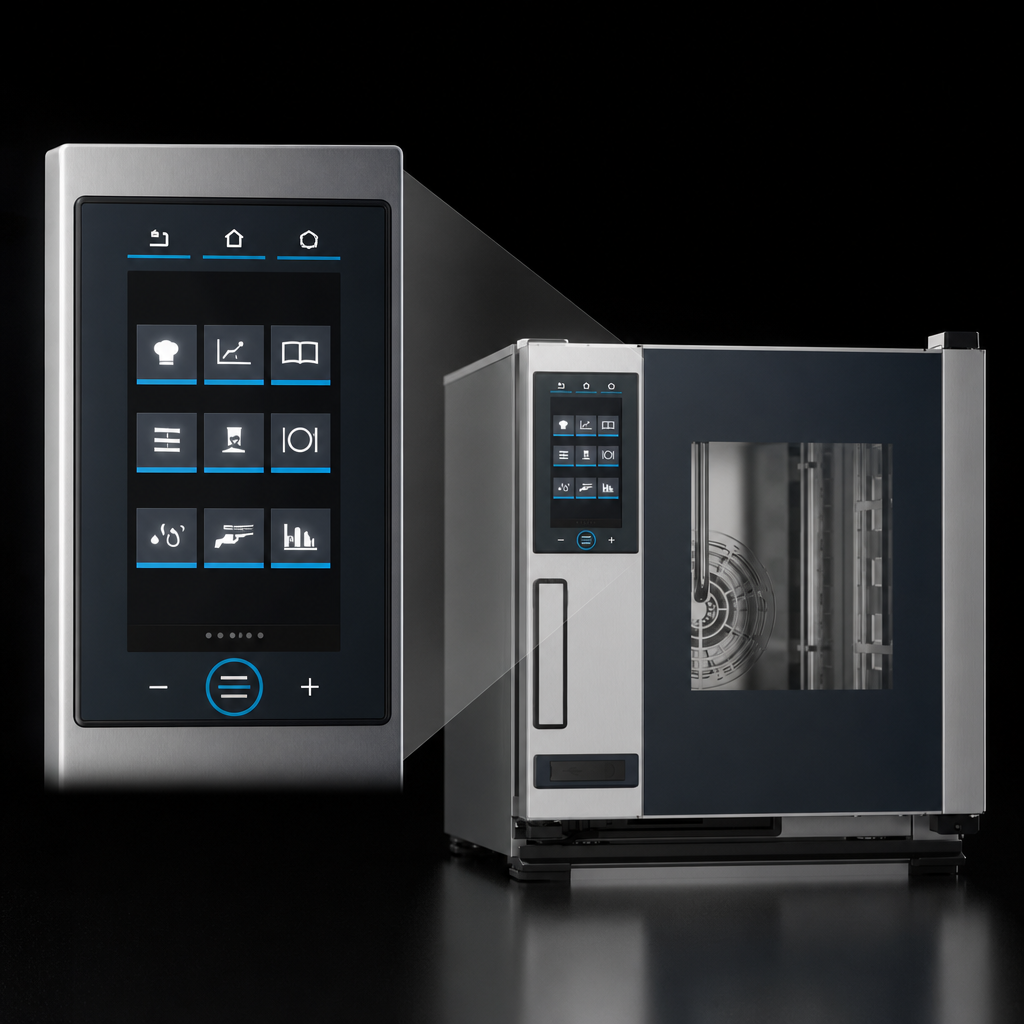

MIND.Maps Plus Programmable Touchscreen

Capacitive control system with programmable menu support, up to 384 stored programs, and up to 10 simultaneous cooking processes.

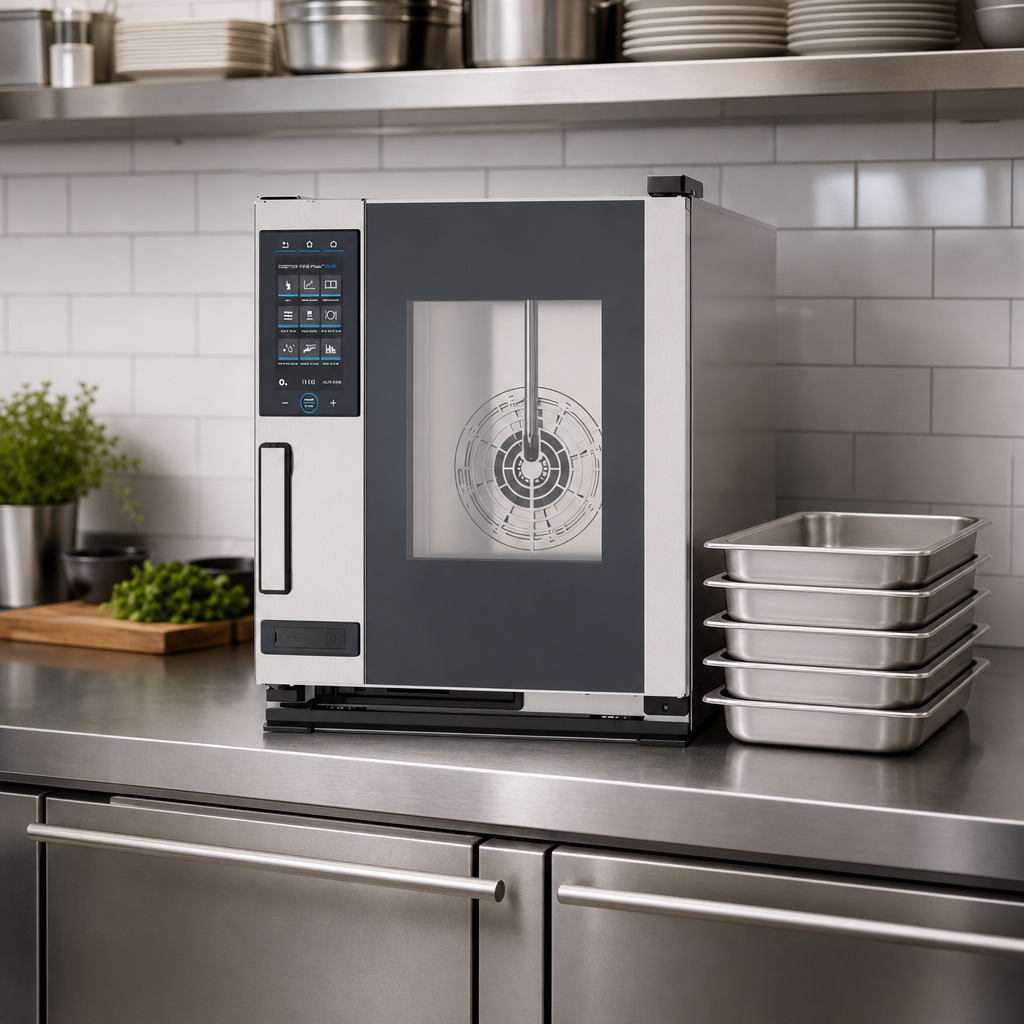

Compact 5-Pan Countertop Footprint

Space-saving design for small kitchens and shops with 5 GN 1/1 / 12" x 20" pan capacity.

Steam-Generator Combi Cooking

Combines convection and steam cooking for flexible menu execution and consistent results.

Adaptive Cooking And Humidity Control

Automatically adjusts cooking parameters and manages humidity for more repeatable results across different food loads.

Wi-Fi And USB Data Transfer

Built-in connectivity supports recipe and data transfer for HACCP software and oven management.

Stainless Steel Build And Triple-Glass Door

Durable stainless steel construction with a glass door that opens left-to-right for easy visibility and access.

Included Water Connection Line

Includes the line needed to connect to a 3/4" MPT water connection within 3 feet of installation.

Type Combi Oven
Style Compact
Installation Type Countertop
Controls Programmable Touchscreen
Pan Capacity 5 GN 1/1 Pans
Pan Size 12 x 20 Inches
Shelf Spacing 2 11/16 Inches
Voltage 208-240 Volts
Amps 19.5 Amps
Watts 7.7 kW
Hertz 60 Hz
Phase 3-Phase
Breaker Size 25 Amps
Water Inlet Size 3/4 Inch MPT
Water Connection Required
Drain Connection Required
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Width 22 Inches
Shipping Depth 35 Inches
Shipping Height 26 Inches
Shipping Weight 419 lbs.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation program PDF Download PDF Brochure PDF Download PDF Catalog PDF Download

Frequently Asked Questions

It holds 5 GN 1/1 pans or 5 full-size 12" x 20" hotel pans.
The oven requires 208-240 Volts, 3-Phase, 60 Hz service. The listing also notes 7.7 kW and 19.5 amps.
Yes. It includes Wi-Fi and USB connectivity for data transfer to HACCP software.
This model has a left-to-right opening glass door.
Yes. A 3/4" MPT water connection within 3 feet is required, and a drain connection is also required. The water line to connect the oven is included.
