Univex SRM80+ Planetary Mixers
Description

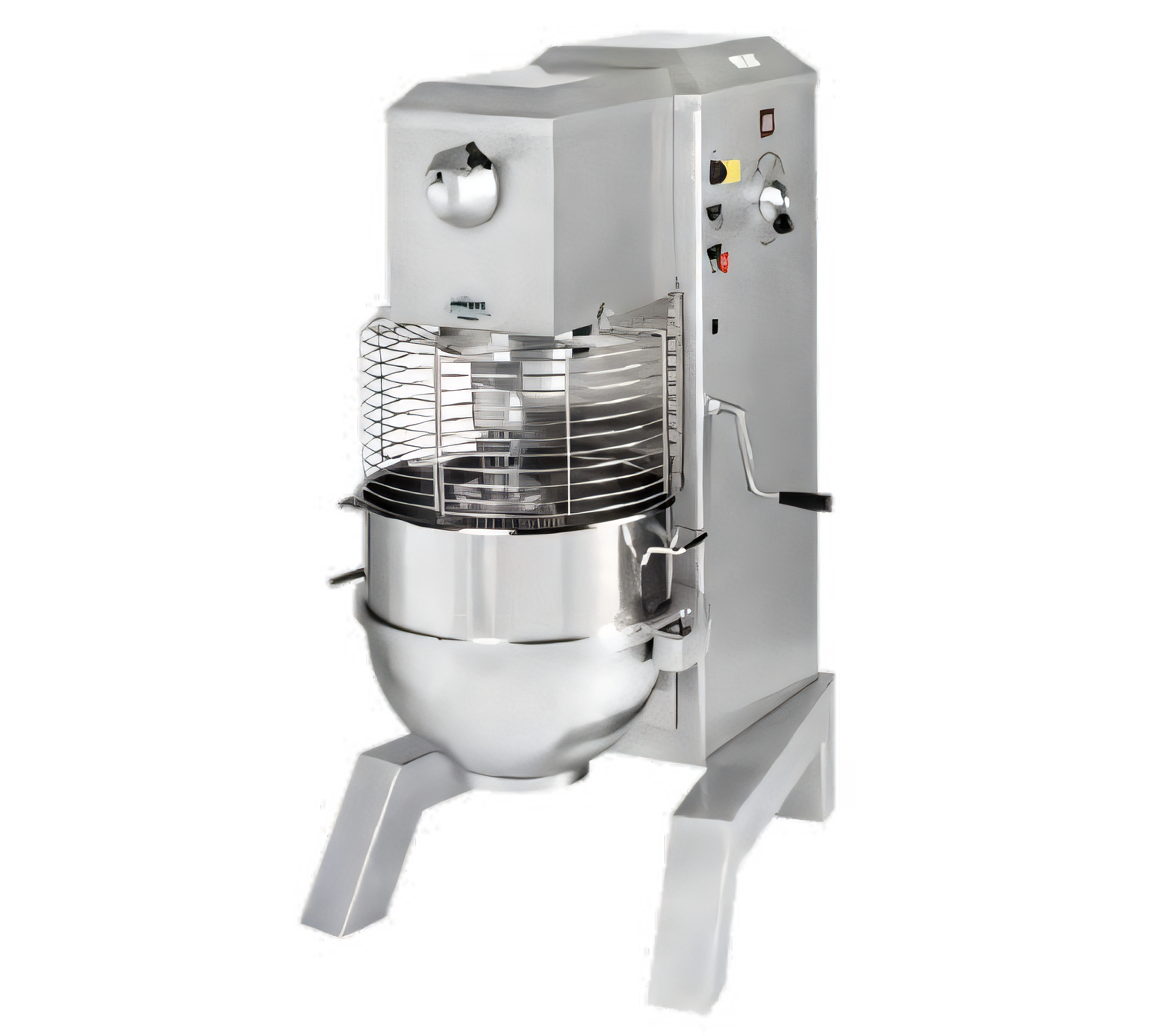

SRM80+ 80-Quart Floor Mixer
Heavy-duty variable-speed powerhouse for bakeries, pizzerias & institutionsMix up to 80 quarts of dough, batter or icing at the perfect speed without ever stopping the machine. Built in Salem, New Hampshire, the Univex SRM80+ pairs a rugged 3 HP motor with a torque-sensing Variable Speed Drive, delivering the reliability pros demand and the versatility every kitchen loves.
Everything you need, right out of the crate
- 80 qt stainless-steel bowl
- Spiral dough hook
- Batter beater
- Wire whip
- Power bowl lift with ergonomic hand-wheel
- Removable two-piece SwingRing™ stainless safety guard
- Bowl scraper & ingredient chute
- 15-minute automatic timer
Why chefs choose the SRM80+

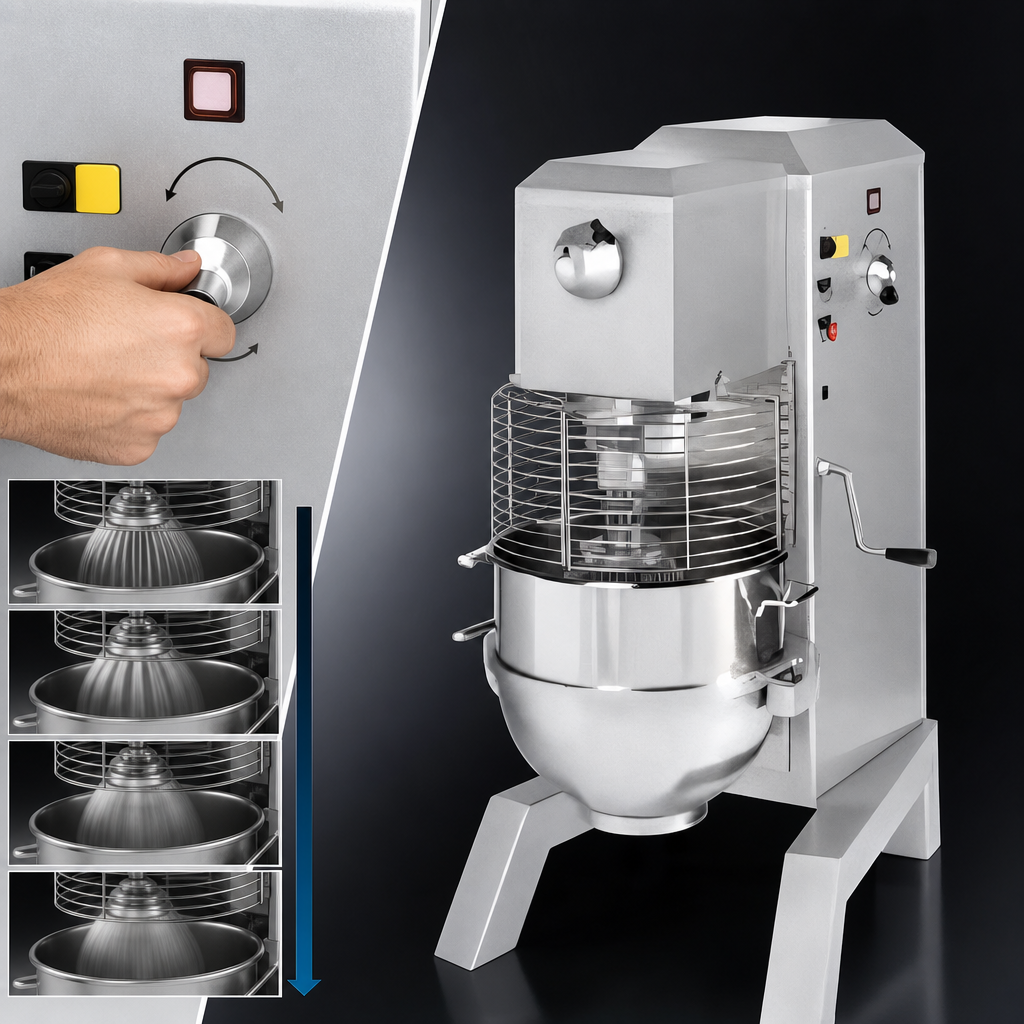

- Shift-on-the-fly Variable Speed Drive – 4 fixed speeds or any speed in-between without stopping the agitator.

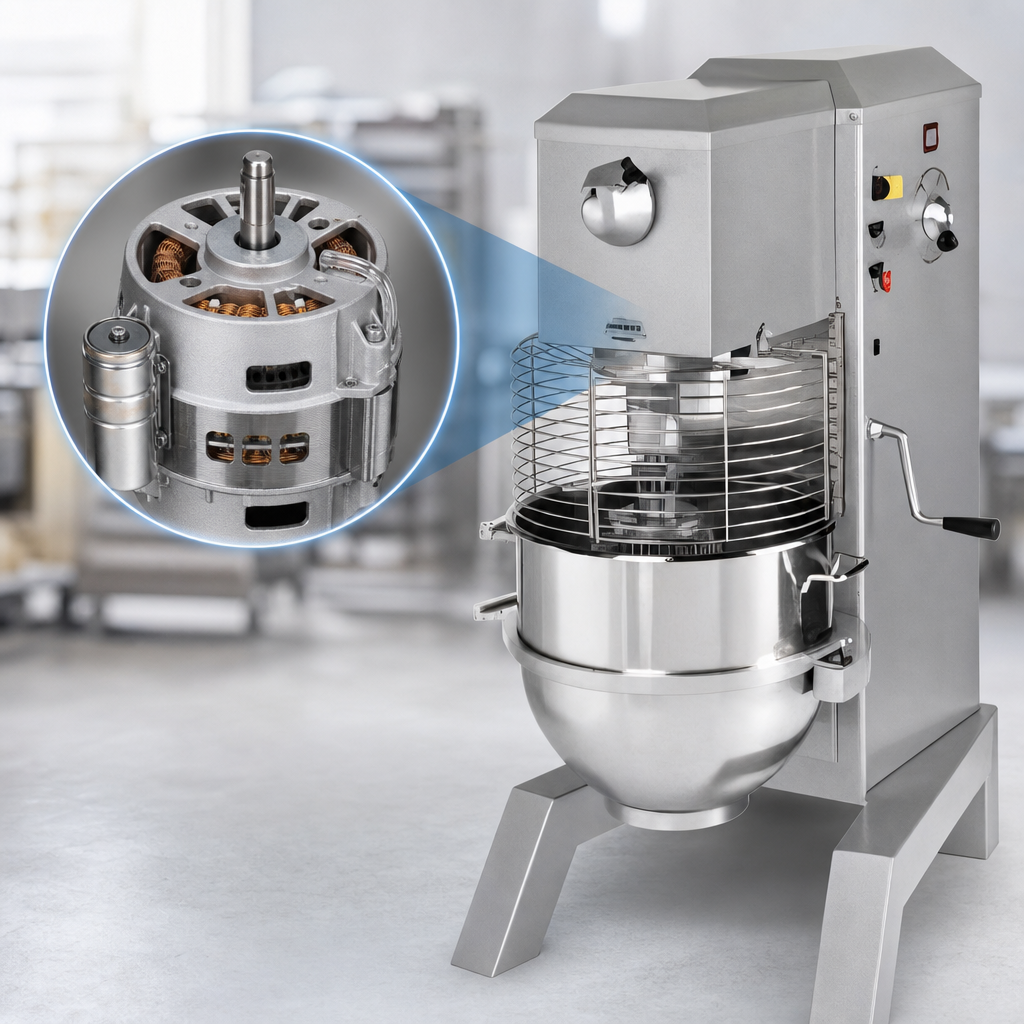

- 3 HP capacitor-start motor muscles through 80 lb. dough loads with ease.
- Hardened alloy gears bathe in oil for quiet, long-life service and low cost of ownership.
- Operator safety built-in – bowl/guard interlocks and low-voltage protection prevent accidental start-ups.
- #12 PTO hub expands functionality with slicer, shredder, grinder & more (sold separately).
- NSF & cETLus listed and proudly Made in the USA.
- 2-year on-site parts & labor warranty backed by the Univex National Quality Service Program.
Technical specifications
| Capacity | 80 qt / 75.7 L |
|---|---|
| Motor | 3 HP capacitor-start, oil-bath gear transmission |
| Speed range (Beater Shaft RPM) |
90, 166, 263, 395 RPM – plus unlimited variable settings in-between |
| Electrical (std.) | 208–240 V, 1 Φ, 16–16.8 A, NEMA 6-20P 208–240 V, 3 Φ, 8–8.5 A, NEMA L15-20 460 V, 3 Φ, 4 A, NEMA L16-20 (optional) |
| Bowl lift | Power lift, self-locking top & bottom positions |
| Overall dimensions | 66" H × 41" W × 51" D (167.6 × 104.1 × 129.5 cm) |
| Net / Ship weight | 835 lb / 1000 lb (378.7 / 453.6 kg) |
| Certifications | NSF, cETLus |
| Country of origin | United States of America |
Expand your mixer’s talents (sold separately)
- VS9 vegetable slicer or VS9H shredder for fresh prep
- ALMFC12 #12 meat & food grinder
- Pastry knife, four-wing beater & sweet-dough beater
- Splash ring, bowl truck & other workflow accessories
Need help selecting attachments or confirming electrical configuration? Call our food-service experts anytime at 800-258-6358.
