Univex SRM60+ Planetary Mixers
Description

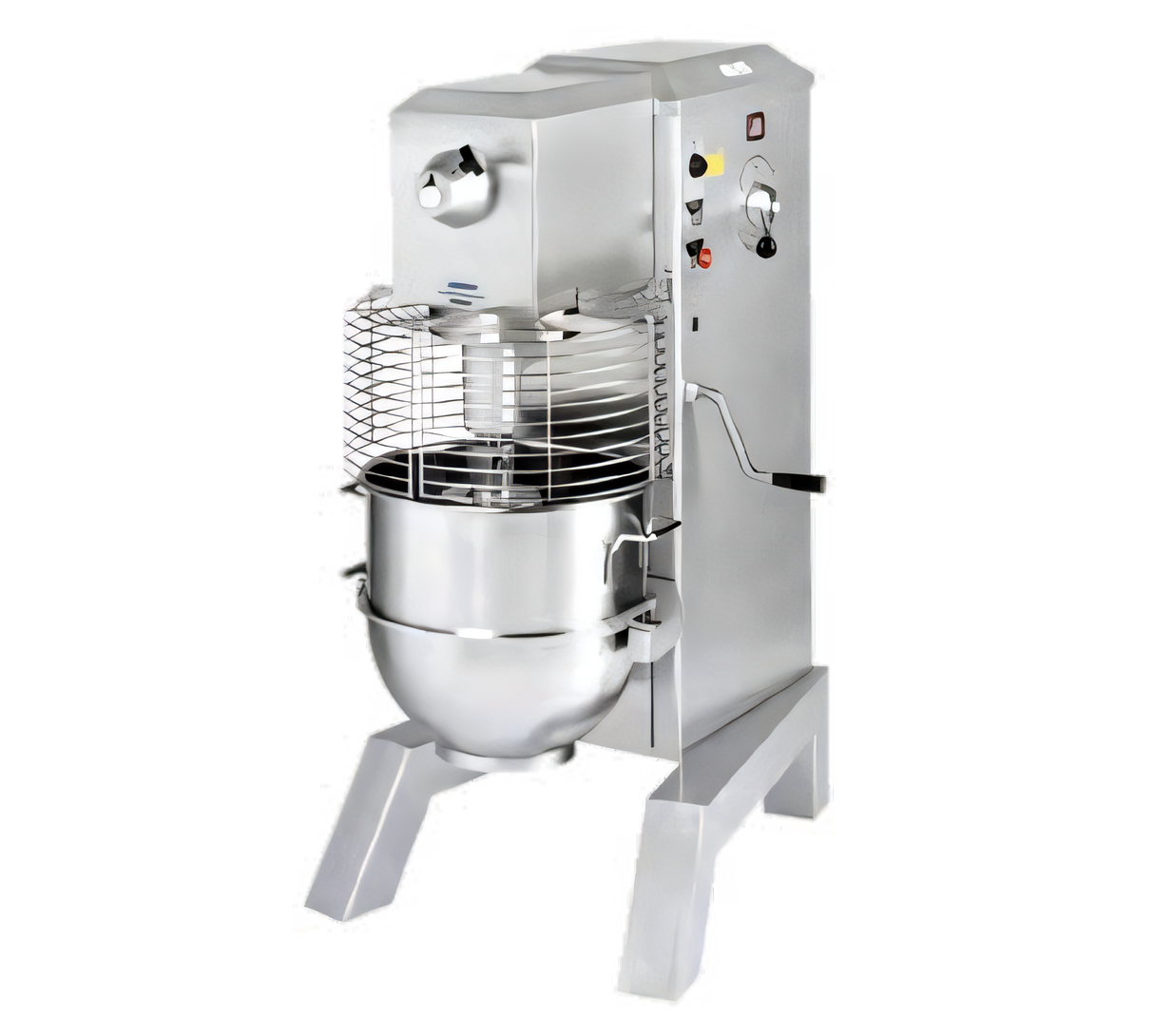

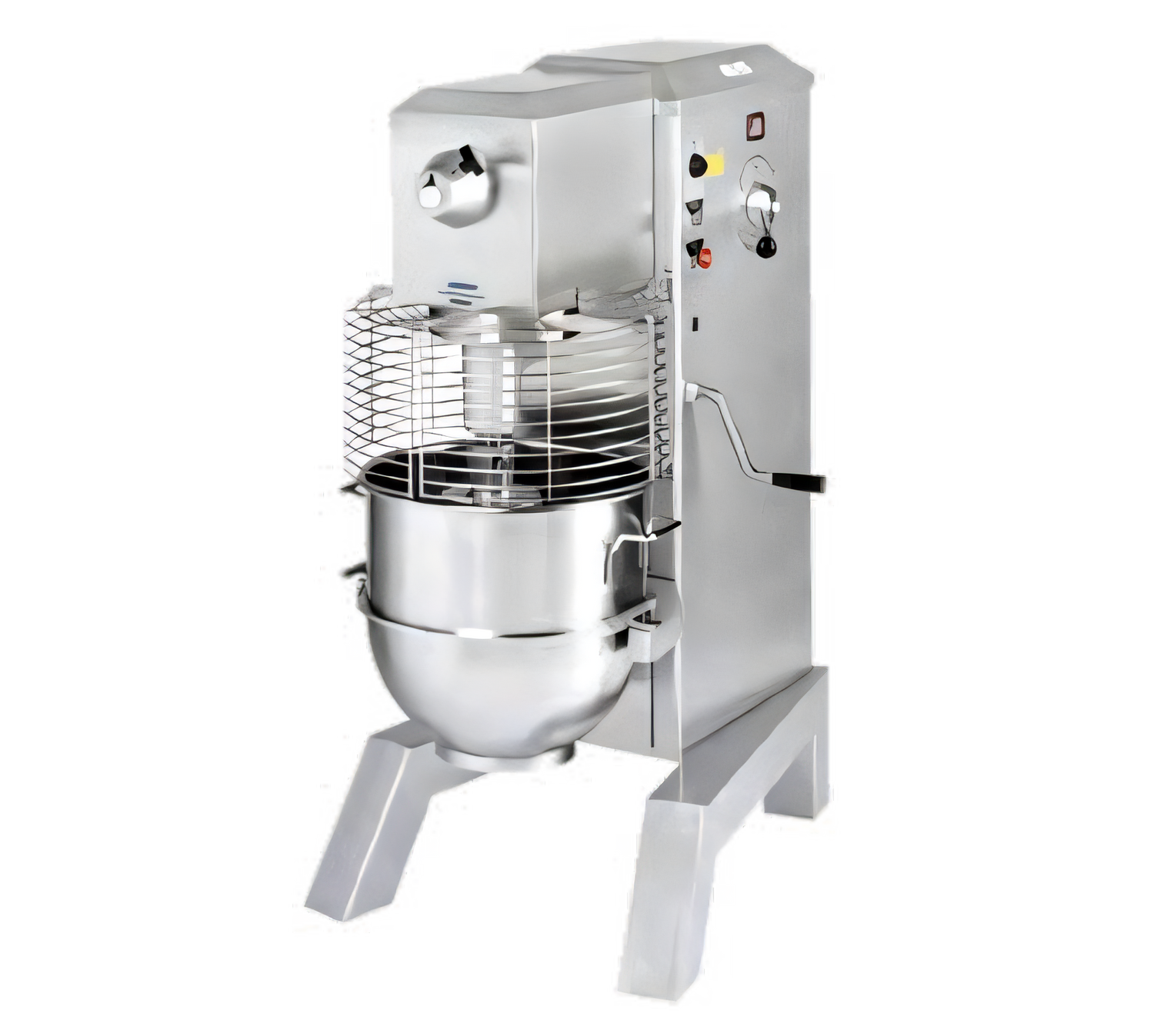

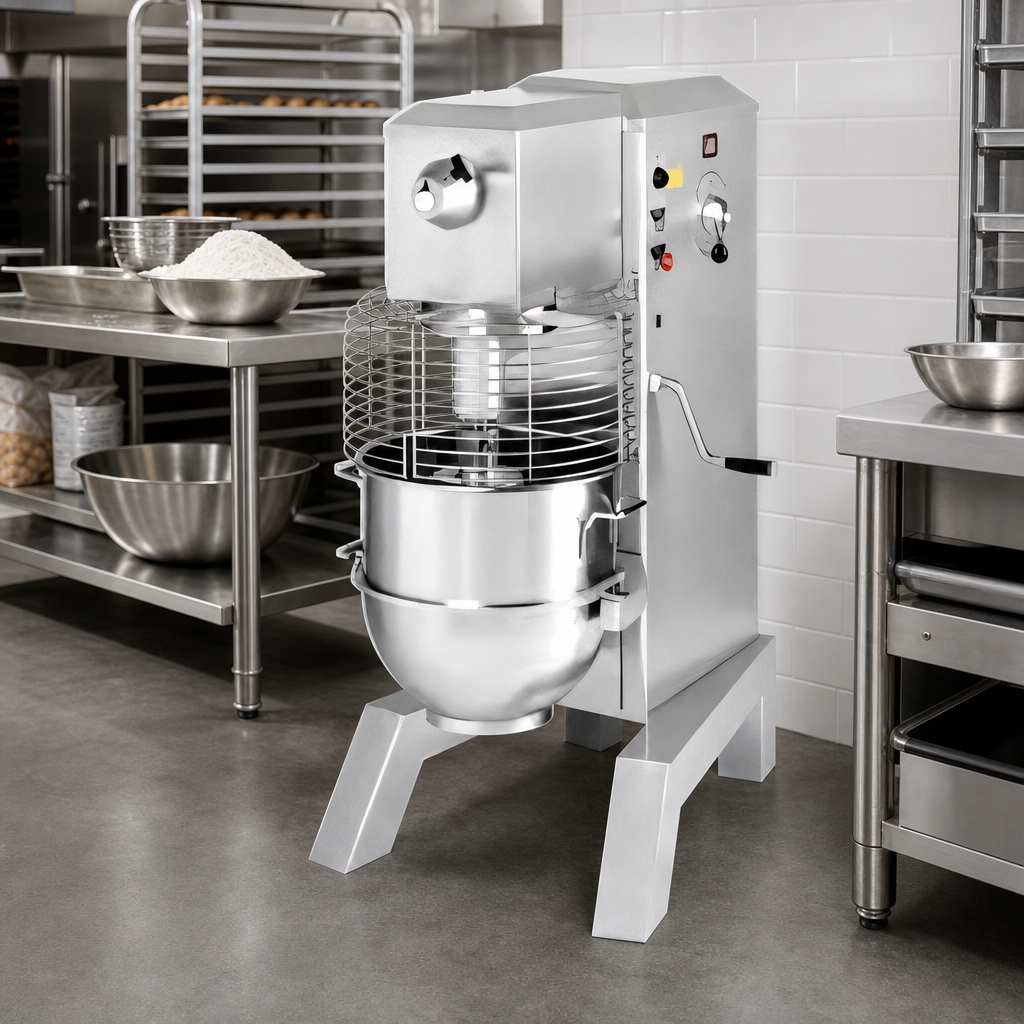

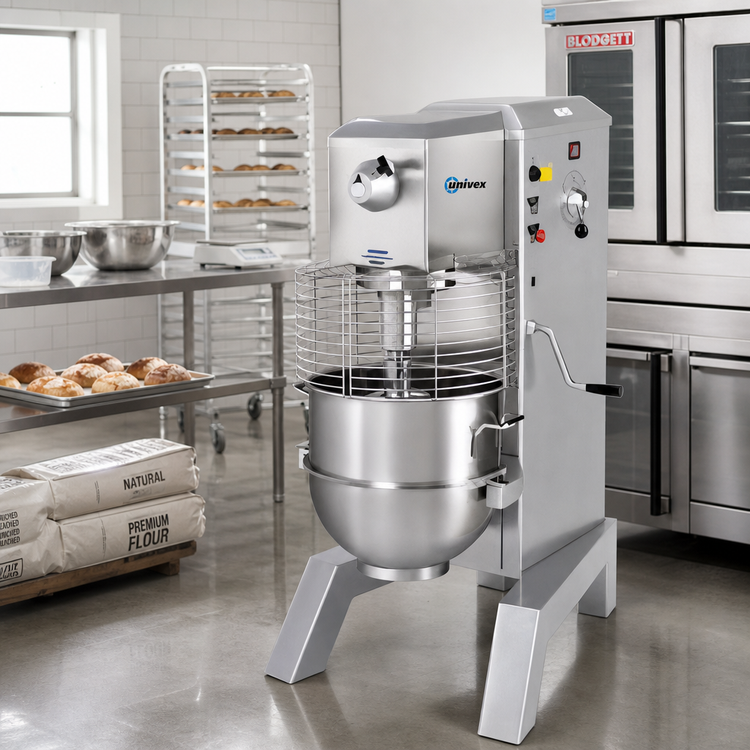

Univex SRM60+ 60-Quart Floor Model Mixer
Heavy-duty planetary mixer built in the USA for bakeries, pizzerias & institutional kitchensThe Univex SRM60+ combines a powerful 3 hp capacitor-start motor, an infinitely-variable 4-speed drive and an electric power-lift bowl to tackle up to 60 quarts of dough, batter or whipped product with absolute consistency. Rugged alloy gears, a safety-interlocked SwingRing guard and full NSF/cETLus certification make it the dependable choice for high-volume production environments.
Why You’ll Love It

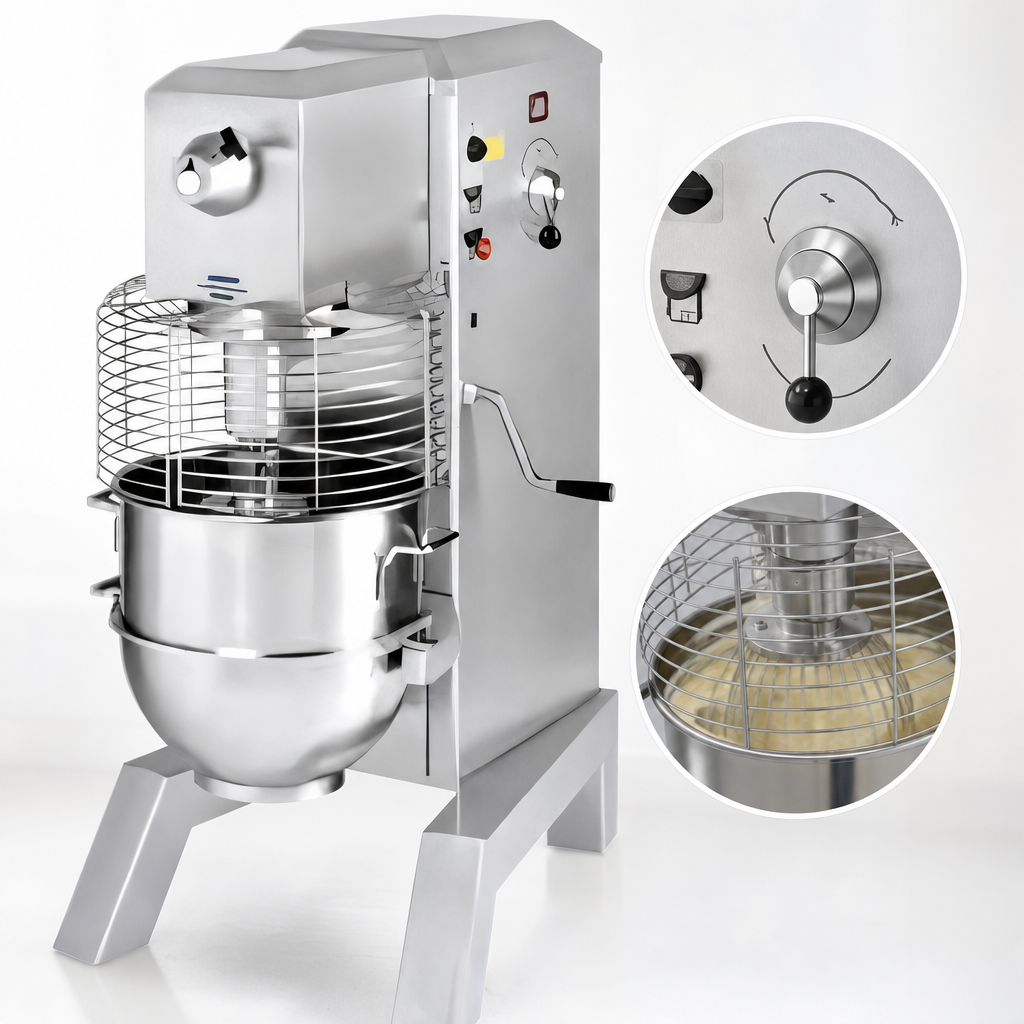

- Variable Speed Drive: choose any speed between four fixed settings without stopping the mixer.
- 3 hp motor with torque-sensing pulleys plows through stiff, low-hydration doughs.
- Removable two-piece SwingRing safety guard is stainless, dishwasher-safe and fully interlocked.
- Electric power bowl lift raises & locks the 60 qt bowl at the touch of a button—no strain, no wobble.
- #12 PTO hub drives Univex slicers, grinders & other attachments (sold separately) for extra versatility.
- Low-voltage & power-failure protection prevents accidental restart after an outage.
- Hybrid epoxy/polyester powder-coat resists chips, scratches and corrosion for years of service.
- Made in Salem, NH USA and backed by a 2-year on-site parts & labor warranty.
What’s in the Crate
- 60 qt stainless-steel bowl
- Spiral dough hook
- Batter/beater paddle
- Stainless wire whip
- Bowl scraper with mounting arm
- Ingredient chute
- 15-minute mechanical timer (built-in)
Speed Reference
| Setting | Beater Shaft (RPM) | #12 PTO (RPM) |
|---|---|---|
| 1 – Low | 119 | 93 |
| 2 – Med-Low | 166 | 132 |
| 3 – Med-High | 275 | 214 |
| 4 – High | 498 | 390 |
Technical Specs
| Model | SRM60+ |
|---|---|
| Bowl Capacity | 60 qt / 56.7 L |
| Motor | 3 hp, capacitor start |
| Electrical (standard) | 208-240 V, 1 ph, 16-17 A, NEMA 6-20P |
| Electrical (options) | 208-240 V 3 ph • 460 V 3 ph |
| Timer | 0–15 minutes |
| Bowl Lift | Power lift, self-locking top & bottom |
| Transmission | Oil-bath, hardened alloy gears |
| PTO Hub | #12 (front-mounted) |
| Certifications | NSF • cETLus |
| Overall Size (HxWxD) | 56" × 27 ⅝" × 42 ¾" (142.1 × 70 × 108.4 cm) |
| Net / Ship Weight | 750 lb / 1000 lb (340 / 454 kg) |
| Origin | Made in USA |
Expand Your Capabilities
The #12 PTO accommodates Univerx attachments such as the VS9 vegetable slicer, VS9H shredder or ALMFC12 meat grinder (each sold separately).
Peace-of-Mind Warranty
Every SRM60+ is covered by a two-year, on-site parts & labor warranty from Univex’s nationwide service network.
