Univex SRM60+HD Planetary Mixers
Description

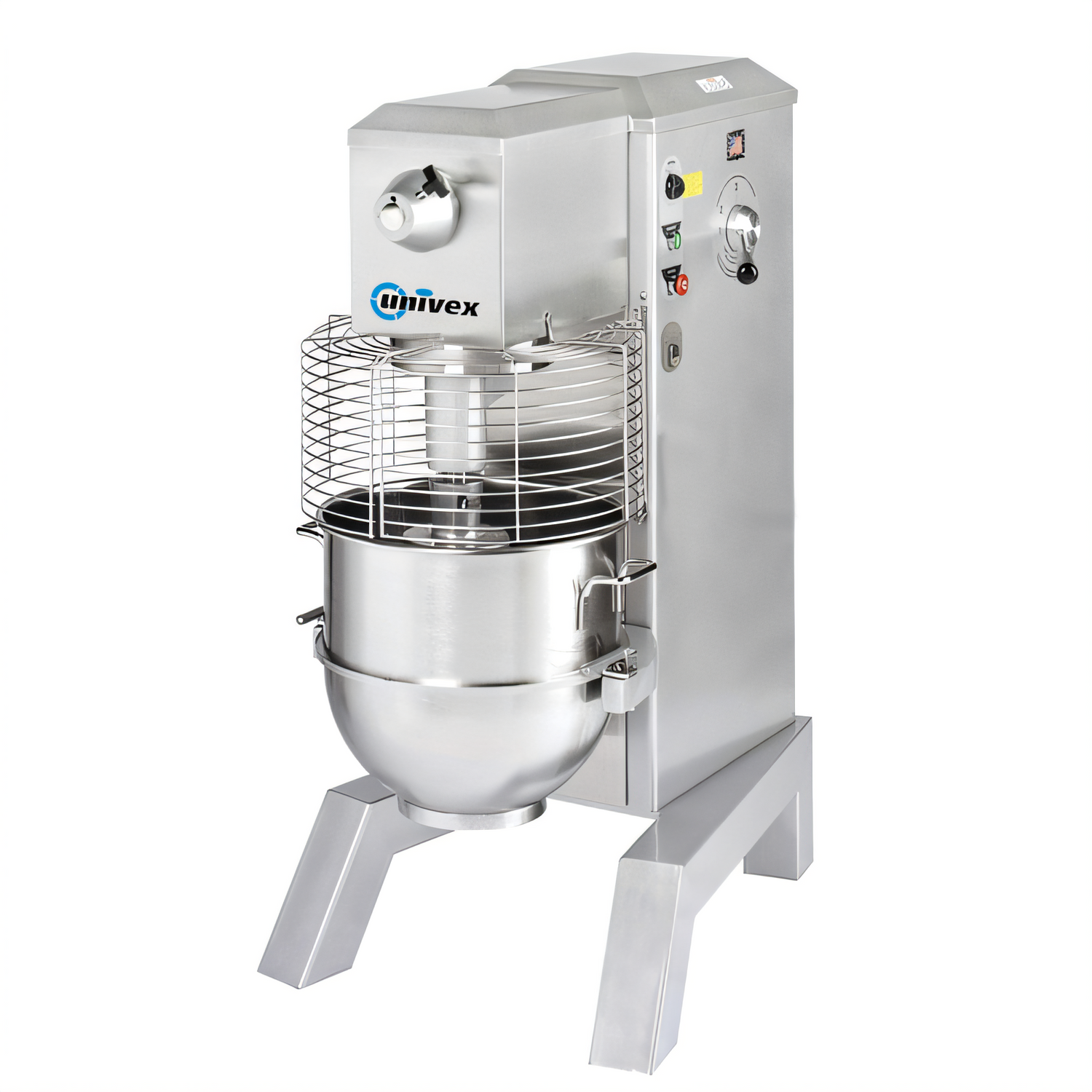

SRM60+HD | 60-Quart Heavy-Duty Floor Mixer
Built in the USA for bakeries, pizzerias & high-volume food productionWhen your operation demands power, capacity and rock-solid reliability, the Univex SRM60+HD delivers. A 3 HP motor, oil-bath alloy gears and an on-the-fly variable speed drive make quick work of dough, batter, whipped toppings and more—all while protecting your staff with industry-leading safety features.
Key Features

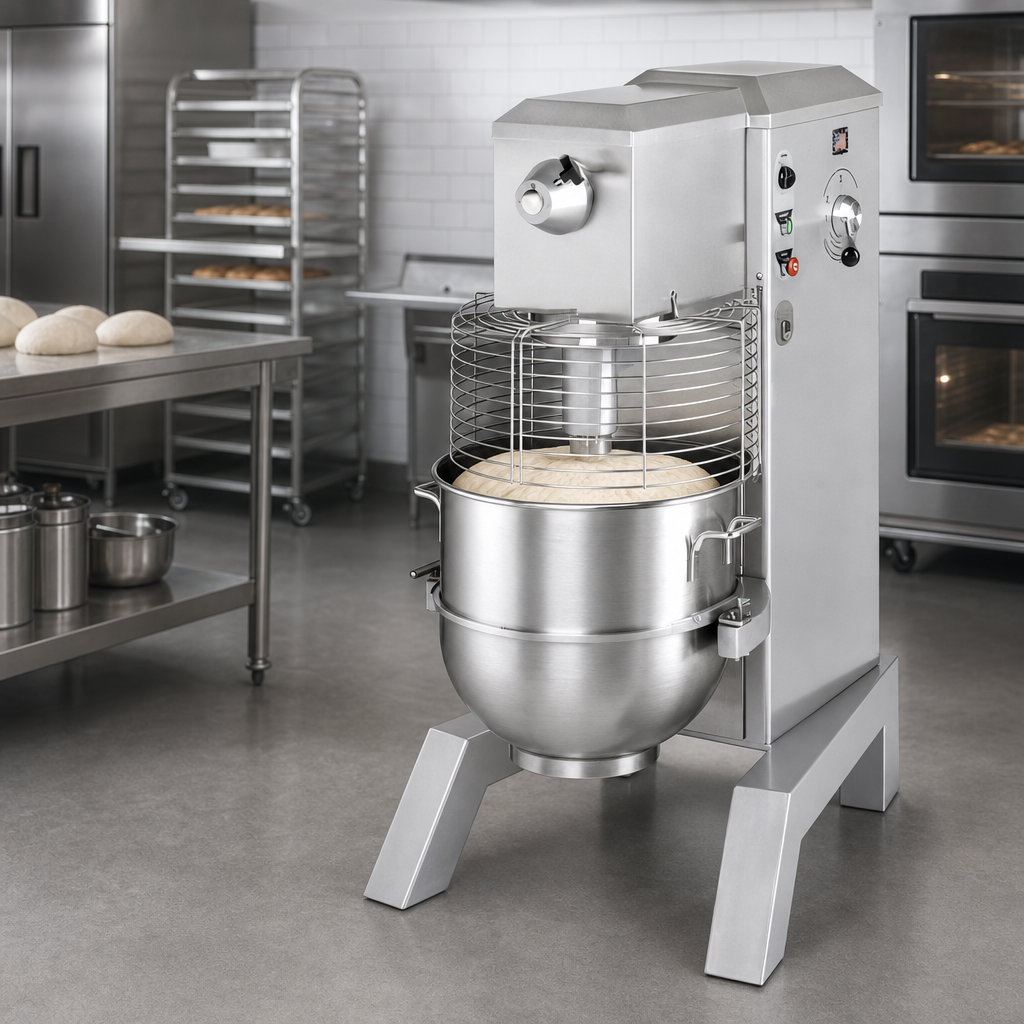

- 60 qt (56.7 L) stainless-steel bowl with powered, self-locking bowl lift.

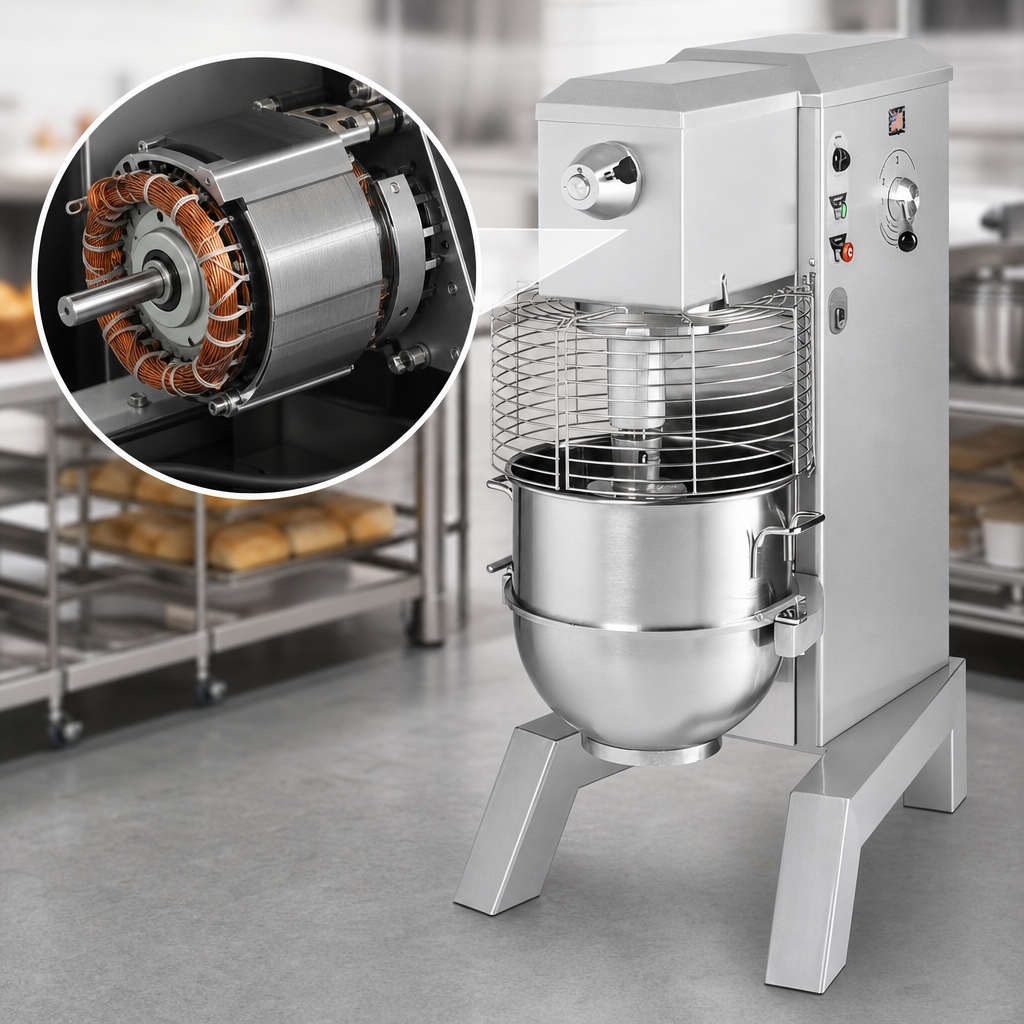

- 3 HP capacitor-start motor plus hardened alloy gears in a sealed oil bath.
- Variable Speed Drive: 4 fixed speeds—or any speed in between—without stopping the mixer.
- #12 PTO hub drives optional slicer, shredder, meat-grinder and other attachments.
- 15-minute timer for repeatable, hands-off mixing cycles.
- Magnetic contactor starter with overload & low-voltage protection, large Start/Stop buttons.
- Interlock system disables operation if guard is open or bowl is lowered.
- Two-piece, stainless-steel safety guard is removable & dishwasher safe.
- Hybrid epoxy/polyester powder-coat finish—NSF-approved & easy to clean.
- cETLus listed and proudly Made in the USA.
Included Accessories
- Dough Hook
- Wire Whip
- Batter Beater
- Bowl Scraper
- Ingredient Chute
Expand your capabilities with optional #12 hub tools like the VS9 vegetable slicer, VS9H shredder or ALMFC12 meat & food grinder (sold separately).
Technical Specifications
| Capacity | 60 qt / 56.7 L |
|---|---|
| Motor | 3 HP capacitor-start |
| Beater Speeds | 90, 166, 263, 500 RPM — infinitely variable |
| PTO Hub Speed | 90 – 387 RPM |
| Timer | 0–15 minutes |
| Electrical | 208–240 V / 60 Hz (1-ph 16 A 6-20P or 3-ph 8 A L15-20) • 460 V 3-ph optional |
| Bowl Lift | Powered, self-locking at top & bottom positions |
| Overall Dimensions* | 29.75 W × 30 D × 56 H in (guard open) |
| Net Weight | 750 lb / 340 kg |
| Construction | Powder-coated steel frame, stainless-steel bowl & guard |
| Certifications | NSF • cETLus • Made in USA |
*Allow additional clearance for ventilation and guard operation.
Warranty & Support
The SRM60+HD is backed by Univex’s 2-year on-site parts & labor warranty and our 24/7 technical support hotline—so you can keep mixing with confidence.
