Univex  |  SKU: SQD80

Univex SQD80 Dough Dividers & Rounders

$14,485.20
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Dough Dividers & Rounders Dough Preparation Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

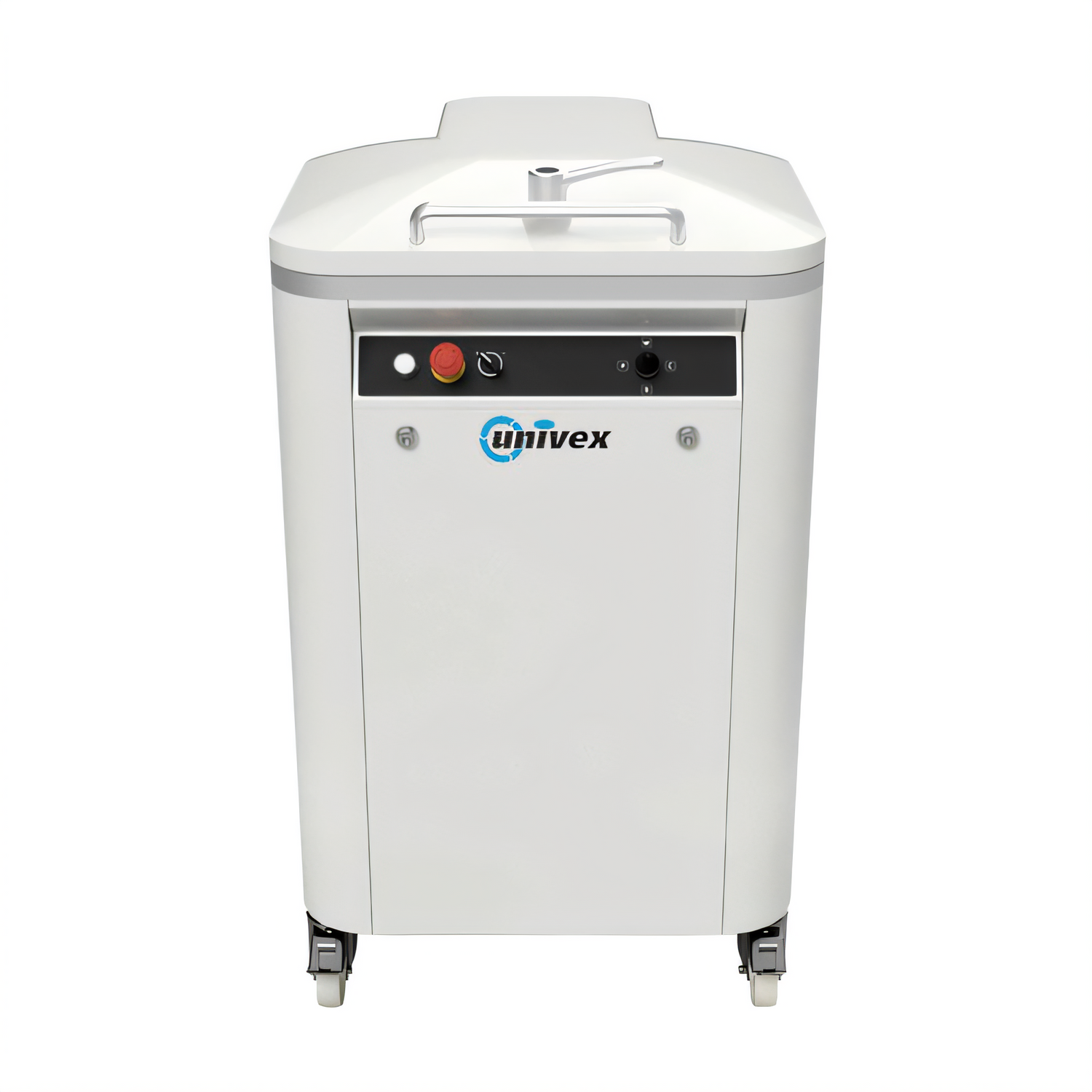

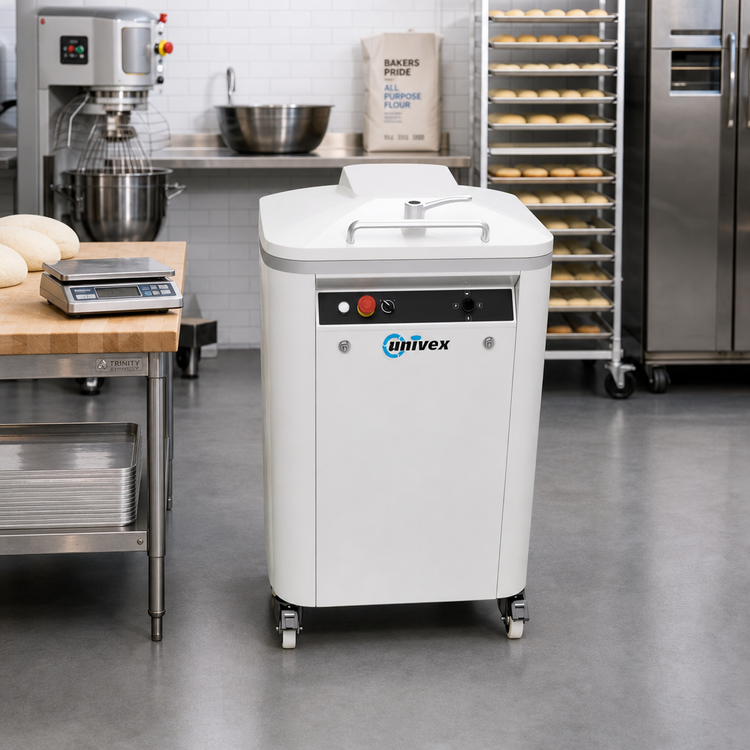

Univex SQD80 Semi-Automatic Square Dough Divider

80 perfectly even pieces in just 7 seconds

Built for busy bakeries, commissaries, and pizza operations, the Univex SQD80 turns a mass of dough into 80 uniform squares—ranging from 1.41 oz to 8.81 oz (40 g – 250 g)—in the time it takes to blink. That’s up to 6,000 pieces every hour with virtually no effort, flawless portion control, and consistency you can bank on.

Key benefits

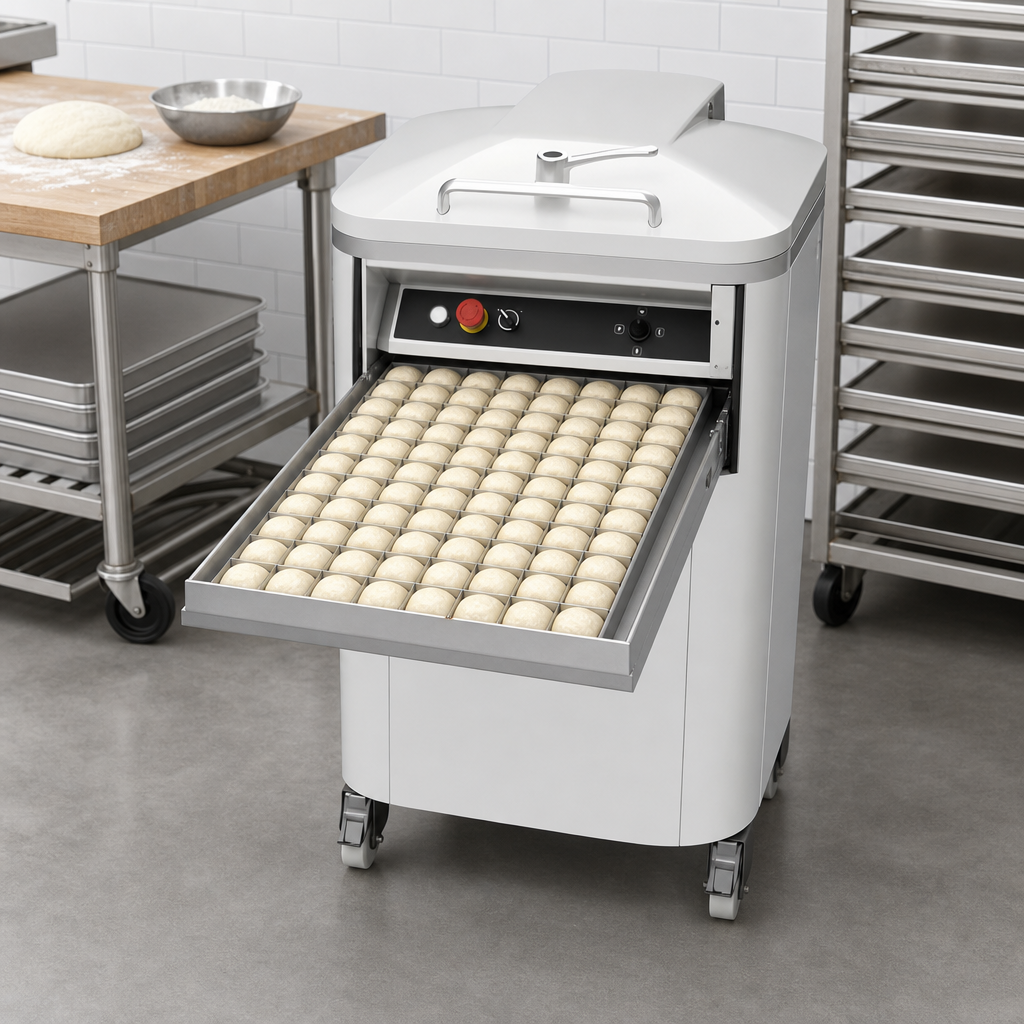

  • Divides and shapes 80 equal-weight square pieces in one stroke

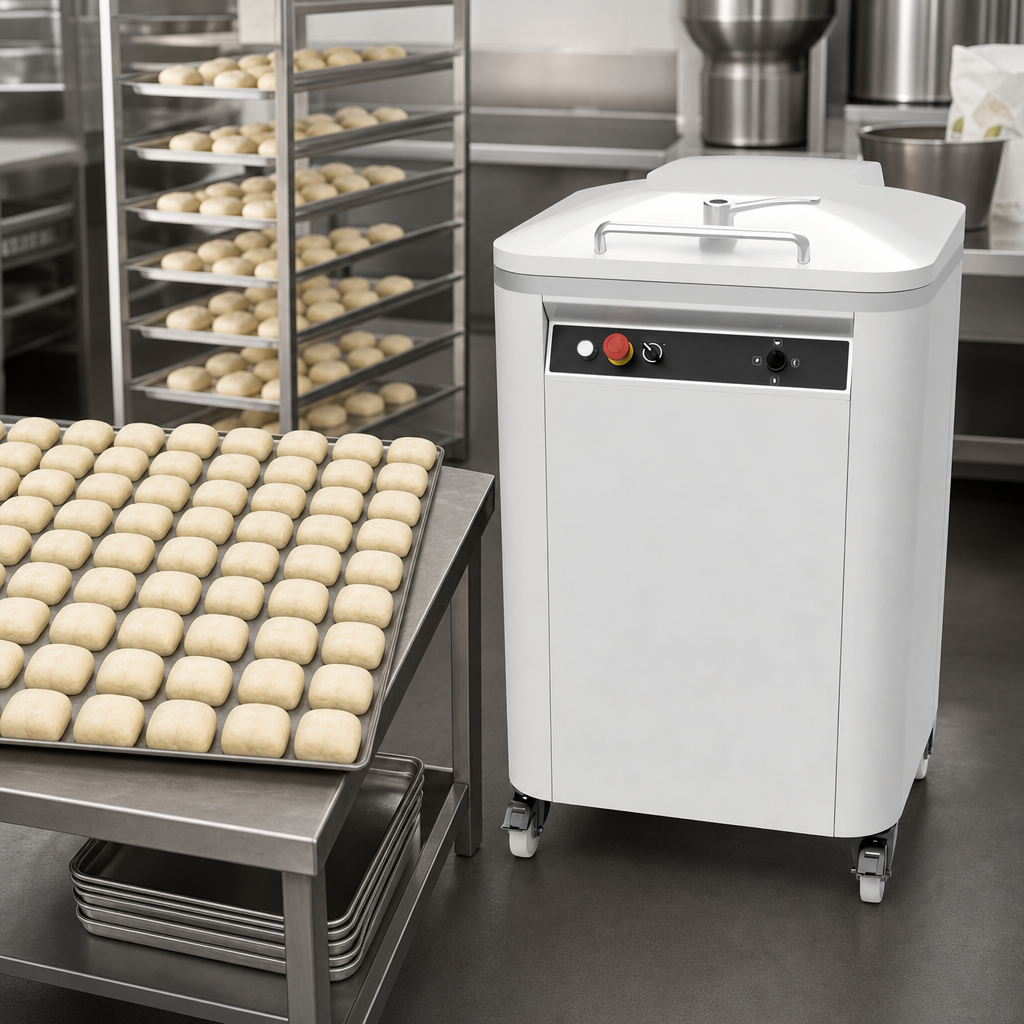

  • Lightning-fast 7 second cycle time = up to 6,000 pieces per hour
  • Semi-automatic, push-button controls keep operation simple & intuitive
  • Wide 1.41 oz – 8.81 oz portion range covers rolls, buns, pizza dough, & more
  • Heavy-duty painted steel cabinet withstands daily industrial use
  • Compact 29.5 in × 29.5 in footprint fits easily into tight production lines
  • cETLus & ETL-Sanitation listed for electrical & food-safety compliance
  • Backed by Univex 1-year on-site parts & labor warranty

Performance & capacity

Pieces per cycle 80
Cycle time ≈ 7 seconds
Hourly output Up to 6,000 pieces
Weight range 1.41 oz – 8.81 oz  (40 g – 250 g)
Press style Square grid  |  Individual cavity: 3.1 in × 3.1 in (8 cm)

Specifications

Overall dimensions (H × W × D) 57 in × 29.5 in × 29.5 in (144.8 cm × 74.9 cm × 74.9 cm)
Net / Shipping weight 507.1 lb / 532 lb (230 kg / 241.3 kg)
Construction Painted steel cabinet with locking casters
Standard voltage 208 – 240 V, 3-Phase, 1.01 HP (0.75 kW), 3.77 A  |  NEMA L-15-20P
Optional voltage 110 V, 1-Phase, 1.01 HP (0.75 kW), 12.00 A
Certifications cETLus, ETL-Sanitation
Warranty 1 year on-site parts & labor
Heads up: Production rates are based on average operator speed and a 7-second pressing cycle. Dough temperature, hydration, and recipe will affect final output.

Need more details? Download the full manual and spec sheet anytime at Univexcorp.com or reach our tech team at 800-258-6358.

Features & Specs

Manufacturer

Univex

Certifications

cETLus, ETL-Sanitation

Height

43.63in

Width

23.88in

Depth

27.88in

Shipping Weight

532.0lbs

No of Portions

80 pieces

Hourly Production

5001 - 7000 pieces per hr

Style

floor model

Power Type

semi-automatic

Specifications

Dough Divider, semi-automatic, square, 1.41 - 8.81 oz., 80 pieces/7 seconds (6000 pieces/hour), painted steel, cETLus, ETL-Sanitation
