Univex SQD60 Dough Dividers & Rounders
Description

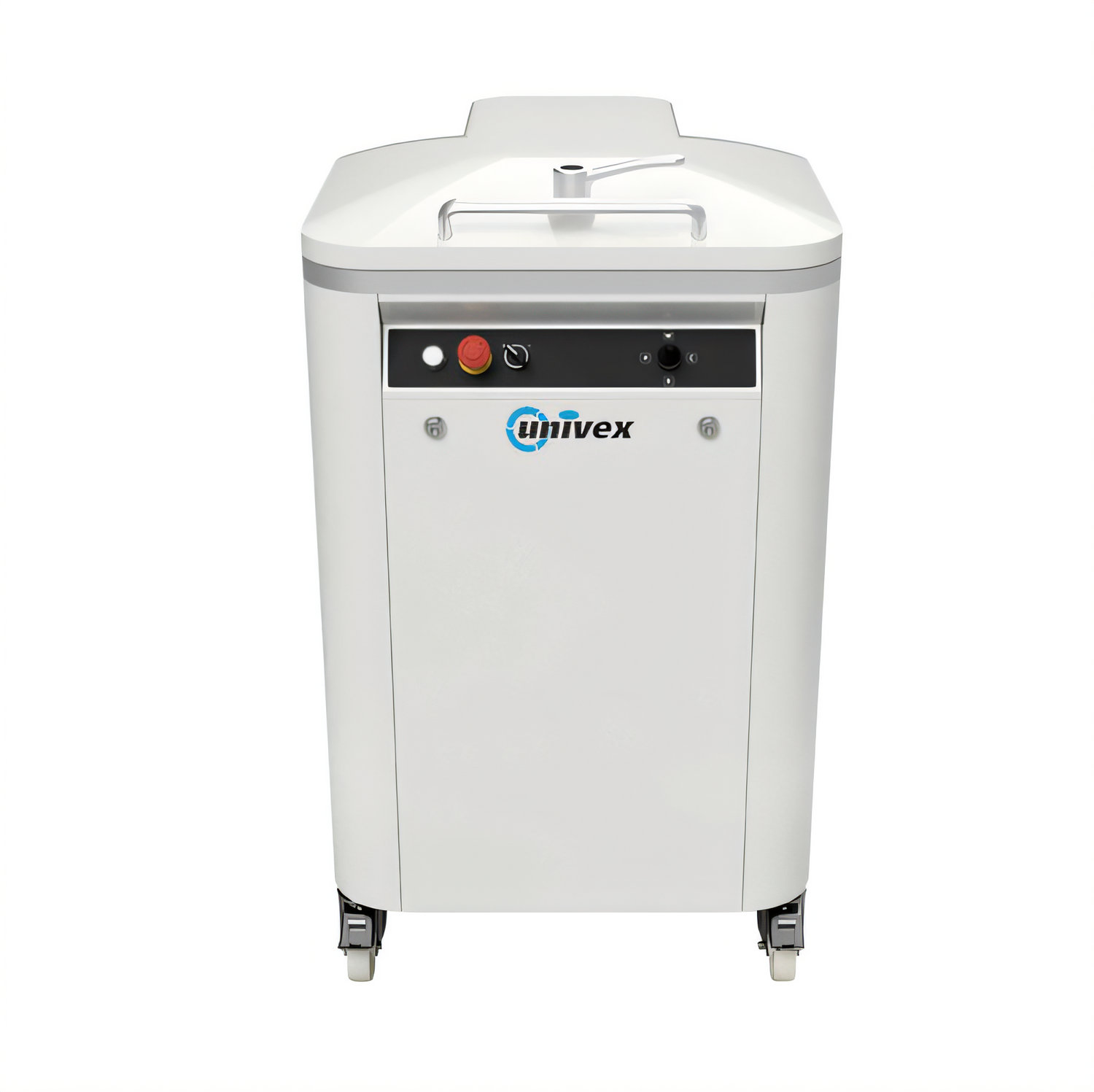

Univex SQD60 Semi-Automatic Square Dough Divider
60 pieces in 7 seconds • 1.76 – 11.64 oz (50 – 330 g)Boost output without sacrificing accuracy. The Univex SQD60 divides bulk dough into perfect, evenly-weighted squares—up to 4,500 portions every hour—making it the powerhouse of choice for high-volume bakeries, pizza commissaries, and food-service operations that demand precision and speed.
Key Benefits

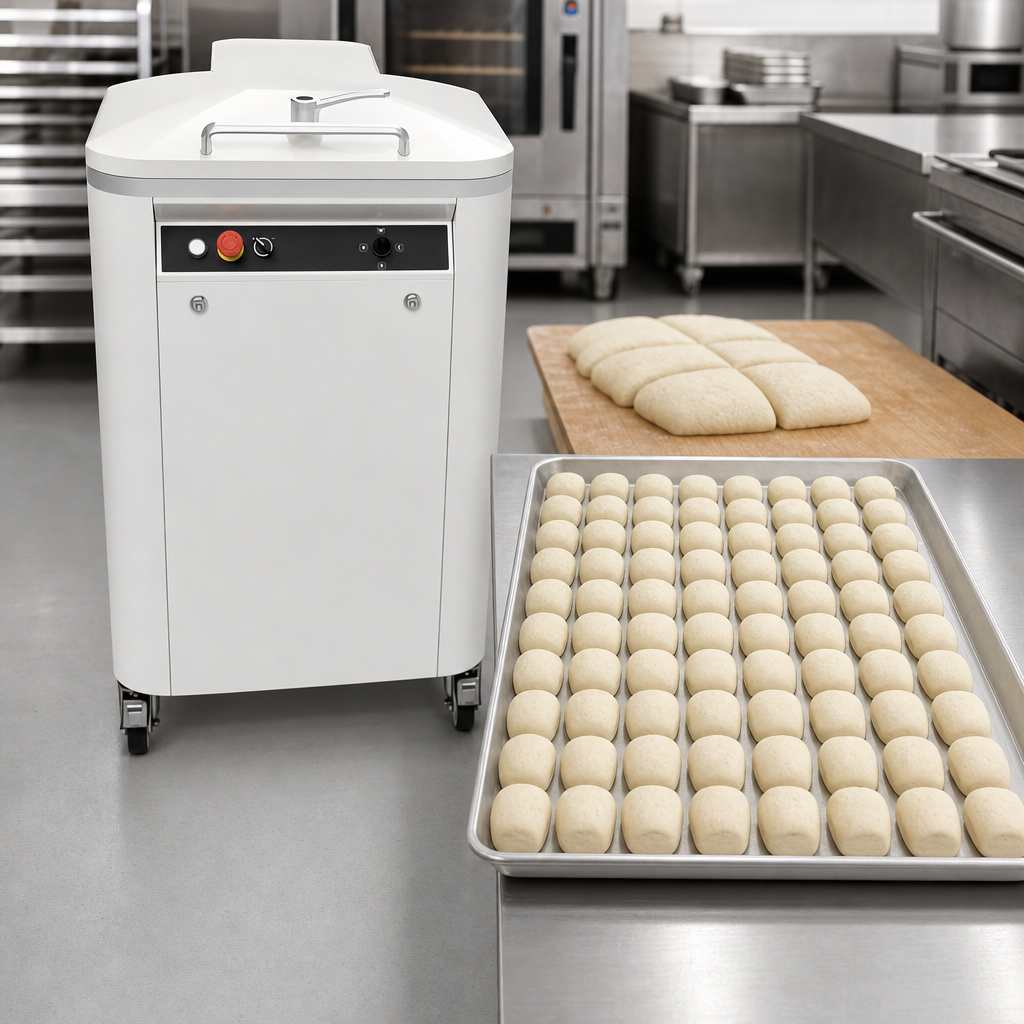

- Simultaneously produces 60 uniform pieces for flawless portion control.

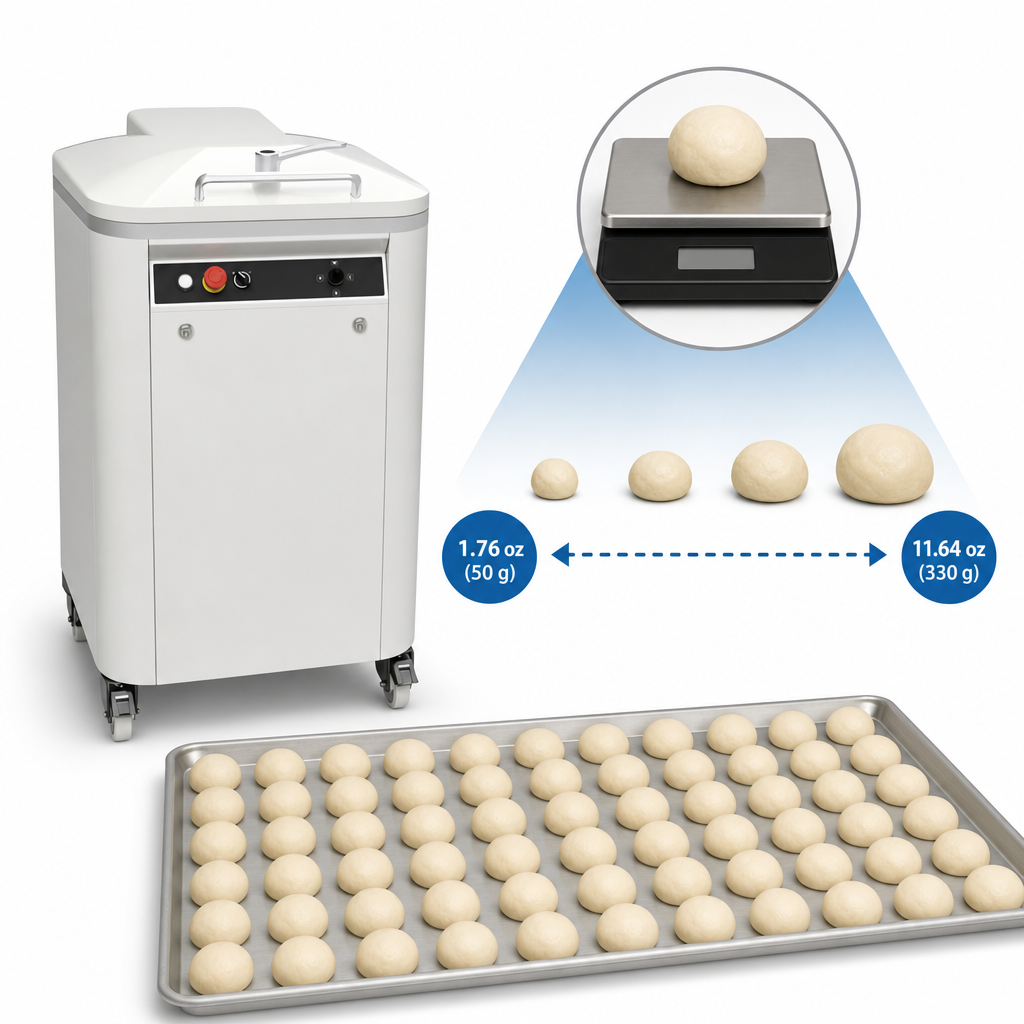

- Wide 1.76 oz–11.64 oz portion range covers rolls, pizza, flatbreads & more.
- Fast 7-second press → cut cycle equals roughly 4,500 pieces per hour.
- Semi-automatic push-button operation reduces operator fatigue.
- Heavy-duty painted-steel cabinet built for continuous, industrial use.
- Space-saving square grid maximises sheet-pan and proofer capacity.
- Mounted on locking casters for effortless cleaning and repositioning.
- cETLus & ETL-Sanitation listed—meets stringent electrical and food-safety codes.
Perfect For
- Artisan & industrial bakeries
- Pizza production facilities & ghost kitchens
- Hotels, hospitals, schools & large caterers
- Tortilla, pita & flatbread manufacturers
- Any operation needing consistent, high-volume dough portions
Certifications & Warranty
- cETLus electrical safety
- ETL-Sanitation (ANSI/NSF compliant)
- 1-year on-site parts & labor warranty from Univex
Technical Specifications
| Model | SQD60 |
|---|---|
| Operation | Semi-automatic square dough divider |
| Dough weight per piece | 1.76 oz – 11.64 oz (50 g – 330 g) |
| Pieces per cycle | 60 |
| Cycle time | ≈ 7 seconds |
| Maximum output | ≈ 4,500 pieces/hour |
| Piece shape | Square (press grid 3.14" × 1.65") |
| Construction | Painted steel cabinet, food-grade press plates |
| Standard voltage | 208–240 V / 60 Hz / 3-phase |
| Optional voltage | 110 V / 60 Hz / 1-phase |
| Horsepower | 1 hp (0.75 kW) |
| Amps | 3.77 A (208–240 V) | 12 A (110 V) |
| NEMA plug | L-15-20P (standard configuration) |
| Overall dimensions (H × W × D) | 57" × 29.5" × 29.5" (144.8 cm × 74.9 cm × 74.9 cm) |
| Net weight | 507 lb (230 kg) |
| Shipping weight | 532 lb (241 kg) |
Capacity figures are based on manufacturer testing with a complete 45-second start-to-finish cycle and may vary with dough condition and operator technique. Single-phase installation? Choose the 110 V option or contact our team for guidance.
