Univex SQD48 Dough Dividers & Rounders
$13,874.40
Unit price
/
Unavailable
Description

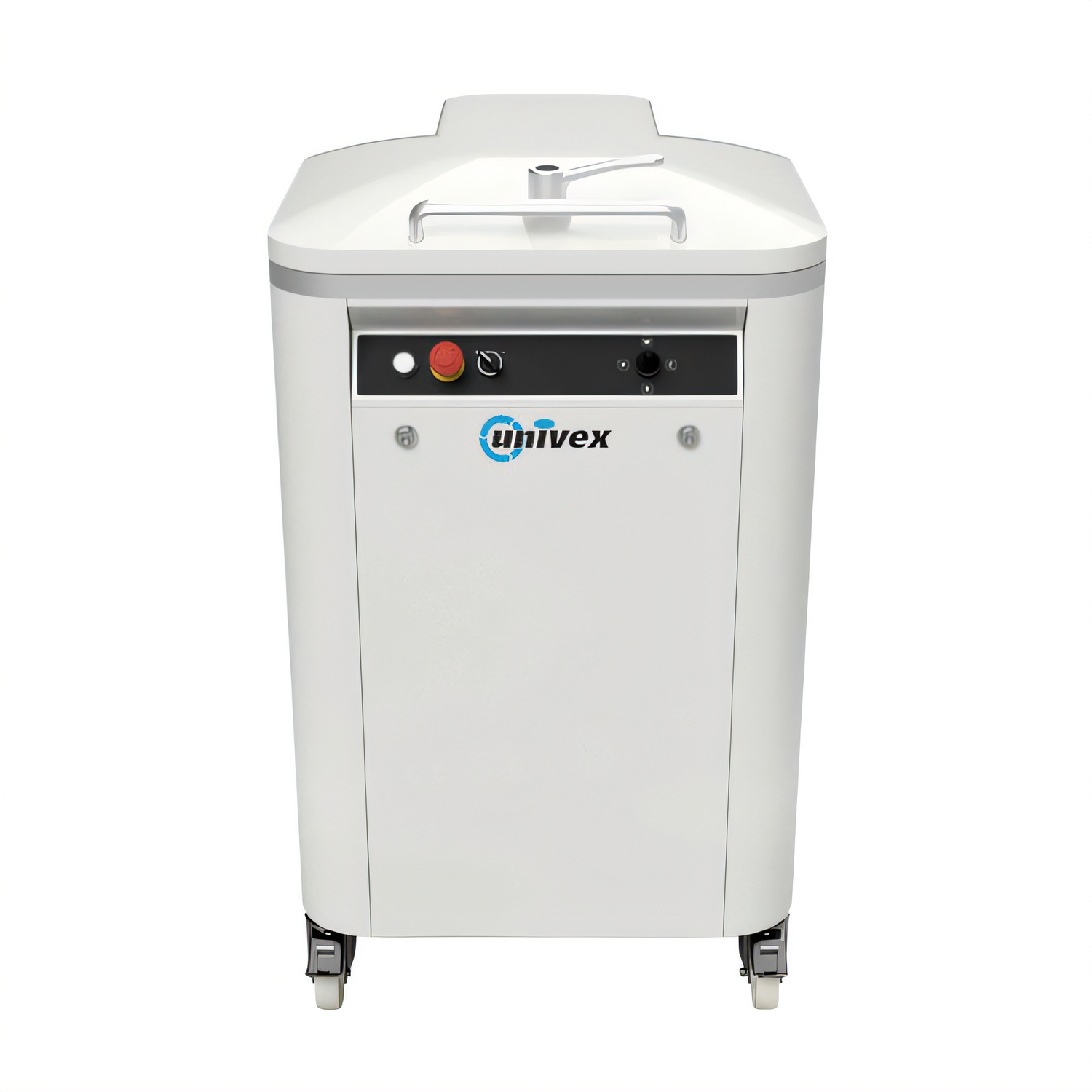

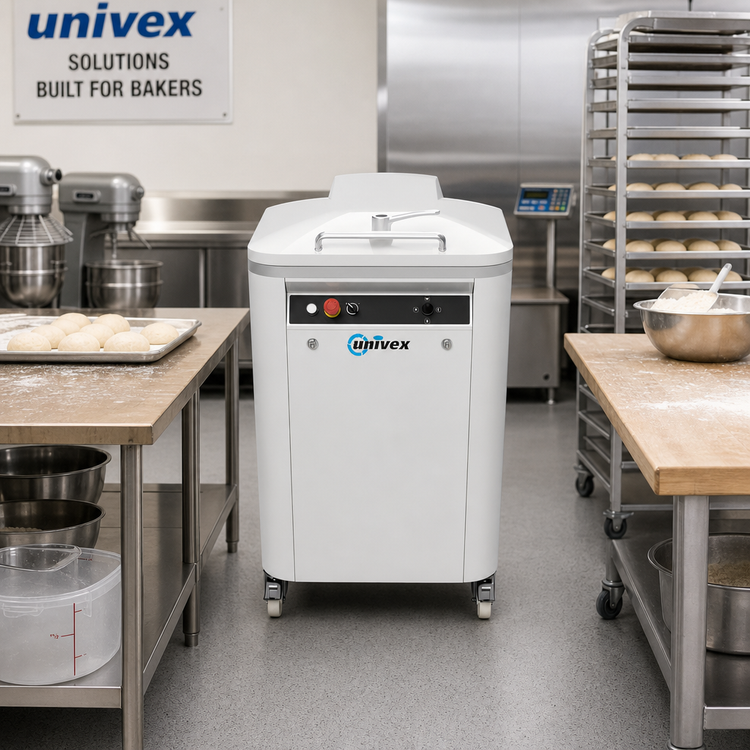

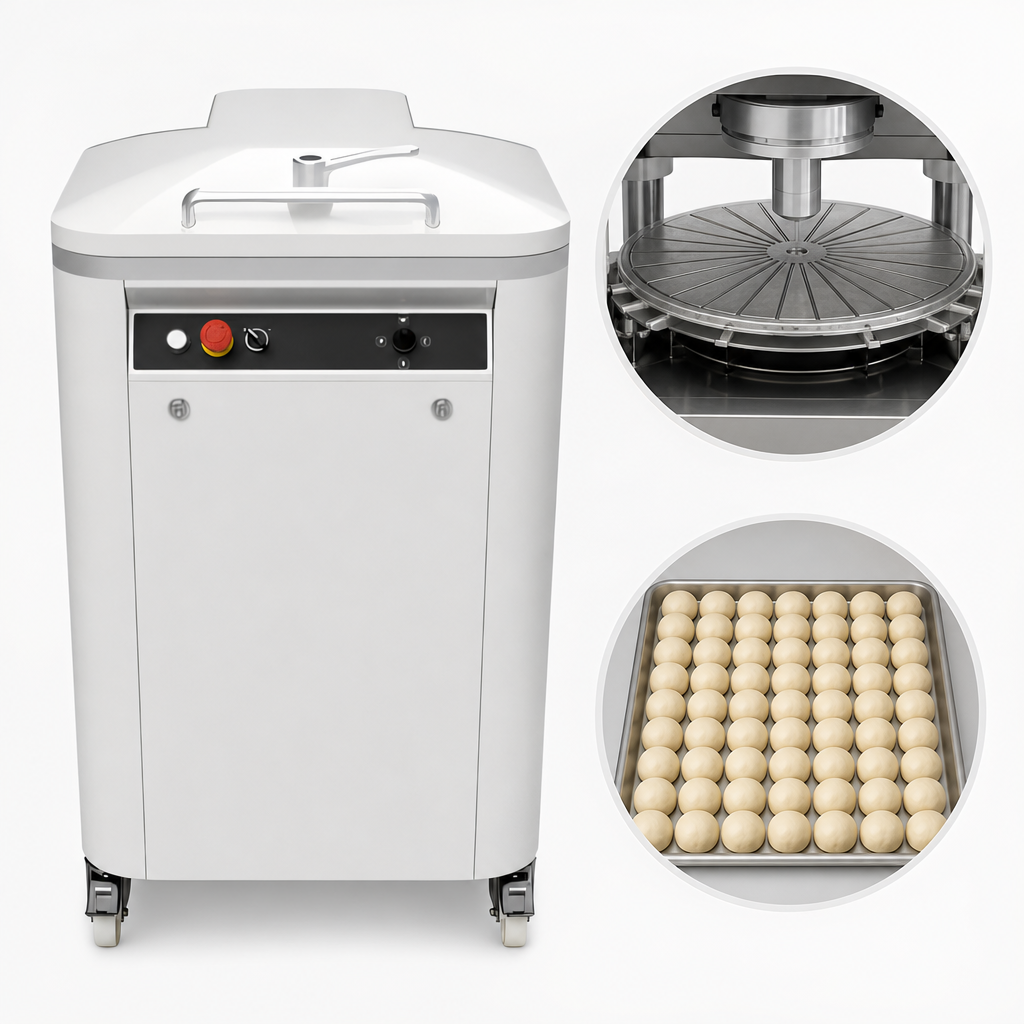

Univex SQD48 Semi-Automatic Square Dough Divider
48-portion divider | 2.11–14.1 oz (60–400 g) pieces | Up to 3,600 pcs/hrAchieve flawless portion control at production speeds that keep your bakery or pizzeria ahead of demand. The Univex SQD48 delivers 48 perfectly uniform square dough pieces in a single cycle—taking the hard work and inconsistency out of hand-cutting.
Key advantages
- Lightning-fast: divides 48 pieces in ~7 seconds; up to 75 cycles (3,600 pieces) per hour.
- Precision range: adjustable portion sizes from 2.11 oz to 14.1 oz (60 g – 400 g).
- Uniform square grid: 1.9" × 3.14" (4.8 cm × 7.97 cm) cavities ensure consistent baking and proofing.

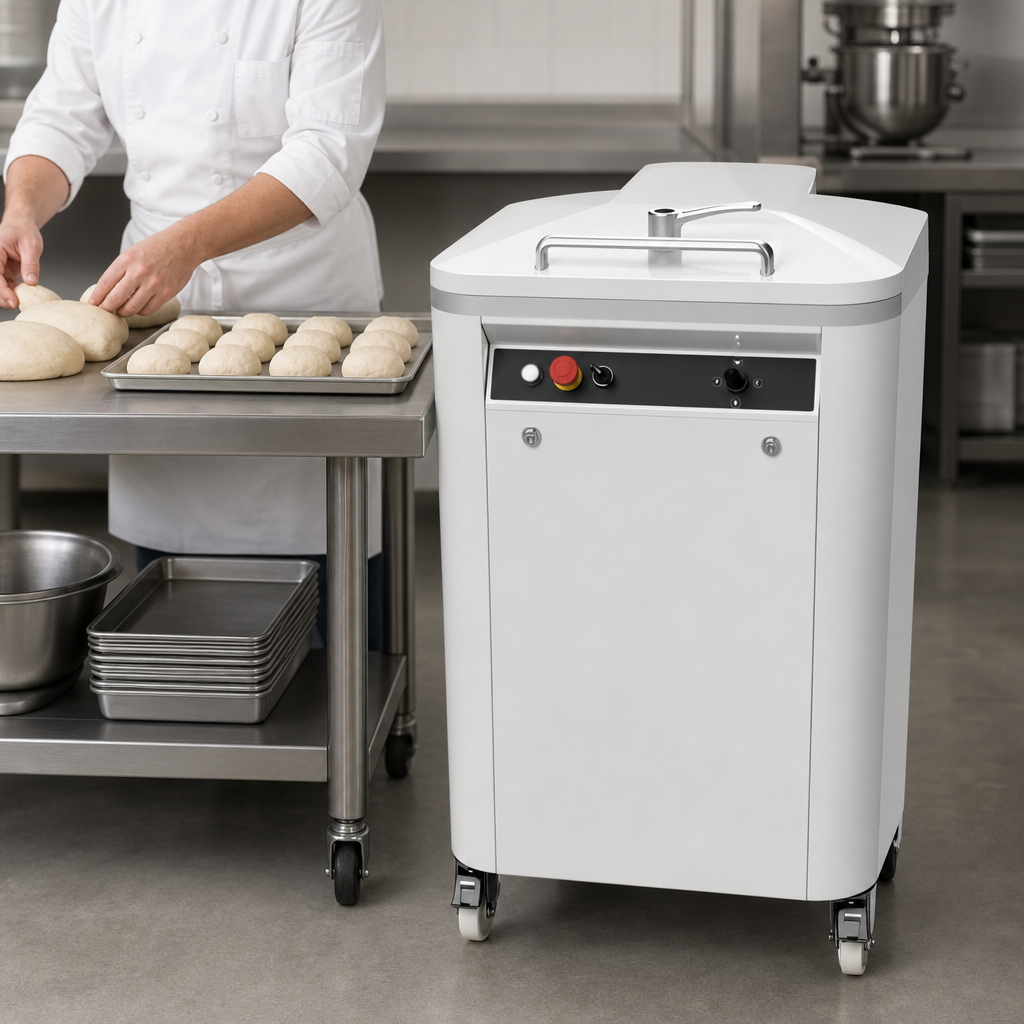

- Semi-automatic push-button panel keeps operation simple and training minimal.
- Industrial construction: painted-steel housing, heavy-duty drivetrain and food-safe components.
- Space-saving footprint: just 27 7⁄8" W × 23 7⁄8" D; lockable casters for easy cleaning access.
- Certified & safe: cETLus and ETL-Sanitation listings for electrical and hygiene compliance.
Ideal for
- Artisan bakeries producing ciabatta, focaccia, brioche, donut or pan loaf doughs
- Pizzerias portioning dough for Roman-style or sheet-pan pizza
- Cafeterias, commissaries and central kitchens demanding tight portion control
Technical specifications
| Portions per cycle | 48 |
|---|---|
| Portion size range | 2.11 oz – 14.1 oz (60 g – 400 g) |
| Cycle time | ≈ 7 seconds (≈ 45 seconds including loading & unloading) |
| Hourly output | Up to 3,600 pieces |
| Shape / grid size | Square, 1.9" × 3.14" (4.8 cm × 7.97 cm) |
| Construction | Painted steel cabinet; food-grade contact surfaces |
| Controls | Semi-automatic push-button panel |
| Power (standard) | 208–240 V / 3-phase / 1.01 hp (0.75 kW) / 3.77 A |
| Power (optional) | 110 V / 1-phase / 12 A |
| NEMA plug | L-15-20P (standard) |
| Product dimensions (W×D×H) | 27 7⁄8" × 23 7⁄8" × 43 5⁄8" (70.6 cm × 60.5 cm × 110.7 cm) |
| Shipping dimensions | 29.5" × 29.5" × 57" (74.9 cm × 74.9 cm × 144.8 cm) |
| Net / shipping weight | 507 lb / 532 lb (230 kg / 241 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year on-site parts & labor |
Need a different voltage? Ask our team about the factory-installed 110 V single-phase option.
Important: Follow Univex installation and cleaning guidelines.
Improper voltage or pressure-washing can damage electrical components and void your warranty.
Features & Specs
Features & Specs
Manufacturer
Univex
Certifications
cETLus, ETL-Sanitation
Height
43.63in
Width
23.88in
Depth
27.88in
Shipping Weight
532.0lbs
Power Type
semi-automatic
Hourly Production
3001 - 5000 pieces per hr
Style
floor model
Specifications
Dough Divider, semi-automatic, square, 2.11 - 14.1 oz., 48 pieces/7 seconds (3600 pieces/hour), painted steel, cETLus, ETL-Sanitation
