Univex SQD40 Dough Dividers & Rounders
Description

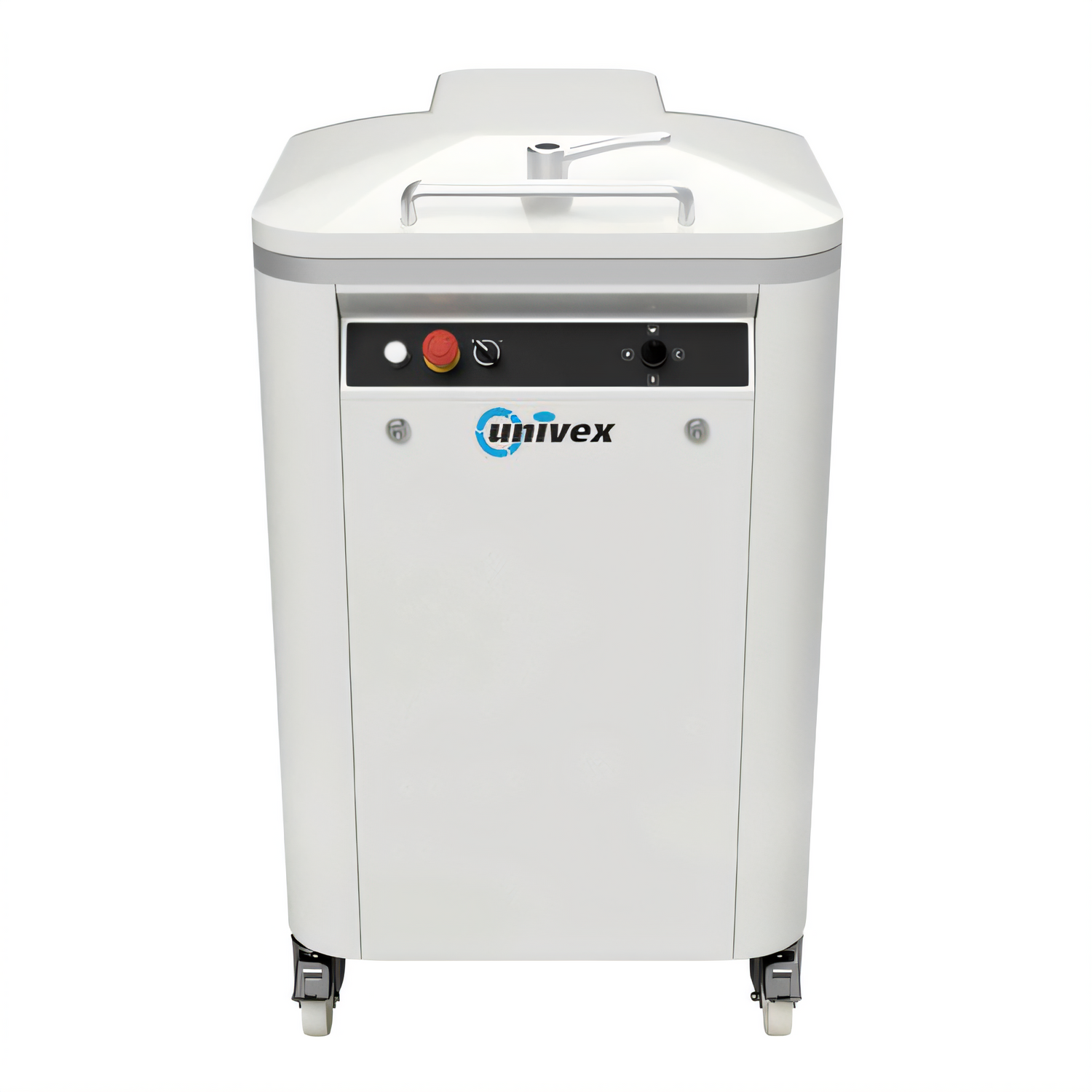

Univex SQD40 Semi-Automatic Square Dough Divider
40-portion divider | 2.82 – 17.6 oz (80 – 500 g) per pieceSpeed up your dough-room workflow with the Univex SQD40. Built for medium-to-high-volume bakeries and commissaries, this painted-steel workhorse divides a full batch into forty perfectly weighted squares in just seven seconds—up to 3,000 pieces per hour— delivering unmatched consistency and labor savings shift after shift.
Why you’ll love it

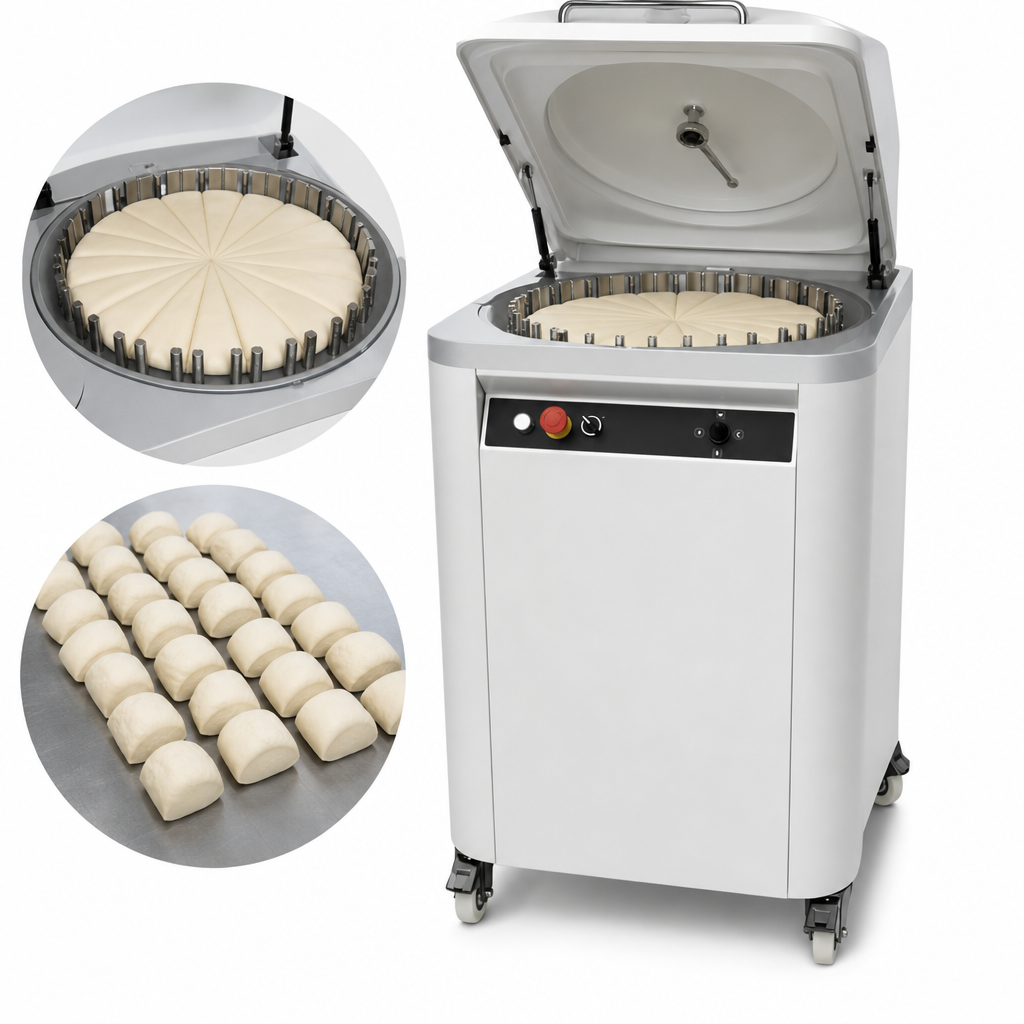

- Consistent portions – 40 equal pieces every cycle for uniform proofing & baking

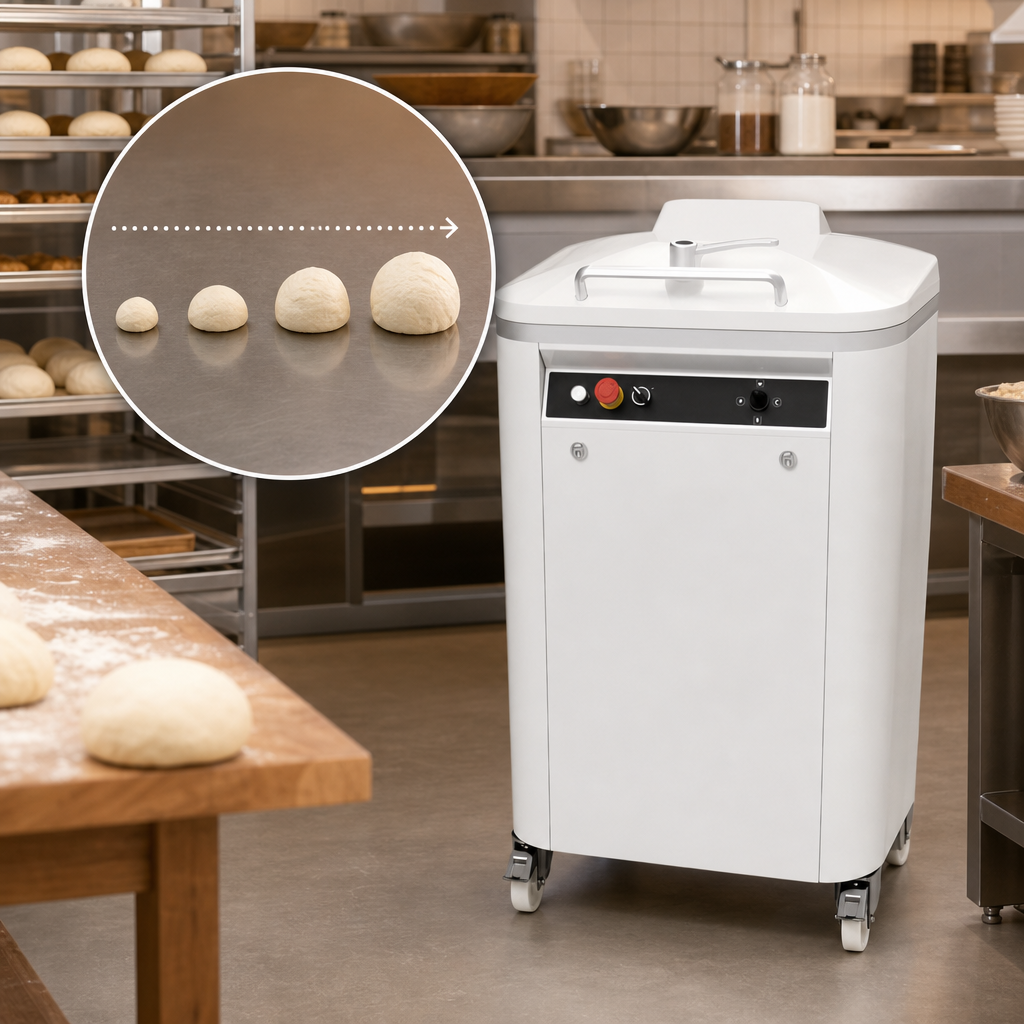

- Wide weight range – handles 2.82 oz to 17.6 oz (80 g – 500 g) dough pieces
- Lightning-fast cycles – 7-second divide time equals 3,000 pieces per hour*
- Semi-automatic controls – simple push-button operation limits training time
- Industrial build – rugged painted-steel cabinet & heavy-duty drivetrain
- Food-safe design – cETLus & ETL-Sanitation certified
- Peace of mind – backed by Univex’s 1-year on-site parts & labor warranty
Technical specifications
| Model | SQD40 (Square) |
|---|---|
| Portion size range | 2.82 – 17.6 oz / 80 – 500 g |
| Pieces per cycle | 40 |
| Cycle time | ≈7 sec |
| Hourly capacity | Up to 3,000 pieces* |
| Press dimensions | 1.9 × 3.9 in (4.8 × 10 cm) |
| Construction | Painted steel cabinet & frame |
| Certifications | cETLus, ETL-Sanitation |
| Standard electrical | 208-240 V / 3-ph / 0.75 kW / 3.77 A (NEMA L-15-20P) |
| Optional electrical | 110 V / 1-ph / 0.75 kW / 12 A |
| Overall dimensions | 29.5 W × 29.5 D × 57 H in (75 × 75 × 145 cm) |
| Net / ship weight | 507 lb / 532 lb (230 kg / 241 kg) |
| Warranty | 1-year on-site parts & labor |
Perfect for
- Artisan & commercial bakeries
- Pizza commissaries & ghost kitchens
- Cafeterias, hotels & institutional kitchens
- Anyone needing fast, accurate dough portioning
*Production estimate is based on a 45-second start-to-finish cycle time, including loading and unloading.
